- Page 1 HA400 User's Manual Network 4 Zone Amplifier 4 Zone Spotify AirPlay Multi-Room Internet Radio...
-
Page 2: Table Of Contents
3. What's in The Box ..........................2 3.1 Font Panel ............................3 3.2 Back Panel ............................3 3.3 Side Panel ............................4 4. Placing Your HA400..........................4 5. Zone Connection .............................5 5.1 Connect Your Speakers ........................5 5.2 Connect to External Amplifier or AV Receiver ...................6 5.3 Connect to External Subwoofer ......................6... -
Page 3: Introduction
You may experience performance issues with slower internet connections. Wireless Router: In order to use HA400, you will need to have a working Wi-Fi network in your home, since the control APP on your mobile device need to be in the same network as the streamer. -
Page 4: What's In The Box
3. What's in The Box HA400 User‘s Manual Rack Mount Brackets x2 Power Cable... -
Page 5: Font Panel

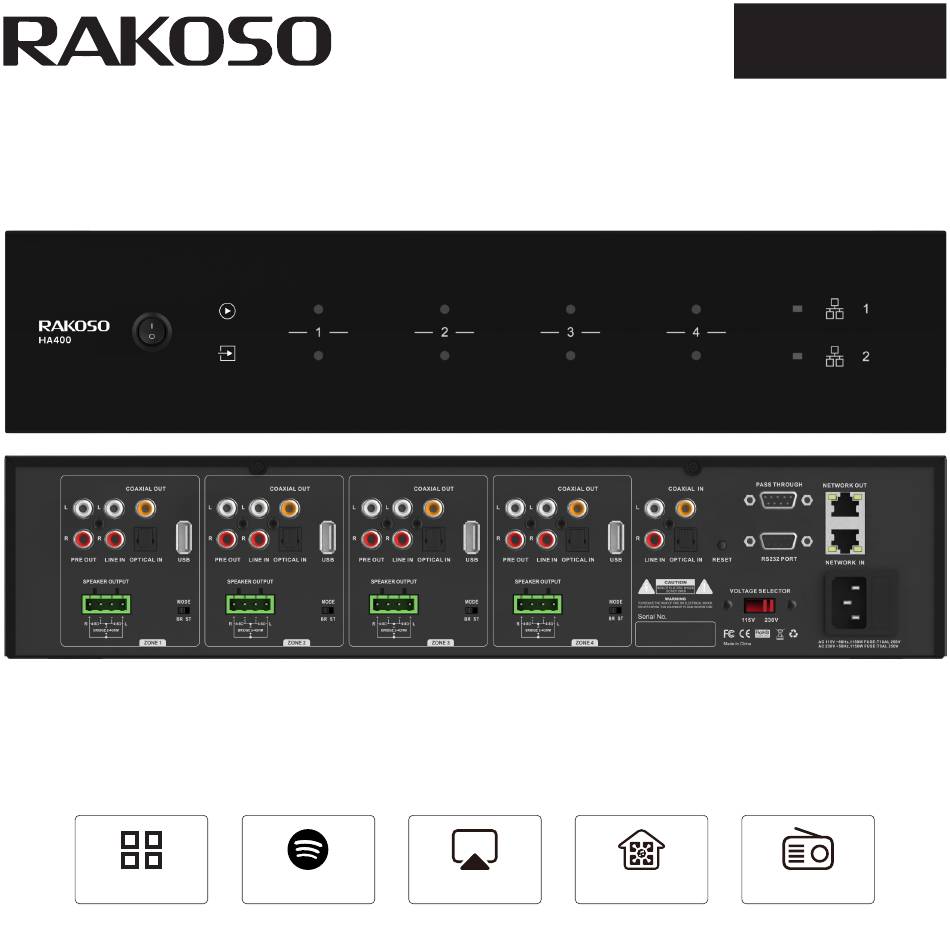

3.1 Font Panel Power Button Streaming Indicator – LED on when streaming. Input Source Indicator – LED Color: White for Network Audio, Green for Line in 1 (Zone Line in), Yellow for Line in 2 (Master Line in), Magenta for Master Optical in, Cyan for Master Coaxial in, Red for USB. Network Indicators –... -
Page 6: Side Panel
4. Placing your HA400 HA400 size is standard 2U size, you can easily install into an equipment rack. Attached the included rack mounting brackets on each side of HA400 if you want to mount it on to a standard EIA equipment rack. -
Page 7: Zone Connection
5. Zone Connection You can play the same audio source in all four zone at the same time, you can also play different audio sources in different zones. ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 1 ZONE 2 ZONE 3 ZONE 4 5.1 Connect Your Speakers... -
Page 8: Connect To External Amplifier Or Av Receiver
5.2 Connect to External Amplifier or AV Receiver Connect the LINE OUT output to the input on your amplifier or AV receiver using the appropriate cable. HA400 supports both analog output (RCA) and digital output (Coaxial). Your amplifier or 5.3 Connect to External Subwoofer AV receiver Connect the LINE OUT “L”... -
Page 9: Connect To Usb Storage Device
5.4 Connect to USB Storage Device To play music stored in a USB storage device, just plugin a USB storage device containing music files to the USB port of the Zone you want to play with. Memory Device 5.5 Connect to Audio Playback Device Connect the LINE IN, OPTICAL IN in each zone or LINE IN, COAXIAL IN, OPTICAL IN in the master input area to an audio playback device, it can be a CD player, portable music player or any device with audio output using the same connector. -
Page 10: Rs232 Serial Port
Through port to connect to another HA400 for group control. 5.7 Connect to Network Connect HA400 to your home router using a LAN cable to add it into your home network. You can use the NETWORK OUT port to connect another device to the same network. -
Page 11: Download 4Stream App
You can download 4Stream App for iOS or Android by searching “4Stream” in App Store or Google Play. 4STREAM 7. Using HA400 Once you have connected your HA400 to your network and install 4Stream app in your mobile device, you can start playing music to different rooms. You can listen to different music in different room or the same music in all rooms in sync. -
Page 12: Play Same Music To Multiple Rooms
7.2 Play Same Music to Multiple Rooms You can play the same music to multiple rooms simultaneously by adding other devices to form a group by pressing the “ ” icon beside the device. This device will be the master device, the music stream to the master device will also playback on other devices in the same group. -
Page 13: Listen To Online Music
Qplay in QQ music application setting and then find the device in Qplay list 7.7 Listen to Local Music HA400 can stream local music stored in your mobile phone, USB storage drive, NAS using DLNA protocol, PC software like itunes, or UPnP/DLNA 3rd party software. -
Page 14: Music Playlist
7.8 Music Playlist You can create music playlist and add local music to the list for streaming. 7.9 Play Music From Line In - Connect an external audio source to line-in port using RCA cable. - Choose line in mode in the 4Stream application to switch to line in mode. -
Page 15: Device Settings
7.13 Device Settings Rename: You can rename each zone to different name to fit your needs. Speaker Info: You will see the device information like device’s IP address, Device name, Firmware Version and Restore Factory Default. Alarm Clock: Setup music alarm clock, music can choose from Preset list, internet radio, iHeartRadio, Napster, Tidal, Spotify, Deezer and NAS. -
Page 16: Firmware Update
8. Firmware Update Whenever a new firmware is available, you will be notified by a "new" icon. Click on the "new" icon to begin firmware update, it will take couple minutes. It is recommended to update firmware when it is available, it might not only correct bugs or improve performance, but also might add new features or services. -
Page 17: Fcc
FCC Statement: Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Faq
Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third-party apps like MusicBee, Foobar2000. Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal. - Page 20 The information contained in this guide is believed to be accurate and reliable. RAKOSO assumes no responsibility for any errors contained in this guide. RAKOSO reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed.
