Introduction
This class D digital amplifier is of great performance and especially designed to meet the high
demand of the installation market. This power amplifier can drive and make your traditional
passive speaker smart. With the free iOS and Android applications you can easily control your
smart audio system. You can stream the same music to all zones or different music to different
zones, no matter the music from the local storage like cell phone memory, NAS, USB flash disk
and hard disk or online streaming services such as Spotify, Tidal, TuneIn, iHeartRadio, Napster
and so on.
Contents

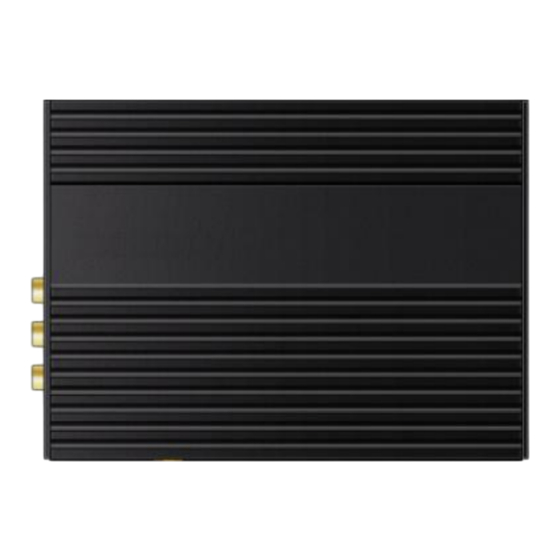

SA100 x1
Power supply x1
RCA cable x2
Antennas x2
QSG x1

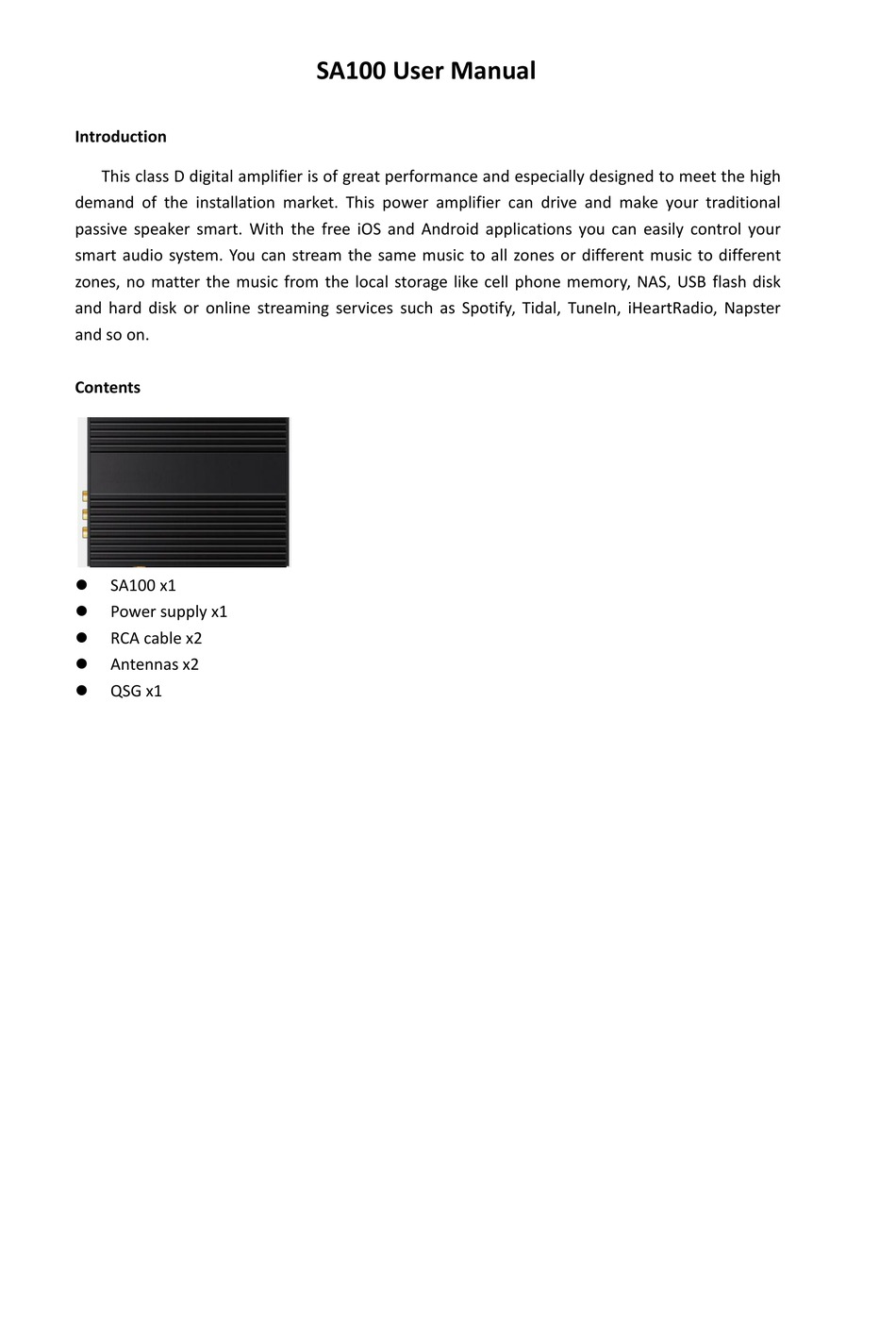

SA100 User Manual
Advertisement
Related Manuals for Rakoso SA100
Summary of Contents for Rakoso SA100
- Page 1 SA100 User Manual Introduction This class D digital amplifier is of great performance and especially designed to meet the high demand of the installation market. This power amplifier can drive and make your traditional passive speaker smart. With the free iOS and Android applications you can easily control your smart audio system.
- Page 2 Interface and Functions WiFi Antenna: Used for WiFi connection Reset: Used to reset the device if you have a problem with your WiFi connection Subwoofer out: Used to connect to an active subwoofer Network connection: RJ45 used to connect to a wired Ethernet network Line input: Analog input used to connect audio devices via an RCA cable Optical: Used to provide digital input from a 2.1 optical equipped device USB input: Used to connect local storage devices...
-
Page 3: Download The App
Fix the amplifier at a safe and proper location. An integrated mounting bracket allows mounting to a wall or surface, but we suggest making sure you complete all installation steps before permanently mounting. 3. Connect Speaker Wiring Diagrams (SA100 can handle speakers from 4-16ohms impedance) Speaker Wire Connection phoenix noting positive and... - Page 4 5. Configure Option 1- Configuration via app -Connect your mobile devices to your network. -Open the application> press Add Device(+)>choose settings> choose the SoundSystem_xxxx hotspot> after connected, press the ‘turn back’ on your WLAN settings> the app will jump to the configuration step>choose the 2.4G network and enter the password>wait for the device to be configured.
- Page 5 Option 2- Configuration via Web console -1. Power the device. -2. Choose the hotspot(SoundSystem_xxxx) in the WiFi setting on your cell phone or computer and connect to it. -3. Open the browser and enter 10.10.10.254 -4. Go for WiFi>choose you 2.4G router>enter the password> click connect> wait for the device to be configured.
- Page 6 App Photo Gallery: Your Device List will show all available zones. Press a zone to see the Playback information on the current source. While on the view for the source, swipe right to reveal the available sources. From there, you can select what source you want to hear next, or swipe left to return to the currently playing source.
- Page 7 Streaming from Cell phone memory/NAS/Online Music Services These screens let you access your available music, whether it be hard files on your network or connected to your a-live hardware, or what streaming options you’ve selected to be available. Device Settings: Through device settings you can set an alarm clock or sleep timer, get technical information on your speaker, or rename it.
- Page 8 Firmware update RAKOSO will notify you in your app when there is a new firmware version available. It’s recommended to update firmware whenever available as this might not only correct bugs or improve security, but could also add new features or services.
- Page 9 Foobar2000 and Spotify connect as a line input. @Copyright 2018 by RAKOSO. All Rights Reserved. The information contained in this guide is believed to be accurate and reliable. RAKOSO assumes no responsibility for any errors contained in this guide. RAKOSO reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice.
