Hotwire
6371 RADSL Router
Installation Instructions
Document Number 6371-A2-GN10-40
September 2001
Contents
...................................................................................................... 14

Hotwire 6371 RADSL Router Overview

®
The Hotwire

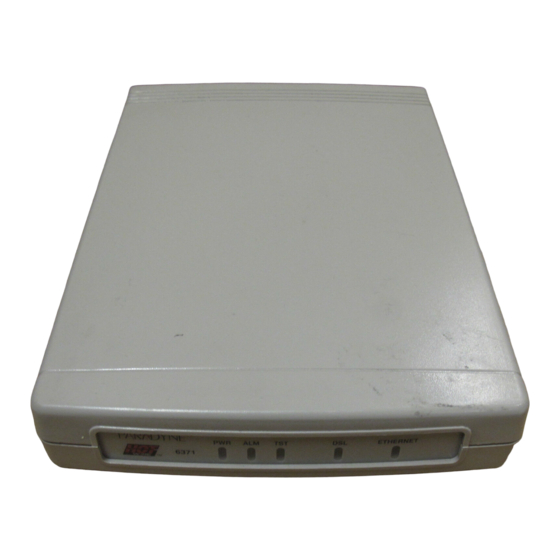

6371 RADSL (Rate Adaptive Digital Subscriber Line) Router is a
component in the Hotwire DSL Access system, which interoperates with Hotwire 8373,
8374, and 8510 RADSL line cards in the DSLAM (Digital Subscriber Line Access
Multiplexer) system.
The router operates as an IP router, connecting a DSL link to an Ethernet network to
provide high-speed Internet or corporate LAN access over traditional twisted-pair copper
telephone wiring. Copper pairs run from the central office to the customer premises to
create the local loop. The local loop terminates on the customer premises at the
demarcation point in a punchdown block or network interface device (NID).
..............................................................................................
........................................................................
............................................................................................. 15
...................................................................................... 16
................................................................................ 17
............................................................................... 20
........................................................................ 23
........................................................................... 24
........................................................
.....................................................................
..........................................................
...................................................
....................................................... 22
1
...................................... 28
1
4
5
6
8
9

Advertisement

Table of Contents
loading

Related Manuals for Paradyne Hotwire 6371

Summary of Contents for Paradyne Hotwire 6371

  • Page 1: Table Of Contents

    Hotwire 6371 RADSL Router Overview ® The Hotwire 6371 RADSL (Rate Adaptive Digital Subscriber Line) Router is a component in the Hotwire DSL Access system, which interoperates with Hotwire 8373, 8374, and 8510 RADSL line cards in the DSLAM (Digital Subscriber Line Access Multiplexer) system.
  • Page 2 DSL signal and allow POTS frequencies to pass through. At the customer premises, the DSL router and a telephone can function simultaneously over the same pair of copper wires when a POTS splitter is installed near the demarcation point for all telephones on the same POTS line as DSL.
  • Page 3 DSL Access without a POTS Splitter When the router is installed without a POTS splitter, the DSL line is used for data only; it does not provide telephone services. Demarcation Point Central Office (CO) Local Loop Service Provider Punchdown Block or NID DSL –...

  • Page 4: Product Documentation Online

    There are two Hotwire phone filters that can be used with the RADSL Router: Hotwire 6035 Universal Phone Filter is designed for use with a tabletop phone. Hotwire 6040 Universal Wall Jack Phone Filter is designed for use with a wall phone.

  • Page 5: Getting Started

    Installing the Hotwire 6371 RADSL Router cables. Optional Console Cable and Adapter The Hotwire 6371 RADSL Router is typically configured remotely by the service provider. The following optional cable and adapters are only used to configure the router locally: Console cable: Straight-through cable with 8-pin non-keyed modular plugs (Part No.

  • Page 6: Installing Dsl Access Wiring

    Installing DSL Access Wiring The local loop terminates at the punchdown block or NID. Wiring must be connected from the customer premises side of the punchdown block or NID to an RJ11 jack. Typically, the punchdown block is installed in commercial locations and the NID is installed in residential locations.
  • Page 7 3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the NID or punchdown block. Attach the wiring that will be connected to the DSL jack. The following example shows a NID without a POTS splitter. It includes an existing POTS pair, and a second DSL pair is installed for DSL access.

  • Page 8: Connecting To The Dsl Access Wiring

    Connecting to the DSL Access Wiring The Hotwire 6371 RADSL Router connects to the local loop via wiring from the demarcation point to an RJ11 wall jack. The DSL twisted-pair wiring from the local loop terminates at a new or existing wall jack. It may be necessary to install a standard single RJ11 jack or replace a single jack with a double RJ11 jack.

  • Page 9: Installing The Hotwire 6371 Radsl Router

    Installing the Hotwire 6371 RADSL Router Place the RADSL router on a flat surface, with clearance for the rear connectors. For router cable pin assignments, refer to Connecting the DSL Line in a Home Environment (Phone and Router in the Same Location) For the DSL connection, use the supplied RJ11 6-pin cable.
  • Page 10 Connecting the DSL Line in All Other Environments Use the supplied RJ11 6-pin cable for the DSL connection. Procedure 1. Insert one end of the cable into the DSL jack on the router. 2. Insert the other end of the cable into the wall jack. Jack...

  • Page 11: Connecting The Ethernet Cable

    — Insert one end of the straight-through cable into the ETHERNET jack on the router and connect the other end to an Ethernet hub. Do not connect it to the hub’s optional Uplink connection; the Uplink connection requires an Ethernet crossover cable.
  • Page 12 VT100-compatible terminal or a PC running a terminal emulation program. It is an optional connection that is only used for local configuration of the router. To set up the VT100 terminal or PC for local configuration and to access the router, refer Configuration Setup Procedure 1.

  • Page 13: Connecting Power

    Connecting Power Procedure 1. Insert the supplied power cord’s round end into the POWER jack on the router. 2. Plug the transformer into an AC outlet. Power Jack 18 VDC 800 MA Transformer Installation of the hardware is now complete. When the power cord is installed, the router goes through a power-on self-test.

  • Page 14: Power-On

    Power-On When power is applied, the router performs self-diagnostics and the PWR LED is on. The self-diagnostics includes a power-on self-test. During the power-on self-test, all of the LEDs turn on for one second. Power – green Hotwire 6371 Rate Adaptive...

  • Page 15: Troubleshooting

    Troubleshooting LED Symptom All LEDs are on. ALM LED remains on. The power-on self-test may have failed. Unplug the router ALM and TST LEDs are blinking. DSL LED is off. DSL LED continues to blink after the power-on self-test. DSL LED is on, but no data is being transmitted.

  • Page 16: Configuration Setup

    32, 64, or 256 hosts (end-user systems). An Ethernet crossover cable is used when a single PC is connected to the router. To increase the number of PCs, connect all PCs to an Ethernet hub using a straight- through cable.

  • Page 17: Cables And Connectors

    Cables and Connectors This section is reference information. Use a CAT3, or better, cable for the DSL line. The DSL interface uses a 6-pin, non-keyed modular plug. RJ11 6-Pin Connector Pin # Function 1 & 2 Not used DSL Ring DSL Tip 5 &...
  • Page 18 Not used 10/100BaseT RX D– 7 & 8 Not used – or – — To connect the router to a PC with an Ethernet NIC card, use an Ethernet crossover cable. 8-Pin Ethernet Crossover Cable Function 10/100BaseT TX D+ 10/100BaseT TX D–...
  • Page 19 The Console connector uses 8-pin, non-keyed modular plugs and a DB9 adapter. RJ45 8-Pin Connector Pin # Circuit Not used 4 & 5 Signal Ground Not used 8-Pin Modular to DB9 Adapter Plug Modular Pin # Circuit 4 & 5 Signal Ground Direction Console Port...

  • Page 20: Optional Wall Placement

    Optional Wall Placement The Hotwire 6371 RADSL Router is designed for tabletop placement. The RADSL router can also be mounted on a wall. To mount the RADSL router, you will need: Three #6 pan-head screws with anchors (for example, molly bolts, plastic or lead...
  • Page 21 RADSL Router Hardware Template 5.43" Front (LEDs) 7.55" To Bottom Hole 98-16171...

  • Page 22: Radsl Router Technical Specifications

    RADSL Router Technical Specifications Item Height x Width x Depth With Feet Without Feet Weight External Power Supply Class 2 Transformer normal service input voltage range Unit Power Consumption Approvals FCC Part 15 CISPR 22 Safety Certifications Physical Environment Operating temperature...

  • Page 23: Important Safety Instructions

    Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered.

  • Page 24: Government Requirements

    (REN) for this equipment. The label is located on the bottom of your RTU. 2. The Hotwire 6371 RADSL Router connects to the Public Switched Telephone Network (PSTN) using the Universal Service Order Code (USOC) RJ11C or RJ14C.
  • Page 25 — Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. — Telephone: Call our automated system to receive current information via fax or to speak with a company representative. Within the U.S.A., call 1-800-870-2221 Outside the U.S.A., call 1-727-530-2340 If the trouble is causing harm to the telephone network, the telephone company may request that you remove the equipment from the network until the problem is resolved.

  • Page 26: Declaration Of Conformity

    Trade Name: Hotwire Model Number: 6371-A1-200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 27 Japan – Notices This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

  • Page 28: Warranty, Sales, Service, And Training Information

    Hotwire is a registered trademark of Paradyne Corporation. All other products and services mentioned herein are the trademarks, service marks, registered trademarks, or registered service marks of their respective owners.   "   Copyright © 2001 Paradyne Corporation. Printed in U.S.A. *6371-A2-GN10-40*...
