Ciarion Co., Ltd.
Published by Service Dept.
298-5576-00 Dec.1996 P
Printed in Japan
e
€xport Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan
Tel: 03-3400-112t
Service Dept.- 50 kamitoda, Toda-shi,Saitama.335 Japan
Tet: 048-443-1111
FAX:048-433-6996

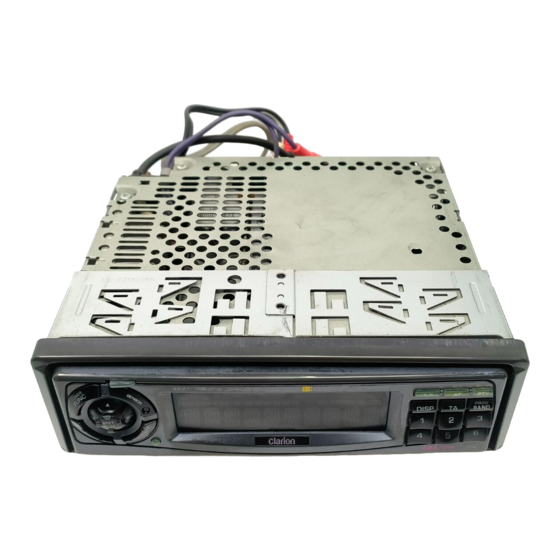

RDS-EON/FM-MPX/MW/LW Radio
Cassette Combination With
CD Changer Control
moder ARX73/70R
(PE-1542E-A/Black panel)
"—
modi ARX7370RW
(PE-1542E-B/Grained panel)
Dimensions
Main unit:
178(W) X50(H)
X152(D )mm
Remote control unit:40(W) X6.5(H) X86(D)nam
MSPECIFICATIONS
Radio section
Tuning system:
PLL synthesizer tuner
Receiving frequencies:
FM 87.5MHz to 108MHz
MW 531kHz to 1,602kHz
LW 153kHz to 279kHz
* Dolby noise reduction manufactured uncler license
from Dolby Laboratories Licensing Compo ration.
* "DOLBY" and the double-D symbol! are trademarks
of Dolby Laboratories Licensing Corporation.
%* Specifications and design are subject tc change with-
Tape deck section
out notice for further improvement.
Cassette type:
Compact audio cassette
Wow & flutter:
0.06%(WRMS)
Frequency response: 20Hz to 20kHz(Metal)
& COM P ON ENTS
Signal to noise ratio: Metal:58dB
PE-1542E-A / PE-1542E-B
Dolby B NR:67dB
Main unit
Dolby C NR:74dB
Remote controller
RCB-1 14-00
a a
cae
aa
Battery(CR2025BC)
—_——
General
Universal mounting bracket
300-96'7-00
- Max.power output:
4xX35W
DCP case
335-53) 1-00
Power supply voltage: 14V DC(10.8 to 15.6V allowable),
Outer escutcheon
negative ground
(ARX7370R)
370-568-011
1
Power consumption:
Less than 10A
(ARX7370RW)
370-56)8- 02
Speaker impedance:
40(40 to 8Q allowable)
Parts bag
——
Auto antenna rated current:
Hook plate
331-048-000
2
500mA or less
Cord clamp
335-083-001
1
Weight
Rubber cap
345-36)3-1
1
Main unit:
1.6kg
Screw
716-0716-01
1
Remote control unit:20g(including battery)
A-lead(for cellular phone)
850-66)1-00
1
ARK72370R/RW
