Clarion Co., Ltd.
:
:
Published by Service Dept.
@
Export Division - 22-3, Shibuya 2-chome, Shibuyaku. Tokyo, 150Japan
Tel: 03-3400-1121
298-5582-00 Feb.1997
P
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan Tel: 048-443-1111
FAX:048-433-6996
Printed in Japan

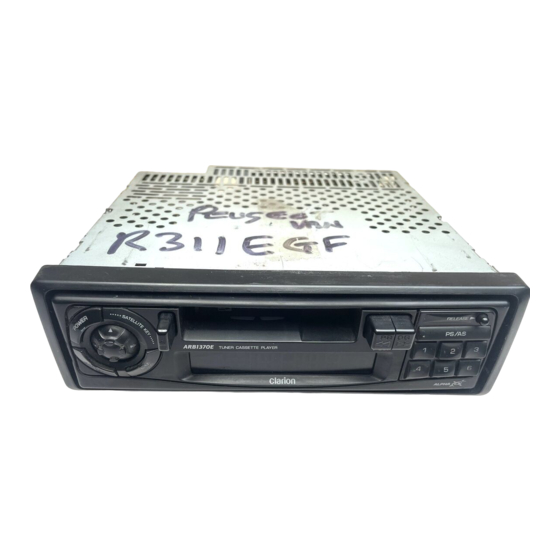

FM-MPX/MW/LW Radio Cassette
Combination
Model ARBI37 OE
(PE-1537E-A/Illumination:Amber)
(PE-1537E-B/Illumination:Green)
MISPECIFICATIONS
Radio section
Tuning system:
PLL synthesizer tuner
Weight:
1.3kg
Receiving frequencies:
FM:87.5 to
108MHz(0.05MHz
%* Specifications and design are subject to change with-
steps)
out notice for further improvement.
MW:531 to 1,602kHz(9kHz steps)
LW:153 to 279kHz(3kHz steps)
COMPONENTS
Cassette type:
Compact audio cassette
Main pil
eee
1
Playback system:
Auto reversing 4-track,2-channel
Mounting bracket
300-9677-00
:
stereo cassette tape playback
Parts bag
Pas
{
(monaural playback also possible)
Hook plate
331-0481-00
2
Frequency response: 30 to 15kHz+3dB
Spacet
345-3651-01
:
Wow & flutter(WRMS):
Screw
716-072-011
0.1%
S/N ratio:
120 » s(normal):53dB
Tape types:
Normal
|_| FEATU RES
1. Electronic Quartz-locked PLL tuning
General
2. 24 presets(18FM,6MW/LW)
Max.power output:
4xX30W
3. Preset scan(PS)
Effective power output(1%THD):
4. Auto store(AS)
4x14W
5. Double-gutter hard permailoy head
Power supply voltage:
6. High power 4X30W max.
DC 14V(10.8 to 15.6V allowable)
7. Electronic controls(Volume/bass/treHie/balance/
Auto antenna rated current:
fader)
0.5A or less
. Audio muting
Dimensions(mm):
178(W) X50(H) X 152(D)
9. Partially-detachable control panel
fee]
S42
