Model
Cordwood BTU's
Emissions (grams/hr) EPA Certified
Efficiency (EPA HHV)*
Efficiency (EPA LHV)
Flue Size
US Biomass Tax Rebate Eligible
Maximum Log Size
Firebox Size
Note: *US Biomass Tax Rebate eligibility is based on the HHV value
being greater than or equal to 75%.
DIMENSIONS WITH STANDARD FLUE ADAPTOR

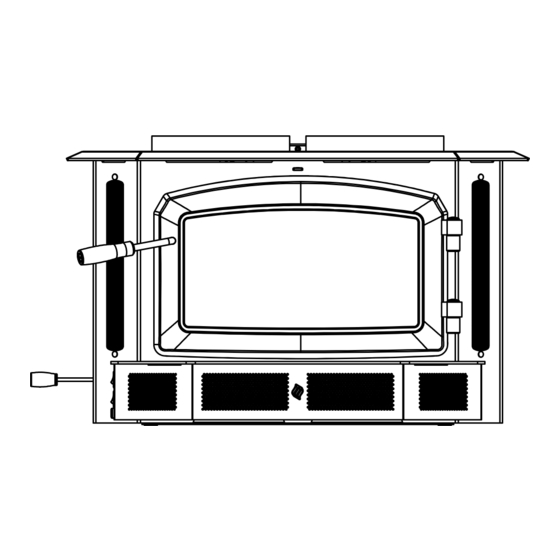

I2500-1 Cascades
i2500-1
83,000 BTU's
1.4 gram/hr
78.3%
84.7%
6" (152mm)
Yes
18" (457 mm)
2.3 cu.ft.
3
5
8 " 137mm
*
5
5
8 " 141mm
3
5
8 " 137mm
5
5
8 " 141mm
Wood Fireplace Insert
™
1
23
4 " 591mm
1
23
4 " 591mm
35" 890mm
1
31
8 " 792mm
35" 890mm
1
31
8 " 792mm
17" 433mm
*From back of faceplate (not shown) to fuel door
opening 7" (178mm)
17" 433mm
I2500-1 Cascades
6" (152 mm)
Wood Fireplace Insert |
®
1
Advertisement
Related Manuals for Regency Cascades I2500-1
Summary of Contents for Regency Cascades I2500-1
- Page 1 I2500-1 Cascades Wood Fireplace Insert ™ Model i2500-1 Cordwood BTU’s 83,000 BTU’s Emissions (grams/hr) EPA Certified 1.4 gram/hr Efficiency (EPA HHV)* 78.3% Efficiency (EPA LHV) 84.7% Flue Size 6" (152mm) US Biomass Tax Rebate Eligible Maximum Log Size 18” (457 mm) Firebox Size 2.3 cu.ft.
- Page 2 MASONRY FIREPLACE CLEARANCES The minimum required clearances to combustible materials when installed into a masonry fireplace are listed below. Unit Adjacent Mantle ** Side Minimum Minimum From Base From Side Of Side Wall (to Top of Facing Trim Facing Hearth Hearth Side of Unit To Unit...
- Page 3 WARNING: The room heater shall not be installed in a factory-built fireplace. Regency Inserts are designed to use either a 5.5" (140 mm) or 6" (152 mm) flue. BEFORE INSTALLING YOUR ULC628-2022 - Canada...
- Page 4 INSTALLING YOUR INSERT Your insert is very heavy and will require two or three people to move it into position. The insert can be made a little lighter by removing the cast iron door by opening it and lifting it off its hinges. Be sure to protect your hearth extension with a heavy blanket or carpet scrap during the installation.
