Firebox height is 21" at highest point.
Minimum Fireplace Opening
Height
Width
Depth
Faceplate Dimensions
Standard
Oversize
June 2007 Regency Product Specifi cations Book
Wood Inserts

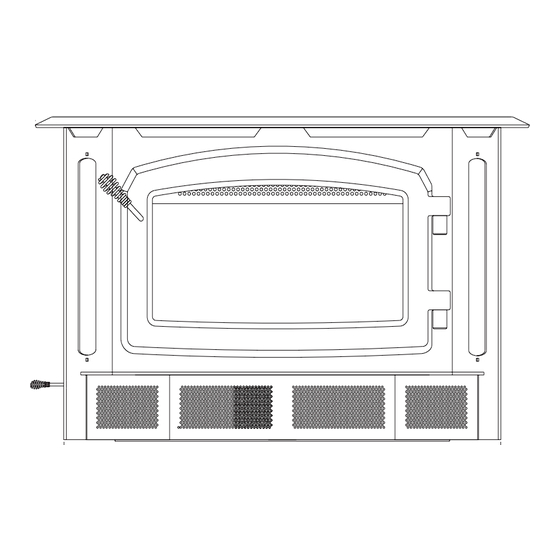

I2400 Medium Wood Insert
21-1/2" (546mm)
25" (635mm)
17" (432mm)
40" (wide) x 30" (height)
48" (wide) x 33" (height)
Dimension Description
A
Adjacent Side Wall (to side)
Mantle (to top)**
B
Mantle Depth (not shown) Maximum
C
Top Facing (to top)
D
Side Facing (to side)
E
Minimum Hearth Extension*
F
Minimum Heath Thickness*
G
Minimum Hearth Side Extension
Side and Top facing is a maximum of 1-1/2" thick.
Floor protection must be non-combustible, insulating material with an R value of
1.1 or greater.
*
Hearth thickness of 1/2" with k value = 0.84", R value = 6 or greater.
**
A non-combustible mantel may be installed at a lower height if the framing
is made of metal studs covered with a non-combustible board.
Thermal fl oor protection is not required if the unit is raised 3-1/2" minimum
(measured from the bottom of the stove). However, standard ember fl oor protection
is required. It will need to be a non-combustible material that covers 16" (406
mm) in the US and 18" (450 mm) in Canada to the front of the unit and 8" (200
mm) to the sides.
If the unit is not raised, thermal fl oor protection required is 18" (450 mm) in the
US and Canada.
All fl oor protection must be non-combustible (i.e., metals, brick, stone, mineral
fi ber boards, etc.) Any organic materials (i.e. plastics, wood paper products, etc.)
are combustible and must not be used. The fl oor protection specifi ed includes
some form of thermal designation such as R-value (thermal resistance) or k-factor
(thermal conductivity).
I2400 Wood Insert
I2400
11" (280mm)
20" (508mm)
20" (508mm)
12" (305mm)
8" (205mm)
18" (455mm)
1/2" (13mm)
8" (205mm)
189
