Summary of Contents for Sunrise Medical RGK GrandSlam
Page 1

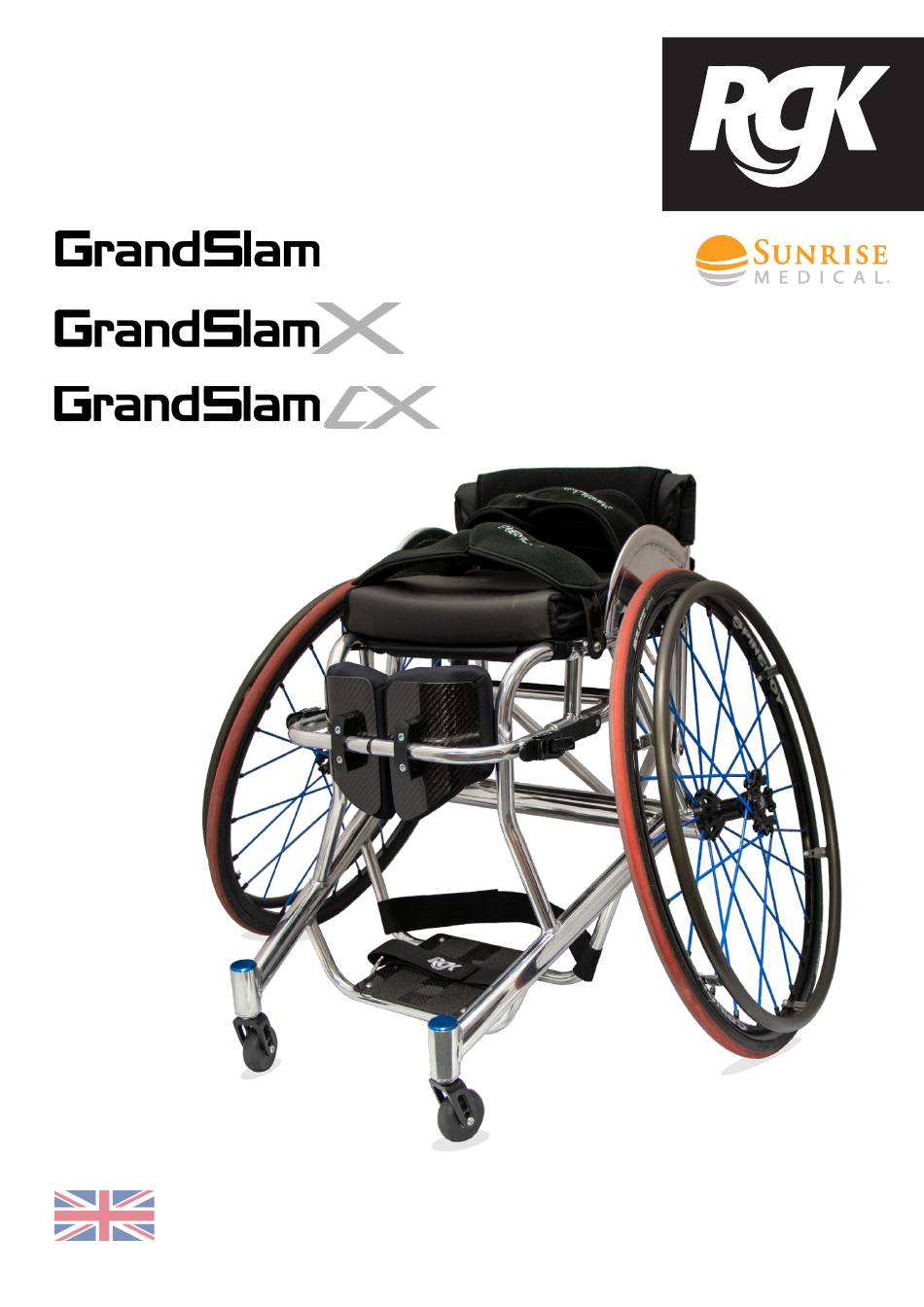

User Manual WHEELCHAIR GrandSlam Range User Manual DIRECTIONS FOR USE UM-GrandSlam-Range-021-EU...
Page 2
Performance Requirements, Annex I Nr. 14.1 of the Medical Device Regulation 2017/745. The management system of SUNRISE MEDICAL is certified to EN ISO 13485. This product complies with the standards set forth in EU and UK regulations. Sunrise Medical GmbH...
These capabilities and the safe use of the additionally attached components cannot be assessed by Sunrise Medical as a manufacturer. We cannot accept any liability for any damage resulting from this.
GrandSlam Range User Manual | Safety Summary Safety Summary General safety Sports wheelchairs are intended to be used for indoor and The engineering and construction of this wheelchair has outdoor sports activities by children and adults who have been designed to provide maximum safety. International limited mobility or are unable to run, walk or manoeuvre with safety standards currently in force have been fulfilled where agility.
Page 8
GrandSlam Range User Manual | Safety Summary Safety Summary Continued • If and whenever possible, during a journey in a specially Stability and Balance fitted vehicle for disabled people, vehicle occupants To assure stability and correct operation of your wheelchair, should use the seats in the vehicle and the appropriate you must at all times maintain balance.
Page 9
GrandSlam Range User Manual | Safety Summary Safety Summary Continued • Anti-tip tubes should prevent the chair tipping over • Make sure that the attendant only holds the wheelchair backwards unintentionally. Under no circumstances using securely mounted parts (e.g. not on the footrests or should they take the place of transit wheels, and be used the side guards).
Page 10
GrandSlam Range User Manual | Safety Summary Safety Summary Continued • Always make sure that the quick-release axles on the rear CAUTION: wheels are set properly and are locked in place. If the Check wheelchair button on the quick-release axle is not pressed in, the rear before and after any contact sport activities.
Page 11
GrandSlam Range User Manual | Safety Inspection Checklist Safety Inspection Checklist NOTE: Regular cleaning will help to highlight any loose or worn parts and enhance the smooth operation of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair.
GrandSlam Range User Manual | Troubleshooting Guide Mechanical Troubleshooting Guide Mechanical Solutions ü ü ü ü Check tyres for correct and equal pressure Check for loose castor stem nuts ü ü ü ü Check all fixtures are secure and tight ü...
GrandSlam Range User Manual | Procedure 1 Procedure 1 - Upholstery The upholstery is fully adjustable and can be easily adjusted to provide the correct balance and comfort in your new wheelchair. 1.3: Changing Cushion Cover Fig. 5. Backrest Wings Remove cushion from the wheelchair.
GrandSlam Range User Manual | Procedure 2 Procedure 2 - Rear Wheels The rear wheels are quick release and are designed to be removed and attached frequently. All rear wheels use quick release axle pins to secure the wheels to the frame, although these vary in length, they operate the same. 2.1: Removing/attaching rear wheels 2.2: Adjusting Quick release axle pin Push the quick release button and pull the wheel outwards.
GrandSlam Range User Manual | Procedure 3 Procedure 3 & 4 Procedure 3 - Tyres and Inner Tubes Tyres will wear just like a car tyre and the time will depend on the type of use. It is recommended that both tyres are changed once the tread fades.
GrandSlam Range User Manual | Procedure 5 Procedure 5 & 6 Procedure 5 - Castor Wheels and Forks The castor wheels at the front of the wheelchair will wear just like care tyres and should be replaced when they visibly look worn or cracks appear.
GrandSlam Range User Manual | Procedure 7 Procedure 7 - Sideguards Sideguards support the user and prevent clothes from getting dirty. Although these need little maintenance, replacement is shown below. Fig. 13. 7.1: Screw in sideguards Remove the rear wheels. Using a 4mm allen key from the toolkit, release the 3 screws in the sideguard.
GrandSlam Range User Manual | Technical Data - GrandSlam Technical Data - GrandSlam Description Maximum user weight 125kg Overall length with leg rest (no wheels) 400mm 1,000mm Overall width (seat width) 250mm 550mm Folded height (only for chairs with folding backs) Total mass (with wheels) 16kg* Mass of the heaviest part (Transport weight)
Page 19
GrandSlam Range User Manual | Technical Data - GrandSlam X Technical Data - GrandSlam X Description Maximum user weight 125kg Overall length with leg rest (no wheels) 400mm 1,000mm Overall width (seat width) 250mm 550mm Folded height (only for chairs with folding backs) Total mass (with wheels) 16kg* Mass of the heaviest part (Transport weight)
GrandSlam Range User Manual | Technical Data - GrandSlam CX Technical Data - GrandSlam CX Description Maximum user weight 125kg Overall length with leg rest (no wheels) 400mm 1,000mm Overall width (seat width) 270mm 390mm Folded height (only for chairs with folding backs) Total mass (with wheels) 16kg* Mass of the heaviest part (Transport weight)
GrandSlam Range User Manual | Technical Data - Recycling/Disposal Technical Data - Recycling/Disposal Prior to the wheelchair being re-used, it must be carefully prepared. All surfaces which come into contact with the user must be cleaned down and treated with a disinfection spray. In the following section, there is a description of the materials used on our wheelchairs.
GrandSlamX - UKCA Mark Label - UK Responsible Person / Swiss Representative Fig. 17. GrandSlamCX Label Sunrise Medical Limited Thorns Road, Brierley Hill West Midlands, DY5 2LD UNITED KINGDOM Sunrise Medical AG Identification stickers Erlenauweg 17 CH-3110 Münsingen (Located on camber axle or under seat brace bar)
GrandSlam Range User Manual | Warranty Manufacturers Warranty THIS GUARANTEE DOES NOT AFFECT YOUR LEGAL RIGHTS IN ANY WAY. RGK Wheelchairs* provides a guarantee, as set out in the warranty conditions, for wheelchairs to its customers covering the following Warranty conditions Should a part or parts of the wheelchair require repair or replacement as a result of a manufacturing and/or material fault within 12 months or for frame and cross-braces within 2 years after delivery to the customer, then the affected part or parts will be repaired or replaced free of charge.
