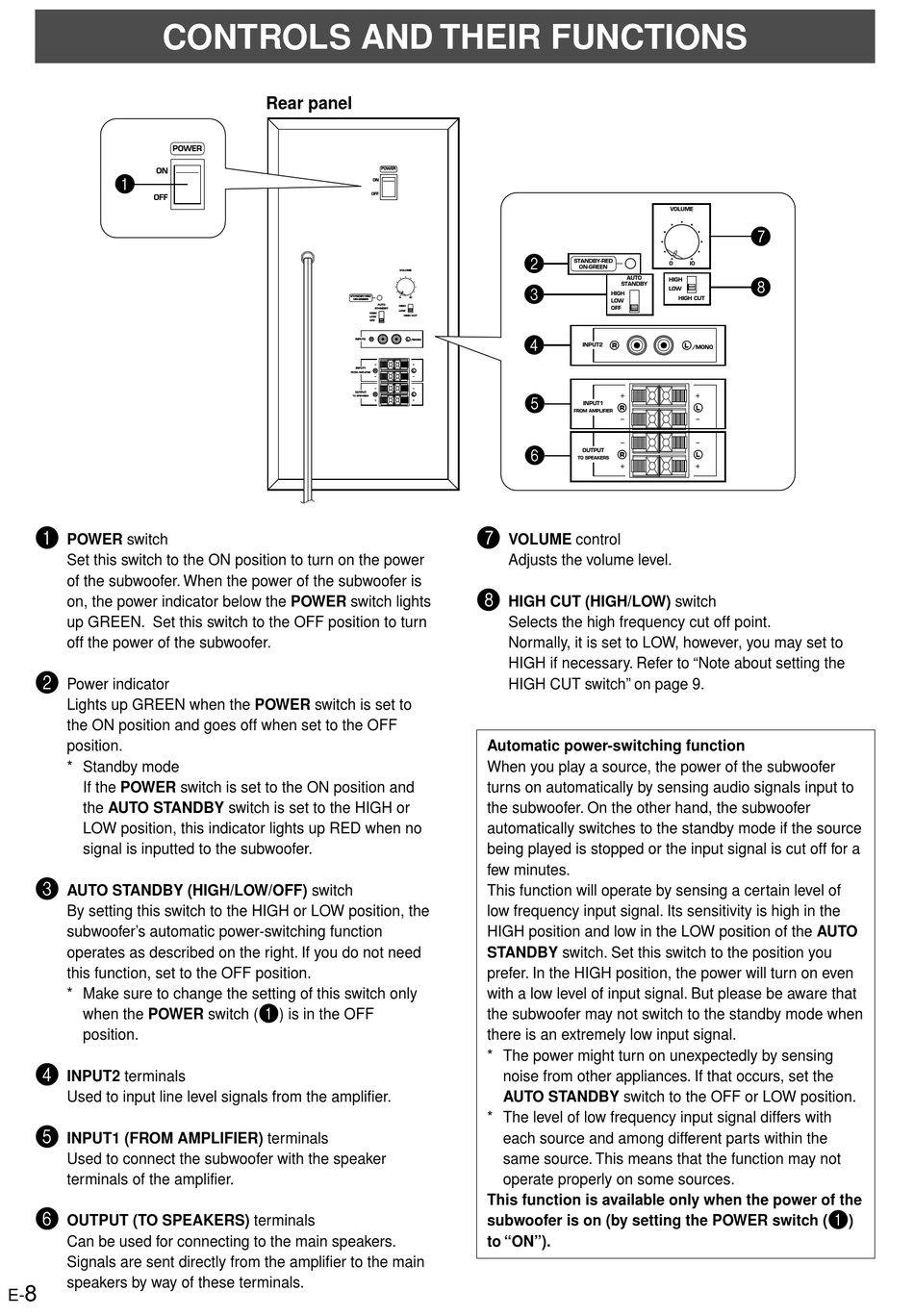

CONTROLS AND THEIR FUNCTIONS

POWER
ON
1
OFF
1
POWER switch
Set this switch to the ON position to turn on the power
of the subwoofer. When the power of the subwoofer is
on, the power indicator below the POWER switch lights
up GREEN. Set this switch to the OFF position to turn
off the power of the subwoofer.
2
Power indicator
Lights up GREEN when the POWER switch is set to
the ON position and goes off when set to the OFF
position.
* Standby mode
If the POWER switch is set to the ON position and
the AUTO STANDBY switch is set to the HIGH or
LOW position, this indicator lights up RED when no
signal is inputted to the subwoofer.
3
AUTO STANDBY (HIGH/LOW/OFF) switch
By setting this switch to the HIGH or LOW position, the
subwoofer's automatic power-switching function
operates as described on the right. If you do not need
this function, set to the OFF position.
* Make sure to change the setting of this switch only
when the POWER switch (
position.
4
INPUT2 terminals
Used to input line level signals from the amplifier.
5
INPUT1 (FROM AMPLIFIER) terminals
Used to connect the subwoofer with the speaker
terminals of the amplifier.
6
OUTPUT (TO SPEAKERS) terminals
Can be used for connecting to the main speakers.
Signals are sent directly from the amplifier to the main
speakers by way of these terminals.
8
E-
Rear panel
POWER
ON
OFF
VOLUME
STANDBY-RED
0 I0
ON-GREEN
AUTO
HIGH
STANDBY
LOW
HIGH
HIGH CUT
LOW
OFF
INPUT2
/MONO
INPUT1
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
1
) is in the OFF
2
STANDBY-RED
ON-GREEN
AUTO
STANDBY
3
HIGH
LOW
OFF
4
INPUT2
5
INPUT1
FROM AMPLIFIER
6
OUTPUT
TO SPEAKERS
7
VOLUME control
Adjusts the volume level.
8
HIGH CUT (HIGH/LOW) switch
Selects the high frequency cut off point.
Normally, it is set to LOW, however, you may set to
HIGH if necessary. Refer to "Note about setting the
HIGH CUT switch" on page 9.
Automatic power-switching function
When you play a source, the power of the subwoofer
turns on automatically by sensing audio signals input to
the subwoofer. On the other hand, the subwoofer
automatically switches to the standby mode if the source
being played is stopped or the input signal is cut off for a
few minutes.
This function will operate by sensing a certain level of
low frequency input signal. Its sensitivity is high in the
HIGH position and low in the LOW position of the AUTO
STANDBY switch. Set this switch to the position you
prefer. In the HIGH position, the power will turn on even
with a low level of input signal. But please be aware that
the subwoofer may not switch to the standby mode when
there is an extremely low input signal.
* The power might turn on unexpectedly by sensing
noise from other appliances. If that occurs, set the
AUTO STANDBY switch to the OFF or LOW position.
* The level of low frequency input signal differs with
each source and among different parts within the
same source. This means that the function may not
operate properly on some sources.
This function is available only when the power of the
subwoofer is on (by setting the POWER switch (
to "ON").
VOLUME
7
0 I0
8
HIGH
LOW
HIGH CUT
/MONO
