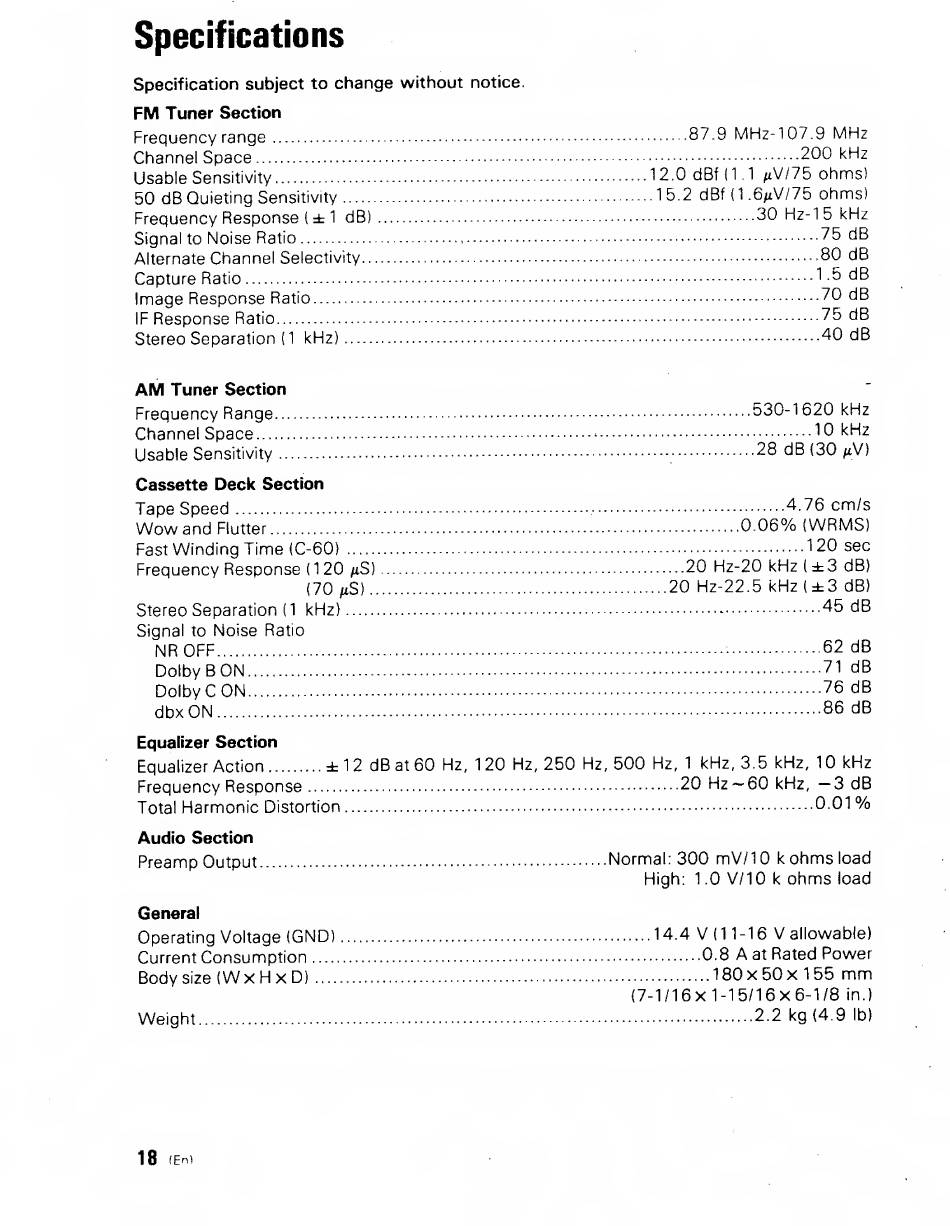

Specifications
Specification subject to change without notice.
FM Tuner Section
Frequency range.
Channel Space.
Usable Sensitivity.
50 dB Quieting Sensitivity.
Frequency Response { ± 1 dB).
Signal to Noise Ratio..
Alternate Channel Selectivity.
Capture Ratio.
Image Response Ratio.
IF Response Ratio.
Stereo Separation (1 kHz).
.87.9 MHz-107.9 MHz
.200 kHz
12.0 dBf (1.1 fiV/75 ohms)
.15.2 dBf (1.6/A//75 ohms)
.30 Hz-1 5 kHz
.75 dB
.80 dB
.1.5 dB
.70 dB
.75 dB
.40 dB
AM Tuner Section
Frequency Range.
Channel Space.
Usable Sensitivity.
Cassette Deck Section
Tape Speed.
Wow and Flutter.
Fast Winding Time (C-60) .
Frequency Response (1 20 /iS)
(70 fiS).
Stereo Separation (1 kHz).
Signal to Noise Ratio
NR OFF.
Dolby BON.
Dolby CON.
dbxON.
.530-1620 kHz
.10 kHz
.28 dB (30 MV)
.4.76 cm/s
.0.06% (WRMS)
.120 sec
...20 Hz-20 kHz (±3 dB)
20 Hz-22.5 kHz (±3 dB)
.45 dB
...62 dB
.71 dB
.76 dB
.86 dB
Equalizer Section
Equalizer Action.±12 dB at 60 Hz, 1 20 Hz, 250 Hz, 500 Hz, 1 kHz, 3.5 kHz, 10 kHz
Frequency Response.20 Hz ~ 60 kHz, — 3 dB
Total Harmonic Distortion.0.01 %
Audio Section
Preamp Output.Normal: 300 mV/10 k ohms load
High: 1.0 V/10 k ohms load
General
Operating Voltage (GND)
Current Consumption ....
Body size (W x H x D)
Weight..
....14.4 V (11-16 V allowable)
.0.8 A at Rated Power
.180x 50 x 1 55 mm
(7-1/16x1-15/16x6-1/8 in.)
.2.2 kg (4.9 lb)
