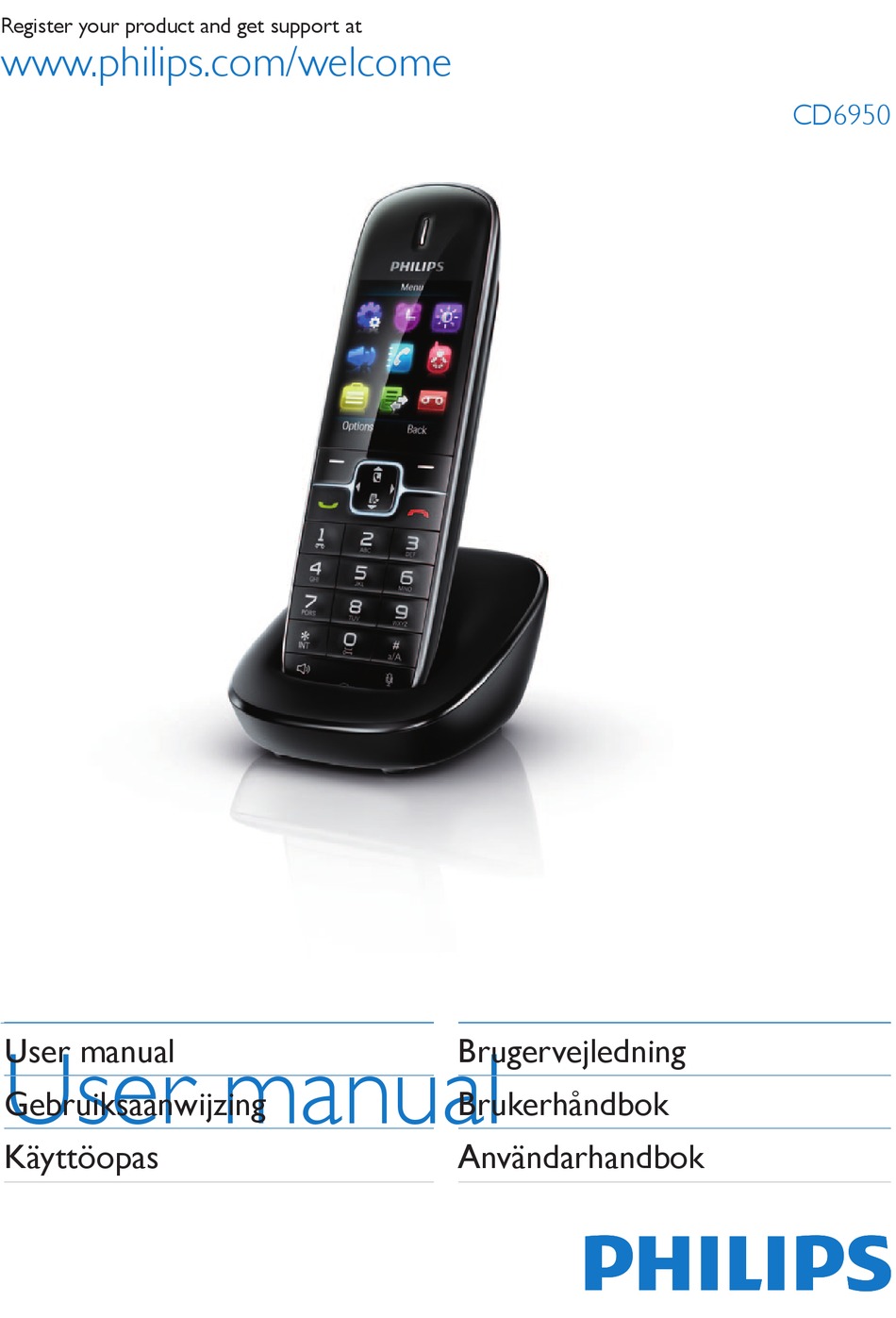

- Page 1 Register your product and get support at www.philips.com/welcome User manual User manual Gebruiksaanwijzing Käyttöopas Brugervejledning Brukerhåndbok Användarhandbok CD6950...
-
Page 3: Table Of Contents
Contents 1 Important safety instructions 2 Your phone What is in the box Overview of the phone Main menu icons Display icons 3 Get started Connect the charger Install the handset Configure your phone (country dependent) Change the remote access PIN code Charge the handset Check the battery level What is standby mode? - Page 4 13 Notice Declaration of conformity Use GAP standard compliance Compliance with EMF Disposal of your old product and batteries 14 Frequently asked questions 15 Appendix Text and number input tables 16 Index...
-
Page 5: Important Safety Instructions
1 Important safety instructions Power requirements • This product requires an electrical supply of 100-240 volts AC. In case of power failure, the communication can be lost. • The voltage on the network is classified as TNV-3 (Telecommunication Network Voltages), as defined in the standard EN 60950. -
Page 6: Your Phone
2 Your phone Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome. What is in the box Handset Charger Power adapter Warranty User manual Quick start guide Note •... -
Page 7: Overview Of The Phone
Overview of the phone a Earpiece b Loudspeaker c Battery door • Scroll up on the menu. • Increase the earpiece/speaker volume. • Access the phonebook. • Delete text or digits. • Cancel operation. Move the cursor to the left or right in editing mode. -
Page 8: Main Menu Icons
Main menu icons The following is an overview of the menu options that are available in your CD690/695. For detailed explanation of the menu options, see the corresponding sections in this user manual. Icon Descriptions [Phone setup] - Set the date and time, ECO mode, handset name and display language. -
Page 9: Get Started
3 Get started Caution • Make sure that you have read the safety instructions in the 'Important safety instruction' section before you connect and install your handset. Connect the charger Warning • Risk of product damage! Make sure that the power supply voltage corresponds to the voltage printed on the back or underside of the phone. -
Page 10: Configure Your Phone (Country Dependent)
Note • Charge the batteries for 8 hours before first use. • If the handset becomes warm when the batteries are charging, it is normal. Warning • Check the battery polarity when inserting in the battery compartment. Incorrect polarity may damage the product. -
Page 11: Change The Remote Access Pin Code
Change the remote access PIN code Note • The default answering machine remote access PIN code is 0000 and it is important to change it to ensure the security. Select [Menu] > > [Remote access] > [Change PIN], then press [OK] to confirm. Enter the old PIN, then press [OK] to confirm. -
Page 12: Check The Signal Strength
Check the signal strength The number of bars indicates the link status between the handset and base station. The more bars are shown, the better the connection is. • Make sure the handset is linked to the base station before you make or receive calls and carry out the functions and features. -
Page 13: Calls
4 Calls Note • When the power fails, the phone cannot access emergency services. • Check the signal strength before you make a call or when you are in a call (see 'Check the signal strength' on page 10). Make a call You can make a call in these ways: •... -
Page 14: End A Call
Turn off the ringer for an incoming call When the phone rings, press [Silent]. End a call You can end a call in these ways: • Press ; or • Place the handset to the base station or charging cradle. Adjust the earpiece/speaker volume Press... -
Page 15: Make A Conference Call With The External Callers
Make a conference call with the external callers Note • This service is network dependent. Check with the service provider for additional charges. When you are connected to two calls, you can make a conference call in these ways: • Press , then ;... -
Page 16: Intercom And Conference Calls
5 Intercom and conference calls Make sure that all the handsets registered to the base station are Philips CD69 models in order to have this feature functioning properly. Make a call to another handset Note • If the base station only has 2 registered handsets, press or select [Menu] >... - Page 17 During an external call Press and hold to initiate an internal call. » The handsets available for intercom are displayed. » The external caller is put on hold. Select or enter a handset number, then press [OK] to confirm. » The selected handset rings. Press on the selected handset.
-
Page 18: Text And Numbers
6 Text and numbers You can enter text and numbers for handset name, phonebook records, and other menu items. Enter text and numbers Press once or several times on the alphanumeric key to enter the selected character. Press [Clear] to delete the character. Press / to move the cursor left and right. -
Page 19: Phone Settings
You can customize the settings to make it your own phone. Make sure that all the handsets registered to the base station are Philips CD69 models in order to have this feature functioning properly. Set the date and time For further information, see chapter 'Get started', sections 'Set the date and time' and 'Set the date and time format'. -
Page 20: Alarm Clock
8 Alarm clock Your phone has a built-in alarm clock. Check the information below to set your alarm clock. Set the alarm Select [Menu] > , then press [OK] to confirm. Select [On]/[Off], then press [OK] to confirm. Select [Alarm time], then press [OK] to confirm. -
Page 21: Display Settings
9 Display settings You can change the brightness of the phone display and type of clock display during standby mode. Set the display Select [Menu] > , then press [OK] to confirm. Select [Brightness]/[Clock], then press [OK] to confirm. Select an option, then press [OK] to confirm. -
Page 22: Sound Settings
10 Sound settings You can customize the sound settings of your phone. Make sure that all the handsets registered to the base station are Philips CD69 models in order to have this feature functioning properly. Set the handset's ringtone volume You can select among 5 ringtone volume levels or [Off]. -
Page 23: Set The Key Tone
Exclude the contacts from silent mode You can select the length of ring delay and set the contacts to be excluded from the phonebook. Ring delay is the number of rings that will be muted before the rings become audible on the phone. Select [Menu] >... -
Page 24: Services
The phone supports a number of features that help you handle and manage the calls. Make sure that all the handsets registered to the base station are Philips CD69 models in order to have this feature functioning properly. Auto conference... -
Page 25: Auto Prefix
Auto prefix This feature checks and formats your outgoing call number before it is dialed out. The prefix number can replace the detect number you set in the menu. For example, you set 604 as the detect number and 1250 as the prefix. When you have dialed out a number such as 6043338888, your phone changes the number to 12503338888 when it dials out. -
Page 26: First Ring
Set the dial mode Select [Menu] > > [Dial mode], then press [OK] to confirm. Select a dial mode, then press [OK] to confirm. » The setting is saved. Note • If your phone is in pulse dial mode, press call for temporary tone mode. -
Page 27: Unregister The Handsets
Manual registration If auto registration fails, register your handset manually to the base station. Select [Menu] > > [Register], then press [OK] to confirm. Press and hold on the base station for 5 seconds. Note • For models with an answering machine, you hear a confirmation beep. -
Page 28: Restore Default Settings
Edit the activation/deactivation code You can edit the prefix and suffix to the call forward codes. Select [Menu] > > [Call Services] > [Call forward]/[Call fwd busy]/[Call fwd unans], then press [OK] to confirm. Select [Change code], then press [OK]. Then you can either Select [Activation] >... -
Page 29: Technical Data
• GPI: 2 x AAA Ni-MH 1.2V 600mAh rechargeable batteries Power adapter Base and charger • Philips, SSW-2095EU-1, input: 100-240Vac, 50-60Hz 0.2A, output: 5V 600mA • Philips, S003PV0500060, input:100-240Vac, 50-60Hz 0.2A, output 5V 600mA Power consumption • Power consumption at standby mode: around 0.5 W (CD690);... -
Page 30: Notice
Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products. - Page 31 Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. When this logo is attached to a product, it means a financial contribution has been paid to the associated national recovery and recycling...
-
Page 32: Frequently Asked Questions
14 Frequently asked questions No signal bar is displayed on the screen. • The handset is out of range. Move it closer to the base station. • If the handset displays [Unregister], put the handset on the base until the signal bar appears. -
Page 33: Appendix
15 Appendix Text and number input tables Upper case characters (for English/ French/ German/ Italian/Turkish/ Portuguese/Spanish/Dutch/Danish/ Finnish/Norwegian/Swedish) Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~| 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ... A B C 2 À... - Page 34 Lower case characters (for Romanian/ Polish/Czech/Hungarian/Slovakian/ Slovenian/Croatian) Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ | 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § …...
-
Page 35: Index
16 Index additional handsets alarm answer a call auto clock auto conference auto prefix battery call back service call barring call forward service call return caller ID calling conference call date setting default settings dial mode display icons display settings disposal ECO mode first ring... - Page 36 safety signal strength silent mode sounds docking keytone sound profile speaker phone standby mode text entry time setting transfer call troubleshooting/FAQ two calls/call on hold volume adjustment 34 EN 16, 31 8, 24...
- Page 37 0168 Specifications are subject to change without notice © 2012 Koninklijke Philips Electronics N.V. All rights reserved. UM_CD6950_12_Book1_V1.0 WK12022...
