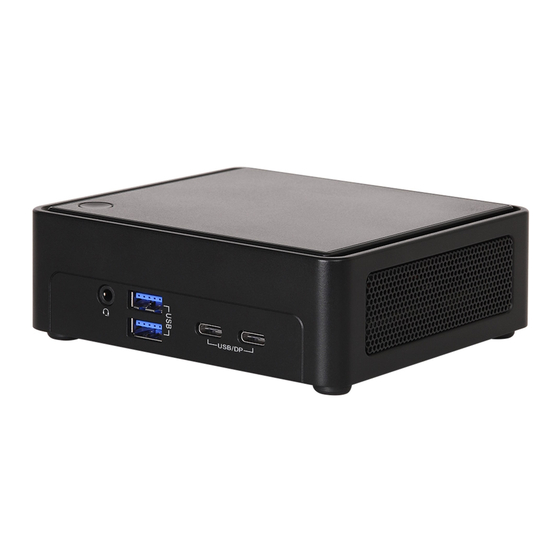

NUC BOX-1260P
NUC BOX-1240P
NUC BOX-1220P
User Manual
NUCS Ultra 100 BOX Series
Version 1.0
Published May 2022
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for ASROCK NUCS Ultra 100 BOX Series

  • Page 1 NUC BOX-1260P NUC BOX-1240P NUC BOX-1220P User Manual NUCS Ultra 100 BOX Series Version 1.0 Published May 2022 User Manual...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Industrial has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 AUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 4 CAUTION (or Warning) Hot surface! Do not touch! The equipment should only be installed in a restricted access area. VESA Mount: M4x6mm Screws (for securing the VESA bracket to the monitor) This product should be connected by means of a power cord to a socket-outlet with earth- ing connection.
  • Page 5 Contact Information If you need to contact ASRock Industrial or want to know more about ASRock Industrial, you’re welcome to visit ASRock Industrial’s website at https://www.asrockind.com; or you may contact your dealer for further information. ASRock Industrial Incorporation Email: Info_ipc@asrockind.com...
  • Page 6: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the Memory Modules How to Install the WiFi Module How to Install the M.2 SSD (Type 2242) How to Install the M.2 SSD (Type 2280) How to Install the VESA Bracket...
  • Page 7 5.1.1 Entering BIOS Setup 5.1.2 UEFI Menu Bar 5.1.3 Navigation Keys Main Screen (Advanced Mode) Advanced Screen 5.3.1 CPU Configuration 5.3.2 Chipset Configuration 5.3.3 Storage Configuration 5.3.5 AMT Configuration 5.3.6 ACPI Configuration 5.3.7 USB Configuration 5.3.8 Power Configuration 5.3.9 Trusted Computing Hardware Health Event Monitoring Screen Security Screen Boot Screen...
  • Page 8: Chapter 1 Introduction

    Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • 1 x NUCS Ultra 100 BOX Series • 1 x 19V/120W Power Adapter (Core Ultra 7) • 1 x 19V/90W Power Adapter (Core Ultra 5) •...
  • Page 9: Product Specifications

    1.2 Product Specifications NUCS Ultra 100 BOX Barebone Series Intel® Core™ Ultra processors (Meteor Lake-H) NUCS BOX-155H (6P+8E) NUCS BOX-125H (4P+8E) Chipset BIOS AMI SPI 256 Mbit Memory Supports Dual Channel DDR5 5600 MHz Storage 1 x M.2 (KEY M, 2280) with PCIe Gen4 x4 for M.2 slot 1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for Intel®...
  • Page 10 NUCS Ultra 100 BOX Series Rear I/O 2 x HDMI 2.1 TMDS, 1 x 2.5 Gigabit LAN, 2 x USB 3.2 Gen2 (Type-A), 1 x DC Jack Power Unit 1 x 19V/120W Power Adapter (Core Ultra 7) 1 x 19V/90W Power Adapter (Core Ultra 5) Dimension 117.5 x 110.0 x 38mm (4.63"...
  • Page 11: Block Diagram

    1.3 Block Diagram NUCS-155H NUCS-125H HDMI SO-DIMM Channel A Connector (A1) DDR5 5600MHz SO-DIMM HDMI Channel B DDR5 5600MHz (B1) Connector 2 x USB 3.2 Gen2 2 x USB 3.2 Gen2 2 x USB 2.0 Type-A RJ45 Intel MDI 2.5G PCIe x1 Connector I226LM...
  • Page 12: Chapter 2 Product Overview

    NUCS Ultra 100 BOX Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the NUCS Ultra 100 BOX Series. 2.1 Front View Description Audio (headphone, microphone) 2 x USB 3.2 Gen2 (Type-A) USB4/Thunderbolt (Type-C, supports DP2.1a display output)
  • Page 13: Rear View

    2.2 Rear View Description DC-IN 2 x HDMI 2.1 TMDS* 2 x USB 3.2 Gen2 (Type-A) RJ-45 (2.5G)** *To use DisplayPort as a display output, please connect your monitor/display to HDMI Port when installing OS system. This DisplayPort only supports DP to HDMI dongle and DP to DVI dongle, and does not support DP to D-Sub dongle.
  • Page 14: Inside View

    NUCS Ultra 100 BOX Series 2.3 Inside View Description M.2 Slots (2242/2280) Wifi Module Slot SO-DIMM Slots SO-DIMM memory, Wifi module and M.2 are not included with this system.
  • Page 15: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.
  • Page 16: How To Install The Memory Modules

    NUCS Ultra 100 BOX Series 3.2 How to Install the Memory Modules 1. The NUCS Ultra 100 BOX Series requires DDR5 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) Memory Module SO-DIMM pairs.
  • Page 17: How To Install The Wifi Module

    3.3 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot at a 30-degree angle. 3. Tighten the screw to secure the WiFi Module to the motherboard.
  • Page 18: How To Install The M.2 Ssd (Type 2242)

    NUCS Ultra 100 BOX Series 3.4 How to Install the M.2 SSD (Type 2242) 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD (Type 2242) into the the slot at a 30-degree angle. 3. Tighten the screw to secure the M.2 SSD (Type 2242) to the motherboard.
  • Page 19: How To Install The M.2 Ssd (Type 2280)

    3.5 How to Install the M.2 SSD (Type 2280) 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD (Type 2280) into the the slot at a 30-degree angle. 3. Tighten the screw to secure the M.2 SSD (Type 2280) to the motherboard.
  • Page 20: How To Install The Vesa Bracket

    NUCS Ultra 100 BOX Series 3.6 How to Install the VESA Bracket 1. Attach the two screws to the base of the NUCS Ultra 100 BOX Series. 2. Attach the VESA Bracket to the rear of a compatible display using the four screws.
  • Page 21: Positions

    3.7 Positions The NUCS Ultra 100 BOX Series can be placed in vertical or horizontal position. Horizontal position Vertical position VESA-mounted Please note that keeping the NUCS Ultra 100 BOX Series in a vertical position will ensure better cooling performance.
  • Page 22: Chapter 4 Motherboard

    NUCS Ultra 100 BOX Series Chapter 4 Motherboard 4.1 Motherboard Layout Top: M2_M2 LAN1 M2_M1 BIOS AUDIO1 USB 3.2 Gen2 Top: USB3T_3 Bottom: USB3T 2 USB 3.2 Gen2 Top: USB3_1 M2_E1 Bottom: USB3_2 HDMI2 NUCS-155H USB4/ Thunderbolt (Type-C) TC_TB_0 Industrial...
  • Page 23 Back: FAN1 PWR_BTN1 BAT1 ESPI1 Back Side : 7 : Power Button (PWR_BTN1) 8 : Fan Connector (FAN1) 9 : Battery Connector (BAT1) 10 : ESPI Connector (ESPI)
  • Page 24: Onboard Headers And Connectors

    NUCS Ultra 100 BOX Series 4.2 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage to the motherboard!
  • Page 25 4-pin DC-In Wafer (BOM option) Signal Name (4-pin DC-IN1) DC Input (see p. 15, No. 7) DC Input Back Side : Power Button (PWR_BTN1) (see p. 16, No. 7) Fan Connector Signal Name (4-pin FAN1) (see p. 16, No. 8) FAN_SPEED FAN_SPEED_CONTROL Battery Connector...
  • Page 26: Expansion Slots (M.2 Slots)

    NUCS Ultra 100 BOX Series 4.3 Expansion Slots (M.2 Slots) There are three M.2 sockets on this motherboard. M.2 sockets: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD...
  • Page 27: Chapter 5 Uefi Setup Utility

    UEFI SETUP UTILITY 5.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience.
  • Page 28: Uefi Menu Bar

    NUCS Ultra 100 BOX Series 5.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced Displays current hardware status H/W Monitor Security...
  • Page 29: Navigation Keys

    5.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter> to get into the sub screen.
  • Page 30: Main Screen (Advanced Mode)

    NUCS Ultra 100 BOX Series 5.2 Main Screen (Advanced Mode) When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 31: Advanced Screen

    5.3 Advanced Screen I n t h i s s ec t ion, you may s et t he con f ig u r at ions for t he fol low i ng items: CPU Configuration, Chipset Configuration, Storage Configuration, Super IO Configuration, AMT Configuration, ACPI Configuration, USB Configuration, Power Configuration and Trusted Computing.
  • Page 32: Cpu Configuration

    NUCS Ultra 100 BOX Series 5.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Configuration options: [Enabled] [Disabled] Active Processor P-Cores This allows you to select the number of cores to enable in each processor package.
  • Page 33 Enhanced Halt State (C1E) The option allows you to enable Enhanced Halt State (C1E) for lower power consumption. Configuration options: [Enabled] [Disabled] Package C State Support The option allows you to enable CPU, PCIe, Memory, Graphics C State Support for power saving.
  • Page 34 NUCS Ultra 100 BOX Series Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. The default value is [Enabled]. Configuration options: [Enabled] [Disabled]...
  • Page 35: Chipset Configuration

    5.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support.
  • Page 36 NUCS Ultra 100 BOX Series Share Memory Share memory allows you to configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Configuration options: [Auto] [32M] [64M] [128M] [256M] [512M] Options vary depending on the memory you use on your motherboard.
  • Page 37: Storage Configuration

    5.3.3 Storage Configuration VMD Configuration Press [Enter] to view the followings items for VMD configurations. SATA Controller(s) The option allows you to enable or disable the SATA controllers. Configuration options: [Enabled] [Disabled] SATA Mode Selection AHCI supports new features that improve performance. Configuration option: [AHCI] AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance.
  • Page 38 NUCS Ultra 100 BOX Series Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a moni- toring system for computer hard disk drives to detect and report on various indicators of reliability. Configuration options: [Enabled] [Disabled]...
  • Page 39 5.3.4 Super IO Configuration WDT Timeout Reset Use this to set the Watch Dog Timer. Configuration options: [Enabled] [Disabled]...
  • Page 40: Amt Configuration

    NUCS Ultra 100 BOX Series 5.3.5 AMT Configuration USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning. The default is [Disabled]. MAC Pass Through The option enables or disables MAC Pass Through function. Dynamic Lan Switch This allows switching AMT support from Integrated LAN to Discrete LAN.
  • Page 41 One Click Recovery(OCR) Configuration Configuration setting for One Click Recovery. This allows access for AMT to boot a recov- ery OS application MEBx This Formset contains forms for configuring MEBx.
  • Page 42: Acpi Configuration

    NUCS Ultra 100 BOX Series 5.3.6 ACPI Configuration Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft- off mode. Configuration options: [Enabled] [Disabled] RTC Alarm Power On RTC Alarm Power On allows the system to be waked up by the real time clock alarm. Set it to By OS to let it be handled by your operating system.
  • Page 43: Usb Configuration

    5.3.7 USB Configuration USB Power Control Use this option to control USB power. Configuration options: [Always Enabled] [Default Setting]...
  • Page 44: Power Configuration

    NUCS Ultra 100 BOX Series 5.3.8 Power Configuration OCP Function Enabled to set adapter over current protect.
  • Page 45: Trusted Computing

    5.3.9 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 46 NUCS Ultra 100 BOX Series SM3_256 PCR Bank SM3_256 PCR Bank allows you to enable or disable SM3_256 PCR Bank. Configuration options: [Enabled] [Disabled] Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device.
  • Page 47: Hardware Health Event Monitoring Screen

    5.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed, and the critical voltage. NOTE: Options vary depending on the features of your motherboard. Fan1 Setting This allows you to set FAN1’s speed.
  • Page 48: Security Screen

    NUCS Ultra 100 BOX Series 5.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has the authority to change the settings in the UEFI Setup Utility.
  • Page 49: Boot Screen

    5.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN. Configuration options: [Enabled] [Disabled] Setup Prompt Timeout The item allows you to...
  • Page 50: Exit Screen

    NUCS Ultra 100 BOX Series 5.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Select [Yes] to save the changes and exit the UEFI SETUP UTILITY.
  • Page 51: Chapter 6 Software Support

    Chapter 6 Software Support 6.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 10 64-bit/11 64- bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS documentation for more information.
