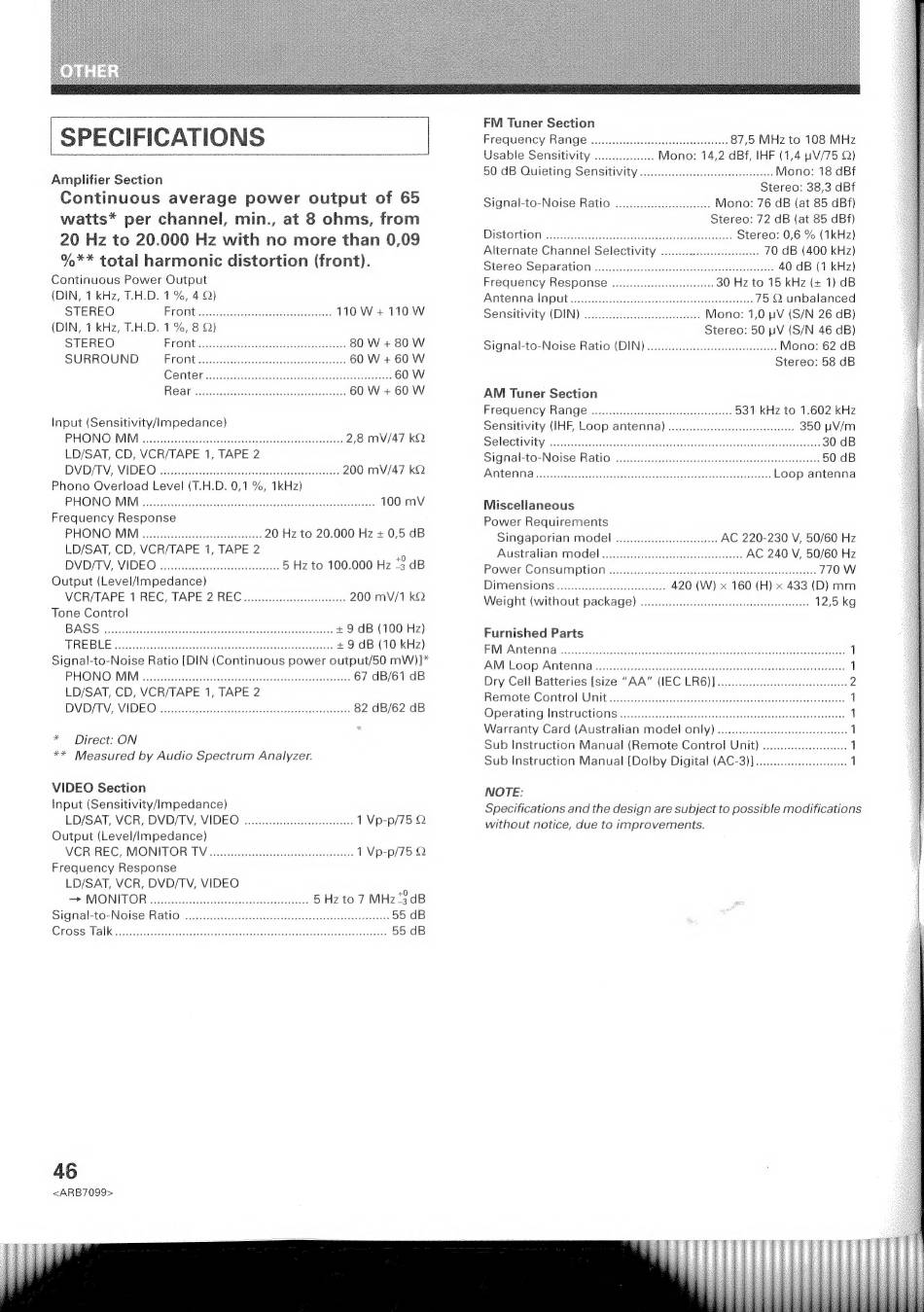

| SPECIFICATIONS
Amplifier Section
Continuous average power output of 65
watts* per channel, min., at 8 ohms, from
20 Hz to 20.000 Hz with no more than 0,09
%** total harmonic distortion (front).
Continuous Power Output
(DIN, 1 kHz, T.H.D. 1%, 4 Q)
STEREO FONT: ccectaetSetsutesntl spoaetacseade >. 110 W +110 W
(DIN, 1 kHz, T.H.D. 1%, 8 &)
STEREO EVOVits indie ea ese eee 80 W +80 W
SURROUND FROME cite ete Seeteetes 60 W +60 W
T=) pk] eae eet ee 60 W
ROA iis caseeenes eeiakst cet ldi eid caddadencs 60 W + 60 W
Input (Sensitivity/impedance)
PHONO MDM uuu. .ceeeccecessceccssssseceeesenenseauensenseeenens 2,8 mV/47 kQ
LD/SAT, CD, VCR/TAPE 1, TAPE 2
DVDITV,. VIDE Onsite fev sadosaistduieted salsicibivietaacenae'es 200 mV/47 kQ
Phono Overload Level (T.H.D. 0,1 %, 1kHz)
PHONG EMUM i: shce dustins Suctvsadaeetee edad coats iienade eae ateoas 100 mV
Frequency Response
PHONO MDM uu... cccecccceseeeeereeeeuaeees 20 Hz to 20.000 Hz + 0,5 dB
LD/SAT, CD, VCR/TAPE 1, TAPE 2
DVD/TV, VIDEO uoecesccsseessscssseesssesseeeeee 5 Hz to 100.000 Hz "3 dB
Output (Level/Impedance)
VCR/TAPE 1 REC, TAPE 2 REC wo... ccceeeeeees 200 mV/1 kQ
Tone Control
BASS. a hasteeeriecs ii isiavbeeciadadeuaisavactonsdadavaageiia couaaeds + 9 dB (100 Hz)
TREBLE toiiiscdec iorteteatstxi teed ivavetneviemen heating + 9 dB (10 kHz)
Signal-to-Noise Ratio [DIN (Continuous power output/50 mW)]*
PHONO MIM ce Ricci chat. Atadascsioadie othe 67 dB/61 dB
LD/SAT, CD, VCR/TAPE 1, TAPE 2
DVD/V, MIDEO vscccttics asgiceiideld each sets Mieetes veasvenabeet 82 dB/62 dB
* Direct: ON
** Measured by Audio Spectrum Analyzer.
VIDEO Section
Input (Sensitivity/Impedance)
LD/SAT, VCR, DVD/TV, VIDEO oo... ceeeerree eres 1 Vp-p/75
Output (Level/Impedance)
VCR REC, MONITOR TV 0... ccc eeecsseeeeereueeeenneeteeees 1 Vp-p/75 Q
Frequency Response
LD/SAT, VCR, DVD/TV, VIDEO
sth MONITOR soins isdesdoviens dassetevendre@eremas 5 Hz to 7 MHz-3dB
Signal-to-NOISE Ratio oc ceccssceeeeeeeeseeeeceeeeeceeereeesecereeess 55 dB
GrOSS! Talk ucsuotesvhedsowedvsbeasenscatetese soatouvegie sananasegveaetensssdaceebarens 55 dB
<ARB7099>
FM Tuner Section
Frequency R@nge ....cccccccecccccessnesssuseceeetnnaess 87,5 MHz to 108 MHz
Usable Sensitivity 0.00... Mono: 14,2 dBf, IHF (1,4 pV/75 )
50 dB Quieting Sensitivity oo... csseeeeneeeeneneees Mono: 18 dBf
Stereo: 38,3 dB
Signal-to-Noise Ratio o.....ceeeceeeeees Mono: 76 dB (at 85 dBf)
Stereo: 72 dB (at 85 dBf)
DISTOPUON: siic.0dcnteseeseessceie aac nls a ateeiowed esa aied Stereo: 0,6 % (1kHz)
Alternate Channel Selectivity ......0ccceceeee 70 dB (400 kHz)
Stereo Separation 2... ccc ccceeceeeesscseesveneeeeesneueeeees 40 dB (7 kHz)
Frequency RESPONSE ........ccceceseseseesenees 30 Hz to 15 kHz (+ 1) dB
Antenna INDUt uo... cceccceeessecssereneeaeeeereseeeeeseneeeesetes 75 Q unbalanced
Sensitivity (DIN) Mono: 1,0 pV (S/N 26 dB)
Stereo: 50 yV (S/N 46 dB)
Signal-to-Noise Ratio (DIN) vo... ..cecescecccssseeeeeeeen Mono: 62 dB
Stereo: 58 dB
AM Tuner Section
Frequency Range ...........cccccsseeeesereenseetsrnees
Sensitivity (IHF, Loop antenna)
DELOCEIVIEY. wicesheres iia cevhddvcue Secs oer tsansecatecocegincandeeaveth deevde andes
Signal-to-Noise Ratio ......cceccscsscsscsecessccsseeeteceseceessneenecsensess
PPO NG vst erich ct eeclassavaisyeccdeevanediasticessexee ovhcueveatenears
Miscellaneous
Power Requirements
Singaporian MOAEL] ..... cc ececcceees ence AC 220-230 V, 50/60 Hz
Australian Model .......0.....cccccesesssersesseeeenees AC 240 V, 50/60 Hz
Power COnSuUMPtiON .........cccsscccccesscsseneteeessensneneeeeesenteaueenenss 770 W
DIMENSIONS ......ccceseeeeseeeessesteseese 420 (W) x 160 (H) x 433 (D) mm
Weight (without package) ooo... ccccceesceeesstesesteeeeeseeeeneenans 12,5 kg
Furnished Parts
EM-AMLG GING Saasatrcns sels scjanbhGcraneMeccoeeehevaies Re oaee oleae dese extedteneds neg
AM Loop Antenna .........cccceeeseseecesseeesnsseeeeeeeennsntees s e h sedasvlaavonatenath 1
Dry Cell Batteries [size "AA" (IEC LR6)] ...... eres savedebin vets 2
Remote: Control it .ccsessss hivtgeavesdetwsesigseeses td tvvestanieeveta vosetaiaenns 1
Operating INStrUCTIONS .......cccceccececsssscecsstsesessseeneetsensensateevaeensees at
Warranty Card (Australian model only) ........cccsseeeeeeeseeeeeeeeen 1
Sub Instruction Manual (Remote Control Unit) ........ cee 1
Sub Instruction Manual [Dolby Digital (AC-3)] ....... cece 1
NOTE:
Specifications and the design are subject to possible modifications
without notice, due to improvements.
