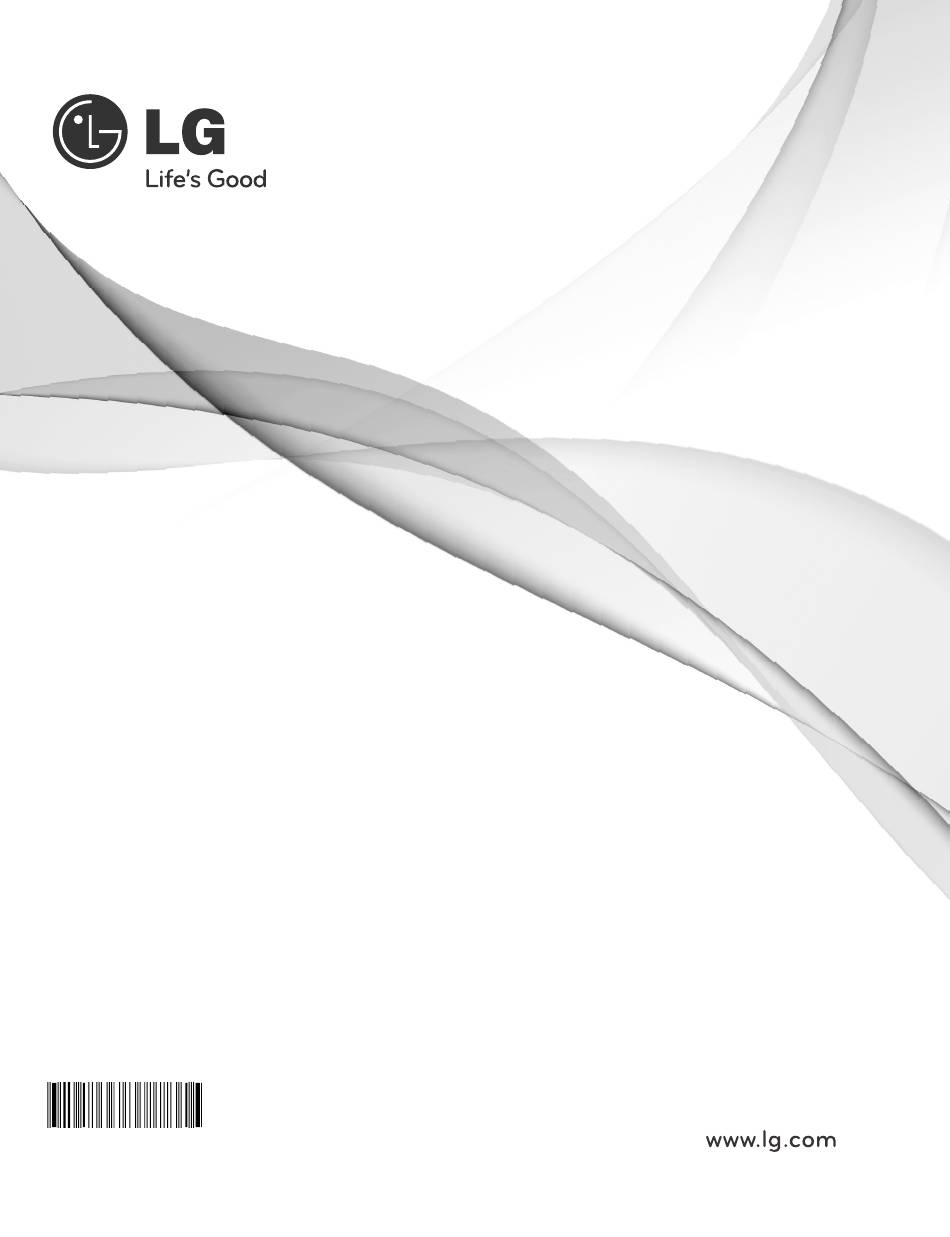

- Page 1 OWNER’S MANUAL DRYER Please read this manual carefully before operating your dryer and retain it for future reference. RC9011A / B / C / RC9041E2 RC9011A1 / B1 / C1 P/NO. : MFL63749045...
-
Page 2: Table Of Contents
Ultra big Capacity Drum The Ultra big 9.0kg capacity drum on this LG Dryer allows you to dry your washing in larger loads than ever before Lower Energy Consumption Energy LG dryers use less energy than conventional dryers due to the cutting-edge technology we have applied to the drying system and to the heat control mechanism. -
Page 3: Safety Instructions
afety Instructions To help reduce any risk of electric shock, fire, or other personal or property injury when using your dryer, please follow basic safety instructions. WARNING Serious injury or death may occur when not observing the following rules. Not allowed actions. •... - Page 4 afety Instructions • Do not use damaged power • Prevent pets biting the dryer. cord, plug and socket. Pets may die from an It may cause a fire or an electric shock or electric shock. appearance may be damaged. • Do not install or store the •...
- Page 5 afety Instructions • If this appliance is supplied from a cord extension set or an electrical connector, portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture. It may cause an electric shock, a fire, malfunction and deformation. •...
-
Page 6: Installation Instructions
Stacking Installation Instructions The LG Dryer can be placed on the top of a front loading washing machine. They are sure to be fixed with stacking kit (See the next page). This installation must be conducted by an experienced installer in order to secure robust installation of both washer and dryer. - Page 7 3. Assemble the stacking kit as following. • Peel the protective film from the double-sided tape This dryer may only be stacked on top of an LG wash- on the bracket for your size washer. er. DO NOT attempt to stack this dryer on any other •...
- Page 8 nstallation Instructions Earthing Instructions Note This appliance must be earthed. in the event of For better drying performance, Please keep the malfunction or breakdown, earthing will reduce the rear of product away from wall. risk of electric shock by providing a path of least resistance for the electric current.
- Page 9 nstallation Instructions Level the Dryer 1. Leveling the dryer prevents undesirable noise and vibration. Place your dryer in solid and level Area. When placing your dryer in an solid and level area where water is not dripping and freezing, flammable materials are not stored. 2.
-
Page 10: Appearance & Design
& Design RC9011A/B/C/RC9041E2 RC9011A1/B1/C1 Control Panel Water Container Glass Door Opaque Door Condenser Cover Air Ventilation Grill Control Panel RC9011A/B/C/RC9041E2 LED Display • Time Display • Indicator Lamps & Left Time Drying Level • Iron • Light • Cupboard •... -
Page 11: Operating Your Dryer
perating Your Dryer Cycle Selection Table Drying Electronic Sensor Dry Cycles Level Towels, dressing gowns Extra For thick and quilted fabrics and bed linen Cotton Cycles Terry towels, tea towels, Very For thick and quilted fabrics which do not need to be ironed (Note) Select the towels, bed linen gentle cycle by... - Page 12 After removing the packaging, please carry out the following checks to ensure the LG Dryer is correctly installed and ready for use. 1. Check the dryer is well balanced by using a spirit level. If not, adjust the feet of the LG Dryer until the machine is balanced.
- Page 13 perating Your Dryer 5. Close the door. Select the desired Before you close the door, make sure fabrics cycle. are well placed inside and that foreign objects, especially flammable ones, are not caught around door. CAUTION Be careful not to trap laundry in between the loading door and rubber seal.
-
Page 14: Additional Functions
Functions RC9011A/B/C/RC9041E2 RC9011A1/B1/C1 Time Delay Favourite You can use the Time Delay function to delay the If there is some cycle you would like to make finishing time of drying cycle. based on your own drying habit, use “Favourite”. - Page 15 dditional Functions Anti-Crease Child Lock ( The Anti crease is function to prevent creases For the safety of your children, press More Time and rumples that are formed when the laundry is and Less Time buttons at the same time for not unloaded promptly at the end of drying cycle.
-
Page 16: Caring For Your Dryer
aring for Your Dryer How important care and cleaning is~ Empty Water Container Condensed water is collected to water container It’s not very difficult to care for your dryer. All you have to do is to follow the information below. You should empty the water container after every Clean Lint Filter use. - Page 17 aring for Your Dryer Condenser Condenser is also a very important part for efficient drying performance result so it needs a special care from you. It is recommended that condenser be cleaned three or four times a year or when the condenser clean lamp blinks. 1.
- Page 18 aring for Your Dryer Ventilation Grille and Cool Air 3. Connect drain hose Inlet Grille to the kit. Vacuum the front ventilation grill 3~4 time a year to make sure there must be no build-up of lints or dirts which cause improper intake air flow. Moisture Sensor? This device functions to sense the moisture remaining contents of the laundry during...
-
Page 19: Additional Tips For Smart Use
dditional Tips for Smart Use Drying Guide & Energy consumption Display Drying Time Course Ca. of Dryer Energy Consumption (Including Cooling Time) Iron 97min 3.81 kWh Cotton Light * 103min 5.05 kWh Cupboard 115min 5.55 kWh Mixed Cupboard 48min 1.70 kWh Fabric 50min 1.41 kWh... - Page 20 - fig : Washer top plate size 600 of your dryer. 5. The date of purchase. If stacking is needed, you must stack the dryer upon LG washing machine. In order to do this, stacking kit must be purchased separately.
-
Page 21: Troubleshooting Guidelines
roubleshooting Guidelines Troubleshooting Tips To save you time and money, the following page will help answer your questions before service call. Questions What to do Dryer doesn't work 1. Check dryer is plugged in. 2. Check "Start" button is pressed. 3. - Page 22 roubleshooting Guidelines Error Mode • : LED displays “ ” in case of the door open. The door must be closed and start Button must be pressed for re-operation. • : If display errors continues to occur, unplug the power cords and then call to the Service Center.
-
Page 23: Technical Data
echnical Data 850 mm 640 mm 600 mm Weight : 50 kg Ventilation Requirement Electrical Requirements Alcove or Volts Hertz Watts Closet undercounter 220 V 60 Hz 2400 Ensure air flow of Closet door must have 112 cu.ft./min 2(louvered) openings, through dryer each having a minimum You are sure to check the rating plate on the... -
Page 24: Warranty
arranty Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
