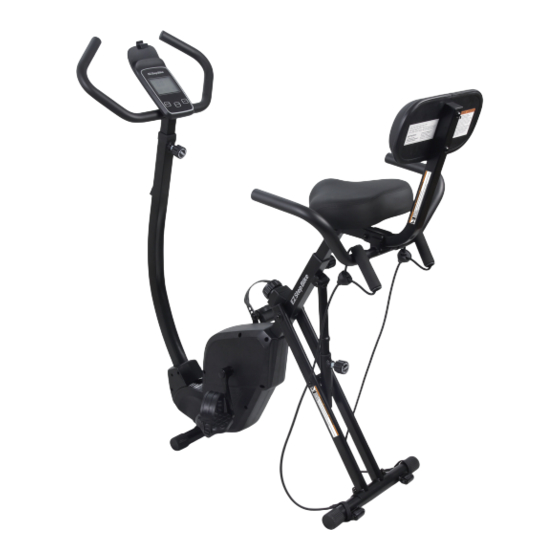

SAFETY NOTICES PLEASE READ ALL INSTRUCTIONS BEFORE USING THE EZ STEP BIKE DO NOT THROW AWAY THESE INSTRUCTIONS. This product is not intended for medical use. 2. Consult your physician before using this product if: a. You are pregnant b. You have been fitted with a pacemaker, an implant, or other medical aid c.
PARTS LIST Main Frame & Upright 8. Seat 2. Handlebar 9. Back Cushion 3. Front Stabilizer 10. Resistance Bands 4. Rear Stabilizer 11. Meter 5. Seat Frame 12. Pedals 6. Handrail 13. Pedal Straps 7. Back Support A. M8x48mm Carriage Bolt (6) B.
Page 6
ASSEMBLY • Refer to illustration, unfold the rear frame away from the main frame. • Lock the frame assembly in unfolded position by tightening knob onto frame angle support. • Unfold the upright to level 1 indicated on the sticker and lock it by stepping down lever.
Page 7
ASSEMBLY • Remove 3 pcs of nuts and 3 pcs of washers from seat. • Attach seat onto seat frame by using 3 pcs of nuts and 3 pcs of washers. • Insert seat frame into main frame and tighten them together with knob. Must ensure knob is inserted into one of the position holes.
Page 8
ASSEMBLY Fig. A Fig. B • Install handlebar by inserting the tube into the upright and secure it with knob. (See Fig. A.) • Tighten 1 pc of screw into upright for security. • Must ensure knob is inserted into one of the position holes of handlebar. •...
Page 9
ASSEMBLY • Remove 4 pcs of screws from meter. • Have meter wire go through the middle bracket on handlebar. • Tighten meter onto handlebar by using 4 pcs of screws. • Plug meter wire into sensor wire on upright.
Page 10
ASSEMBLY • Connect the right pedal to the right crank arm. • Hold the right pedal with one hand and screw the pedal bolt onto the crank arm using the other hand in a standard clockwise rotation. Finish tightening with the included wrench.
Page 11
ASSEMBLY • Slide resistance band loop onto front or rear foot as desired.
SEAT HEIGHT ADJUSTMENT Unscrew and remove knob. Move seat up or down to desired height. Screw knob back in place. RECLINE ADJUSTMENT To adjust incline level, turn the knob counter-clockwise to loosen. Once loose, pull outward and lift up the bike by the backrest bar to adjust incline.
Page 14
HANDRAIL ADJUSTMENT Recommend to flip over the handrail for wider space to get onto the bike and sit tight. Remember to flip back the handrail for hand placement.
Page 15
CONSOLE FUNCTION INSTRUCTION WINDOW DISPLAY SPEED & RPM • Show current running speed of the exercise. Display range: 0 ~ 99.9 miles/hour. • Show spotted RPM of the exercise. Display range: 0 ~ 999 rotation/ minute. • During the training, press “MODE” button to switch the window display between Speed and RPM.
Page 16
CONSOLE FUNCTION INSTRUCTION BUTTON FUNCTION RESET • During training, press “RESET” button for over 3 seconds to clear all training data and enter setting mode. MODE • During training, press “MODE” button to switch Speed and RPM under the same window display. •...
START UP AND USE ATTENTION: For sensitive floor surfaces (wood or tile floors) we recommend using a floor covering such as a rug or open cardboard box. This could prevent damage to and discoloration of your flooring. ADJUSTING RESISTANCE To adjust the resistance level (1-16), turn the knob to the left or right. •...
MAINTENANCE CLEANING Always disconnect the speed sensor plug on the console before cleaning! Clean the equipment with a damp cloth and mild detergent. Do not use abrasive or corrosive cleaning agents. Never directly spray liquid onto the equipment. Doing so could damage the unit and any delicate electrical instruments in the console Dry the equipment with a microfiber cloth.
Page 20
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If you have any questions, or would like to learn more about Echelon, please contact us at 833-937-2453 or at cs@echelonfit.com.
