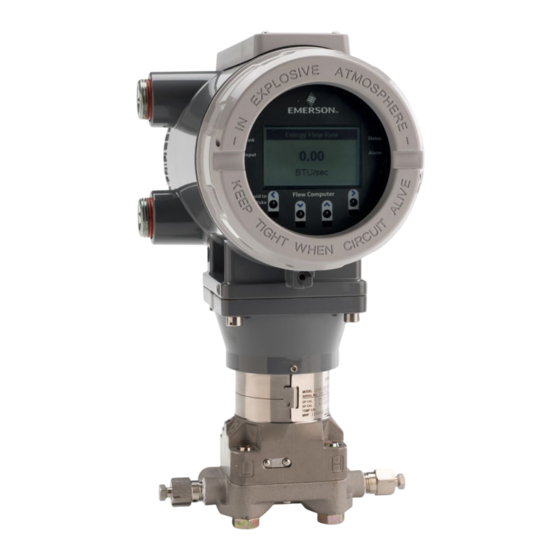

Flow computer
Hide thumbs Also See for FB1200:
Table of Contents

Advertisement

Quick Links

Download this manual

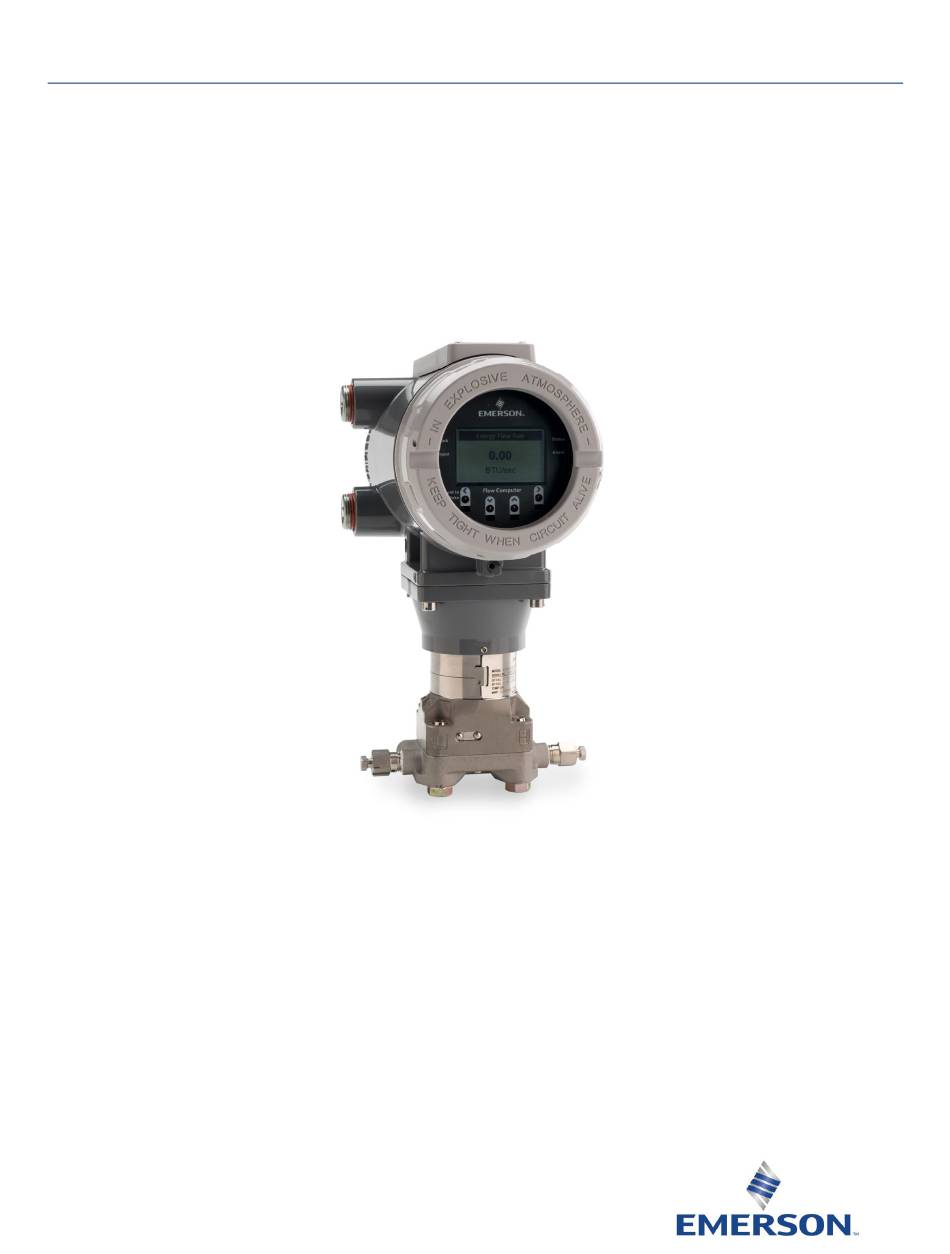

FB1200 Flow Computer Quick Start Guide
D301786X012
November 2023
FB1200 Flow Computer Quick Start Guide
Energy and Transportation Solutions

Advertisement

Table of Contents
loading

Related Manuals for Emerson FB1200

Summary of Contents for Emerson FB1200

  • Page 1 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 FB1200 Flow Computer Quick Start Guide Energy and Transportation Solutions...
  • Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.

  • Page 3: Safety First

    Performing this operation in a hazardous area could result in an explosion. Important Use only batteries supplied with the flow computer or sold by Emerson as spare parts for this flow computer. If you substitute a battery you obtain elsewhere you will void your certification unless it is the identical part from the same manufacturer as that supplied with the flow computer from Emerson.

  • Page 4: Required Tools

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Required Tools Certain tools and equipment are required for installing and servicing the flow computer. Table 1: Required Tools Tool Torque wrench For bolting/mounting the flow computer 2.5 mm hexagonal wrench...

  • Page 5: Removing/Replacing The Retaining Clamp

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Removing/Replacing the Retaining Clamp For flameproof ATEX/IEC applications, each end cap includes a retaining clamp which screws down to prevent the end cap from being unscrewed. Front End Cap with Retaining Clamp Fitted...

  • Page 6: Removing The Front Or Rear End Cap

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Removing the Front or Rear End Cap The flow computer includes two threaded end caps (covers). The front end cap includes a window for viewing the HMI module, while the rear end cap provides access to the terminal plate for power and I/O wiring.

  • Page 7: Replacing The Front Or Rear End Cap

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Rear End Cap Removing Rear End Cap Replacing the Front or Rear End Cap DANGER EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a hazardous location could result in an explosion.

  • Page 8: Bolting Considerations

    Only use bolts supplied with the flow computer or sold by Emerson as spare parts. Refer to the figures, below, for common flow computer assemblies with the bolt length required for proper flow computer installation.
  • Page 9 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Use the following bolt installation procedure: Carbon steel bolts do not require lubrication. Stainless steel bolts are factory- coated with a lubricant to ease installation. Do not apply any additional lubricant when installing either type of bolt.

  • Page 10: Coplanar Mounting Kit

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Coplanar Mounting Kit DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. Tubular L-shaped bracket 3/8-16 x 1 ½...

  • Page 11: Inline Mounting Kit

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Inline Mounting Kit DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. Pipe mounting bracket U-bolt 2 ½...

  • Page 12: Traditional Flange Mounting Kit

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Traditional Flange Mounting Kit DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion.

  • Page 13: Terminal Plate

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Terminal Plate The terminal plate includes the various terminal blocks (TB) for power and I/O connections. The appearance of the terminal plate varies depending upon whether you have the optional 6-channel expansion I/O board installed with 3.81 mm pitch connectors;...
  • Page 14 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 3.81 mm Pitch Connectors...
  • Page 15 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Grounding DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. The flow computer includes a ground lug on the terminal plate.

  • Page 16: Wiring Communications

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Wiring Communications DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. Notes You do not need to add termination resistors; you can configure termination ...
  • Page 17 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (4-wire) port (COM1) on FB device RS-485 (4-wire)-port on external device Note: In earlier standards, RS-485 (4-wire) was referred to as RS-422. RS-485 (2-wire) port (COM1) on FB device RS-485 (2-wire) port on external device...
  • Page 18 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 COM1 (Unit does not have optional I/O): RS-232 port (COM1) on FB device RS-232-port on external device RS-485/422 (4-wire) port (COM1) on FB device RS-485/422 (4-wire) port on external device...
  • Page 19 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (2-wire) port (COM1) on FB device RS-485 (2-wire) port on external device COM2 (unit has optional I/O): COM2 does have its own GND terminal. RS-232 port (COM2) on FB device...
  • Page 20 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (2-wire) port (COM2) on FB device RS-485 (2-wire) port on external device COM2 (Unit does not have optional I/O): COM2 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block.
  • Page 21 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (2-wire) port (COM2) on FB device RS-485 (2-wire) port on external device COM3 (Unit has optional I/O): COM3 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block.
  • Page 22 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (2-wire) port (COM3) on FB device RS-485 (2-wire) port on external device COM3 (Unit does not have optional I/O): COM3 does not have its own GND terminal. Use either GND terminal on the COM1 terminal block.
  • Page 23 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 RS-485 (2-wire) port on external device RS-485 (2-wire) port (COM3) on FB device...
  • Page 24 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Ethernet The Ethernet port is located on the terminal plate. Ethernet Port Notes The default IP address for the Ethernet port is 192.168.1.10; the default port is  20000 for DNP3 communication.
  • Page 25 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Wiring I/O DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. Notes You should terminate all shields at chassis ground.
  • Page 26 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 CPU Base I/O (AIAO1&2, DIDO1&2) Wiring (when optional I/O also present) When wiring a 1-5 V Analog Input (AI), use configuration at left When wiring a 4-20 mA Analog Input (AI), use configuration at left...
  • Page 27 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 CPU Base I/O (AI/AO1&2, DI/DO1&2) Wiring (when optional I/O not present) When wiring a 1-5 V Analog Input (AI), use configuration at left When wiring a 4-20 mA Analog Input (AI), use configuration at left...
  • Page 28 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Optional 6-Channel Expansion I/O Board Wiring: When wiring a 1-5 V Analog Input (AI), use configuration at left When wiring a 4-20 mA Analog Input (AI), use configuration at left Field Device...
  • Page 29 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 2-Wire RTD (when optional I/O also present): 2-Wire RTD 3-Wire RTD (when optional I/O also present): 3-Wire RTD...
  • Page 30 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 4-Wire RTD Note The default configuration is 4-wire RTD; you can change the configuration in FBxConnect. 4-Wire RTD...

  • Page 31: Wiring Power

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Wiring Power DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion. The flow computer accepts DC power with an input voltage range from 5.7 to 30V. The amount of power required depends on installed options.
  • Page 32 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Solar Power To solar power Note The upper graphic shows wiring for units with the 6-channel expansion I/O board; the lower graphic shows wiring for units without this board.
  • Page 33 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Connecting the Main Battery Pack DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non- hazardous. Performing this operation in a hazardous area could result in an explosion.
  • Page 34 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Carefully slide the HMI module back onto the tab and tighten the four captive fastening screws. Reattach the end cap. Screw it clockwise (eight full turns) until it is tightly sealed...

  • Page 35: Replacing The Main Battery Pack

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Replacing the Main Battery Pack Periodically you must replace the main battery pack. FBxConnect provides a battery life indicator showing the number of days of usage to help you monitor battery life.
  • Page 36 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Loosen the two captive fastening screws on the battery pack. Loosen the two bottom captive fastening screws on the HMI module. Leave the two top screws connected to the battery pack.

  • Page 37: Powering Up/Powering Down The Device

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Powering Up/Powering Down the Device DANGER Do not attempt to connect power or disconnect power from the unit in a hazardous area. Ensure the area is non-hazardous. Failure to do so could result in an explosion.

  • Page 38: Installing Field Tools Configuration Software

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Installing Field Tools Configuration Software You install Field Tools software (which included FBxConnect) on your PC to configure the device. Important Field Tools (including FBxConnect) is available as a free software download to ...
  • Page 39 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 After software installation re-boot, start Field Tools from either the Windows Start Programs menu or (if you created it) from the desktop icon. Log onto Field Tools. Important The first time you log into Field Tools, complete the User name field with the default admin and leave the Password field blank.

  • Page 40: Setup Wizard

    FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 Establish a Connection and Launch the Setup Wizard CAUTION When making multiple FBxConnect connections to the same device (as with a remote and a local connection), be aware that the changes one connection makes to the device may not be immediately visible to other connections and may even require the other connections to restart FBxConnect before changes become visible.
  • Page 41 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 2. Choose FBx as the Device Platform. 3. Choose a Connection Type For serial: choose the PC Comm port (or the port for the USB/serial adapter).  For WiFi: choose the default WiFi Network. The format for the WiFi Network ...
  • Page 42 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 For IP: Enter the default IP Address for the Ethernet port of 192.168.1.10. (Your  PC must be able to access this address.) 4. Click Connect. Field Tools activates the connection and automatically launches the FBxConnect tool.
  • Page 43 FB1200 Flow Computer Quick Start Guide D301786X012 November 2023 8. Follow the on-screen instructions to configure the device. Click Apply or Next to proceed through pages of the wizard or click Previous to return to a previous page. When you are done, click Finish.
  • Page 44 1 Pandan Crescent Automation Solutions, Emerson, and the Emerson logo are trademarks and Singapore 128461 service marks of Emerson Electric Co. All other marks are the property of their T +65 6777 8211| F +65 6777 0947 respective owners. Energy and Transportation Solutions...
