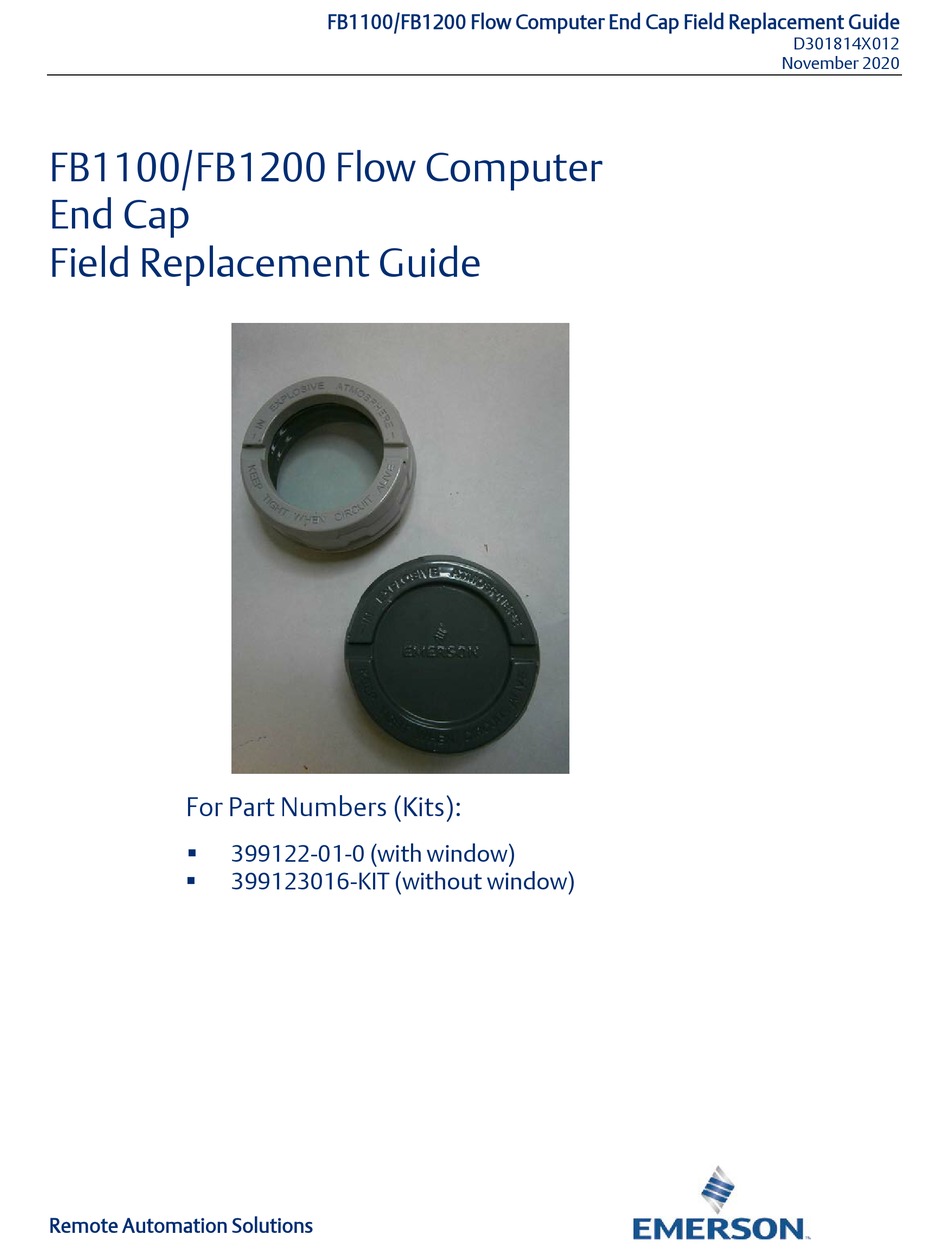

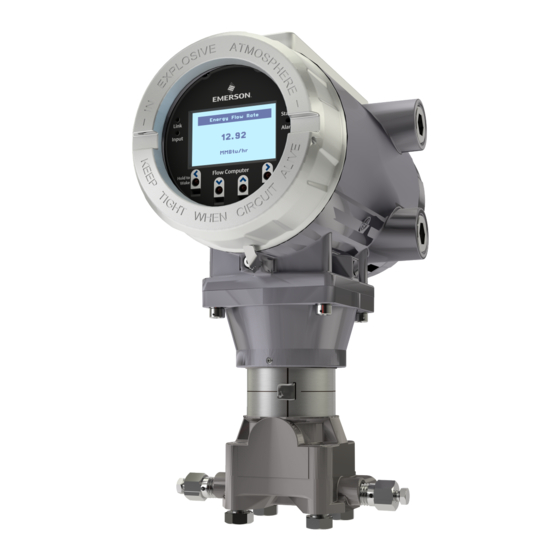

- Page 1 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide D301814X012 November 2020 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide For Part Numbers (Kits): 399122-01-0 (with window) 399123016-KIT (without window) Remote Automation Solutions...
-
Page 2: Device Safety Considerations
Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com. - Page 3 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide D301814X012 November 2020 Removing/Replacing End Caps The flow computer includes two threaded covers called end caps. The front end cap includes a window for viewing the HMI module; the rear end cap provides access to the terminal plate for power and I/O wiring.
- Page 4 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide D301814X012 November 2020 Removing/Tightening the End Cap with long screwdriver Note If you need more leverage, place a long screwdriver or other appropriate tool across the two notches in the end cap to act as a pry bar.
- Page 5 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide D301814X012 November 2020 Removing End Caps WARNING EXPLOSION HAZARD –Never remove end cap(s) in a hazardous location. Removing cover(s) in a hazardous location could result in an explosion. Remove the retaining clamp on the front end cap (if present) using a 3 mm hexagonal wrench.
- Page 6 EXPLOSION HAZARD –When replacing end caps, inspect the housing threads for damage. If housing threads are damaged such that you cannot properly seal the end caps, you cannot operate the flow computer in a hazardous area. You must return the flow computer to Emerson for repair or replacement.
- Page 7 FB1100/FB1200 Flow Computer End Cap Field Replacement Guide D301814X012 November 2020...
- Page 8 Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 © 2018-2020 Remote Automation Solutions, a business unit of Emerson Automation Jebel Ali Free Zone – South 2 Solutions. All rights reserved. Dubai U.A.E. This publication is for informational purposes only. While every effort has been made to ensure...
