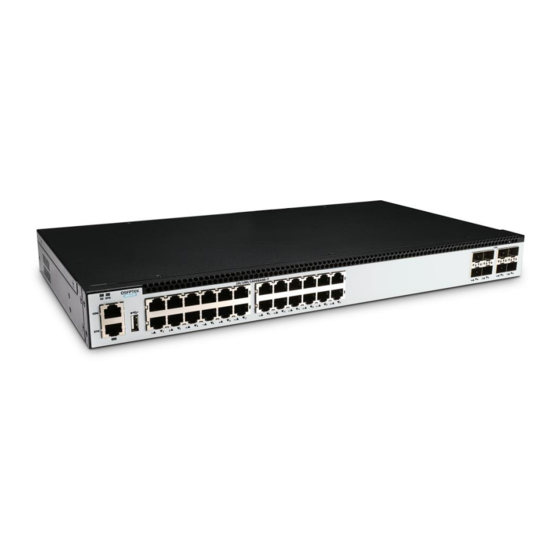

- Page 1 S5600-24T8X Quick Start Guide V2.0 24-Port Gigabit Ethernet L3+ Switch 24x 1G RJ45, with 8x 10G SFP+ Uplinks, Support MLAG, VXLAN www.qsfptek.com V2.0 1 / 12...
- Page 2 MLAG, PFC, VXLAN, EVPN, and VARP, which make it widely used for large-scale enterprises, campus networks, medical networks for effective and reliable network solutions. We appreciate your decision to select S5600-24T8X. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
1G packets receiving or Blinking transmitting RJ45 Amber 10/100M port link (Port 1-24) 10/100M packets receiving or Blinking transmitting Port not link Green 1G port link SFP+ (Port 25-32) 1G packets receiving or Blinking transmitting www.qsfptek.com V2.0 3 / 12... -
Page 4: Installation Requirements
Put the cover in a safe place. Put tools in the right place where they are not easily falling down. Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve, avoiding www.qsfptek.com V2.0 4 / 12... -
Page 5: Mounting The Switch
discharged. Avoid damaging devices by following the electrostatic discharge prevention procedure. S5600-24T8X Hardware Installation Manual. Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. -
Page 6: Connecting The Sfp+ Ports
Insert the SFP+ module into the SFP+ port. Plug a fiber patch cable into the SFP+ transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 6 / 12... -
Page 7: Connecting The Management Ports
Insert one end of the RJ45 Ethernet patch cable to the computer RJ45 port. Connect the RJ45 connector on the other end of the patch cable to the ETH port on the switch www.qsfptek.com V2.0 7 / 12... - Page 8 Connecting the USB Port Prepare an Universal Serial Bus (USB) flash disk. Insert the USB to the switch USB port. www.qsfptek.com V2.0 8 / 12...
-
Page 9: Configuring The Switch
255.255.255.0. Step 3: Open a web browser and type http://192.168.1.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 9 / 12... -
Page 10: Troubleshooting
For example, when using TFTP protocol, we enter incorrect IP addresses of the Server and Switch, name of loading software, do not specify the correct working path of the correct TFTP server, and so on. www.qsfptek.com V2.0 10 / 12... -
Page 11: User Password Lost
(such as a super terminal) is incorrect, please check accordingly. 3. Troubleshooting for the terminal displaying hashes: If the configuration terminal displays hashes, probably the parameter setting of the terminal (such www.qsfptek.com V2.0 11 / 12... -
Page 12: Support And Other Resources
Product Warranty S5600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
