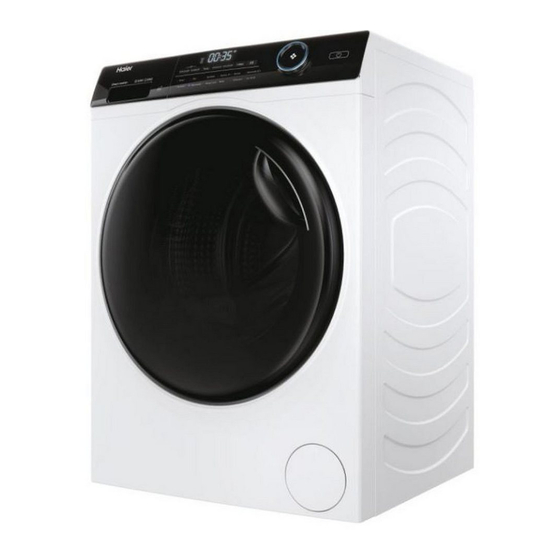

- Page 1 User manual Washing machine HW80-B14959EU1 HW90-B14959EU1...
- Page 2 Thank you Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
-
Page 3: Table Of Contents
Content 1-Safety information ......................... 4 2-Product description ........................7 3-Control panel ..........................8 4-Programmes ..........................12 5-Consumption ..........................13 6-Daily use ............................14 7-hOn..............................19 7-Eco friendly use..........................22 8-Care and cleaning ........................23 9-Troubleshooting ...........................26 10-Installation ...........................29 11-Technical data..........................33 12-Customer service ........................34... -
Page 4: 1-Safety Information
1-Safety information Before switching on the appliance for the fi rst time read the follow- ing safety hints!: WARNING! Before fi rst use Make sure there is no transport damage. Make sure all transport bolts are removed. Remove all packaging and keep out of children´s reach. Handle the appliance always with at least two persons because it is heavy. - Page 5 1-Safety information WARNING! Daily use Do not hot wash foam rubber or sponge-like materials. Do not wash any laundry which is polluted with fl our. Do not open detergent drawer during any wash cycle. Do not touch the door during the washing process, it gets hot. Do not open the door if the water level is visibly over the porthole.
- Page 6 1-Safety information WARNING Installation Install or use the appliance only where the temperature is above 5 °C. Do not place the appliance directly on a carpet, or close to a wall or furniture Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
-
Page 7: 2-Product Description
4 Washer door 4 Power cord 5 Filter cover 5 Drain hose 6 Adjustable feet 6 Water inlet valve 2.2 Accessories Check the accessories and literature in accordance with this list (Fig. 2-3) Haier HW110-B14979U1 11,0 3:58 CDEFG Noise Energy User manual... -
Page 8: 3-Control Panel
2-Product description 盲孔深度2.5 m m Steam 色 色 色 灯 灯 灯 珠 珠 珠 . 0. 0 06 Smart Synt hetic Quick 15’ Re fres h Cotton 20°C 冰 色灯珠 Re mote Cotton Allergy Ca re Wool Spin Eco 40 -60 1 “Power”... - Page 9 Note: Factory settings To get the best results in each programme Haier has well defi ned specifi c default set- tings. If there is no special requirement default settings are recommended. 3.4.1-Function button “Delay“...
- Page 10 3-Control panel 3.4.2-Function button “Prewash“ Touch this button (Fig. 3-7) the “Prewash“ programme can be selected.When selecting this function, you need Prewash to add a little detergent in the Prewash area in advance (pay attention to the detergent should not exceed 30g). Mix, Synthetic, Cotton 20°C, Cotton, Allergy Care can select this function, when you select the Prewash func- tion, the icon will light up.
- Page 11 3-Control panel 3-13 3.5 “Child lock“ Choosing a programme and then start, touch but- ton “Delay” and “Prewash” (Fig. 3-13) for 3 seconds Steam simultaneously to block all panel elements against ac- tivation, panel displays . For unlocking, please touch again the two buttons.
-
Page 12: 4-Programmes
4-Programmes Detergent compartment for: Detergent Softener or care product Detergent • Yes, Optional, º Max. Preset Tempera- Function load spin ture speed in kg in °C in rpm select able Programme range 1 2 3 Fabrics type HW80/90 Lightly soiled mixed 1:03 •... -
Page 13: 5-Consumption
5-Consumption Scan QR code on energy label for energy consumption information. The actual energy consumption may diff er from the declared one according to local conditions. Note: Auto Weight The appliance is equipped with a loading recognition. At low loading, energy, water and washing time will be reduced automatically in some programmes. -
Page 14: 6-Daily Use
6-Daily use 6.1 Power supply Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION (see P28). 6.2 Water connection Before connecting check the cleanliness and clar- ity of the water inlet. Tun on the tap (Fig.6-2). - Page 15 6-Daily use 6.4 Care chart Washing Washable up to 95°C Washable up to 60°C Washable up to 60°C normal process normal process mild process Washable up to 40°C Washable up to 40°C Washable up to 40°C normal process mild process very mild process Washable up to 30°C Washable up to 30°C...
- Page 16 6-Daily use 6.6 Selecting detergent Washing effi ciency and performance is determined by used detergent quality. Use only machine wash approved detergent. If needed use specifi c detergents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products. Kind of detergent Universal Colour...
- Page 17 6-Daily use 6.7 Adding detergent 1. Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 6-4) 3. Push back the drawer gently. Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener. Please follow the instruction on the detergent package.
- Page 18 6-Daily use 6.11 Start wash programme Touch “Start/Pause“ button (Fig. 6-8) to start. The LED of the “Start/Pause“ button stops fl ashing and lights up continuously. Appliance operates according to pre- sent settings. Changes are only possible by cancelling the programme. 6.12 Interrupt / cancel wash programme To interrupt a running programme press gently “Start/Pause“.
-
Page 19: 7-Hon
Download the hOn App on your device by framing the following QR code: Download the hOn App on your device go.haier-europe.com/download-app or by the link: go.haier-europe.com/download-app Note: Registration Registration is required when fi rst time to use or the formal account has been deleted/... - Page 20 7-hOn 7.4 Registration and App Pairing Connect the smartphone to the home Wi-Fi network you want to connect the product to. 2. Open the App. 3. Create the user profi le (or log-in if it is already created previously) Close the door 5.
- Page 21 7-hOn Note: Network credentials cancellation/reset Follow this procedure only if you are going to sell your washer. 7.8 Network credentials cancellation 1. Select “Remote” programme; 2. “”/”” displayed; 3. Long press “Delay” button for 5 seconds till “” displayed. 4. Confi guration information is deleted and reset confi guration. Rotate the knob to select other programme or shut down to exit.
-
Page 22: 7-Eco Friendly Use
8-Eco-friendly use Environmentally responsible use Washing To achieve best use of energy, water, detergent and time you should use the recom- mended maximum load size. Do not overload (hand width clearance above laundry). For slightly soiled laundry select the Quick 15’ programme. Apply exact dosages of each washing agent. -
Page 23: 8-Care And Cleaning
9-Care and Cleaning 9.1 Cleaning the detergent drawer Take always care there are no detergent residues. Clean the drawer regularly (Fig. 9-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer. 3. Wipe the inside of the sink clean with a towel. 4. - Page 24 9-Care and Cleaning 9.5 Long periods of disuse If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 9-6). 2. Turn off water supply (Fig. 9-7). 3. Open the door to prevent formation of moisture and odours.
- Page 25 9-Care and Cleaning 9. Clean carefully pump fi lter, e.g. using running water 9-14 9-15 (Fig. 9-14). 10. Refi x it thoroughly (Fig. 9-15). 11. Close service fl ap. CAUTION! Pump fi lter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape.
-
Page 26: 9-Troubleshooting
10-Troubleshooting Many occuring problems could be solved by yourself without specifi c expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. - Page 27 10-Troubleshooting Problem Cause Solution • Temperature sensor error. • Contact the After sales service. • Heating error. • Contact the After sales service. • Motor error • Contact the After sales service • Water level sensor error. •...
- Page 28 10-Troubleshooting Problem Cause Solution Automatic adjust- • Washing programme duration will • This is normal and doesn‘t af- ment of washing time. be adjusted. fect functionality. Spinning fails. • Unbalance of laundry. • Check machine load and laundry and run a spinning programme again.
-
Page 29: 10-Installation
11-Installation 11.1 Preparation Take the appliance out of the packaging. Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port- hole. This normal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner. - Page 30 11-Installation 11.3 Dismantle the transportation bolts 11-4 11-5 The transportation bolts are designed for clamping anti-vibration components inside the appliance during transportation to prevent inner damage. 1. Remove all 4 bolts on the rear side and take out plastic spacers (Fig. 11-4 / Fig. 11-5). 2.
- Page 31 11-Installation 11.6 Drain Water Connection Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain hose fi xed to the clip at the appliance back. WARNING! Use only the supplied hose set for the connection.
- Page 32 11-Installation 11.7 Fresh Water Connection 11-12 11-13 Make sure that the gaskets are inserted. 1. Connect the water inlet hose with the angled end to the appliance (Fig. 11-12. Tighten the screw joint by hand. 2. The other end connect to a water tap with a 3/4“...
-
Page 33: 11-Technical Data
This product meets the requirements of all applicable EC directives with the correspon- ding harmonised standards, which provide for CE marking. Hereby, Haier declares that the radio equipment type is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following... -
Page 34: 12-Customer Service
13-Customer service We recommend our Haier Customer Service and the use of original spare parts, and the minimum period during which the spare parts for the household washing machine is 10 years. If you have a problem with your appliance, please fi rst check section TROUBLESHOOTING. - Page 35 fi eld model of the product label affi xed on the product; the link to the model in the product database can be found here below for each model identifi er: __________________ HW80-B14959EU1 HW90-B14959EU1 HW80-B14959EU1...
