FreeFlow Print Server
DocuSP Network Quick
Connect Guide
Purpose:
Refer to this guide to modify the Digital Front End (DFE) network
settings at the DFE Local User Interface (UI. For complete
instructions refer to the DocuSP documentation.
Note: A Network Administrator is required to ensure that the DFE is
configured properly. To properly configure the DFE, the Network
Administrator must supply an IP Address, a Subnet Mask, and a
Gateway Address if applicable (as well as a Cat 5 Ethernet drop
cable). For complete instructions to configure the DFE on a Novell
network refer the DocuSP Customer documentation.
Procedure:
This product was designed to connect to most networks with minimal
changes. Connect the DFE to the network. Step 1 provides the
machine default settings. Steps 2 - 5 provide instructions on how to
modify the machine settings and connect clients for printing
Step
1 Default Server and Network
Settings
Port
Default Settings
Web Services - Enabled
(DHCP).
LPD - Enabled
server name is Windows Printing - Enabled
Netware – Enabled
IPP - Enabled
AppleTalk – Enabled
Socket - Disabled
Step 2
IP Protocol Setup - using the
Local UI
Note: If you intend to use a Name Service (NIS, NIS+ etc) then
please reference the Customer Documentation. The Name Service
options are not addressed in this quick setup guide.
Auto IP (DHCP): No action required.
Static IP Configuration: Follow this procedure to make changes.
If no changes are required, continue to Step 3.
Local UI
1. Make sure the DocuSP status displays "printer ready".
2. Select Logon from the pull-down menu on the DocuSP.
3. Login in as System Administrator. Enter the password. The
default password is 'administ' and is case sensitive.
4. Click OK.

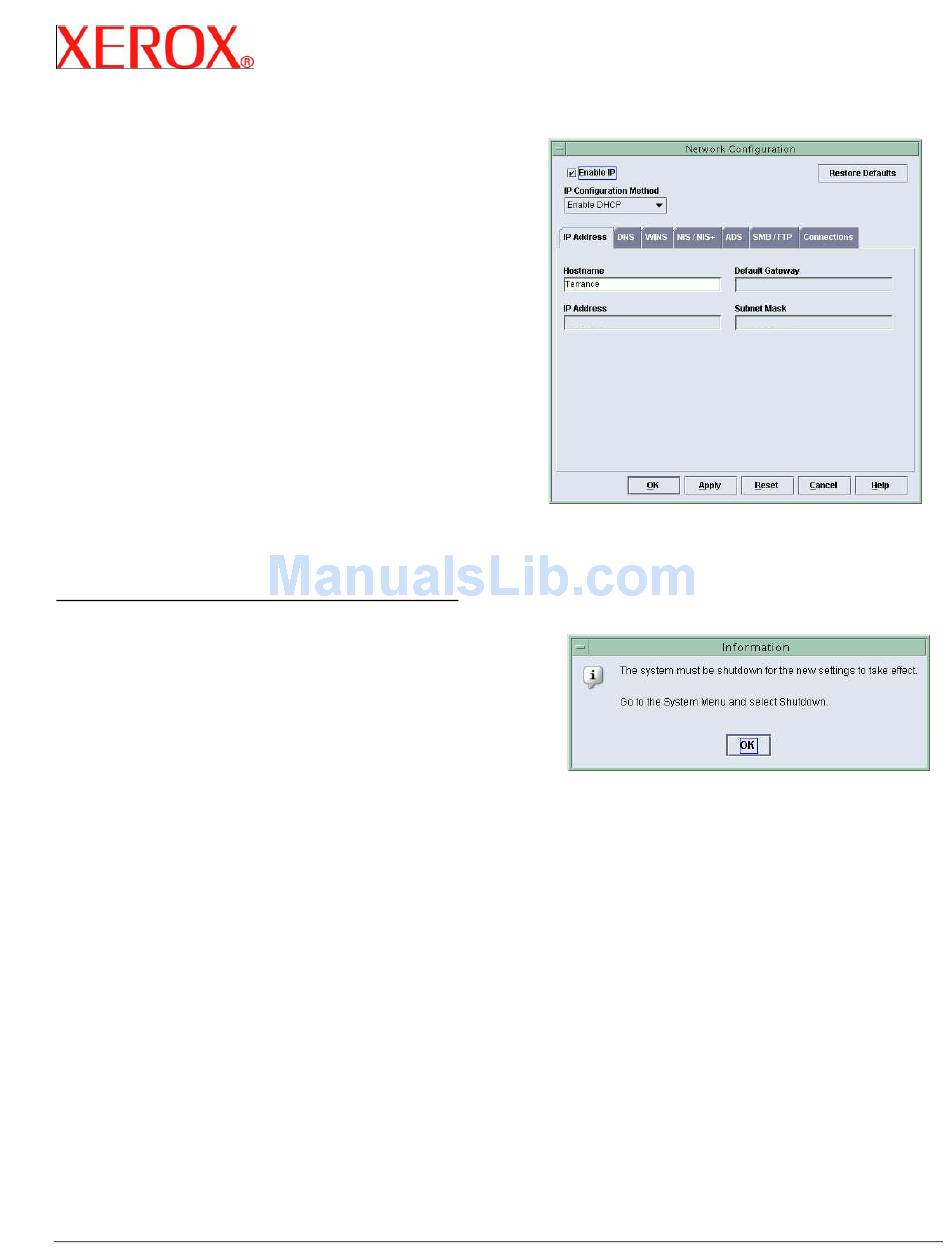

5. Click Setup > Network Configuration.
6. Select the "Configuration Method" from the IP Address tab.
7. Enter the Hostname, Default Gateway, IP Address, and
Subnet Mask
8. Click OK.
9. Select System > Shutdown.
10. Click Yes.
Default Network Settings
IP Address: Get IP Address
Server Name: The default
"XRX_hostID"
Print Queues:
XRX_hostID_Print
XRX_hostID_Save
XRX_hostID_Hold
11. After the system has completely shutdown, wait 5 seconds
and then press the power button to bring the DocuSP back
up.
