OWNER'S MANUAL

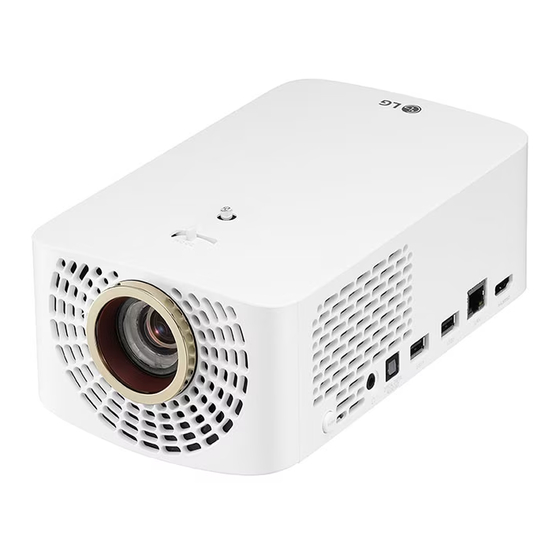

LG CineBeam
DLP Projector
Please read the safety information carefully before using this product.
HF60LG
www.lg.com
P/NO : SAC37813528 (1911-REV01)
Copyright © 2019 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for LG CineBeam HF60LG

Summary of Contents for LG CineBeam HF60LG

  • Page 1 OWNER'S MANUAL LG CineBeam DLP Projector Please read the safety information carefully before using this product. HF60LG www.lg.com P/NO : SAC37813528 (1911-REV01) Copyright © 2019 LG Electronics Inc. All Rights Reserved.

  • Page 2: Licenses

    LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. Child injuries can be prevented by following these simple safety precautions. The precautions should be followed in the same manner when you store or move your existing projector.
  • Page 4 • Do not place flammable materials • Do not use the projector in a damp such as aerosols near the projector. place such as a bathroom where it - This may result in fire. is likely to get wet. - This may result in fire or electric •...
  • Page 5 • If you use a ceiling mounting device, CAUTION adhesive to prevent loosening • When moving the projector, make of screws, or if you apply oil or sure to switch it off and remove the lubricant to the product, this may power plug and cords.
  • Page 6 Power • Do not plug too many devices into one multi-power outlet. WARNING - This may result in fire due to the power outlet overheating. • DISCONNECTING THE DEVICE • Keep the AC adapter, power plug, FROM THE MAIN POWER and the used power outlet clean - The Power plug is the from dust or foreign materials...
  • Page 7 • Only use the official power cord hot. Do not use the product if the provided by LG Electronics. Do not power outlet is loose. use other power cords. - This may result in fire or electric - This may result in fire or electric shock.
  • Page 8 Always use the AC adapter provided nor flammable materials such as or any AC adapters approved and paper or matches into the projector. certified by LG Electronics. - This is to prevent electric shock - Any other AC adapter or fire.
  • Page 9 • Never open any cover on the • Do not keep your hand on the projector. projector for a long time when it is - There is a high risk of electric running. shock. • When you play a game by •...
  • Page 10 • It is recommended that you CAUTION maintain a distance of more than • Do not place heavy objects on the 5 to 7 times the diagonal length of projector. the screen. - It may fall down and cause - If you watch the screen at a personal injury.
  • Page 11 Cleaning • Do not use high voltage electrical equipment near the projector, (e.g., WARNING a bug zapper). This may result in product malfunction. • Do not spray the projector with • Please be sure that the projector’s water when cleaning. Make sure aperture (lens and mirror) is not water does not flow into the blocked by a person or any objects.
  • Page 12 • Do not wipe the optical system CAUTION (lens, mirror) right after the product • Contact your seller or our service has been turned off or while the center once a year to clean the product is being operated. When internal parts of the projector.
  • Page 13 Others • Do not touch the lens; doing so can result in burns or damage to the WARNING lens. The lens and the unit may be HOT during and immediately after • When you go out, place the use. Use caution when handling projector out of reach of animals, the unit, allowing for a proper cool and remove the power plug from...
  • Page 14 • Do not throw or disassemble the CAUTION battery. • Do not use or store the projector - This may result in fire or outdoors for long periods of time. explosion due to damage to the • Do not mix new batteries with old battery.

  • Page 15: Table Of Contents

    CONTENTS LICENSES CONNECTING DEVICES HDMI Connection SAFETY PRECAUTIONS - Connecting to HD Receiver, DVD, or External Devices PREPARATION - Connecting a PC Accessories - Connecting a Laptop Optional Extras Connecting Headphones Parts and Components Connecting a Digital Amp - Main Unit Connecting a smart device Using the Joystick Button (smartphone, tablet, etc.)

  • Page 16: Preparation

    PREPARATION The pictures may differ slightly from the actual product. Accessories Accessories included with the projector are show below. Accessories are subject to change without prior notice. New accessories may be added or old ones removed. Remote Control Owner's Manual Two AAA Batteries AC-DC Adaptor Power cord...

  • Page 17: Optional Extras

    To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice. Projection Screen Tripod HDMI Cable Optical Cable LG Audio Device...

  • Page 18: Parts And Components

    Parts and Components This projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.
  • Page 19 Side USB1 USB2 Back Description (Headphone Port) Port USB port Port Port IR Receiver Port...

  • Page 20: Using The Joystick Button

    Using the Joystick Button You can operate the projector by pressing the button or moving the joystick left, right, up, or down. Basic functions Power On When the projector is turned off, place your finger on the joystick button, press it once, and release it.

  • Page 21: Adjusting The Menu

    Adjusting the menu When the projector is turned on, press the joystick button one time. You can adjust the menu items ( ) moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it.

  • Page 22: Installation

    Installation - Be sure to prevent foreign objects such as paper debris from entering the projector. Installation Precautions • Place the projector in a well- ventilated environment. - To prevent internal overheating, install the projector in a well- ventilated place. Do not place anything near the projector.
  • Page 23 • The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/ or bright colored dots (red, blue or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

  • Page 24: Projection Distance Per Screen Size

    Projection Distance per Screen Size Place the projector on a sturdy, level surface, together with the PC or audio/ video source. Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image. Position the projector so that the lens is at a right angle to the screen.
  • Page 25 (1.0 x Zoom) (1.1 x Zoom) NOTE • If the projected image looks distorted or bent, check to see if the screen is installed properly.
  • Page 26 16:9 Aspect Ratio (1.1 x Zoom) Screen Width Screen Height Projection Distance Screen Size inches 1061 1016 1230 1143 1371 1270 1107 1526 1397 1218 1682 1524 1328 1837 1651 1439 1992 1778 1550 2147 1905 1660 2302 2032 1771 2458 2159 1882...
  • Page 27 16:9 Aspect Ratio (1.0 x Zoom) Screen Width Screen Height Projection Distance Screen Size inches 27.2 31.8 1061 36.3 1230 40.9 1039 1371 45.4 1155 1006 1526 1270 1107 1682 54.5 1385 1208 1837 59.0 1501 1308 1992 63.6 1616 1409 2147 68.1...

  • Page 28: How To Install The Projector On

    How to Install the Projector On a Tripod • You can install the projector using a camera tripod. • As shown below, you can mount the projector instead of a camera on the tripod. • When stabilizing the tripod, we recommend using a locking bolt of standard size 4.5 mm or less.

  • Page 29: Kensington Security System

    Kensington Security System • This projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below. • For more information on installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. •...

  • Page 30: Remote Control

    REMOTE CONTROL Open the battery cover on the back of the remote control and insert the batteries which are specified in the battery room with poles pointing in the correct direction. The new and same type of batteries (1.5 V AAA) must be used. CAUTION •...
  • Page 31 Allows you to use the SIMPLINK function. Accesses the Home menu. Displays the list used previously. Shows the previous history. By zooming in on the selected area, you can view it in full screen. Up/Down/Left/Right buttons Sets the function or moves the cursor. Shows the current mode and saves changes to the settings.
  • Page 32 NOTE • When using the remote control, the optimal operation range is 6 meters or less (left/ right) and within a 30 degree arc of the remote control IR receiver. • If a cable is connected to the back port, the optimal operating range is 3 meters or less (left/right) and within a 30 degree arc of the remote control IR receiver.

  • Page 33: Using The Projector

    USING THE PROJECTOR Focus and Position of the Screen Image When an image appears on the screen, check if it is in focus and fits the screen properly. Zoom Ring Focus Ring • To adjust the focus of the image, rotate the focus ring. •...

  • Page 34: Watching With The Projector

    Watching With the Projector When in standby mode, press the (POWER) button to turn the projector (INPUT) Select the [All Inputs] and select the input signal you want. Control the projector using the following buttons while watching projector. Button Description Moves to the previous/next page.

  • Page 35: Connecting Devices

    CONNECTING DEVICES You can connect various external devices to the projector. Computer/Notebook Digital Device LG Audio Device Games Console Headphone Mobile Phone HDMI - Page 36, 37, 38 Headphone - Page 39 Digital Amp - Page 40 Smart device - Page 41...

  • Page 36: Hdmi Connection

    HDMI Connection NOTE ARC (Audio Return Channel) Connect an HD receiver, DVD, or • External audio devices that support external devices to the projector and SIMPLINK and ARC must be select an appropriate input mode. connected using port. You can connect with any HDMI input •...

  • Page 37: Connecting A Pc

    Connecting a PC The projector supports Plug and Play. Your PC will automatically detect the projector and requires no driver installation. Using an HDMI cable, connect the port of the projector to the HDMI output port of your PC. Both video and audio are output at the same time.

  • Page 38: Connecting A Laptop

    Connecting a Laptop Examples of switching output settings when connecting a laptop You can connect the projector to a laptop to use various functions. The table below shows examples of switching the output. For more Using an HDMI cable, connect the information, refer to the External port of the projector to the Output, Connecting to an External...

  • Page 39: Connecting Headphones

    Connecting Headphones You can listen to the audio through a headphone. Not provided...

  • Page 40: Connecting A Digital Amp

    Connecting a Digital NOTE • Refer to the user manual of the audio device to connect. Using an optical cable, connect the • When connecting this product to digital audio input port of a digital amp other devices, make sure to turn off to the and unplug all the devices.

  • Page 41: Connecting A Smart Device (Smartphone, Tablet, Etc.)

    Connecting a smart device (smartphone, tablet, etc.) • (INPUT) [All Inputs] [HDMI1]/[HDMI2] • The picture may look different from the actual product. Connect a smart device to the projector using a cable and set the external input of the projector to HDMI. The smart device screen will then be displayed through the projector.

  • Page 42: Maintenance

    MAINTENANCE Clean your Projector to keep it in optimal condition. Cleaning Cleaning the Lens • If there is any dust or staining on the lens surface, you must clean the lens. • To remove dust or stains on the lens, use a compressed air duster, cotton swab, or soft cloth to gently wipe the lens.

  • Page 43: Specifications

    SPECIFICATIONS MODEL HF60LG (HF60LG-GL) Resolution (Pixel) 1920 (Horizontal) × 1080 (Vertical) Aspect ratio 16:9 (Horizontal:Vertical) Projection distance 905 mm to 3698 mm - Screen size - 762 mm to 3048 mm (30 inches to 120 inches) Ratio of upward 100 % projection Working range of 6 m (Max.)
  • Page 44 HDMI (DTV) Supported Mode Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 31.46 59.94 640 x 480p 31.50 60.00 31.47 59.94 720 x 480p 31.50 60.00 720 x 576p 31.25 50.00 44.96 59.94 1280 x 720p 45.00 60.00 37.5 50.00 28.12 50.00 1920 x 1080i 33.72...
  • Page 45 HDMI (PC) Supported mode Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 60.00 1152 x 864 54.34 60.05 1280 x 1024 63.98...

  • Page 46: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 47: Symbols

    SYMBOLS Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
  • Page 49 Your projector’s OSD (On Screen Display) may differ slightly from that shown in this manual. [ ] : the buttons and the text to be displayed on the projector screen. P/NO : SAC37813527 (1908-REV00) Copyright © 2019 LG Electronics Inc. All Rights Reserved.
  • Page 50 - Using the Music Player Using the LG TV Plus App [File Viewer] - Connecting Your Smart Device - Viewing Files to a Projector Using the LG TV - Browsing File Viewer Plus App - Controlling Your Projector with Connecting USB...
  • Page 51 BENEFITS OF SMART PROJECTOR Zooming in the Projector Display 44 Playing Sound from a Smart Device through the Projector’s Speakers TOUR LIST OF SETTINGS Quick Settings - To use Setting function quickly [Picture] Settings [Sound] Settings [Network] [General] [Safety] Settings [Accessibility] TROUBLESHOOTING Abnormal Operation...

  • Page 52: About Lg Projector

    ABOUT LG PROJECTOR Home Tutorial Using the Home feature of the LG Projector You can open the Home screen by pressing the button on your remote control. You can combine frequently used apps on a single screen and use whichever you want at any time.
  • Page 53 Using Recent List To access the list of recently used apps, press and hold the button on your remote control, or press and hold a recently used item on the Home screen. You can run or exit all the apps you’ve used recently. Description Exit the app.
  • Page 54 Managing Apps You can view a list of all apps installed on your projector, change their positions, or delete them. • Some apps cannot be edited. OK button on the Select the app you want to edit, and press and hold the Remote Control.
  • Page 55 Stopping the current function Press the button on the remote control. Select the application name at the top left corner of the screen by the Remote Control to display the Close icon. Select the Close icon displayed next to the application name to quit the function in use.

  • Page 56: Network Setting

    Network Setting Network Setting If you configure settings for the network, you can use various services such as online contents and applications. Setting a Wired Network Connect the LAN port of the projector and the router using a LAN cable. The router should be connected to the Internet beforehand.
  • Page 57 OFF, disconnect and reconnect it, and then turn the power on to solve the problem. • LG Electronics is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. • The network connection may not work properly because of network settings or the Internet service provider.

  • Page 58: How To Operate Projector

    HOW TO OPERATE PROJECTOR Launching Apps through [QUICK ACCESS] Using apps quickly and easily with [QUICK ACCESS] • Press and hold a number button on the remote control to open an app or to activate an external input registered to the button. Setting the [QUICK ACCESS] Launch the app or input you wish to assign.
  • Page 59 Checking and editing QUICK ACCESS Press and hold the number 0 button on the remote control. The [QUICK ACCESS] edit screen appears. Description Selecting a number that has already been registered allows deregistering it. When you select a number that has not been registered, items that can be registered will be shown.

  • Page 60: Simplink (Hdmi-Cec)

    SIMPLINK (HDMI-CEC) Using SIMPLINK You can conveniently control and use various multimedia devices connected through HDMI with the projector’s remote control. Connect the SIMPLINK HDMI Output port to the projector’s HDMI IN port with an HDMI cable. Press the (Q. Settings) button on the remote control and select [General] [SIMPLINK (HDMI-CEC)].
  • Page 61 Supported SIMPLINK Functions • Instant Play When you start a multimedia device, you can immediately watch content from the device on the projector without having to control anything. • Controlling devices with the projector remote control Enables the user to control multimedia devices with the projector remote control to watch content.

  • Page 62: Using The Lg Tv Plus App

    The app will automatically scan for projectors that can be connected to your smart device. Select the projector you want from the list of search results. A PIN code appears on the projector screen. Enter the PIN code in the LG TV Plus app to pair your smart device with the projector.

  • Page 63: Controlling Your Projector With

    Controlling Your Projector with the LG TV Plus App You can tap the buttons on your smart device’s screen to control the projector. Description You can use the same functions as the Magic Remote’s pointer and arrow keys. You can adjust the volume or make other adjustments without using the remote control.

  • Page 64: Mobile Connection

    Install the LG TV Plus app on the smart device. Connect both your projector and the smart device to the same network. Run the LG TV Plus app and set up a connection to your projector following the instructions shown on the screen.

  • Page 65: Using A Keyboard And Mouse

    • It is recommended that you use a product that has been tested for compatibility with LG projectors. - LOGITECH K360, LOGITECH K400, LOGITECH K750, LG Electronics MKS- 1200 • You can change the input language by pressing the language switch key or the right Alt key.

  • Page 66: Using A Gamepad

    • It is recommended that you use a gamepad that has been tested for compatibility with LG projectors. - LOGITECH F310, LOGITECH F510, LOGITECH F710, LOGITECH Rumblepad 2, LOGITECH Cordless Rumblepad 2, LOGITECH Dual Action Gamepad, MICROSOFT Xbox 360 Controller (cable), SONY Playstation(R)3 Controller...

  • Page 67: Contents

    HOW TO USE VARIETY OF CONTENTS Search Content [Search] [Search] allows you to find and use a variety of content and information. You can search for files, including image, video, audio in inserted USB. Searching for Content (SEARCH) button on your remote control. Run [Search] by pressing the Search for a variety of content and information by typing in your desired search terms.

  • Page 68: Play Other Device Files

    PLAY OTHER DEVICE FILES [Photo & Video] Viewing Photos and Videos You can view photos and videos using the [Photo & Video] app. Press the button on your remote control. Launch the [Photo & Video] application. Select your desired storage device. Select and view your desired photo or video.

  • Page 69: Photo Player

    Photo Player Selecting a photo in the [Photo & Video] app runs the photo player. You can view your saved photos. Description Returns to the entire content list. You can play background music by running the music player. You can zoom the photos in/out. Starts the slide show.
  • Page 70 Supported Photo Files File type Format Resolution Minimum: 64 x 64 .jpeg Maximum .jpg JPEG Normal Type: 15360 (W) x 8640 (H) .jpe Progressive Type: 1920 (W) x 1440 (H) Minimum: 64 x 64 .png Maximum: 5760 (W) x 5760 (H) Minimum: 64 x 64 .bmp Maximum: 1920 (W) x 1080 (H)

  • Page 71: Video Player

    Video Player Selecting a video in the [Photo & Video] app runs the video player. You can view your saved videos. Description Returns to the entire content list. You can select other content by displaying the playlist while watching a video. You can control basic video playback functions.
  • Page 72 Setting Additional Options 1 2 3 4 Description You can change subtitle settings. You can set audio tracks. You can set continue watching to resume playing from the last viewed scene. You can set continuous playback. If continuous playback is set, the next video is automatically played after the playback of a video is over.

  • Page 73: Supported Video Files

    Supported Video Files Maximum data transfer rate: • Full HD video H.264 1920 x 1080@60P BP/MP/HP@L4.2 40 Mbps HEVC 1920 x 1080@60P MP@L4.1, Main10 Profile@L4.1 40 Mbps Supported external subtitles: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX), *.dcs (DLP Cinema) Supported embedded subtitles format: •...
  • Page 74 Supported video codecs Extension Codec VC-1 Advanced Profile (except for WMVA), VC-1 Video Simple and Main Profiles .asf .wmv WMA Standard (except for WMA v1/ WMA Audio Speech) Xvid (except for 3 warp-point GMC), H.264/AVC, Video Motion Jpeg, MPEG-4 .avi MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Audio Dolby Digital, LPCM, ADPCM, DTS...

  • Page 75: Cautions For Video Playback

    Cautions for Video Playback • Some user-created subtitles may not work properly. • A video file and its subtitle file must be located in the same folder. For subtitles to be displayed properly, make sure that the video file and the subtitle file have the same name.

  • Page 76: [Music]

    [Music] Playing Music You can listen to music by using the [Music] app. Press the button on your remote control. Launch the [Music] application. Select your desired storage device. You can select your desired songs from all of your storage devices and add them to [MY PLAYLIST].

  • Page 77: Using The Music Player

    Using the Music Player The music player lets you choose music from other apps and use it as background music. 1 2 3 4 5 6 Description You can play music from the selected storage device. You can set repeat playback and random playback. You can listen to music with the screen turned off.
  • Page 78 Description You can change the position of the music player. You can minimize the music player. This feature closes the music player. Lyrics are available for music files that provide them. In some music files, you can choose a lyric section and move the playback position.
  • Page 79 Audio Format File Format Item Info Bit rate 32 kbps ~ 320 kbps Sample freq. 16 kHz ~ 48 kHz .mp3 Support MPEG-1, MPEG-2 Channels mono, stereo Bit rate Sample freq. 8 kHz ~ 96 kHz .wav Support Channels mono, stereo Bit rate 64 kbps ~ 320 kbps Sample freq.

  • Page 80: [File Viewer]

    [File Viewer] Viewing Files You can see document files stored on a connected device. Press the button on your remote control. Launch the [File Viewer] application. Select your desired storage device. Select and view your desired document file. Description Select your desired type of content and viewing method. Select and delete your desired content.

  • Page 81: Browsing File Viewer

    Browsing File Viewer 1 2 3 4 5 6 Description Returns to the entire content list. Moves to the page you specify. Sets the slide show. Enlarges or reduces the document. Starts the slide show. Rotates the document. Sets up the options of File Viewer.
  • Page 82 Supported File Formats File Extension Supported Version XLS, XLSX Microsoft Office 97/2000/2002/2003/2007/2010/ DOC, DOCX 2013/2016 version PPT, PPTX Adobe PDF 1.0/1.1/1.2/1.3/1.4 version Hangul 2007 version • File Viewer realigns a document, so it may look different from what is displayed on a PC.

  • Page 83: Connecting Usb

    Connecting USB Connect a USB storage device (USB HDD, USB Flash Drive) to the USB port on the projector to enjoy the content files stored on the USB storage device on your projector. USB Flash Drive...

  • Page 84: Tips For Using A Usb Storage

    Tips for Using a USB storage device • A USB storage device that has a built-in automatic recognition program or uses its own driver might not be recognizable. • Some USB storage devices may not be supported or may not work properly. •...

  • Page 85: Share Smart Phone

    Share Smart Phone Content Share with Smartphone Content Share allows you to enjoy videos, music, and photos saved on your Smartphone that is connected to the same network. Connecting to a smartphone with your projector Press the button on the remote control. Launch the [Device Connector] application.
  • Page 86 Matters that require special attention during Content Share • Check your network settings if the Content Share option does not work properly. • May not work properly on a wireless network. It is recommended that you connect to a wired network. •...

  • Page 87: Share Smartphone Screen

    Share Smartphone Screen To see the Mobile Device's screen on the projector Enable Miracast mode on the mobile device. Your projector will be displayed in the list of available devices. Select your projector and request connection. To start the connection; a message saying “Connecting...” will appear. After the connection is established, the projector will display the screen of the connected device.

  • Page 88: Share Computer Content

    Share Computer Content What Is Content Share? Content Share allows you to enjoy videos, music and photos saved on your PC. Play the content with sharing software on the PC If you have Windows 7 or later installed on your PC, you can play music, video, photos, etc.
  • Page 89 The SmartShare service is only available when the projector and server PC are connected to a single router. Download and install SmartShare PC Software from the LG website. Before installation, exit all programs running on the PC, such as a firewall or an anti- virus software.
  • Page 90 Matters that require special attention during Content Share • Check your network settings if the Content Share option does not work properly. • May not work properly on a wireless network. It is recommended that you connect to a wired network. •...

  • Page 91: Share Computer Screen

    Share Computer Screen To see the PC screen on the projector Connect wireless Press the button on the remote control. Run the [Screen Share] app. Launch Miracast on the PC. Your projector will be displayed in the list of available devices. Select your projector and request connection.

  • Page 92: Benefits Of Smart Projector

    BENEFITS OF SMART PROJECTOR Zooming in the Projector Display By zooming in the projector screen, you can view images in a larger size than the originals. Press the button on your remote control while watching projector or in video playback. You can also press the [START LIVE ZOOM] button in the lower-right corner of the screen.
  • Page 93 Description You can capture your current screen. You can view captured images in the [Photo & Video] app. You can pause or resume your current screen. Close the function and return to the original screen. • To exit the feature and return to the original screen, press •...

  • Page 94: Playing Sound From A Smart Device Through The Projector's Speakers

    Playing Sound from a Smart Device through the Projector’s Speakers Connect a smart device to the projector via Bluetooth to play sound from the smart device through the projector’s speakers. Press the button on the remote control. Launches [Bluetooth Audio Playback]. Turn the smart device’s Bluetooth on, then select the projector from the list of devices.

  • Page 95: Tour List Of Settings

    TOUR LIST OF SETTINGS The options may differ depending on the model. Quick Settings To use Setting function quickly (Q. Settings) button on the remote control. Press the Displays a set of light-weight controls quickly and simply such as [Picture Mode], [Aspect Ratio], [Sound Out] and so on.

  • Page 96: [Picture] Settings

    [Picture] Settings [Picture Mode] (Q. Settings) [Picture] [Picture Mode Settings] [Picture Mode] Select the picture mode that is best suited to your viewing environment, preferences or video type. Depending upon the input signal, the available picture modes may be different. When watching online service content, the Picture Mode may be changed to match the content being shown.
  • Page 97 [Picture Mode Settings] (Q. Settings) [Picture] [Picture Mode Settings] This feature allows you to adjust the selected picture mode in detail. • [Contrast] Adjusts the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast. •...
  • Page 98 [Advanced Controls]/[Expert Controls] Adjust screen settings for individual picture modes. (Q. Settings) [Picture] [Picture Mode Settings] [Advanced Controls] • [Dynamic Contrast] Corrects the difference between the bright and dark areas of the screen for optimal results depending on the brightness of the picture. •...
  • Page 99 (Q. Settings) [Picture] [Picture Mode Settings] [Expert Controls] If you set the picture mode to Expert, you can set the following functions. • [Dynamic Contrast] Corrects the difference between the bright and dark areas of the screen for optimal results depending on the brightness of the picture. •...
  • Page 100 [Picture Options] (Q. Settings) [Picture] [Picture Mode Settings] [Picture Options] Adjust detailed settings to further optimize the picture. • [Noise Reduction] Removes small dots that stand out so as to make the image clean. • [MPEG Noise Reduction] Reduces the noise produced during the creation of digital video signals. •...
  • Page 101 [Aspect Ratio] (Q. Settings) [Picture] [Aspect Ratio Settings] [Aspect Ratio] Depending upon the input signal, the available screen sizes may be different. • [16:9] Displays an aspect ratio of 16:9. • [Original] Changes the aspect ratio to 4:3 or 16:9 depending upon the input video signal. •...
  • Page 102 [Energy Saving] (Q. Settings) [Picture] [Energy Saving] Reduces power consumption by adjusting peak screen brightness. • [Minimum]/[Medium]/[Maximum] Applies the pre-set [Energy Saving] mode. [Picture Test] (Q. Settings) [Picture] [Picture Test] First of all, start the Picture Test to see whether the video signal output is normal, and then select whether there is an error.

  • Page 103: [Sound] Settings

    [Sound] Settings [Sound Mode] (Q. Settings) [Sound] [Sound Mode Settings] [Sound Mode] • [Standard] Optimizes the sound for all types of content. • [Cinema] Optimizes the sound for cinemas. • [Clear Voice III] Boosts voice clarity. • [Sports] Optimizes the sound for sports. •...
  • Page 104 [Sound Mode Settings] (Q. Settings) [Sound] [Sound Mode Settings] You can only use [Virtual Surround Plus], [Equalizer], and [Reset] if [Sound Mode] is set to [Standard]. • [Sound Mode] You can select the most suitable sound mode for each genre. •...
  • Page 105 [Sound Out] Playing audio through the projector's internal speakers (Q. Settings) [Sound] [Sound Out] [Internal Projector Speaker] Audio is played through the projector’s internal speakers. Connecting and Using an Audio Device Supporting Optical (Q. Settings) [Sound] [Sound Out] [Optical] You can connect an audio device that supports [Optical] to the optical digital audio output port to enjoy your projector’s sound in richer quality and greater convenience.
  • Page 106 [Sound Out] [Optical] [LG Sound Sync] You can connect an audio device that supports [LG Sound Sync] to the optical digital audio output port to enjoy your projector’s sound in richer quality and greater convenience. • Only available for models with an optical digital port.
  • Page 107 You can connect wirelessly a Bluetooth audio device or a Bluetooth headset to enjoy your projector’s sound in richer quality and greater convenience. • If you have recently connected device that the sound bar supports LG Sound Sync, this feature automatically tries connecting to that device. •...
  • Page 108 Using Audio Out (Line Out)/Wired Headphones (Q. Settings) [Sound] [Sound Out] [Wired Headphones] Select [Wired Headphones] to optimize audio output according to the device connected. • Some models may support the [Wired Headphones] function only. • If you connect the wired headphones while the projector is powered on, it automatically detects the wired headphones and redirects audio through them.
  • Page 109 [Auto Volume] (Q. Settings) [Sound] [Auto Volume] Click [On] to adjust the volume level automatically. This feature is available on certain models only. [AV Sync Adjustment] (Q. Settings) [Sound] [AV Sync Adjustment] Adjusts the synchronization of the sound from the speaker that is working. The closer to (+), the slower the audio output.

  • Page 110: [Network]

    [Network] [Projector Name] (Q. Settings) [Network] [Projector Name] You can use the screen keyboard to set the name for the smart projector to be used on the network. • Up to 30 characters can be entered using the English alphabet. [Wired Connection (Ethernet)] (Q.
  • Page 111 If the desired device accepts the request, Wi-Fi Direct will be connected. From your desired connected device, select the video, music and photo files that you want to open on your projector via the LG TV Plus app or the content sharing feature.

  • Page 112: [General]

    [General] [Language] (Q. Settings) [General] [Language] You can choose the menu language displayed on the screen. • [Menu Language] You can select one of the menu languages to be displayed on the screen. • [Keyboard Languages] Select the language to use the on-screen keyboard. [Time &...
  • Page 113 [Sleep Timer] (Q. Settings) [General] [Timers] [Sleep Timer] Sets the projector to turn off at a specified time. If you want to disable [Sleep Timer], select [Off]. [Timer Power On]/[Timer Power Off] (Q. Settings) [General] [Timers] [Timer Power On]/[Timer Power Off] You can set the power on/off time for the projector.
  • Page 114 The [Turn on via Wi-Fi] feature must be used in an app on a smart device that supports the feature. • The [Turn on via Bluetooth] feature can only be used with certain LG Electronics smartphones. • The projector should be connected to a network.
  • Page 115 [Edge Adjustment] (Q. Settings) [General] [Edge Adjustment] [Edge Adjustment] (4 Corner Keystone) adjusts the horizontal and vertical sides of the projected image if the projector is at an angle and not perpendicular to the screen. This feature ensures the shape of the projected image is not distorted. Use this feature only when the projector cannot be set up at the optimal angle.
  • Page 116 [LG Wireless Keyboard] (Q. Settings) [General] [LG Wireless Keyboard] This feature enables you to connect a LG wireless keyboard to your device. Turn on the device, set it to pairing mode, and then click [CONNECT] on your projector screen. •...
  • Page 117 [Settings Help] (Q. Settings) [General] [Settings Help] If you select the setting menus, you will see the hints of the settings. Turn on/off description box in settings. [Screen Saver] (Q. Settings) [General] [Screen Saver] When the currently displayed app has not received any user input for an hour, it will be replaced by a [Screen Saver].
  • Page 118 [About This Projector] (Q. Settings) [General] [About This Projector] You can check the information about Customer Services. (Software Update, projector Information, and so on.) [Self Diagnosis] (Q. Settings) [General] [Self Diagnosis] Troubleshoots functional problems that can arise while using the product. [Home/Store Mode] (Q.

  • Page 119: [Safety] Settings

    [Safety] Settings • Set [Safety] to [On]. • The initial password is set as “0000”. [Application Locks] (Q. Settings) [Safety] [Application Locks] Select the Applications to lock. You can lock or unlock the application. • The lock function is not immediately available for the currently running application.

  • Page 120: [Accessibility]

    [Accessibility] [Pointer Options] (Q. Settings) [Accessibility] [Pointer Options] You can set the pointer speed and shape you want while it is on the screen. [Menu Transparency] (Q. Settings) [Accessibility] [Menu Transparency] By setting this feature to [On], you can make some of the menus (e.g. Live Menu, Search, Screen Remote, etc.) transparent.

  • Page 121: Troubleshooting

    TROUBLESHOOTING If you experience any of the problems below while using the product, please check the following. There may be no problem with the product. Information on customer service for product problems is available in Settings) [General] [About This Projector] on the projector. Abnormal Operation The screen does not appear for some time after power-on.

  • Page 122: Screen Problems

    Screen Problems (Q. Settings) First of all, perform a [Picture] [Picture Test] for check any abnormalities in the projector. If you are using a set-top box, turn it off, and then turn it back on. Make sure that the set-top box is correctly connected to your projector. The screen shakes after the momentary appearance of vertical/horizontal lines and net pattern.

  • Page 123: Sound Problems

    Sound Problems (Q. Settings) First of all, perform a [Sound] [Sound Test] to check for any abnormalities in the projector. If you are using a set-top box, turn it off, and then turn it back on. Make sure that the set-top box is correctly connected to your projector. The screen is fine, but it does not play any sound.

  • Page 124: Pc Connection Problems

    PC Connection Problems The screen remains blank after it is connected to a PC. • Check that the PC is properly connected to the projector. • Turn the projector off and back on using the remote control. • Restart the PC with the projector on. •...

  • Page 125: [Photo & Video] Movie Playback Problems

    [Photo & Video] Movie Playback Problems For more information about supported files, see “ PLAY OTHER DEVICE FILES ”. I cannot find a file in the [Photo & Video]. • Check that the files on the USB storage device can be read by a PC. • Check that the file extension is supported. I get a message saying “This file is not supported” or the sound is playing normally but the video is not.
  • Page 126 I cannot see the subtitles. • Check that the file plays without any problems on a PC’s video player. Also check for file damage. • Check that the video and subtitle files have the same name. • Also check that both the video file and the subtitle file are in the same folder. •...

  • Page 127: Network Connection Problems

    Network Connection Problems You can check the network connection status as shown below. • (Q. Settings) [Network] [Wired Connection (Ethernet)] • (Q. Settings) [Network] [Wi-Fi Connection] [Advanced Wi-Fi Settings] When X appears next to projector • Check the projector or the AP (Router). •...
  • Page 128 When X appears next to DNS • Check the AP (Router) or consult your Internet service provider. • Unplug the power cord of the Cable Modem or the AP (Router), wait 10 seconds. Reapply power. • After the Cable Modem or AP (Router) has Initialized (Reset), try to reconnect. •...

Table of Contents
