OWNER'S MANUAL

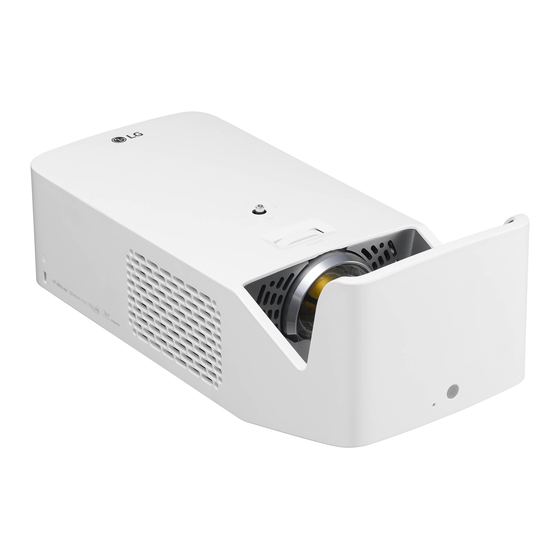

LG CineBeam
DLP Projector
Please read the safety information carefully before using this product.
HF65LA
www.lg.com
P/NO : SAC37813512 (1901-REV00)
Copyright © 2019 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for LG CineBeam HF65LA

Summary of Contents for LG CineBeam HF65LA

  • Page 1 OWNER'S MANUAL LG CineBeam DLP Projector Please read the safety information carefully before using this product. HF65LA www.lg.com P/NO : SAC37813512 (1901-REV00) Copyright © 2019 LG Electronics Inc. All Rights Reserved.

  • Page 2: Licenses

    LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. Child injuries can be prevented by following these simple safety precautions. The precautions should be followed in the same manner when you store or move your existing projector.
  • Page 4 • Do not place flammable materials • Do not use the projector in a damp such as aerosols near the projector. place such as a bathroom where it - This may result in fire. is likely to get wet. - This may result in fire or electric •...
  • Page 5 Power CAUTION • When placing the projector on a WARNING table or shelf, be careful not to put • DISCONNECTING THE DEVICE it near the edge. FROM THE MAIN POWER - The projector could fall due to - The Power plug is the balance problems, which may disconnecting device.
  • Page 6 • Do not plug too many devices into CAUTION one multi-power outlet. • Always grab the plug to remove the - This may result in fire due to the AC adapter or power cord. power outlet overheating. - Otherwise, this may result in a •...
  • Page 7 • Only use the official power cord • Always use the AC adapter provided provided by LG Electronics. Do not or any AC adapters approved and use other power cords. certified by LG Electronics. - This may result in fire or electric - Any other AC adapter shock.
  • Page 8 When in Use • Do not look directly into the lens when the projector is in use. WARNING - The bright light may damage your eyes. • Do not place anything containing • When the lamp is on or has just liquid on top of the projector been turned off, avoid touching the such as a vase, flower pot, cup, air vent or lamp, because these will...
  • Page 9 • When you play a game by CAUTION connecting a game console to a • Do not place heavy objects on the projector, it is recommended that projector. you maintain a distance of more - It may fall down and cause than four times the diagonal length personal injury.
  • Page 10 Cleaning • Do not block the light beam emitted from the projector using a book or WARNING other object. - Lengthy exposure to the • Do not spray the projector with projector beam may result in water when cleaning. Make sure fire.
  • Page 11 • Do not wipe the optical system CAUTION (lens, mirror) right after the product • Contact your seller or our service has been turned off or while the center once a year to clean the product is being operated. When internal parts of the projector.
  • Page 12 Others • Do not touch the lens; doing so can result in burns or damage to lens. WARNING Lens and unit may be HOT during and immediately after use. Use • When you go out, place the caution when handling unit, allowing projector out of reach of animals, for proper cool down.
  • Page 13 • Store batteries away from metallic CAUTION objects, such as keys and paper • Do not use or store the projector clips. outdoors for long periods of time. - Excess current may cause a • Do not mix new batteries with old rapid increase in temperature, ones.
  • Page 14 ANTENNA Outdoor Antenna Grounding • If an outdoor antenna is installed, WARNING follow the precautions below. An • If you are using an outdoor antenna, outdoor antenna system should please install it away from electrical not be located in the vicinity of wires to make sure it does not overhead power lines or other touch any nearby wires even when...
  • Page 15 For USA NOTE TO CABLE/TV INSTALLER This reminder is provided to call the CATV system installer’s attention to Article 820 - 40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

  • Page 16: Table Of Contents

    CONTENTS LICENSES USING THE PROJECTOR Connecting the Antenna or Cable SAFETY PRECAUTIONS - Focus of the Screen Image PREPARATION - Watching With the Projector 33 Accessories CONNECTING DEVICES Optional Extras Parts and Components HDMI Connection - Connecting to HD Receiver, DVD, Using the Joystick Button or External Devices - Basic functions - Connecting a PC - Adjusting the menu - Connecting a Laptop Projector Status Indicators...

  • Page 17: Preparation

    PREPARATION The pictures may differ slightly from the actual product. Accessories Accessories included with the projector are show below. Accessories are subject to change without prior notice. New accessories may be added or old ones removed. Magic Remote Control Owner's Manual Two AA Batteries Power cord AC-DC Adaptor...

  • Page 18: Optional Extras

    To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice. Projection Screen HDMI Cable RF Cable Optical Cable LG Audio Device...

  • Page 19: Parts And Components

    Parts and Components This projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction. Joystick Button Outlet Vent Mirror...
  • Page 20 Side Back Description (Headphone Port) Port USB Port Port Port IR Receiver Port Port Port...

  • Page 21: Using The Joystick Button

    Using the Joystick Button You can operate the projector by pressing the button or moving the joystick left, right, up, or down. Basic functions Power On When the projector is turned off, place your finger on the joystick button, press it once, and release it. Power Off Press and hold the joystick button for more than 3 seconds while the projector...

  • Page 22: Adjusting The Menu

    Adjusting the menu When the projector is turned on, press the joystick button one time. You can adjust the menu items ( , ) moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it.

  • Page 23: Installation

    Installation - Be sure to prevent foreign objects such as paper debris from entering the projector. Installation Precautions • Place the projector in a well- ventilated environment. - To prevent internal overheating, install the projector in a well- ventilated place. Do not place anything near the projector.
  • Page 24 • The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/ or bright colored dots (red, blue or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

  • Page 25: Projection Distance Per Screen Size

    Projection Distance per Screen Size Place the projector on a sturdy, level surface, together with the PC or audio/ video source. Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image. Position the projector so that the lens is at a right angle to the screen.
  • Page 26 1524 1778 2032 2286 2540 Screen Size inches 1328 x 1550 x 1771 x 1992 x 2214 x 1121 1245 Horizontal Size (X) x Vertical Size (Y) 52.2 x 61.0 x 69.7 x 78.4 x 87.1 x inches 29.4 34.3 39.2 44.1 49.0 inches 16.2 18.9 21.6 24.3 27.0...

  • Page 27: Kensington Security System

    Kensington Security System • This projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below. • For more information on installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. •...

  • Page 28: Magic Remote Control

    MAGIC REMOTE CONTROL If the battery low message appears while using the Projector, replace the batteries. As shown in the figure, press the top of the battery cover and slide it down the cover. Insert two new and identical batteries (1.5 V, AA type) with + and - poles pointing in the correct direction in the remote control.
  • Page 29 Accesses the Home menu. Displays the list used previously. (Q. Settings) Accesses the Quick Settings. (Q. Settings) Displays the [All Settings] menu. (Up/Down/Left/Right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control.

  • Page 30: To Register The Magic Remote Control

    To Register the Magic Remote Control To use the Magic Remote control, register it with your projector first. Put batteries into the Magic Remote and turn the Projector on. Wheel (OK) on Point the Magic Remote at your projector and press the the remote control. • If the projector fails to register the Magic Remote, try again after turning the projector off and back on.

  • Page 31: Using The Magic Remote Control 3

    Using the Magic Remote Control • Shake the Magic Remote slightly to the right and left or press (INPUT) buttons to make the pointer appear on the screen. • If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.

  • Page 32: Using The Projector

    USING THE PROJECTOR Connecting the Antenna or Cable To watch TV using an indoor/outdoor antenna, connect a wall terminal and the antenna port of the projector using an RF cable (75 Ω). You can watch terrestrial or cable (analog, digital) TV. (The RF cable is sold separately.) NOTE •...

  • Page 33: Focus Of The Screen Image

    Focus of the Screen Image When an image appears on the screen, check if it is in focus and fits the screen properly. Focus Ring • To adjust the focus of the image, rotate the focus ring. • Make sure the product does not move when adjusting the focus. Watching With the Projector (POWER) button to turn the projector When in standby mode, press the...

  • Page 34: Connecting Devices

    CONNECTING DEVICES You can connect various external devices to the projector. Computer/Notebook Digital Device LG Audio Device Games Console Headphone Mobile Phone HDMI - Page 35, 36, 37 Headphone - Page 38 Digital Amp - Page 39 Smart device - Page 40...

  • Page 35: Hdmi Connection

    HDMI Connection NOTE ARC(Audio Return Channel) Connect an HD receiver, DVD, or • External audio devices that support external devices to the projector and SIMPLINK and ARC must be select an appropriate input mode. connected using port. You can connect with any HDMI input •...

  • Page 36: Connecting A Pc

    Connecting a PC The projector supports Plug and Play. Your PC will automatically detect the projector and requires no driver installation. Using an HDMI cable, connect the port of the projector to the HDMI output port of your PC. Both video and audio are output at the same time.

  • Page 37: Connecting A Laptop

    Connecting a Laptop Examples of switching output settings when connecting a laptop You can connect the projector to a laptop to use various functions. The table below shows examples of switching the output. For more Using an HDMI cable, connect the information, refer to the External port of the projector to the Output, Connecting to an External HDMI output port of your laptop.

  • Page 38: Connecting Headphones

    Connecting Headphones You can listen to the audio through a headphone. Not provided...

  • Page 39: Connecting A Digital Amp

    Connecting a Digital NOTE • Refer to the user manual of the audio device to connect. Using an optical cable, connect the • When connecting this product to digital audio input port of a digital other devices, make sure to turn off amp to the and unplug all the devices.

  • Page 40: Connecting A Smart Device (Smartphone, Tablet, Etc.)

    Connecting a smart device (smartphone, tablet, etc.) • (INPUT) [All Inputs] [HDMI1]/[HDMI2] • The picture may look different from the actual product. Connect a smart device to the projector using a cable and set the external input of the projector to HDMI. The smart device screen will then be displayed through the projector.

  • Page 41: Maintenance

    MAINTENANCE Clean your Projector to keep it in optimal condition. Cleaning Cleaning the Lens • If there is any dust or staining on the lens surface, you must clean the lens. • To remove dust or stains on the lens, use a compressed air duster, cotton swab, or soft cloth to gently wipe the lens.

  • Page 42: Specifications

    SPECIFICATIONS MODEL HF65LA (HF65LA-NA) Resolution (Pixel) 1920 (Horizontal) × 1080 (Vertical) Aspect ratio 16:9 (Horizontal:Vertical) Projection distance 414 mm to 686 mm (16.2 inches to 27.0 inches) - Screen size –1524 mm to 2540 mm (60 inches to 100 inches) Ratio of upward 125 % projection Power consumption 100 W Manufacturer : Honor Model: ADS-110CL-19-3 190110G AC-DC Adaptor...
  • Page 43 MODEL HF65LA (HF65LA-NA) Temperature Operation 0 °C to 40 °C (32 °F to 104 °F) Storage -20 °C to 60 °C (-4 °F to 140 °F) Environment Condition Relative Humidity Operation 0 % to 80 % Storage 0 % to 85 % •...
  • Page 44 HDMI (DTV) Supported Mode Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 31.46 59.94 640 x 480p 31.50 60.00 31.47 59.94 720 x 480p 31.50 60.00 44.96 59.94 1280 x 720p 45.00 60.00 33.72 59.94 1920 x 1080i 33.75 60.00 26.97 23.97 27.00 24.00 33.71 29.97 1920 x 1080p 33.75 30.00...
  • Page 45 HDMI (PC) Supported mode Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 60.00 1152 x 864 54.34 60.05 1280 x 1024 63.98 60.02 1360 x 768 47.71...

  • Page 46: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 47: Symbols

    SYMBOLS Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
  • Page 49 Your projector’s OSD (On Screen Display) may differ slightly from that shown in this manual. [ ] : the buttons and the text to be displayed on the projector screen. P/NO : SAC37813514 (1901-REV00) Copyright © 2019 LG Electronics Inc. All Rights Reserved.
  • Page 50 Using the LG TV Plus App - Schedule by program - Connecting Your Smart Device - Manual Scheduling to a Projector Using the LG TV Watching Internet Channel Plus App - Controlling Your Projector with HOW TO USE VARIETY OF...
  • Page 51 TROUBLESHOOTING Share Computer Screen - To see the PC screen on the Abnormal Operation projector Screen Problems Sound Problems PC Connection Problems [Photo & Video] Movie Playback Problems Network Connection Problems 117 LG Account Problems Contents Problems Internet Browser Problems...

  • Page 52: About Lg Projector

    ABOUT LG PROJECTOR Home Tutorial Using the Home feature of the LG Projector You can open the Home screen by pressing the button on your remote control. You can combine frequently used apps on a single screen and use whichever you want at any time.
  • Page 53 Description By adding channels you like, you can check channel information and watch your desired channel easily and quickly. This is a list of recently used apps. To access the list of recently used apps, Wheel (OK) or select this item and then press and hold the button.
  • Page 54 Managing Apps You can view a list of all apps installed on your projector, change their positions, or delete them. • Some apps cannot be edited. Wheel (OK) or Select the app you want to edit, and press and hold the OK button on the Remote Control.
  • Page 55 Stopping the current function • The On Screen Display (OSD) of the projector may differ depending on the model. Press the button on the remote control. Select the application name at the top left corner of the screen by the Remote Control to display the Close icon.

  • Page 56: Prepare Live Tv

    Prepare Live TV Watching TV broadcasting Connect the broadcast antenna/cable to the projector. You may also connect a piece of equipment that can receive broadcasting such as a set-top box instead of the antenna/cable. Press the button on the remote control. To see the details, select [Set-Top Box] from the device list that is displayed when operating the [Device Connector].

  • Page 57: Network Setting

    Network Setting Network Setting If you configure settings for the network, you can use various services such as online contents and applications. Setting a Wired Network Connect the LAN port of the projector and the router using a LAN cable. The router should be connected to the Internet beforehand.
  • Page 58 OFF, disconnect and reconnect it, and then turn the power on to solve the problem. • LG Electronics is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. • The network connection may not work properly because of network settings or the Internet service provider.

  • Page 59: How To Operate Projector

    HOW TO OPERATE PROJECTOR Using the Screen Remote You can control external devices connected to your projector by using the Screen Remote displayed on your projector screen. • This feature is available on certain models only. Press the button on the Magic Remote. Using the Magic Remote, select your desired button on the Screen Remote displayed on your projector screen.
  • Page 60 Description Configure [Set Up Universal Control] for external devices connected to your projector. When you select a device, the Screen Remote turns into the remote control for the device. If a sound bar is connected, the Screen Remote can be used as a remote control for the sound bar.

  • Page 61: Setting Universal Control

    Setting Universal Control You can control devices such as Set-Top Box, Blu-ray Player, or Home Theater using by Magic Remote. • This feature is available on certain models only. Check that the device you want to set is connected to your projector. Press the button on the remote control and select at the top right.

  • Page 62: Launching Apps Through [Quick Access]

    Launching Apps through [QUICK ACCESS] Using apps quickly and easily with [QUICK ACCESS] • Press and hold a number button on the remote control to open an app or to activate an external input registered to the button. Setting the [QUICK ACCESS] Launch the app or select the channel or input you wish to assign.
  • Page 63 Checking and editing [QUICK ACCESS] Press and hold the number 0 button on the remote control. The [QUICK ACCESS] edit screen appears. Description Selecting a number that has already been registered allows deregistering When you select a number that has not been registered, items that can be registered will be shown.

  • Page 64: Simplink (Hdmi-Cec)

    SIMPLINK (HDMI-CEC) Using SIMPLINK You can conveniently control and use various multimedia devices connected through HDMI with the projector’s remote control. Connect the SIMPLINK HDMI Output port to the projector’s HDMI IN port with an HDMI cable. Press the (Q. Settings) button on the remote control and select [General] [SIMPLINK (HDMI-CEC)].
  • Page 65 Supported SIMPLINK Functions • Instant Play When you start a multimedia device, you can immediately watch content from the device on the projector without having to control anything. • Controlling devices with the projector remote control Enables the user to control multimedia devices with the projector remote control to watch content.

  • Page 66: Using The Lg Tv Plus App

    The app will automatically scan for projectors that can be connected to your smart device. Select the projector you want from the list of search results. A PIN code appears on the projector screen. Enter the PIN code in the LG TV Plus app to pair your smart device with the projector.

  • Page 67: Controlling Your Projector With

    Controlling Your Projector with the LG TV Plus App You can tap the buttons on your smart device’s screen to control the projector. Description You can use the same functions as the Magic Remote’s pointer and arrow keys. You can change the channel, adjust the volume, or make other adjustments without using the remote control while watching a broadcast.

  • Page 68: Mobile Connection

    Install the LG TV Plus app on the smart device. Connect both your projector and the smart device to the same network. Run the LG TV Plus app and set up a connection to your projector following the instructions shown on the screen.

  • Page 69: Using A Keyboard And Mouse

    • It is recommended that you use a product that has been tested for compatibility with LG projectors. - LOGITECH K360, LOGITECH K400, LOGITECH K750, LG Electronics MKS- 1200 • You can change the input language by pressing the language switch key or the right Alt key.

  • Page 70: Using A Gamepad

    • It is recommended that you use a gamepad that has been tested for compatibility with LG projectors. - LOGITECH F310, LOGITECH F510, LOGITECH F710, LOGITECH Rumblepad 2, LOGITECH Cordless Rumblepad 2, LOGITECH Dual Action Gamepad, MICROSOFT Xbox 360 Controller (cable), SONY Playstation(R)3 Controller...

  • Page 71: Enjoy Live Tv

    ENJOY LIVE TV Live Menu Using Live Menu You can use the relevant features with ease when watching TV broadcasts. Run [Live TV] by pressing Move the Magic Remote’s pointer to the right side of the projector screen. You can also press the Right button on your Remote Control to see the Live Menu. You can bring it up by pressing the button on the remote control even when you are not watching any broadcasts.
  • Page 72 • The channels displayed in Channel List are a configuration of channels provided by the broadcast service provider. Therefore, if the broadcast service provider has changed its channel configuration without notice, the channels displayed in Channel List may differ from the actual TV channels. •...

  • Page 73: My Channels

    My Channels Using My Channels If you add channels to [My Channels], you can check and watch the programs being broadcast in the added channels of any app. Adding a Channel Press the button on your remote control. Select [My Channels] at the bottom left of the screen. Selecting [Add Channel] displays a list of channels.

  • Page 74: Guide

    Guide Viewing Guide You can view programs and the schedule of each program. Press the button on the remote control. You can launch the [Guide] application. Description [CHANNELS]: View a list of broadcast content that is currently being broadcast. [RECOMMENDED]: Get channel and program recommendations based on your viewing history.
  • Page 75 Description You can change the size for the program list to adjust the number of channels displayed on the screen. Sets the filter. Launch [TV Scheduler]. Launch [Channel Manager]. You can turn on / off Mini TV. • Program information is not displayed for channels with no provided broadcast information.

  • Page 76: Checking Program Info

    Checking Program Info Viewing Program Information Information about the program you are currently watching, the current time, etc. are displayed. • The On Screen Display (OSD) of the projector may differ depending on the model. While watching a live broadcast press the Wheel (OK) or OK button.
  • Page 77 Select the Channel Banner. You can view detailed information about the program you are currently watching. Using the buttons on your remote control, you can view information about upcoming programs or other channels without changing the channel. • You can view broadcast information about other channels using the buttons.

  • Page 78: Using Magic Link

    Using MAGIC LINK It offers various videos and information related to the program you are currently watching. If you are watching a program via a set-top box, you should complete the universal remote control settings to use the [MAGIC LINK] function properly. Wheel (OK) or OK button or move the Press the remote control’s...

  • Page 79: Using Advanced Broadcast Settings

    Using Advanced Broadcast Settings If the broadcast you are watching contains [Closed Caption], [Audio Language], or [Multi Audio] information, you can use such features. Press the Wheel (OK) or OK button on your remote control. Select your desired feature in the top of the screen and set the feature to your desired value.

  • Page 80: Using [Tv Scheduler]

    Using [TV Scheduler] This function is used to set the time and date for watching a specific program. Press the button on your remote control. You can schedule a program to watch by selecting the [TV Scheduler] app. 1 2 3 4 Description You can sort the list.

  • Page 81: Schedule By Program

    Schedule by program You can select a show to Schedule it for watching. Press the button on your remote control. You can schedule a program to watch by selecting the [Guide] app. Select the program you want. If you want to watch a live broadcast, click the [WATCH] button. In case of an upcoming program, click the [Reminder] button.

  • Page 82: Watching Internet Channel

    • The projector should be connected to a network with Internet access. • You cannot receive the service if you change the [LG Services Country]. • You must agree to Viewing Information and Personalized Advertising User Agreements to use this feature.

  • Page 83: Contents

    [Safety] [Application Locks]. Recommended Content on the Main Screen The main screen of the [LG Content Store] shows the most popular content for each category. Select any content to view its details. • Internet connection is required to use this feature.

  • Page 84: Creating Wish List

    Creating Wish List Using [My Content] By adding your desired content to [My Content], you can use the content easily and quickly anytime. Press the button on your remote control. Select [My Content] in the top left of the screen. Select [Add Content].

  • Page 85: Account Creating

    Account Creating Creating LG Account In [Account Management], you can use your email address to create a new LG account. Press the (Q. Settings) button on the remote control and select [General] [Account Management]. Select [CREATE ACCOUNT]. Read and accept the Terms of Service.

  • Page 86: Account Management

    Account Management Managing your LG Account You can manage the information of your LG account. Press the (Q. Settings) button on the remote control. Go to [General] [Account Management] to log in. Personal Information You can view or edit your information of the account currently logged in.

  • Page 87: Search Content

    Search Content [Search] [Search] allows you to find and use a variety of content and information. You can search for files, including image, video, and audio files. Searching for Content (SEARCH) button on your remote control. Run [Search] by pressing the Search for a variety of content and information by typing in your desired search terms.

  • Page 88: Use App & Contents

    If the storage on your projector is insufficient, you can install the apps by connecting an external memory device. • Some USB storage devices may not be supported or may not work properly. • USB drivers containing apps from other LG TVs or LG Projectors may not be used.

  • Page 89: Watching Vod Content

    Press the button on the remote control. Launch the [LG Content Store] application. Select your desired category from the categories shown at the top of the screen, such as TV Shows and Movies. The list of available content in the selected category will be shown.

  • Page 90: Play Other Device Files

    PLAY OTHER DEVICE FILES [Photo & Video] Viewing Photos and Videos You can view photos and videos using the [Photo & Video] app. Press the button on your remote control. Launch the [Photo & Video] application. Select your desired storage device. Select and view your desired photo or video.

  • Page 91: Photo Player

    Photo Player Selecting a photo in the [Photo & Video] app runs the photo player. You can view your saved photos. Description Returns to the entire content list. You can play background music by running the music player. You can zoom the photos in/out. Starts the slide show.
  • Page 92 Supported Photo Files File type Format Resolution Minimum: 64 x 64 .jpeg Maximum .jpg JPEG Normal Type: 15360 (W) x 8640 (H) .jpe Progressive Type: 1920 (W) x 1440 (H) Minimum: 64 x 64 .png Maximum: 5760 (W) x 5760 (H) Minimum: 64 x 64 .bmp Maximum: 1920 (W) x 1080 (H)

  • Page 93: Video Player

    Video Player Selecting a video in the [Photo & Video] app runs the video player. You can view your saved videos. Description Returns to the entire content list. You can select other content by displaying the playlist while watching a video.
  • Page 94 Setting Additional Options 1 2 3 4 Description You can change subtitle settings. You can set audio tracks. You can set continue watching to resume playing from the last viewed scene. You can set continuous playback. If continuous playback is set, the next video is automatically played after the playback of a video is over.

  • Page 95: Supported Video Files

    Supported Video Files Maximum data transfer rate: • Full HD video H.264 1920 x 1080@60P BP/MP/HP@L4.2 40 Mbps HEVC 1920 x 1080@60P MP@L4.1, Main10 Profile@L4.1 40 Mbps Supported external subtitles: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX), *.dcs (DLP Cinema) Supported embedded subtitles format: •...
  • Page 96 Supported video codecs Extension Codec VC-1 Advanced Profile (except for WMVA), VC-1 Video Simple and Main Profiles .asf .wmv WMA Standard (except for WMA v1/ WMA Audio Speech) Xvid (except for 3 warp-point GMC), H.264/AVC, Video Motion Jpeg, MPEG-4 .avi MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Audio Digital, LPCM, ADPCM, DTS...

  • Page 97: Cautions For Video Playback

    Cautions for Video Playback • Some user-created subtitles may not work properly. • A video file and its subtitle file must be located in the same folder. For subtitles to be displayed properly, make sure that the video file and the subtitle file have the same name.

  • Page 98: [Music]

    [Music] Playing Music You can listen to music by using the [Music] app. Press the button on your remote control. Launch the [Music] application. Select your desired storage device. You can select your desired songs from all of your storage devices and add them to [MY PLAYLIST].

  • Page 99: Using The Music Player

    Using the Music Player The music player lets you choose music from other apps and use it as background music. 1 2 3 4 5 6 Description You can play music from the selected storage device. You can set repeat playback and random playback. You can listen to music with the screen turned off.
  • Page 100 Description You can change the position of the music player. You can minimize the music player. This feature closes the music player. Lyrics are available for music files that provide them. In some music files, you can choose a lyric section and move the playback position.
  • Page 101 Audio Format File Format Item Info Bit rate 32 kbps ~ 320 kbps Sample freq. 16 kHz ~ 48 kHz .mp3 Support MPEG-1, MPEG-2 Channels mono, stereo Bit rate Sample freq. 8 kHz ~ 96 kHz .wav Support Channels mono, stereo Bit rate 64 kbps ~ 320 kbps Sample freq.

  • Page 102: [File Viewer]

    [File Viewer] Viewing Files You can see document files stored on a connected device. Press the button on your remote control. Launch the [File Viewer] application. Select your desired storage device. Select and view your desired document file. Description Select your desired type of content and viewing method. Select and delete your desired content.

  • Page 103: Browsing File Viewer

    Browsing File Viewer 1 2 3 4 5 6 Description Returns to the entire content list. Moves to the page you specify. Sets the slide show. Enlarges or reduces the document. Starts the slide show. Rotates the document. Sets up the options of File Viewer.
  • Page 104 Supported File Formats File Extension Supported Version XLS, XLSX Microsoft Office 97/2000/2002/2003/2007/2010/ DOC, DOCX 2013/2016 version PPT, PPTX Adobe PDF 1.0/1.1/1.2/1.3/1.4 version Hangul 2007 version • File Viewer realigns a document, so it may look different from what is displayed on a PC.

  • Page 105: Connecting Usb

    Connecting USB Connect a USB storage device (USB HDD, USB Flash Drive) to the USB port on the projector to enjoy the content files stored on the USB storage device on your projector. USB Flash Drive...

  • Page 106: Tips For Using A Usb Storage

    Tips for Using a USB storage device • A USB storage device that has a built-in automatic recognition program or uses its own driver might not be recognizable. • Some USB storage devices may not be supported or may not work properly. •...

  • Page 107: Share Smartphone Content

    Share Smartphone Content Content Share with Smartphone Content Share allows you to enjoy videos, music, and photos saved on your Smartphone that is connected to the same network. Connecting to a smartphone with your projector Press the button on the remote control. Launch the [Device Connector] application.
  • Page 108 Matters that require special attention during Content Share • Check your network settings if the Content Share option does not work properly. • May not work properly on a wireless network. It is recommended that you connect to a wired network. •...

  • Page 109: Share Smartphone Screen

    Share Smartphone Screen To see the Mobile Device's screen on the projector Enable Miracast mode on the mobile device. Your projector will be displayed in the list of available devices. Select your projector and request connection. To start the connection; a message saying “Connecting...” will appear. After the connection is established, the projector will display the screen of the connected device.

  • Page 110: Share Computer Content

    Share Computer Content What Is Content Share? Content Share allows you to enjoy videos, music and photos saved on your PC. Play the content with sharing software on the PC If you have Windows 7 or later installed on your PC, you can play music, video, photos, etc.
  • Page 111 The SmartShare service is only available when the projector and server PC are connected to a single router. Download and install SmartShare PC Software from the LG website. Before installation, exit all programs running on the PC, such as a firewall or an anti- virus software.
  • Page 112 Matters that require special attention during Content Share • Check your network settings if the Content Share option does not work properly. • May not work properly on a wireless network. It is recommended that you connect to a wired network. •...

  • Page 113: Share Computer Screen

    Share Computer Screen To see the PC screen on the projector Connect wireless Press the button on the remote control. Run the [Screen Share] app. Launch Miracast on the PC. Your projector will be displayed in the list of available devices. Select your projector and request connection.

  • Page 114: Benefits Of Smart Projector

    BENEFITS OF SMART PROJECTOR Zooming in the Projector Display By zooming in the projector screen, you can view images in a larger size than the originals. Press the button on your remote control while watching projector or in video playback. You can also press the [START LIVE ZOOM] button in the lower-right corner of the screen.

  • Page 115: Moving The Position Of An Enlarged Screen

    Description You can capture your current screen. You can view captured images in the [Photo & Video] app. You can pause or resume your current screen. If you execute on resume while watching a broadcast, you will see the current broadcast screen. Close the function and return to the original screen.

  • Page 116: Enjoying Internet

    Enjoying Internet Using the [Web Browser] You can enter the website when you input the web address on the URL bar. If you input the search word, it will find the information about search word base on the search engine. Press the button on the remote control.
  • Page 117 Description Zooms in or out of the screen. [History]: You can open or delete the history list. [Bookmarks]: You can open or delete the bookmark list. [Settings]: You can configure simple settings for the browser. [Encoding]: You can change the language when the content is not properly displayed on the web page.
  • Page 118 Setting the Web Browser Press at the top of the screen and select the [Settings]. • [On Startup] You can set the startup page of the browser to [Open the New Tab page]/ [Continue where I left off]/[Home page:]. • [Search Engines] You can select the default search engine.

  • Page 119: Playing Sound From A Smart Device Through The Projector's Speakers

    Playing Sound from a Smart Device through the Projector’s Speakers Connect a smart device to the projector via Bluetooth to play sound from the smart device through the projector’s speakers. Press the button on the remote control. Launches [Bluetooth Audio Playback]. Turn the smart device’s Bluetooth on, then select the projector from the list of devices.

  • Page 120: [Notifications]

    [Notifications] Using [Notifications] The [Notifications] transfers real-time notifications from various apps and LG services. It shows the status of apps that are currently running and allows you to view, delete, and run all notifications in one place. Press the button on the remote control.

  • Page 121: Tour List Of Settings

    TOUR LIST OF SETTINGS The options may differ depending on the model. Quick Settings To use Setting function quickly Press the (Q. Settings) button on the remote control. Displays a set of light-weight controls quickly and simply such as [Picture Mode], [Aspect Ratio], [Sound Out] and so on.

  • Page 122: [Picture] Settings

    [Picture] Settings [Picture Mode] (Q. Settings) [Picture] [Picture Mode Settings] [Picture Mode] Select the picture mode that is best suited to your viewing environment, preferences or video type. The options may differ depending on the model. Depending upon the input signal, the available picture modes may be different. When watching online service content, the Picture Mode may be changed to match the content being shown.
  • Page 123 [Picture Mode Settings] (Q. Settings) [Picture] [Picture Mode Settings] This feature allows you to adjust the selected picture mode in detail. • [Contrast] Adjusts the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast. •...
  • Page 124 [Advanced Controls]/[Expert Controls] Adjust screen settings for individual picture modes. (Q. Settings) [Picture] [Picture Mode Settings] [Advanced Controls] • [Dynamic Contrast] Corrects the difference between the bright and dark areas of the screen for optimal results depending on the brightness of the picture. •...
  • Page 125 (Q. Settings) [Picture] [Picture Mode Settings] [Expert Controls] If you set the picture mode to Expert, you can set the following functions. • [Dynamic Contrast] Corrects the difference between the bright and dark areas of the screen for optimal results depending on the brightness of the picture. •...
  • Page 126 [Picture Options] (Q. Settings) [Picture] [Picture Mode Settings] [Picture Options] Adjust detailed settings to further optimize the picture. • [Noise Reduction] Removes small dots that stand out so as to make the image clean. • [MPEG Noise Reduction] Reduces the noise produced during the creation of digital video signals. •...
  • Page 127 [Aspect Ratio] (Q. Settings) [Picture] [Aspect Ratio Settings] [Aspect Ratio] The options may differ depending on the model. Depending upon the input signal, the available screen sizes may be different. • [16:9] Displays an aspect ratio of 16:9. • [Original] Changes the aspect ratio to 4:3 or 16:9 depending upon the input video signal.
  • Page 128 [Energy Saving] (Q. Settings) [Picture] [Energy Saving] Reduces power consumption by adjusting peak screen brightness. • [Off]/[Minimum]/[Medium]/[Maximum] Applies the pre-set [Energy Saving] mode. [Picture Test] (Q. Settings) [Picture] [Picture Test] First of all, start the Picture Test to see whether the video signal output is normal, and then select whether there is an error.

  • Page 129: [Sound] Settings

    [Sound] Settings [Sound Mode] (Q. Settings) [Sound] [Sound Mode Settings] [Sound Mode] • [Standard] Optimizes the sound for all types of content. • [Cinema] Optimizes the sound for cinemas. • [Clear Voice III] Boosts voice clarity. • [Sports]/[Soccer] Optimizes the sound for sports. - The name of the sport may differ depending on region.
  • Page 130 [Sound Mode Settings] (Q. Settings) [Sound] [Sound Mode Settings] You can only use [Virtual Surround Plus], [Equalizer], and [Reset] if [Sound Mode] is set to [Standard]. The options may differ depending on the model. • [Sound Mode] You can select the most suitable sound mode for each genre. •...
  • Page 131 [Sound Out] The options may differ depending on the model. Playing audio through the projector's internal speakers (Q. Settings) [Sound] [Sound Out] [Internal Projector Speaker] Audio is played through the projector’s internal speakers. Connecting and Using an Audio Device Supporting Optical (Q.
  • Page 132 [Sound] [Sound Out] [Optical] [LG Sound Sync] You can connect an audio device that supports [LG Sound Sync] to the optical digital audio output port to enjoy your projector’s sound in richer quality and greater convenience. • Only available for models with an optical digital port.
  • Page 133 You can connect wirelessly a Bluetooth audio device or a Bluetooth headset to enjoy your projector’s sound in richer quality and greater convenience. • If you have recently connected device that the sound bar supports LG Sound Sync, this feature automatically tries connecting to that device. •...
  • Page 134 Using Wired Headphones (Q. Settings) [Sound] [Sound Out] [Wired Headphones] Select [Wired Headphones] to optimize audio output according to the device connected. • Some models may support the [Wired Headphones] function only. • If you connect the wired headphones while the projector is powered on, it automatically detects the wired headphones and redirects audio through them.
  • Page 135 [Auto Volume] (Q. Settings) [Sound] [Auto Volume] Click [On] to adjust the volume automatically for different broadcasting companies so you can always listen to channels at the desired volume, even after switching the channels. This feature is available on certain models only. [AV Sync Adjustment] (Q.

  • Page 136: [Channels] Settings

    [Channels] Settings [Auto Tuning] (Q. Settings) [Channels] [Channel Tuning] [Auto Tuning] This function automatically searches and remembers channels that are available for viewing. • If the antenna or cable is not connected properly, channels are not added. • [Auto Tuning] finds and adds only channels being broadcast. •...
  • Page 137 [Channel Manager] You can edit the selected channels from all the stored channels or add/delete them to/ from the favorite channels. Edit All Channels List (Q. Settings) [Channels] [Channel Manager] [Edit All Channels] You can lock or unlock the selected channels from all the stored channels, or you can set them to be skipped when switching channels.
  • Page 138 Edit Favorite Channels List (Q. Settings) [Channels] [Channel Manager] [Edit Favorites] You can add/delete desired channels to/from the favorite channels, change their positions, etc. Description Select the desired channels from the all channels list and press the button to add them to the favorite channels list. Delete the selected channels from the favorite channels list.
  • Page 139 [Channel Advisor] (Q. Settings) [Channels] [Channel Advisor] If you set [Channel Advisor] to [On], you can get channel or program recommendations from [Live TV] based on your viewing history. [Multi Audio] (Q. Settings) [Channels] [Multi Audio] Sets the options related to the audio. •...

  • Page 140: [Network]

    [Network] [Projector Name] (Q. Settings) [Network] [Projector Name] You can use the screen keyboard to set the name for the smart projector to be used on the network. • Up to 30 characters can be entered using the English alphabet. [Wired Connection (Ethernet)] (Q.
  • Page 141 If the desired device accepts the request, Wi-Fi Direct will be connected. From your desired connected device, select the video, music and photo files that you want to open on your projector via the LG TV Plus app or the content sharing feature.

  • Page 142: [General]

    The configurable items differ depending upon the country. • [Service Area Zip Code] This function is used to set the broadcast location of the projector by entering your zip code. • [LG Services Country] If you don’t set the [Set Automatically], you can select the country manually.
  • Page 143 [Time & Date] (Q. Settings) [General] [Time & Date] You can check or change the time while watching the projector. • [Set Automatically] Automatically sets the time displayed on the projector screen to the time of the digital broadcast sent by the broadcasting company. •...
  • Page 144 [Account Management] (Q. Settings) [General] [Account Management] Manage your account information and settings. [Power Saving Mode] (Q. Settings) [General] [Power Saving Mode] Set power options to reduce energy consumption. • [Auto Power Off] Set the projector to turn off automatically when there has been no user input for a specified amount of time.
  • Page 145 The [Turn on via Wi-Fi] feature must be used in an app on a smart device that supports the feature. • The [Turn on via Bluetooth] feature can only be used with certain LG Electronics smartphones. • The projector should be connected to a network.
  • Page 146 [Edge Adjustment] (4 Corner Keystone) (Q. Settings) [General] [Edge Adjustment] [Edge Adjustment] (4 Corner Keystone) adjusts the horizontal and vertical sides of the projected image if the projector is at an angle and not perpendicular to the screen. This feature ensures the shape of the projected image is not distorted. Use this feature only when the projector cannot be set up at the optimal angle.
  • Page 147 [Auto Power] (Q. Settings) [General] [Auto Power] Makes the projector turn on automatically when the power cord is connected to the projector. • [On] When the power cord is connected to the projector, it turns on automatically. • [Off] When the power cord is connected to the projector, it goes into standby mode. [High Altitude] (Q.
  • Page 148 [LG Wireless Keyboard] (Q. Settings) [General] [LG Wireless Keyboard] This feature enables you to connect a LG wireless keyboard to your device. Turn on the device, set it to pairing mode, and then click [CONNECT] on your projector screen. •...
  • Page 149 [About This Projector] (Q. Settings) [General] [About This Projector] You can check the information about Customer Services, (Software Update, projector Information, and so on.) [Self Diagnosis] (Q. Settings) [General] [Self Diagnosis] Troubleshoots functional problems that can arise while using the product. [Personalized Recommendation (Network)] (Q.

  • Page 150: [Safety] Settings

    [Safety] Settings • Set [Safety] to [On]. • The initial password is set as “0000”. • The configurable items differ depending upon model. [TV Lock] (Q. Settings) [Safety] [TV Program Locks] [TV Lock] Locks the TV shows you do not want your children to watch. In addition, locks the TV shows of your choice based on ratings by using the parental control function (V-Chip).
  • Page 151 [Movie Lock] (Q. Settings) [Safety] [TV Program Locks] [Movie Lock] Blocks films that are broadcast and contain inappropriate content, based on the Motion Picture Association of America (MPAA) rating. • [G] (General Audiences): All ages admitted. • [PG] (Parental Guidance Suggested): Some material may not be suitable for children.
  • Page 152 [TV Rating French] Select Canadian French Rating System. • This feature is available in certain countries only. • [None]: View all programs • [E]: Exempt • [G]: General • [8+]: Not suitable for general audience and children • [13+]: Suitable for 13 years and over •...
  • Page 153 [Input Locks] (Q. Settings) [Safety] [Input Locks] Select the Inputs to lock. You can lock or unlock the Input Locks. [Reset Password] (Q. Settings) [Safety] [Reset Password] Set or change the password for the projector. Resetting a Lost Password If you lose the password you set, you can reset it as follows: (Q.

  • Page 154: [Accessibility]

    [Accessibility] [Audio Guidance] (Q. Settings) [Accessibility] [Audio Guidance] If [Audio Guidance] is set to [On], audio guides will be provided in various situations, such as when you change channels, adjust the volume or change settings and input signals. • [Speed] Adjust the speed of spoken guide.
  • Page 155 [Closed Caption] (Q. Settings) [Accessibility] [Closed Caption] View closed captions when the TV station provides closed captioned programming. Program closed captions work only on digital/analog broadcasts or external input. Change [Closed Caption] to [On] and select caption setting. • [Analog Mode] [CC 1]-[CC 4] (Closed Captioning)/[TEXT 1]-[TEXT 4] Displays the audio portion of a TV program as text on the projector screen.

  • Page 156: To Update Software

    TO UPDATE SOFTWARE Uses software update to check and obtain the latest version. (Q. Settings) [General] [About This Projector] Menu Description [CHECK FOR When checking for the latest update version, you can UPDATES] perform updates only if an update file of a later version is available.

  • Page 157: Troubleshooting

    TROUBLESHOOTING If you experience any of the problems below while using the product, please check the following. There may be no problem with the product. Information on customer service for product problems is available in (Q. Settings) [General] [About This Projector] on the projector. Abnormal Operation I cannot see some channels.

  • Page 158: Screen Problems

    It says there is no signal on the screen. • Make sure that the coaxial cable or HDMI cable is correctly connected to your projector. • Go to to choose the connected input. • Check if your external device, such as set-top box or Blu-ray player, is turned on. It does not work when I connect a USB device.
  • Page 159 I cannot see digital broadcasts even though I am using a cable television. • Check your subscription information with your cable television service provider or ask for the signal to be checked. (Some products do not provide digital broadcasts.) There is a difference in picture quality for each channel. •...

  • Page 160: Sound Problems

    Sound Problems (Q. Settings) First of all, perform a [Sound] [Sound Test] to check for any abnormalities in the projector. If you are using a set-top box, turn it off, and then turn it back on. Make sure that the set-top box is correctly connected to your projector. The screen is fine, but it does not play any sound.
  • Page 161 The volume changes when I change the channel. • The volume of different broadcasting stations transmission output may vary. • (Q. Settings) [Sound] [Auto Volume] Set [Auto Volume] to [On]. The sound does not work or only the background music is played in some programs.

  • Page 162: Pc Connection Problems

    PC Connection Problems The screen remains blank after it is connected to a PC. • Check that the PC is properly connected to the projector. • Turn the projector off and back on using the remote control. • Restart the PC with the projector on. •...

  • Page 163: [Photo & Video] Movie Playback Problems

    [Photo & Video] Movie Playback Problems For more information about supported files, see “ PLAY OTHER DEVICE FILES ”. I cannot find a file in the [Photo & Video]. • Check that the files on the USB storage device can be read by a PC. •...
  • Page 164 I cannot see the subtitles. • Check that the file plays without any problems on a PC’s video player. Also check for file damage. • Check that the video and subtitle files have the same name. • Also check that both the video file and the subtitle file are in the same folder. •...

  • Page 165: Network Connection Problems

    Network Connection Problems You can check the network connection status as shown below. • (Q. Settings) [Network] [Wired Connection (Ethernet)] • (Q. Settings) [Network] [Wi-Fi Connection] [Advanced Wi-Fi Settings] When X appears next to projector • Check the projector or the AP (Router). •...
  • Page 166 When X appears next to DNS • Check the AP (Router) or consult your Internet service provider. • Unplug the power cord of the Cable Modem or the AP (Router), wait 10 seconds. Reapply power. • After the Cable Modem or AP (Router) has Initialized (Reset), try to reconnect. •...

  • Page 167: Lg Account Problems

    LG Account Problems In some countries, access to the website (www.lgappstv.com) may be restricted. I have already signed up on the projector. Do I still have to sign up again at the website (www.lgappstv.com)? • If you have already signed up on your projector, you do not have to sign up again on the website.

  • Page 168: Contents Problems

    Change to the service country you are going to use the service from in (Q. Settings) [General] [Location] [LG Services Country]. • You may not be able to view content that has been deleted. Please reinstall the appropriate app.
