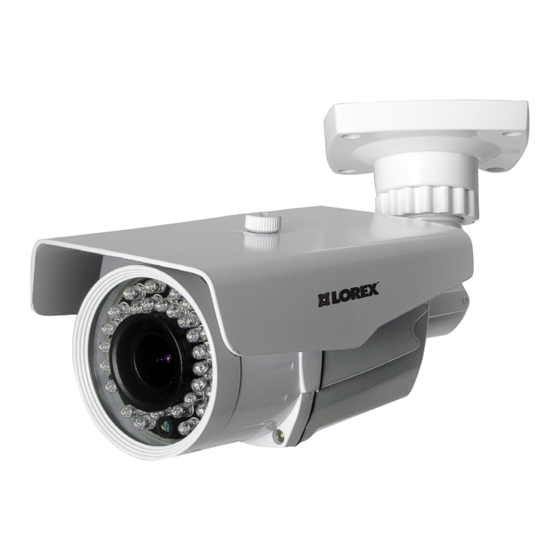

Lorex LBV2723B Series Quick Start Manual

Contents
• Weatherproof HD bullet camera
• Mounting Kit
• Allen key
• 60ft UL (CM type) Rated BNC / Power Extension Cable
• Power Adapter
WARNING - A REGULATED power supply is REQUIRED for use with this
camera. Use of a non-regulated, non-conforming power supply can damage
this product and voids the warranty.
Features
• High Performance 1080p Sony Exmor™ Image Sensor*
• Motorized varifocal lens for quicker and easier viewing angle set up
• Change the viewing angle from your DVR or mobile device*
• 960H analog video output for convenient set up or connecting to
legacy 960H DVR's
• Night vision range up to 170ft (52m) in ambient lighting & 115ft
(35m) in total darkness**
• Close up recognition in the dark with SmartIR
• Wide Dynamic Range (WDR) for viewing in extremely challenging
lighting scenarios
• ClearNight imaging for superior low light performance, improving
recording efficiency
• Weatherproof for outdoor & indoor installation (IP66 Rated)***
• Extreme temperature performance (–22° ~ 140°F / –30° ~ 60°C)
• 34-90° remotely adjustable field of view (Horizontal)
• Vandal resistant design with cable pass-through bracket
Disclaimers:
* Compatible with Lorex MPX series DVRs only.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and in total darkness. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the cameras within given temperature, humidity and voltage levels
noted in 'Camera Specifications'.
• Do not disassemble the cameras.
• Do not point the cameras directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
Installation Tips
• Point the cameras where there is the least amount of obstructions (i.e. tree
branches).
• Install the cameras where they are difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Cameras rated for outdoor use. Installation in a sheltered location
recommended.

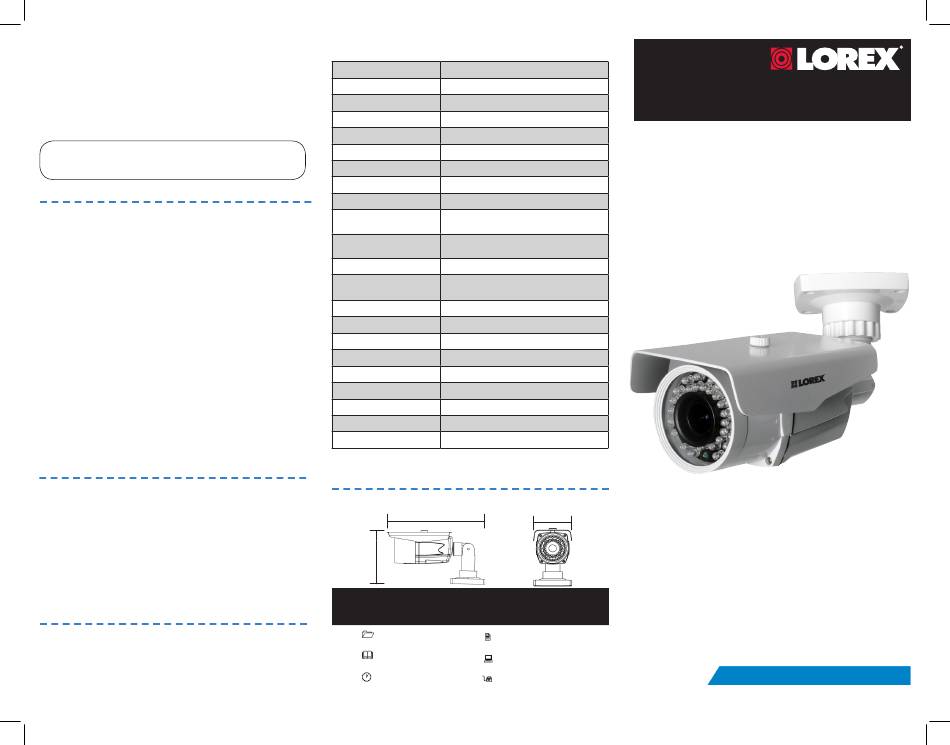

Camera Specifications
Image Sensor* 1/2.8" 2.1MP CMOS
Video Format NTSC (LBV2723B) / PAL (LBV2723BP)
Effective Pixels H: 1920 V: 1080
Resolution 1080p @ 30FPS / 25FPS
Scan System Progressive
Sync System Internal
S / N Ratio ≥ 50dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 (1/50) ~ 1/100,000 Sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Digital: 1080p MPX HD-CVI
Analog: Composite 1.0Vpp @ 75ohm
Lens / Lens Type 2.8-12mm F1.4 / Motorized varifocal
FOV (Horizontal) Digital: 34-90°
Analog: 32-84°
Termination BNC Type
IR LED Qty. / Type 36 pieces / 850nm
Night Vision Range** 115ft (35m) / 170ft (52m)
Power Requirement 12V DC ±10%
Power Consumption Max. 700mA (w / IR)
Operating Temp. Range –22° ~ 140°F / –30° ~ 60°C
Operating Humidity Range < 85% RH
Indoor/Outdoor*** Both (IP66)
Weight (including stand) 1.7lbs / 0.8kg
* Compatible with Lorex MPX series DVRs only.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and in total darkness. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
235mm / 9.3"
130mm
5.1"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Specification Sheets
Product Information
Software Upgrades
User Manuals
Quick Start Guides Firmware Upgrades
Copyright © 2015 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
MOTORIZED VARIFOCAL SECURITY CAMERA
Quick Start Guide
English Version 1.0
95mm / 3.7"
HD 1080P WEATHERPROOF
LBV2723B / LBV2723BP SERIES
