Lorex LBV2723 SERIES Quick Start Manual

Contents
• Weatherproof HD bullet camera
• Mounting Kit
• Allen key
• 60ft UL (CM type) Rated BNC / Power Extension Cable
• Power Adapter
WARNING - A REGULATED power supply is REQUIRED for use with this
camera. Use of a non-regulated, non-conforming power supply can damage
this product and voids the warranty.
Features
• High Performance 1080p Sony Exmor™ Image Sensor*
• Quick and easy camera view adjustment from your DVR or mobile device with
3x optical zoom lens**
• 960H analog video output for convenient set up or connecting to legacy 960H
DVRs
• Night vision range up to 170ft (52m) in ambient lighting & 115ft (35m) in total
darkness***
• Close up recognition in the dark with SmartIR
• High Dynamic Range ("WDR" in menu) for viewing in extremely challenging
lighting scenarios
• ClearNight imaging for superior low light performance, improving recording
efficiency
• Weatherproof for outdoor & indoor installation (IP66 Rated)****
• Extreme temperature performance (–22° ~ 140°F / –30° ~ 60°C)
• 34-90° remotely adjustable field of view (Horizontal)**
• Vandal resistant design with cable pass-through bracket
Disclaimers:
* 1080p cameras are compatible with 1080p HD DVR recorders. 720p cameras are compatible
with 720p & 1080p HD DVR recorders. This product is also compatible with 960H analog DVRs
using the analog BNC connector.
** Camera control is only compatible with Lorex HD LHV Series DVRs. To control a camera on an
analog/960H DVR, use the OSD controller on the camera cable.
*** Stated IR illumination range is based on ideal conditions in typical outdoor night time
ambient lighting and in total darkness. Actual range and image clarity depends on installation
location, viewing area and light reflection / absorption level of object.
**** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the cameras within given temperature, humidity and voltage levels noted in
'Camera Specifications'.
• Do not disassemble the cameras.
• Do not point the cameras directly towards the sun or a source of intense light.
• Use only the supplied regulated power supply. Use of a non-regulated, non-
conforming power supply can damage this product and voids the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use harsh
cleaners or aerosol cleaners.

Installation Tips

• Point the cameras where there is the least amount of obstructions (i.e. tree
branches).
• Install the cameras where they are difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Cameras rated for outdoor use. Installation in a sheltered location
recommended.
Dimensions
235mm / 9.3"
130mm / 5.1"
On-Screen Display (OSD) Menu
MPX / HD Video Output
To use the OSD menu, access the PTZ menu of your DVR. See your
DVR's instruction manual for more details.
Analog Video Output
Configure OSD menu options using the integrated control
stick on the camera cable (see image to the right).
• OPTIONAL: Connect a test monitor to the camera's
analog (yellow) BNC connector.
• Push the middle of the joystick to open the OSD menu.
• Move the joystick
/ to change the setting value.
• Push the middle of the joystick to confirm selection.
• Arrows beside settings indicate a submenu (
and push the joystick to enter.
• Select RETURN and push the joystick to return to the previous menu,
or EXIT from the main menu to exit.
NOTE: Camera control through the DVR is only compatible with Lorex
HD LHV Series DVRs. To control a camera on an analog/960H DVR,
use the OSD controller on the camera cable.
Language
Video Format
Backlight OFF
WDR / HDR
BLC
HLC
DNR
Advanced Lens
Exposure
White Balance
Day&Night
Special
Reset
Version
Exit
95mm / 3.7"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Copyright © 2015 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
/ to select a setting, then
). Select the setting
(HD only)
ELC
ALC
Brightness
Shutter
Sens-Up
AGC
Auto
ATW
Preset
Manual
Mode
Delay
D N Level
N D Level
Smart IR
Smart IR Level
Sharpness
Color Gain
Freeze
Flip
D-Zoom
Defog
Black Level
Privacy
DP Comp

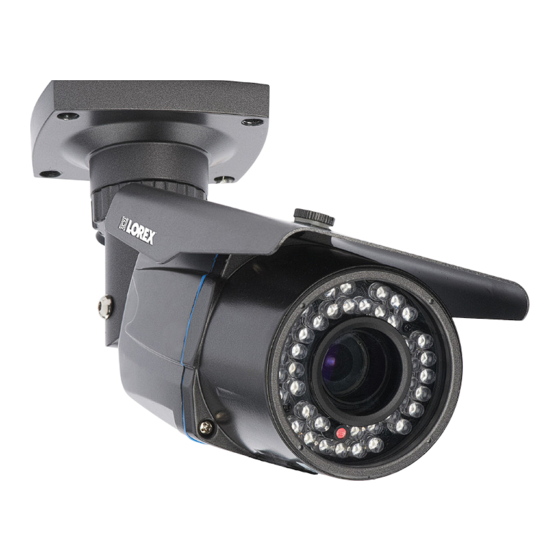

HD 1080P WEATHERPROOF
MOTORIZED VARIFOCAL SECURITY CAMERA

Quick Start Guide

English Version 2.0
LBV2723 SERIES
