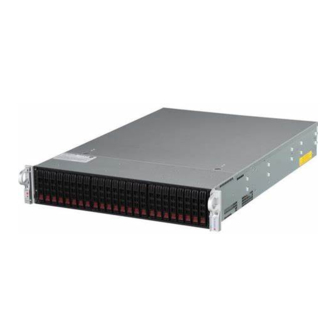

Supermicro 2027R-E1CR24L User Manual

Supermicro 2027R-E1CR24L User Manual

Super storage system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®
S
S
S
UPER
TORAGE
YSTEM
2027R-E1CR24L
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading

Related Manuals for Supermicro 2027R-E1CR24L

Summary of Contents for Supermicro 2027R-E1CR24L

  • Page 1 UPER ® UPER TORAGE YSTEM 2027R-E1CR24L USER’S MANUAL...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 SC216BE1C-R920LPB chassis. Chapter 2: Server Installation This chapter describes the steps necessary to install the 2027R-E1CR24L into a rack and check out the server configuration prior to powering up the system. If your server was ordered without processor and memory components, this chapter will refer you to the appropriate sections of the manual for their installation.
  • Page 4 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRD-EF serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfig- uring the serverboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 PCI Expansion Slots ..................1-2 Rear I/O Ports ....................1-2 Server Chassis Features ................1-3 System Power ....................
  • Page 7 Table of Contents Control Panel LEDs ..................3-1 Power Fail ....................... 3-2 Overheat/Fan Fail ................... 3-2 NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD ......................... 3-3 Power ......................3-3 Drive Carrier LEDs ..................3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual DIMM Installation .................... 5-8 Adding PCI Add-On Cards ................5-13 Serverboard Details ..................5-14 X9DRD-EF Quick Reference ................ 5-14 Connector Definitions ................... 5-16 Jumper Settings .................... 5-23 5-10 Onboard Indicators ..................5-26 5-11 SATA Ports ....................5-27 5-12 Installing Software ..................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The 2027R-E1CR24L is a high-end storage system comprised of two main subsys- tems: the SC216BE1C-R920LPB 2U/rackmount chassis and the X9DRD-EF dual processor serverboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    YSTEM 6047R-E1R24N User's Manual Serverboard Features The 2027R-E1CR24L is built around the X9DRD-EF, a dual processor serverboard based on the Intel C602J chipset. Below are the main features of the X9DRD-EF. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    SATA drives. Front Control Panel The control panel on the SuperServer 2027R-E1CR24L provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activ- ity, system overheat/fan fail and power supply failure. A main power button and a system reset button are also included.
  • Page 12 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Figure 1-1. Intel C602J Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details.

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the SuperServer 2027R-E1CR24L was shipped in and note if it was damaged in any way. If the server itself shows damage you should file a damage claim with the carrier who delivered it.

  • Page 16: Warnings And Precautions

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Rack Mounting Instructions

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Rack Mounting Instructions This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 19: Locking Tabs

    Chapter 2: Server Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 20: Installing The Inner Rails On The Chassis

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Inner Rails Figure 2-3. Installing the Inner Rails Figure 2-4. Inner Rails Installed on the Chassis (The chassis above are an example only. Actual chassis may differ slightly) Installing The Inner Rails on the Chassis Installing the Inner Rails 1.

  • Page 21: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation L-min=676.00(26.61")(outer rail) 21D01 Figure 2-5. Extending and Releasing the Outer Rails Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2.

  • Page 22: Standard Chassis Installation

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Ball-Bearing Shuttle Figure 2-6. Installing into a Rack Standard Chassis Installation Installing the Chassis into a Rack 1. Confirm that the inner rails are properly installed on the chassis. 2. Confirm that the outer rails are correctly installed on the rack.

  • Page 23: Optional Quick Installation Method

    Chapter 2: Server Installation Optional Quick Installation Method The following quick installation method may be used to install the chassis onto a rack. Installing the Chassis into a Rack 1. Install the whole rail assembly onto the rack as described on page 6-7. 2.
  • Page 24 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Notes 2-10...

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 26: Power Fail

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Power Fail Indicates a power supply module has failed. The second power supply module will take the load and keep the system running but the failed module will need to be replaced. Refer to Chapter 6 for details on replacing the power supply. This LED should be off when the system is operating normally.

  • Page 27: Hdd

    Chapter 3: System Interface Indicates IDE channel activity. On the SuperServer 2027R-E1CR24L, this LED indicates hard and/or DVD-ROM drive activity when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 28 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Notes...

  • Page 29: About Standardized Warning Statements

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 30 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 31 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 32: Installation Instructions

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen.

  • Page 33: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 34: Power Disconnection Warning

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 35 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 36: Equipment Installation

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 37: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 38: Battery Handling

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬...
  • Page 39 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 40: Redundant Power Supplies

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben.

  • Page 41: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 42: Comply With Local And National Electrical Codes

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬...

  • Page 43: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 44: Hot Swap Fan Warning

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 45 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 46: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 47 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 48 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Notes 4-20...

  • Page 49: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRD-EF serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 50: Unpacking

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Connecting Cables Several cables need to be connected to the serverboard. These include the data cables for the peripherals and control panel and the power cables.

  • Page 51: Rear I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground FP PWRLED 3.3 V ID_UID_SW/3/3V Stby HDD LED NIC1 Link LED NIC1 Activity LED NIC2 Activity LED NIC2 Link LED Blue+ (OH/Fan Fail/ Red+ (Blue LED Cathode) PWR FaiL/UID LED) Power Fail LED 3.3V Reset...

  • Page 52: Installing The Processor And Heatsink

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 53 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate finger, remove the 'WARNING'...
  • Page 54 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 55: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Serverboard's and the Heatsink Bracket underneath.

  • Page 56: Installing Memory

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Installing Memory Caution: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRD-EF supports up to 71 TB of Load Reduced (LRDIMM), 512 GB of Registered (RDIMM) or 128 GB of Unbuffered (UDIMM) ECC/Non-ECC DDR3- 800/1066/1333/1600/1866 memory.
  • Page 57 Chapter 5: Advanced Serverboard Setup Processor & Memory Module Population Configuration For memory to work properly, follow the tables below for memory installation. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2...
  • Page 58 1600 1866 1866 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Populating RDIMM (ECC) Memory Modules Intel E5-2600(v2) Series Processor RDIMM Memory Support Ranks Memory Capacity...
  • Page 59 1333 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Populating RDIMM (ECC) Memory Modules Intel E5-2600 Series Processor RDIMM Memory Support Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per...
  • Page 60 1066 1066 (QDP) Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Intel E5-2600 Series Processor LRDIMM Memory Support Ranks Memory Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per...

  • Page 61: Adding Pci Add-On Cards

    Chapter 5: Advanced Serverboard Setup Adding PCI Add-On Cards The 2027R-E1CR24L can accommodate up to four PCI add-on cards. Installing an Add-on Card 1. Begin by removing the shield for the PCI slot you wish to populate. 2. Fully seat the card into the slot, pushing down with your thumbs evenly on both sides of the card.

  • Page 62: Serverboard Details

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Serverboard Details Figure 5-5. X9DRD-EF Layout VGA1 LAN2 LAN1 USB2/3 USB0/1 JUIDB COM2 COM1 JPW4 CTRL IPMI_LAN FAN8 FAN7 CPU2 JBAT1 JBT1 Battery CMOS CLEAR Intel JUSB6 X9DRD-EF BIOS Rev. 1.02 CPU1 JPW3 JPW2...
  • Page 63 Chapter 5: Advanced Serverboard Setup Jumper Description Default Setting Clear CMOS See Section 5-9 JBT1 SMB to PCI-E Slots Off (Disabled) C1/JI JPB1 BMC Enabled Pins 1-2 (Enabled) JPG1 VGA Enabled Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JPME1 Management Engine (ME) Recovery Mode Pins 1-2 (Normal)

  • Page 64: Connector Definitions

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Connector Definitions ATX Power 24-pin Connector Pin Definitions Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V -12V +3.3V A 24-pin main power supply connec- tor (JPW1) and two 8-pin CPU power PS_ON connectors (JPW2/3) and a 4-pin connector (JPW4) must be connected to the power supply.
  • Page 65 Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED Pin Definitions (JF1) The Power Fail LED connection is Pin# Definition located on pins 5 and 6 of JF1. Re- 3.3V fer to the table on the right for pin Signal definitions.
  • Page 66 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Power On LED Power LED Pin Definitions (JF1) The Power LED connector is located Pin# Definition on pins 15 and 16 of JF1. This con- 3.3V nection is used to provide LED indica- Signal tion of power being supplied to the system.
  • Page 67 Chapter 5: Advanced Serverboard Setup LAN Ports Pin Definition Pin# Definition P2V5SB SGND Ethernet Ports TD0+ Act LED Four Ethernet ports are located on the TD0- P3V3SB I/O backplane. A dedicated IPMI LAN TD1+ Link 100 LED (Yel- low, +3V3SB) port is also included to provide KVM TD1- Link 1000 LED...
  • Page 68 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Serial Port Pin Definitions Serial Ports (COM1/COM2) Pin # Definition Pin # Definition Two serial ports are included on the serverboard. COM1 is a backpanel port and COM2 is a header located near the PCI-E slot 1. See the table on the right for pin definitions.
  • Page 69 Chapter 5: Advanced Serverboard Setup Standby Power Header Standby PWR Pin Definitions A +5V Standby Power header is lo- Pin# Definition cated at JSTBY1 on the serverboard. +5V Standby See the table on the right for pin defini- Ground tions. (You must also have a card with Wake-up a Standby Power connector and a cable to use this feature.)
  • Page 70 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual TPM/Port 80 Header Pin Definitions Pin # Definition Pin # Definition TPM Header/Port 80 LCLK A Trusted Platform Module/Port 80 LFRAME# <(KEY)> header is located at JTPM1 to provide LRESET# +5V (X) TPM support and a Port 80 connec-...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the con- nector.
  • Page 72 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual GLAN Enable/Disable GLAN Enable Jumper Settings JPL1 enables or disables the GLAN Jumper Setting Definition ports on the serverboard. See the Pins 1-2 Enabled table on the right for jumper settings. The default setting is Enabled.
  • Page 73 Chapter 5: Advanced Serverboard Setup ME Recovery Close Jumper JPME1 to use ME Firm- ware Recovery mode, which will limit ME Recovery Jumper Settings system activities to support essential Jumper Setting Definition functions only. There will be no power Pins 1-2 Normal use restrictions.

  • Page 74: 5-10 Onboard Indicators

    X8DT3/i-F/-LN4F UPER TORAGE YSTEM 2027R-E1CR24L User's Manual X8DT3-LN4/LN4F 5-10 Onboard Indicators LAN LEDs The Ethernet ports (located beside the JLAN1/2 LED VGA port) have two LEDs. On each (Connection Speed Indicator) port, the yellow LED flashes to indi- LED Color...

  • Page 75: 5-11 Sata Ports

    Parallel ATA. See the table on the Ground right for pin definitions. Note: For more information on SATA HostRAID configuration, please refer to the Intel SATA HostRAID User's Guide posted on our Website at http://www.supermicro. com.. 5-27...

  • Page 76: 5-12 Installing Software

    TORAGE YSTEM 2027R-E1CR24L User's Manual 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your serverboard.

  • Page 77: Superdoctor® 5

    Chapter 5: Advanced Serverboard Setup SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program moni- tors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 78: 5-13 Onboard Battery

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual 5-13 Onboard Battery Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC216BE1C-R920LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 80: Control Panel

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel Hard Drives (24) JBOD Expansion Ports Power Supplies (2) 7 Low-profile PCI Slots I/O Ports (see Figure 5-2) Optional 2.5" Hot-swap Drive Bay Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 81: Removing The Chassis Cover

    Chapter 6: Advanced Chassis Setup Removing the Chassis Cover Remove this screw (if necessary) Release Tab Figure 6-2. Removing the Chassis Cover Removing the Chassis Cover You may need to gain access to the inside of the server to perform various main- tenance tasks.

  • Page 82: System Cooling

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual System Cooling System Fans Three 8-cm hot-swap chassis fans provide the cooling for the SuperServer 2027R- E1CR24L. It is very important that the chassis top cover is properly installed in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 83: Air Shrouds

    Chapter 6: Advanced Chassis Setup Figure 6-3. Replacing System Cooling Fans Air Shrouds Air shrouds concentrate airflow to maximize fan efficiency. The SC216 chassis air shrouds do not require screws for installation. Installing the Air Shrouds in the Chassis Installing the Main Air Shroud 1.
  • Page 84 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual An additional air shroud is required for high-powered CPUs, to provide extra cooling. Install the additional air shroud if necessary. Installing the Additional Air Shroud 1. Remove the left side break-away piece of the main air shroud.

  • Page 85: Drive Bay Installation/Removal

    SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SATA drives. Proceed to the next step for instructions. Note: You must use 2.5" drives in the SuperServer 2027R-E1CR24L. The chassis supports 24 hot-swappable hard drives. Only enterprise level SATA HDDs are recommended for use in the SC216 chassis.
  • Page 86 Warning! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/files/storage/SAS-1-CompList-110909.
  • Page 87 Chapter 6: Advanced Chassis Setup Figure 6-6. Mounting a SATA Drive in a Carrier Installing a Hard Drive into a Drive Carrier 1. Insert a drive into the carrier with the PCB side facing down and the connec- tor end toward the rear of the carrier. 2.

  • Page 88: Power Supply

    TORAGE YSTEM 2027R-E1CR24L User's Manual Power Supply The 2027R-E1CR24L chassis has two redundant, hot-plug 920 Watt power sup- plies. The power modules are hot-swappable, enabling them to be changed without powering down the system. These power supplies are auto-switching capable, allowing them to automatically sense and operate at a 100v to 240v input voltage.
  • Page 89 Chapter 6: Advanced Chassis Setup Changing the Power Supply 1. Determine which power supply needs to be replaced and unplug the power cord to that module. 2. Push the release tab (on the back of the power supply) as illustrated, to release the power module from the chassis.

  • Page 90: Attaching A Jbod Expansion Chassis

    YSTEM 2027R-E1CR24L User's Manual Attaching a JBOD Expansion Chassis The SSG-2027R-E1CR24L features dual JBOD expansion ports. The JBOD attach- ment will vary depending on the specific JBOD chassis that is being connected. A two cable attachment (x8 SAS lanes) is recommended Figure 6-9.

  • Page 91: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRD-EF/7LN4F- JBOD/7LN4F. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated.

  • Page 92: Main Setup

    <Delete> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Recov- ery User Guide posted @ http://www.supermicro.com/support/manuals/. Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
  • Page 93 Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.). Supermicro X9DRD-7LN4F series Version This item displays the SMC version of the BIOS ROM used in this system.

  • Page 94: Advanced Setup Configurations

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Advanced Setup Configurations Select the Advanced tab to access the following submenu items. Boot Feature Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.
  • Page 95 Chapter 7: BIOS at bootup and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 96 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache / L1 Code Cache • L2 Cache • L3 Cache CPU Speed This item displays the speed of the CPU installed in Socket 1/Socket 2.
  • Page 97 Chapter 7: BIOS Execute-Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute Disable Bit which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.
  • Page 98 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual  CPU Power Management Configuration This submenu allows the user to configure the following CPU Power Manage- ment settings. Power Technology Select Energy Efficiency to support power-saving mode. Select Custom to cus- tomize system power settings. Select Disabled to disable power-saving settings.
  • Page 99 Chapter 7: BIOS Package C-State limit (Available when Power Technology is set to Custom) This feature allows the user to set the limit on the C-State package register. The options are C0, C2, C6, and No Limit. Energy/Performance Bias Use this feature to select an appropriate fan setting to achieve maximum system performance (with maximum cooling) or maximum energy efficiency with maxi- mum power saving).
  • Page 100 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Chipset Configuration North Bridge This feature allows the user to configure the settings for the Intel North Bridge. Integrated IO Configuration Intel VT-d ® Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables.
  • Page 101 Chapter 7: BIOS IIO 2 PCIe Port Bifurcation Control This submenu configures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp. Root ports. QPI Configuration Current QPI Link This item displays the current status of the QPI Link.
  • Page 102 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual  DIMM Information CPU Socket 1 DIMM Information, CPU Socket 2 DIMM Information The status of the memory modules detected by the BIOS will be displayed as detected by the BIOS. Memory Mode When Independent is selected, all DIMMs are available to the operating system.
  • Page 103 Chapter 7: BIOS correctable error, the error is corrected and sent to the requestor (the original source). Memory is updated as well. Select Enabled to use Demand Scrubbing for ECC memory correction. The options are Enabled and Disabled. Data Scrambling Select Enabled to enable data scrambling to ensure data security and integrity.
  • Page 104 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Port 60/64 Emulation Select Enabled to enable I/O port 60h/64h emulation support for the legacy USB keyboard so that it can be fully supported by the operating systems that does not recognize a USB device. The options are Disabled and Enabled.
  • Page 105 Chapter 7: BIOS Port 0~5 Hot Plug Select Enabled to enable hot-plug support for a particular port, which will allow the user to change a hardware component or device without shutting down the system. The options are Enabled and Disabled. Staggered Spin Up Select Enabled to enable Staggered Spin-up support to prevent excessive power consumption caused by multiple HDDs spinning-up simultaneously.
  • Page 106 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.
  • Page 107 Chapter 7: BIOS VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard, and Offboard. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support.
  • Page 108 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Change Settings This option specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Disabled to prevent the serial port from accessing any system resources. When this option is set to Disabled, the serial port becomes unavailable.
  • Page 109 Chapter 7: BIOS client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second). Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits.
  • Page 110 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Serial Port for Out-of-Band Management/Windows Emergency Management...
  • Page 111 Chapter 7: BIOS Data Bits, Parity, Stop Bits The status of these features is displayed. ACPI Settings Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU_Stop_Clock) to erase all CPU caches and stop executing instructions.
  • Page 112 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Pending Operation Use this item to schedule an operation for the security device. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: During restart, the computer will reboot in order to execute the pend- ing operation and change the state of the security device.
  • Page 113 Chapter 7: BIOS TPM Support: Trusted Platform support TPM State: Trusted Platform state ME Subsystem This feature displays the following ME Subsystem Configuration settings. • ME BIOS Interface Version • ME Version iSCSI Configuration: This item displays iSCSI configuration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 114 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Blink LEDs This feature allows the user to specify the duration for LEDs to blink. The range is from 0 ~ 15 seconds. The default setting is 0. PORT CONFIGURATION INFORMATION This section displays the following port information: •...

  • Page 115: Event Logs

    Chapter 7: BIOS Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 116 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

  • Page 117: Ipmi

    Chapter 7: BIOS IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...
  • Page 118 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 119: Boot

    Chapter 7: BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). Boot This submenu allows the user to configure the following boot settings for the system.

  • Page 120: Security

    UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Security This menu allows the user to configure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot.

  • Page 121: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to configure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 122 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.

  • Page 123: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 124 UPER TORAGE YSTEM 2027R-E1CR24L User's Manual Notes...

  • Page 125: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Single or dual Intel® Xeon E5-2600 (v2) Series processors Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602J chipset BIOS 16 Mb AMI® SPI Flash ROM Memory Capacity Sixteen DIMM sockets supporting up to 1 TB of Load Reduced (LRDIMM), 512 GB of Registered (RDIMM) or 128 GB of Unbuffered (UDIMM) ECC/Non-ECC...
  • Page 126 UPER TORAGE YSTEM 2027R-E1CR24N User's Manual Weight Net: 35 lbs. (15.9 kg.) Gross: 57 lbs. (25.9 kg.) System Cooling Three 8-cm system fans One air shroud System Input Requirements AC Input Voltage: 100 - 240V AC auto-range Rated Input Current: 11 - 4.5A max Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 920W (Part# PWS-920P-SQ) (hot-plug, redundant)
  • Page 127 Appendix B: System Specifications Notes...
  • Page 128 YSTEM 2027R-E1CR24N User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
