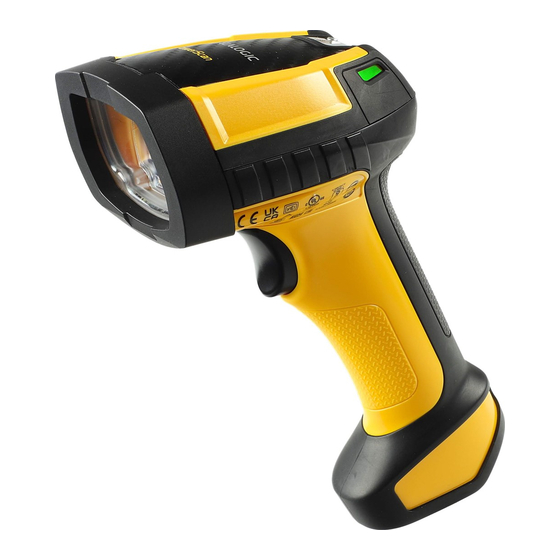

Datalogic PowerScan PD9630-SR Quick Reference Manual
Industrial corded handheld area imager bar code reader
Hide thumbs
Also See for PowerScan PD9630-SR:
- Product reference manual (360 pages) ,
- Product reference manual (363 pages)
Related Manuals for Datalogic PowerScan PD9630-SR
Summary of Contents for Datalogic PowerScan PD9630-SR
- Page 1 PowerScan™ PD96XX QUICK REFERENCE GUIDE Industrial Corded Handheld Area Imager Bar Code Reader...
- Page 2 Disclaimer Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for inci- dental or consequential damages resulting from the use of this material.
-
Page 3: Table Of Contents
TABLE OF CONTENTS END USER SOFTWARE LICENSE AGREEMENT....IV Software Product Policy ............IX About the Scanner ............1 General Features..............1 Setting Up the Reader ............ 2 Connecting the Cable ............2 Connecting to the Host Interface.......... 4 Using the PowerScan™ PD96XX ........6 Selecting the Interface Type ........... -
Page 4: End User Software License Agreement
Datalogic grants to End User, a personal, non-exclusive, non-transfer- able, non sub licensable, revocable, limited license to use the Soft- ware, solely on the Datalogic Product in which it is embedded or for which it is intended for use, in machine-readable form only, solely for End User's internal business purposes. - Page 5 End User to promptly pay all (additional) license fees due and any further damages, if any. 2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the relevant contract for the purchase of the Datalogic Product.
- Page 6 IF ANY, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLI- GENCE), PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT. UNDER NO CIRCUMSTANCES SHALL DATALOGIC OR ITS LICEN-...
- Page 7 Datalogic IP Tech S.r.l., Legal & IP Department, Via San Vitalino 13, 40012 Calderara di Reno (Bolo- gna), Italy, or such other address as may be specified by Datalogic in writ- ing. 12. General Provisions. 12.1. Entire Agreement; Amendment. This document contains the entire...
- Page 8 State of Oregon located in either Multnomah or Lane counties shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initi- ate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located.
-
Page 9: Software Product Policy
EULA Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This pro- vides our customers with the very latest in Datalogic soft- ware technology. The only exception to this policy is when the buyer has a... - Page 10 EULA NOTES POWERSCAN™ PD96XX...
-
Page 11: About The Scanner
USA Driver License PDF417 USA Driver License barcodes. This feature can be enabled using either Parsing Datalogic Aladdin™ or the barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website. QUICK REFERENCE GUIDE... -
Page 12: Setting Up The Reader
Setting Up the Reader SETTING UP THE READER Follow the steps below to connect and get your reader up and communicating with its host. Connect the Cable to the reader and the Host as shown below. Configure the Interface (see page Configure the Reader starting on page (optional, as needed). - Page 13 Setting Up the Reader In this case, make sure to insert the adapter with the slot facing up (C). The rib (D) inside the adapter seat must fit into this slot. Once the cable is properly inserted, close the han- dle and screw it back into the body.
-
Page 14: Connecting To The Host Interface
Setting Up the Reader Connecting to the Host Interface Follow the steps indicated by the pictures below to con- nect the gun to the Host, according to the communication cable available. RS-232 ETHERNET POWERSCAN™ PD96XX... - Page 15 Setting Up the Reader WEDGE CAB-556 only NOTE: Use only CAB-556. Other Wedge cables are not compatible with PD96xx readers. CAUTION: To avoid damage to the scanner and/or to the host, first install correctly the cable into the scanner and then connect the other end of the cable into the host port of the PC.
-
Page 16: Using The Powerscan™ Pd96Xx
Using the PowerScan™ PD96XX USING THE POWERSCAN™ PD96XX The PowerScan™ PD96XX normally functions by capturing and decoding codes. The reader is equipped with an inter- nal Motionix™ motion-sensing function which activates the aiming system on device motion. The intelligent aim- ing system indicates the field of view which should be positioned over the bar code: Table 1 - Aiming System... -
Page 17: Selecting The Interface Type
Selecting the Interface Type SELECTING THE INTERFACE TYPE Upon completing the physical connection between the reader and its host, proceed directly to the Interface Selection paragraph below, to program the reader for the interface type it is connected to (for example: RS-232, Keyboard Wedge, USB, etc.). - Page 18 RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB Com to simulate RS-232 standard interface Select USB-COM-STD USB-OEM USB -OEM (can be used for OPOS/UPOS/JavaPOS) Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com ★ Factory setting POWERSCAN™ PD96XX...
- Page 19 Configuring the Interface USB FOR TERMINALS USB HID POS Select USB HID POS USB Toshiba TEC Select USB Toshiba TEC USB FOR MAGELLAN SCANNERS USB for Magellans Select USB Magellan Scanners ETHERNET Select Ethernet Interface QUICK REFERENCE GUIDE...
-
Page 20: Keyboard Interface
Configuring the Interface Keyboard Interface Use the programming labels to select options for USB Key- board and Wedge Interfaces. KEYBOARD USB Keyboard with standard key encoding Select USB Keyboard USB Keyboard with alternate key encoding Select USB Alternate Keyboard USB -Composite ★... - Page 21 Configuring the Interface COUNTRY MODE ENTER/EXIT PROGRAMMING MODE ★ Country Mode = US Country Mode = Belgium Country Mode = Croatia Country Mode = Czech Republic Country Mode = Denmark ★ Default Value QUICK REFERENCE GUIDE...
- Page 22 Configuring the Interface COUNTRY MODE (CONTINUED) Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Country Mode = Italy Country Mode = Japanese 106-Key POWERSCAN™ PD96XX...
- Page 23 Configuring the Interface COUNTRY MODE (CONTINUED) Country Mode = Lithuanian Country Mode = Norway Country Mode = Poland Country Mode = Portugal Country Mode = Romania Country Mode = Spain QUICK REFERENCE GUIDE...
- Page 24 Configuring the Interface COUNTRY MODE (CONTINUED) Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland Country Mode = United Kingdom POWERSCAN™ PD96XX...
-
Page 25: Programming
Programming PROGRAMMING The reader is factory-configured with a set of standard default features. After scanning the interface bar code from the Interfaces section, select other options and cus- tomize your reader through use of the programming bar codes available in the PowerScan™ PD96XX PRG. Check the corresponding features section for your interface, and also the Data Editing and Symbologies chapters of the PRG. -
Page 26: Reading Parameters
Reading Parameters READING PARAMETERS Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See "Using the PowerScan™ PD96XX" on page 6 for more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition. - Page 27 Operating Modes The scanner looks for changes within its Stand Mode — field-of-view. The Aiming Pattern is always on to show the optimum reading area. If a predefined amount of move- ment is detected, the white illumination switches on. Scan- ning continues until a label is read or “Scanning Active Time”...
-
Page 28: Technical Specifications
Technical Specifications TECHNICAL SPECIFICATIONS PowerScan™ PD96XX PHYSICAL CHARACTERISTICS Color Yellow/Black Height 19.0 cm (7.5'') Dimensions Length 14.0 cm (5.5”) Width 7.9 cm (3.1”) Weight Approx. 318 gr. (11.2 oz.) (without cable) ELECTRICAL CHARACTERISTICS Input Voltage 5 - 30 VDC ± 5% Operating (Typical): PD9630-SR: 200mA @ 5V;... - Page 29 Technical Specifications OPTICAL CHARACTERISTICS Optical Format 1/4" Imager Sensor 1280 H x 800 V Illumination System White LED Aiming System 630 - 680 nm VLD Reading Angle All models: Pitch: +/- 52°; Skew: +/- 52° HP: 38° x 24° Field of View STD: 38°...
- Page 30 Technical Specifications DOF - DEPTH OF FIELD (TYPICAL) Symbology DOF range PD96XX-SR: 5 mils: 6.4-30.9 cm (2.5-12.2 in) 20 mils: 4-103.7 cm (1.6-40.8 in) 40 mils: 5.5-175 cm (2.2-68.9 in) PD96XX-DC: 5 mils: 3.1-39.7 cm (1.2-15.6 in) Code 128 20 mils: 3.5-119.1 cm (1.3-46.9 in) 40 mils: 4.5-186.6 cm (1.7-73.4 in)
-
Page 31: Led And Beeper Indications
LED and Beeper Indications LED AND BEEPER INDICATIONS The reader’s beeper sounds and its LED illuminates to indi- cate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The follow- ing tables list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on. -
Page 32: Troubleshooting
Troubleshooting TROUBLESHOOTING POSSIBLE PROBLEM POSSIBLE CAUSE SOLUTION Check system power. No power to the Ensure power supply reader. Nothing happens is connected. when the scan Ensure all cable button is pulled. Interface or power connections are cables are loose. secure. Ensure reader is programmed to read Reader not... -
Page 33: Cleaning Procedure
CAUTION: Be sure to turn off power and unplug the device from electrical outlet before cleaning. Common Cleaning Solutions The cleaners and disinfectants listed below are recom- mended for use on Datalogic Disinfectant-Ready Enclo- sures. PRODUCT CHEMICAL CONTENT Sani-Cloth® HB, Quaternary Ammonium Chloride Sani-Cloth®... -
Page 34: Cleaning Enclosure And Window Surfaces
Cleaning Procedure NOTE: Disinfectants may be harsh on metal. They are recommended for use only on enclosures. CAUTION: DO NOT spray or pour cleaner directly onto the unit. DO NOT use solutions in their concentrated form. DO NOT use aerosols, solvents or abrasives. DO NOT use paper towels or rough cloths to clean windows. -
Page 35: Ergonomic Recommendations
Technical Support. Reseller Technical Support An excellent source for technical assistance and information is an authorized Datalogic reseller. A reseller is acquainted with specific types of businesses, application software, and computer systems and can provide individualized assistance. QUICK REFERENCE GUIDE... -
Page 36: Warranty
Datalogic, unless otherwise agreed in an applicable writing by Datalogic. Datalogic will not be liable under the warranty if the Product has been exposed or subjected to any: (1) maintenance, repair, installation, han- dling, packaging, transportation, storage, operation or use that is improper or otherwise not in compliance with Datalogic’s instruction;... - Page 40 ©2022 Datalogic S.p.A. and /or its affiliates. • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A.
