INSTRUCTIONS

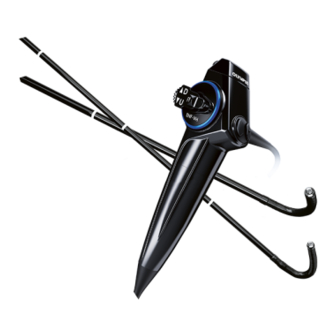

RHINO-LARYNGO VIDEOSCOPE
OLYMPUS ENF-V3
Refer to the endoscope's companion manual, the "REPROCESSING manual" with your
endoscope model listed on the cover, for reprocessing information.
OPERATION MANUAL
Symbols
Important Information — Please Read Before
Use
Chapter 1
Checking the Package Contents
Chapter 2
Instrument Nomenclature and
Specifications
Chapter 3
Preparation and Inspection
Chapter 4
Operation
Chapter 5
Troubleshooting
Appendix
1
2
13
15
23
35
43
47
