Replacing the Belts & Brush Rolls
7
9

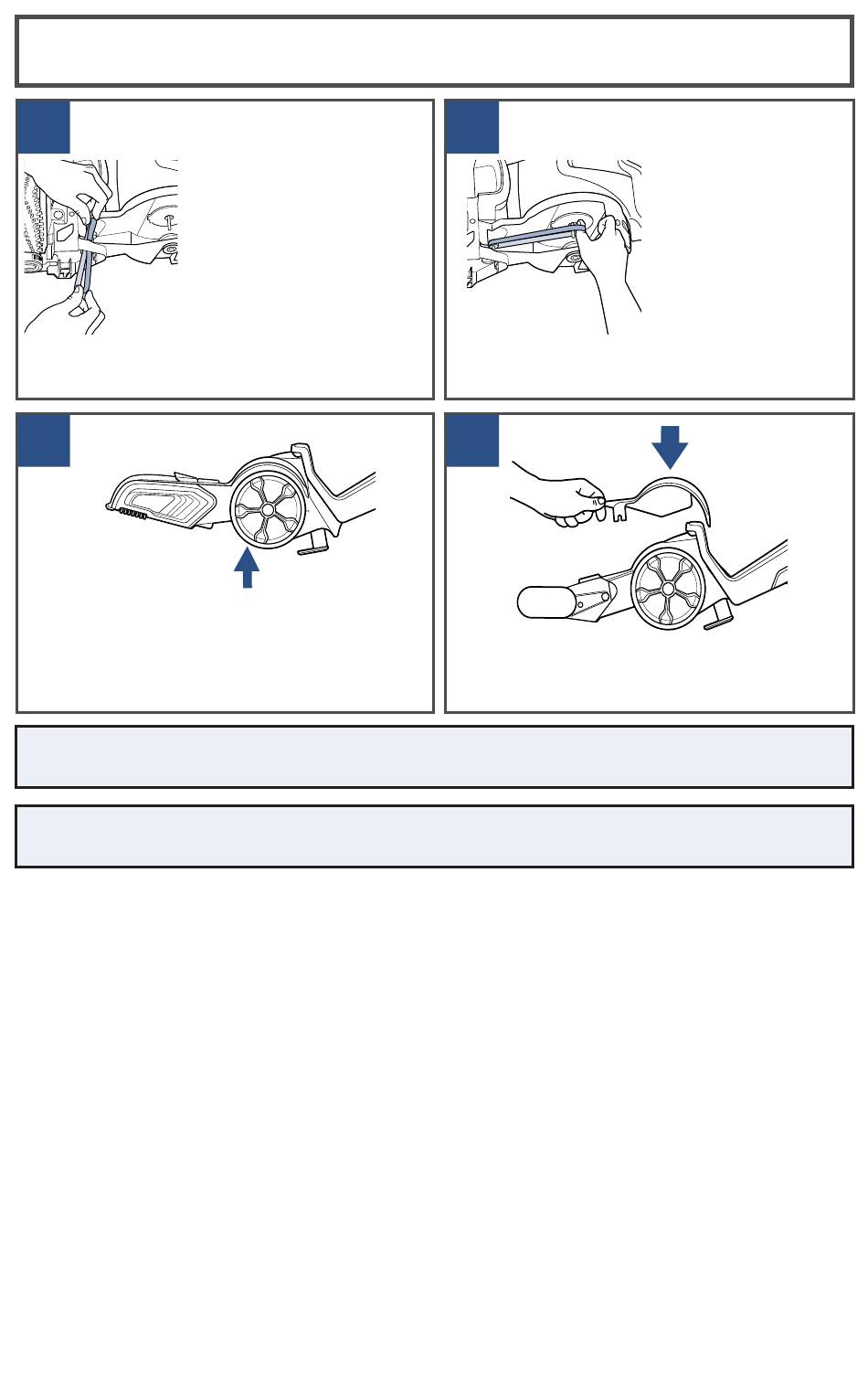

Resecure the Wheel and Belt Access Door:
Slide the wheel up back into the slot and
secure with the screw that was removed.
NOTE: See Step 6 on page 15 for how to put the Brush Roll Cover and Nozzle back in
place.
NOTE: Other maintenance or service not included in this user guide should be performed
by an authorized service representative.
If the flat belt is broken,
gently remove it. If it
needs replacing for
any reason, the gear
belt should already
be removed before
removing the flat belt.
Rotate the machine back
to its side. Feed the new
flat belt through the
opening so that it wraps
around the red pulley.
8
10
Snap the Belt Access Door back
down into place.
(cont.)
Keep it wrapped
on the red pulley
and adjust the
machine so it is
laying on its back
again. Use your
thumb to stretch
the flat belt back
to wrap around
the metal axle.
