INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):
P43-C, P61-C & P68-C

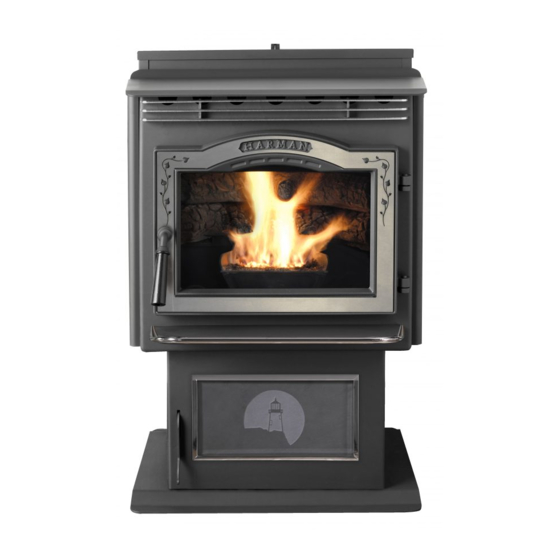

Freestanding Pellet Stove
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Contact local building or fire officials about restrictions
and installation inspection requirements in your area.
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
1
Installation Manual
Installation and Appliance Setup
CAUTION
NOTE
Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not overfire - If any external part starts to glow, you
are overfiring. Reduce feed rate. Overfiring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
WARNING
8390-044I
Advertisement
Table of Contents
Related Manuals for Harman P43-C
Summary of Contents for Harman P43-C
- Page 1 To obtain a French translation of this manual, please contact your dealer or visit www.harmanstoves.com Pour obtenir une traduction française de ce manuel, s’il vous plaît contacter votre revendeur ou visitez www. harmanstoves.com Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
-
Page 2: Table Of Contents
I. Fire Safety ....... 21 J. Inspect Appliance & Components ....21 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 3: Installation Standard Work Checklist
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed __________________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments communicated to party responsible____________________ by ________________________ on __________ (Builder / Gen Contractor) (Installer) (Date) 04/17 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 4: Product Specific And Important Safety Information
For more information go to: www.P65Warnings.ca.gov The P43-C, P61-C and P68-C is Certified to comply with 2020 particulate emission standards. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 5: Btu Specifications
This wood heater needs periodic inspection and repair for proper operation. It is against federal regulations to operate this wood heater in a manner inconsistent with operating instructions in this manual. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 6: Getting Started
• Avoid outside wall in cooler climates Windward Leeward Multi-level Roofs Recommended: NOT recommended: Outside Air Intake Outside Air Intake on windward side on leeward side Figure 2.1 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 7: Tools And Supplies Needed
Installation other than as instructed by Hearth & Home Technologies. • Installation and/or use of any component part not approved by Hearth & Home Technologies. Any such action may cause a fire hazard. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 8: Appliance Dimension Diagram
P61-C Freestanding Pellet Stove Outside Outside Air Intake Air Intake 5 1/8" 5 1/8" 22" 23 1/2" 20 3/4" P68-C Freestanding Pellet Stove Outside Air Intake 5 1/4" 23-1/2” Figure 3.1 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 9: Clearances To Combustibles
14" (355mm) *16" (406mm) 20" (508mm) 36" (914mm) 36" (914mm) 9"(228mm) 9"(228mm)- 13"(330mm) 9"(228mm)With Side Shields 9" (228mm) With or Without Side Shields 13"(330mm) Without Side Shields Figure 3.2 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 10: Floor Protection
The appliance must be properly grounded to the frame of K Front 6” 152mm the mobile home using a minimum of 8 AWG copper solid or stranded, insulated or bare wire or equivalent. Rear 6” 152mm Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 11: Termination Location And Vent Information
Keep combustible materials (such as grass, leaves, etc.) at least 3 feet away from the flue outlet on the outside of the building. 3 Ft. to Combustibles Figure 4.2 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... - Page 12 The connector pipe should extend through the smoke chamber to the base or into the first flue tile. Be sure to design the venting so that it can be easily cleaned. Figure 4.4 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
- Page 13 4" diameter. In this method a cap should also be installed on the chimney to keep out rain. Figure 4.6 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
- Page 14 Do not place joints within wall pass-through. min. wall to outlet 12" Figure 4.9 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
-
Page 15: Chimney Diagram
G. The clearance to an inside corner is 12". Canada) H. A vent must not be installed within 3 feet (90 cm) above a gas meter/regulator assembly when measured from the horizontal center-line of the regulator. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 16: Venting & Use Of Elbows
(EVL). 4 ft. of Vertical Pipe (4 x .5 EVL) = 2 EVL 90° Elbow (1 x 5 EVL) = 5 EVL It is best to have your venting system designed by a Harman authorized dealer before you finalize your purchase of an 90° Tee (1 x 5 EVL) = 5 EVL appliance. 21 ft. of Vertical Liner (21 x .5 EVL) = 10.5 EVL... - Page 17 Increaser Part #3PVPX4ADHB are highly recommended to be installed on the starter collar to insure a proper pipe connection to the unit. • INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER • Use silicone to create an effective vapor barrier at the location where the chimney or outside air ducting passes through to the exterior of the structure Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
-
Page 18: Outside Air
Use silicone to create an effective vapor barrier at the Direct Vent Wall Pass-through Kit (Part #1-00-677177) location where the chimney or outside air ducting passes through to the exterior of the structure. Figure 4.14 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 19: Locating Your Appliance And Chimney
_______. If the second reading is more than .05” lower than the first reading, check for possible restrictions or the need for outside air. For more information on the draft test procedure, refer to Page 21 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 20: Avoiding Smoke & Odors
The starting collar must be secured to the flue stub with at least three screws, and sealed with high temp silicone caulking. 4” stainless steel flex vent piping is only allowed for use in masonry fireplaces and chimneys or factory built wood burning fireplaces with class A metal chimneys. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 21: Fire Safety
NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS TO ALTER THIS SETTING OR OTHERWISE OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 22: Appliance Setup
Figure 5.3. P61-C & P68-C 3 Firebrick Pellet Stove Figure 5.2 Flame guide Figure 5.3 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 23: Room Sensor
(A surge protector is recommended to protect the circuit board.) Also be sure that the polarity of the outlet that the stove is plugged into is correct. Figure 5.4 Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 24: Reference Materials
THE STOVE FOR HIGHER HEAT OUTPUT MAY CAUSE DAMAGE TO THE STOVE AND COULD RESULT IN A HOUSE FIRE. USE ONLY APPROVED FUELS AND FOLLOW ONLY THESE OPERATION GUIDELINES. Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... -
Page 25: Wiring Diagram
B. Wiring Diagram Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I... - Page 26 352 Mountain House Road, Halifax, PA 17032 www.harmanstoves.com Please contact your Harman dealer with any questions or concerns. ® For the location of your nearest Harman dealer, ® please visit www.harmanstoves.com. Printed in U.S.A Harman® • P-Series Installation Manual_R3 • 2018 - ___ • 09/20 8390-044I...
