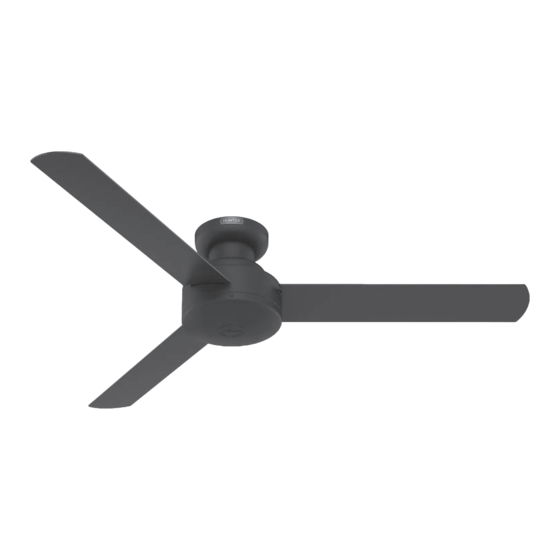

- Page 1 Presto Installation Manual Model: 52406 Cement Grey 52407 Flat Matte Black 52408 Matte Fresh White 52409 Matte Nickel Fan weight ±2 lbs: 15.0 lbs (6.8 kg) ©2022 Hunter Fan Co. PG4094 r120822...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This product conforms to UL Standard 507.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
Installing the Ceiling Bracket You have two options for installation. Pick which one works best for your location. Remove any existing bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. Do this first! -
Page 5: Hanging The Fan
1886 Installing the Top Housing 3/8” Top Housing Screw 8” Grounding Screw Grounding Screw The wires can be cut, but leave at least 8” extending from the top of the canopy. Install the third canopy screw and grounding screw which can be found in the hardware bag. -
Page 6: Wiring The Fan
You are going to need these: 4 Wire Nuts (these are in the bag) Hunter Pro Tip: Here is how to connect the wires: Push the bare metal ends of the wires together and slide a wire nut over them. Then, twist the wire nut clockwise until tight. -
Page 7: Installing The Canopy
1886 Installing the Canopy 2 of 3 Canopy Screws Swing the fan up to align the Hold the canopy up with the screw holes canopy screw holes with the aligned. Partially install two canopy screws, mounting holes on the ceiling plate. found in the hardware bag, into the holes opposite the ceiling plate hooks. -
Page 8: Installing The Blades
1886 Installing the Blades: Insert the blade into the blade slot around the center screw. Put the blade washers found in hardware bag onto the blade screws found in the hardware bag. Then install the blade screws to secure each blade to the fan. - Page 9 1886 Installing Wall Control Turning off the power WARNING Ensure the power is OFF at the outlet box and wall switch location before proceeding To avoid possible electrical shock, before with installation. installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.
- Page 10 1886 1886 Reversing the Fan Reverse Switch Updraft (clockwise rotation) creates a more indirect airflow. Updraft airflow is great for moving warm air downward. Downdraft (counterclockwise Ceiling fans work in two directions: downdraft rotation) creates a direct breeze (counterclockwise rotation) and updraft (clockwise and maximum cooling effect.
-
Page 11: Troubleshooting
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,...
