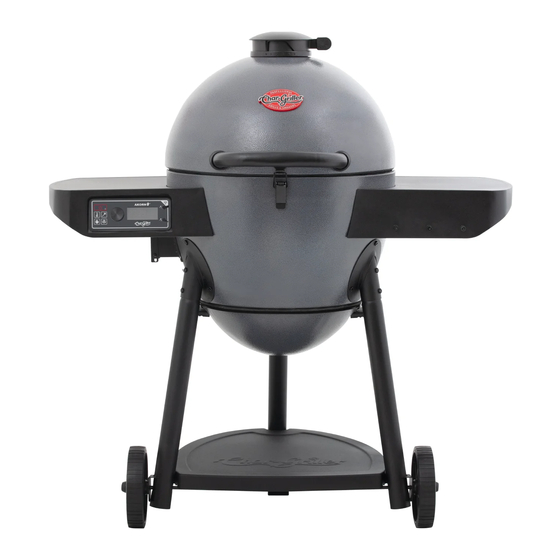

Char-Griller AKORN AUTO-KAMADO E6480 Manual

Hide thumbs Also See for AKORN AUTO-KAMADO E6480:

Advertisement

Quick Links

Download this manual

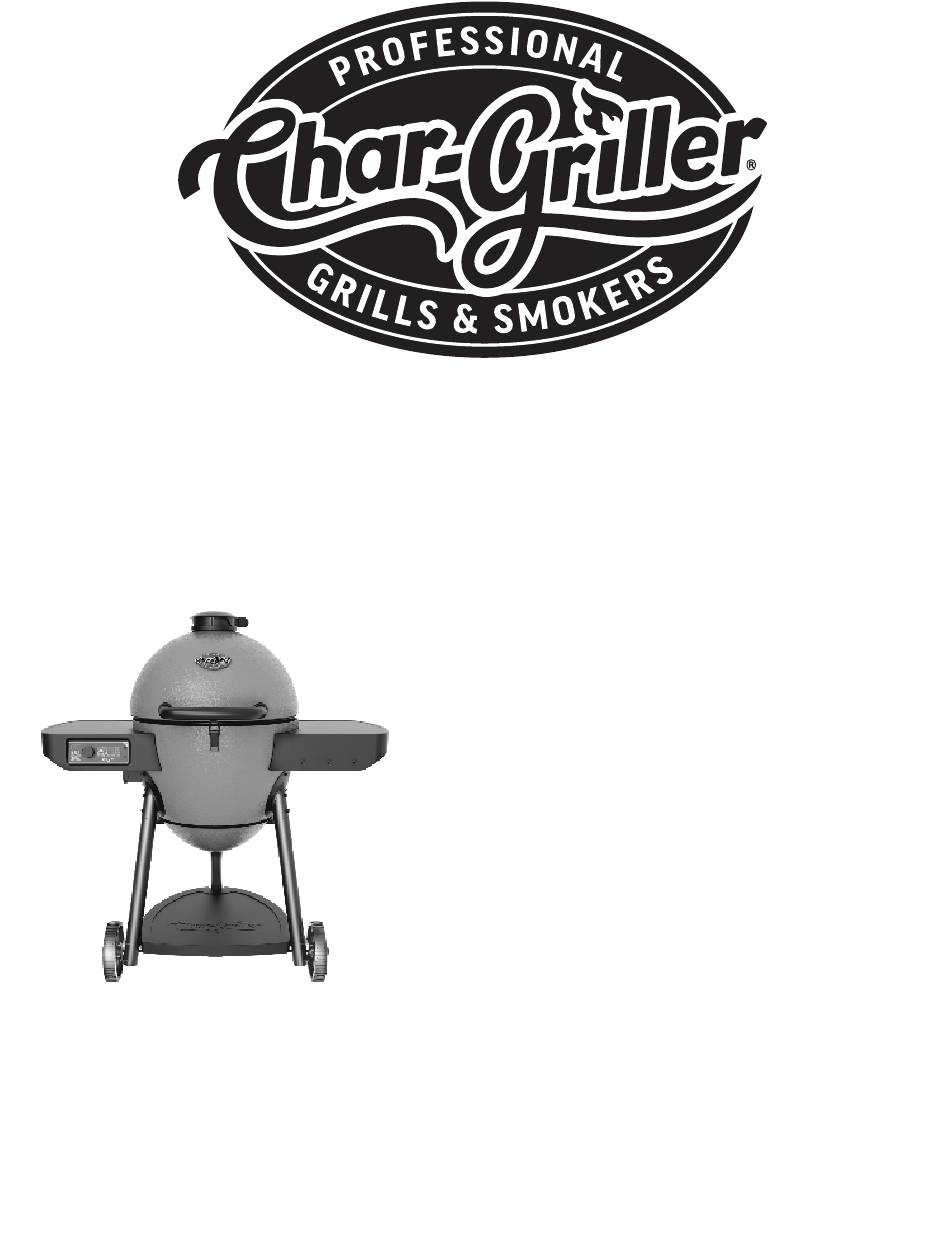

AKORN
AUTO-KAMADO
®
™
Model # E6480
Keep your receipt with
this manual for Warranty.
CUSTOMER SERVICE:
www.chargriller.com/pages/customer-support
PATENTED & PATENT PENDING
Contents of this manual are Trademarked and Copyrighted by Char-Griller
| Premier Specialty Brands, LLC.
®
Using the information contained in this manual without consent of Char-Griller
and/or Premier Specialty Brands, LLC. is strictly prohibited.
®
E6480
9804230023 230830-GH

Advertisement

loading

Related Manuals for Char-Griller AKORN AUTO-KAMADO E6480

Summary of Contents for Char-Griller AKORN AUTO-KAMADO E6480

  • Page 1 PATENTED & PATENT PENDING Contents of this manual are Trademarked and Copyrighted by Char-Griller | Premier Specialty Brands, LLC. ® Using the information contained in this manual without consent of Char-Griller and/or Premier Specialty Brands, LLC. is strictly prohibited. ® E6480...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Warnings............3-6 Assembly..............7-25 Operating Instructions .........26-34 Care & Maintenance..........35 Troubleshooting.............36-37 Accessories............38 Warranty..............39 ATTENTION! Please Review ALL of the Lighting Instructions Prior to Operating Grill • DO NOT use a charcoal chimney to ignite charcoal. • When smoking 200-250°F (93-121°C), if Over-activation of charcoal will prevent controller from the grill exceeds the set temperature being able to control temperature.

  • Page 3: Safety Warnings

    Warning Code: DCG-02-230602-MSH FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE. WARNING • This manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembling and using the appliance. •...
  • Page 4 • Never use glass, plastic or ceramic cookware in smoker. Never place empty cookware in grill while in use. • Accessory attachments not supplied by Char-Griller are NOT recommended and may cause injury. • Do not store grill with hot ashes or charcoal inside grill/hopper (could be item specific). Store only when fire is completely out and all surfaces are cold.
  • Page 5 Warning Code: DCG-02-230602-MSH WARNINGS AND IMPORTANT SAFEGUARDS • To disconnect, turn controller “OFF” then remove plug from outlet. • Unplug from outlet when not in use and before cleaning. Allow appliance to cool completely before adding/removing internal components. • Do not clean this product with a water sprayer or the like. •...
  • Page 6 WHEN USING WHEN USING PATENT PENDING STOP! CONTACT CHAR-GRILLER FIRST! Do NOT Return Product to Store This grill has been made according to the highest of quality standards. If you have any questions not addressed in this manual contact Customer Service at: www.chargriller.com/pages/customer-support...
  • Page 7 ASSEMBLY INSTRUCTIONS...

  • Page 8: Assembly

    PRE-ASSEMBLED COMPONENTS K K K DAMPER ASSEMBLY K K K LEFT SIDE SHELF AND CONTROLLER ASSEMBLY K K K K K K GRILL BODY ASSEMBLY FAN ASSEMBLY K K K ASH PAN ASSEMBLY...
  • Page 9 PARTS LIST Item Part Name DAMPER DAMPER HANDLE GRIP DAMPER O-RING HOOD HOOD SEALER HEAT SENSOR (HARDWARE ATTACHED) CENTER GRATE OUTER GRATE FIRE GRATE HOOD HINGE RIGHT SIDE SHELF FIRE BOWL GRILL BODY LEG SOCKET LATCH REAR LEG RIGHT LEG ASH PAN SUPPORT BRACKET CASTER WHEEL ASH PAN HANDLE...
  • Page 10 HARDWARE NEEDED Assembly: Requires 2 people. Tools Needed: Hammer, Phillips Head Screwdriver, Pliers, and a 7/16” Nut Driver. **NOTE: DO NOT fully tighten any bolts until instructed to do so. Tightening too soon may prohibit parts from fitting together. All hex nuts should be on the inside of the grill unless stated otherwise.
  • Page 11 STEP 1 GRILL BODY ASSEMBLY...
  • Page 12 STEP 2 ALTERNATE VIEW...
  • Page 13 STEP 3...
  • Page 14 STEP 4 ALTERNATE VIEW...
  • Page 15 STEP 5 FAN ASSEMBLY...
  • Page 16 STEP 6 LEFT SIDE SHELF AND CONTROLLER ASSEMBLY...
  • Page 17 STEP 7A Hardware comes pre-installed on the Heat Sensor. SILICONE WASHER METAL WASHER STEP 7B...
  • Page 18 STEP 8 STEP 9 DAMPER ASSEMBLY...
  • Page 19 STEP 10 ASH PAN ASSEMBLY ALTERNATE VIEW: Secure Ash Pan Assembly into place with the two latches.
  • Page 20 STEP 11A ALTERNATE VIEW STEP 11B...
  • Page 21 STEP 12 DETAIL A SCALE 1 : 6...
  • Page 22 STEP 13A Insert the Heat Sensor Cord into the Wire Clip. STEP 13B With cord inserted, secure wire clips to the grill. Feed the Heat Sensor cord through the hole in the side shelf. HEAT SENSOR YELLOW MARKER Note: Make sure to leave slack on the heat sensor cord.
  • Page 23 STEP 14 Feed the Power Cord through the hole in the side shelf. POWER...
  • Page 24 STEP 15 Connect all 3 Electrical Ports as shown. HEAT SENSOR CONTROLLER POWER ALTERNATE VIEW POWER HEAT SENSOR...
  • Page 25 FULLY ASSEMBLED To ensure sturdy assembly, tighten all NUTS and BOLTS. GET TO KNOW YOUR AKORN ® SCAN HERE...

  • Page 26: Operating Instructions

    OPERATING INSTRUCTIONS Lighting Instructions • BE PATIENT. AKORN Kamados are a highly efficient design that require minimal airflow. This design is ® sensitive to the activation of the charcoal. The position of your fire starter and your ignition process can alter the final temperature.
  • Page 27 Startup Instructions NEVER EXCEED 700°F BECAUSE THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT WARRANTED AND WILL REQUIRE TOUCH-UP. THIS UNIT IS NOT WARRANTED AGAINST RUST. 1. Open the lid, remove the cooking grates and heat deflector. 2.
  • Page 28 Do not use gasoline, kerosene, lighter fluid or alcohol for lighting charcoal. Use of any of these or similar products could cause an explosion possibly leading to severe bodily injury. • Char-Griller recommends a fire starter made of solid material (wood, paper, etc.). ®...
  • Page 29 Grilling Styles Your AKORN Auto-Kamado can be used to sear, bake, grill, or smoke your food. By using the digital controller, ® ™ charcoal and wood flavor, you can customize your culinary experience as desired. The following descriptions provide two of the most common ways you can cook with your AKORN Auto-Kamado charcoal grill and smoker.
  • Page 30 3. Unplug grill from power source and wrap around the power cord storage hook. 4. Ensure grill lid is closed and latched. 5. Close the Top Damper and Fan Door. 6. Allow grill to cool completely, empty the ash pan, and cover with a Char-Griller custom fit cover. ®...
  • Page 31 Using the AKORN Auto-Kamado Digital Controller ® ™ Power On/Off/Pause Meat Probe 2 Jack Control Dial Meat Probe Temperature Button Rotate to view options. Auto or Manual Fan Control Button Press to select option. Timer Button Digital Display (See diagram below) Grill Temperature Button Meat Probe 1 Jack Grill Temperature Display...
  • Page 32 Using the AKORN Auto-Kamado Digital Controller ® ™ POWER 1. Ensure grill is securely plugged in to GFCI outlet. 2. Press Power Button for 1 second to turn controller ON. 3. Press and hold Power Button for 2 seconds to turn Controller OFF. 4.
  • Page 33 Pairing the Grill with a Smart Device NOTE: This is NOT required for basic operation. 1. Download the Char-Griller app from the App Store (Apple or Google Play). ® 2. After installation is completed, open the App. 3. Bluetooth: a. Go to Settings page b.
  • Page 34 ™ Seasoning is the first step before you start cooking on your new grill. This process will help protect the cast iron grates, reduce food sticking to the grates, improve searing, and reduce unnatural flavors. Char-Griller ® recommends using flaxseed oil for seasoning your grill but most food grade oils (canola, grapeseed, vegetable, safflower, etc) will work as well.

  • Page 35: Care & Maintenance

    Care & Maintenance In order to keep your grill in the best shape, it’s important to keep it clean and maintained. Continued cleaning and care are key to ensuring a long life for your Char-Griller grill. ® FINISH UP CLEAN UP COVER UP •...

  • Page 36: Troubleshooting

    Troubleshooting QUESTION ANSWER WHY IS MY GRILL • Press the power putton on the controller to verify. • Verify controller is plugged into an outlet and that the power cord is securely plugged into the digital controller wiring harness. TURNING ON? •...
  • Page 37 Troubleshooting CODE ERROR MESSAGE • Check the Connection of the main Heat Sensor. Unplug the Connection, check the pins to make sure no pins are bend, and then reconnect. • Clean the Sensor with a cloth if excessively dirty. • If error code persists, you may need to replace your Heat Sensor.

  • Page 38: Accessories

    SCAN FAVORITE ACCESSORIES FOR THE FULL LINE OF ACCESSORIES VISIT CHARGRILLER.COM FOR MORE Custom Fit Cover 15” Pizza Stone Grill Wok Weather Resistant Stainless Steel Construction, Withstands temperatures Protects Grill Finish over 1200°F, transform your Non-stick surface, perfectly AKORN Auto-Kamado™ cook vegetables on the grill ®...

  • Page 39: Warranty

    SURFACE RUST IS NOT CONSIDERED A MANUFACTURING OR MATERIALS DEFECT Char-Griller® grills are made of steel and if exposed to the elements rust will occur naturally. Please refer to the “usage” section of the manu- al to review how to care for your grill properly.
