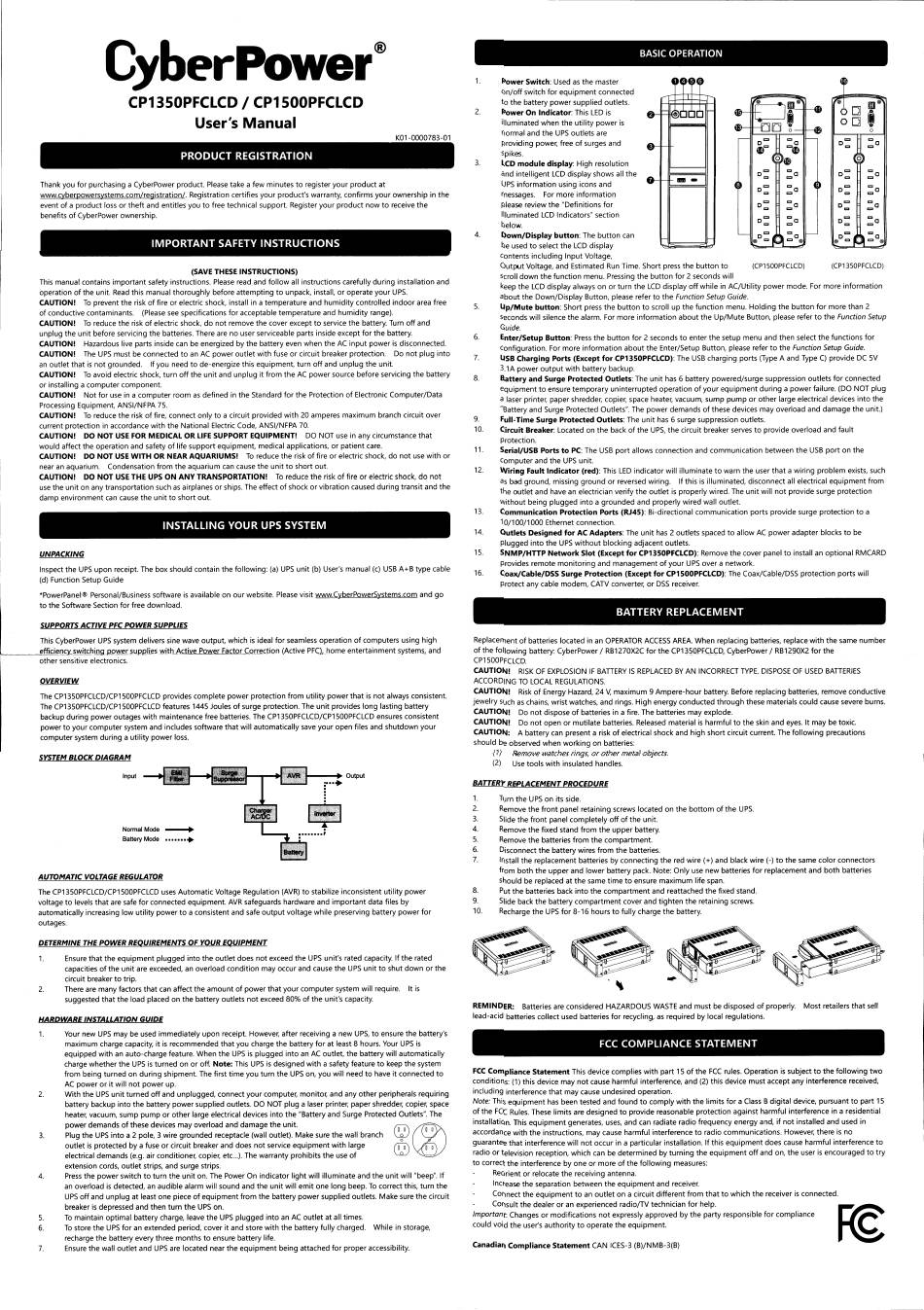

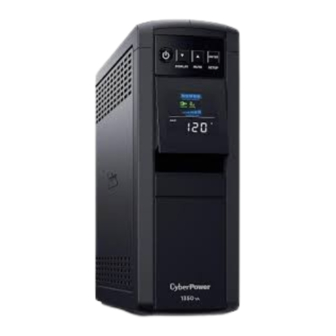

CyberPower CP1350PFCLCD User Manual

CyberPower®
CP1350PFCLCD / CP1 SOOPFCLCD
User's Manual
PRODUCT REGISTRATION
K01-0000783-01
Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at
www.cyberpowersystems.com/registration/. Registration certifies your product's warranty, confirms your ownership in the
event of a product loss or theft and entitles you to free technical support. Register your product now to receive the
benefits of CyberPower ownership.
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully during installation and
operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.
CAUTION!
To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free
of conductive contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover except to service the battery. Turn off and
unplug the unit before servicing the batteries. There are no user serviceable parts inside except for the battery.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into
an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before servicing the battery
or installing a computer component.
CAUTION! Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over
current protection in accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! DO NOT use in any circumstance that
would affect the operation and safety of life support equipment, medical applications, or patient care.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use with or
near an aquarium. Condensation from the aquarium can cause the unit to short out.
CAUTION! DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not
use the unit on any transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the
damp environment can cause the unit to short out.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should contain the following: (a) UPS unit (b) User's manual {c) USB A+B type cable
(d) Function Setup Guide
*PowerPanel® Personal/Business software is available on our website. Please visit www.CyberPowerSystems.com and go
to the Software Section for free download.
SUPPORTS ACTIVE PFC POWER SUPPLIES
This CyberPower UPS system delivers sine wave output, which is ideal for seamless operation of computers using high
>----~e=ffi=1c=ie11c:JL~Wlli:_hing p_gwer ~uppl[es withj\ctive Power Factor_Co.rrgction (Active PFCJ,_home entertainment systems, and
other sensitive electronics.
OVERVIEW
The CP1350PFCLCD/CP1500PFCLCD provides complete power protection from utility power that is not always consistent.
The CP1350PFCLCD/CP1500PFCLCD features 1445 Joules of surge protection. The unit provides long lasting battery
backup during power outages with maintenance free batteries. The CP1350PFCLCD/CP1500PFCLCD ensures consistent
power to your computer system and includes software that will automatically save your open files and shutdown your
computer system during a utility power loss.
SYSTEM BLOCK DIAGRAM
Input
Normal Mode _____.
Battery Mode ••••••• ♦
:2-"T"-IMi.::IIIJJ~t---+
Output
:···•
~
........•
AUTOMATIC VOLTAGE REGULATOR
The CP1350PFCLCD/CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to stabilize inconsistent utility power
voltage to levels that are safe for connected equipment. AVR safeguards hardware and important data files by
automatically increasing low utility power to a consistent and safe output voltage while preserving battery power for
outages.
DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the outlet does not exceed the UPS unit's rated capacity. If the rated
capacities of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the
circuit breaker to trip.
2. There are many factors that can affect the amount of power that your computer system will require. It is
suggested that the load placed on the battery outlets not exceed 80% of the unit's capacity.
HARDWARE INSTALLATION GUIDE
1.
2.
3.
4.
5.
6.
7.
Your new UPS may be used immediately upon receipt. However, after receiving a new UPS, to ensure the battery's
maximum charge capacity, it is recommended that you charge the battery for at least 8 hours. Your UPS is
equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the battery will automatically
charge whether the UPS is turned on or off. Note: This UPS is designed with a safety feature to keep the system
from being turned on during shipment. The first time you turn the UPS on, you will need to have it connected to
AC power or it will not power up.
With the UPS unit turned off and unplugged, connect your computer, monitor, and any other peripherals requiring
battery backup into the battery power supplied outlets. DO NOT plug a laser printer, paper shredder, copier, space
heater, vacuum, sump pump or other large electrical devices into the "Battery and Surge Protected Outlets". The
power demands of these devices may overload and damage the unit.
Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch
outlet is protected by a fuse or circuit breaker and does not service equipment with large
electrical demands (e.g. air conditioner, copier, etc. .. ). The warranty prohibits the use of
extension cords, outlet strips, and surge strips.
Press the power switch to turn the unit on. The Power On indicator light will illuminate and the unit will "beep". If
an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the
UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Make sure the circuit
breaker is depressed and then turn the UPS on.
To
maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
To store the UPS for an extended period,
cover
it and store with the battery fully charged. While in storage,
recharge the battery every three months to ensure battery life.
Ensure the wall outlet and UPS are located near the equipment being attached for proper accessibility.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Power Switch: Used as the master
on/off switch for equipment connected
to the battery power supplied outlets.
Power On Indicator: This LED is
illuminated when the utility power is
normal and the UPS outlets are
providing power, free of surges and
spikes.
LCD module display: High resolution
and intelligent LCD display shows all the
UPS information using icons and
messages. For more information
please review the "Definitions for
Illuminated LCD Indicators" section
below.
Down/Display button: The button can
be used to select the LCD display
contents including Input Voltage,
BASIC OPERATION
Output Voltage, and Estimated Run Time. Short press the button to
scroll down the function menu. Pressing the button for 2 seconds will
o:
=
0
=
:o
=
0
=
=o
=
@
(CP1 S00PFCLCD)
@
oDI
o DI
o:
o:
o:
o:
!!ii"'
I
0
:o
:o
=
0
=
:o
:o
=o
=
@
(CP1350PFCLCD)
keep the LCD display always on or turn the LCD display off while in AC/Utility power mode. For more information
about the Down/Display Button, please refer to the Function Setup Guide.
Up/Mute button: Short press the button to scroll up the function menu. Holding the button for more than 2
seconds will silence the alarm. For more information about the Up/Mute Button, please refer to the Function Setup
Guide.
Enter/Setup Button: Press the button for 2 seconds to enter the setup menu and then select the functions for
configuration. For more information about the Enter/Setup Button, please refer to the
Function Setup Guide.
USB Charging Ports (Except for CP1350PFCLCD): The USB charging ports (Type A and Type CJ provide DC 5V
3.1A power output with battery backup.
Battery and Surge Protected Outlets: The unit has 6 battery powered/surge suppression outlets for connected
equipment to ensure temporary uninterrupted operation of your equipment during a power failure. (DO NOT plug
a laser printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical devices into the
"Battery and Surge Protected Outlets". The power demands of these devices may overload and damage the unit.)
Full-Time Surge Protected Outlets: The unit has 6 surge suppression outlets.
Circuit Breaker: Located on the back of the UPS, the circuit breaker serves to provide overload and fault
protection.
Serial/USB Ports to PC: The USB port allows connection and communication between the USB port on the
computer and the UPS unit.
Wiring Fault Indicator (red): This LED indicator will illuminate to warn the user that a wiring problem exists, such
as bad ground, missing ground or reversed wiring. If this is illuminated, disconnect all electrical equipment from
the outlet and have an electrician verify the outlet is properly wired. The unit will not provide surge protection
without being plugged into a grounded and properly wired wall outlet.
Communication Protection Ports (RJ45): Bi-directional communication ports provide surge protection to a
10/100/1000 Ethernet connection.
Outlets Designed for AC Adapters: The unit has 2 outlets spaced to allow AC power adapter blocks to be
plugged into the UPS without blocking adjacent outlets.
SN MP/HTTP Network Slot (Except for CP13S0PFCLCD): Remove the cover panel to install an optional RMCARD
provides remote monitoring and management of your UPS
over
a network.
Coax/Cable/DSS Surge Protection (Except for CP1 S00PFCLCD): The Coax/Cable/DSS protection ports will
protect any cable modem, CATV converter, or DSS receiver.
BATTERY REPLACEMENT
Replacement of batteries located in an OPERATOR ACCESS AREA. When replacing batteries, replace with the same number
of the following battery: CyberPower / RB 1270X2C for the CP1350PFC:L~D, CyberPower / RB 1290X2 for the
CP1 S00PFCLCD.
CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO LOCAL REGULATIONS.
CAUTION! Risk of Energy Hazard, 24 V, maximum 9 Ampere-hour battery. Before replacing batteries,
remove
conductive
jewelry such as chains, wrist watches, and rings. High energy conducted through these materials could cause severe burns.
CAUTION! Do not dispose of batteries in a fire. The batteries may explode.
CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin and eyes. It may be toxic.
CAUTION: A battery can present a risk of electrical shock and high short circuit current. The following precautions
should be observed when working on batteries:
(1)
Remove
watches rings, or other metal objects.
(2) Use tools with insulated handles.
BATTERY REPLACEMENT PROCEDURE
1. Turn the UPS on its side.
2. Remove the front panel retaining screws located on the bottom of the UPS.
3. Slide the front panel completely off of the unit.
4. Remove the fixed stand from the upper battery.
5. Remove the batteries from the compartment.
6. Disconnect the battery wires from the batteries.
7. Install the replacement batteries by connecting the red wire(+) and black wire(-) to the same color connectors
from both the upper and lower battery pack. Note: Only use new batteries for replacement and both batteries
should be replaced at the same time to ensure maximum life span.
8. Put the batteries back into the compartment and reattached the fixed stand.
9. Slide back the battery compartment cover and tighten the retaining screws.
10. Recharge the UPS for 8-16 hours to fully charge the battery.
REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell
lead-acid batteries collect used batteries for recycling, as required by local regulations.
FCC COMPLIANCE STATEMENT
FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Important
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Canadian Compliance Statement CAN ICES-3 (B)/NMB-3(B)
