Table 6. Rear view of the system (continued)
Item
Ports, panels, or slots
12
NIC ports
For more information about the ports, see the Dell EMC PowerEdge R650xs Technical Specifications on the product
documentation page.
Inside the system

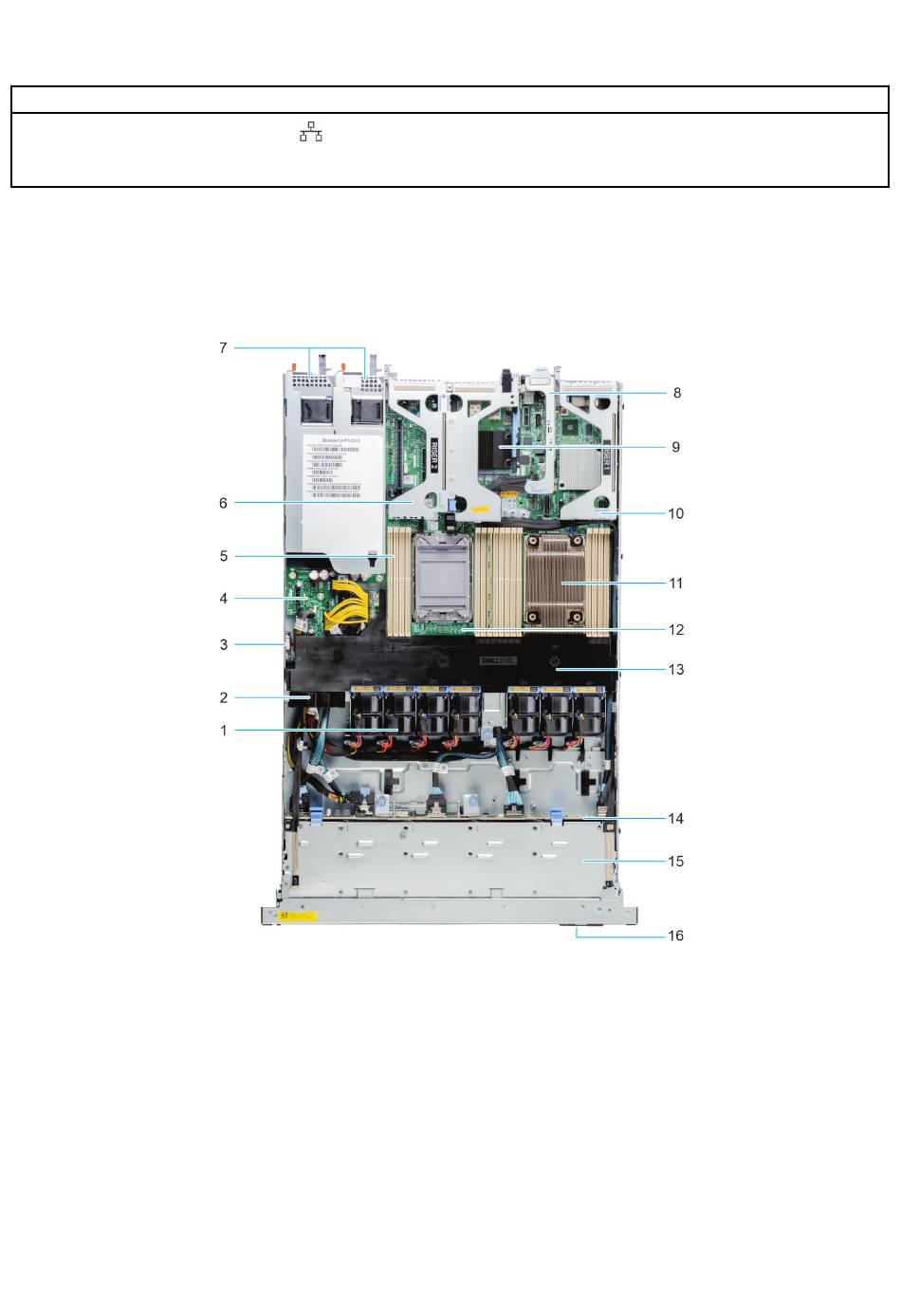

Figure 7. Inside the system
1. Fan
3. Intrusion switch
5. Memory module slots
7. PSU 1 and PSU 2
9. OCP
11. Heat sink
13. Air shroud
15. Backplane cover
14
Dell EMC PowerEdge R650xs system overview
Icon
Description
The NIC ports that are integrated on the system board provide
network connectivity. These NIC ports can also be shared with
iDRAC when iDRAC network settings is set to shared mode.
2. Cable retention latch
4. Power interposer board
6. Riser 2a/2b/2c
8. BOSS riser
10. Riser 1
12. System board
14. Drive backplane
16. Information tag
