Summary of Contents for Fortinet FortiCam FD55-CA

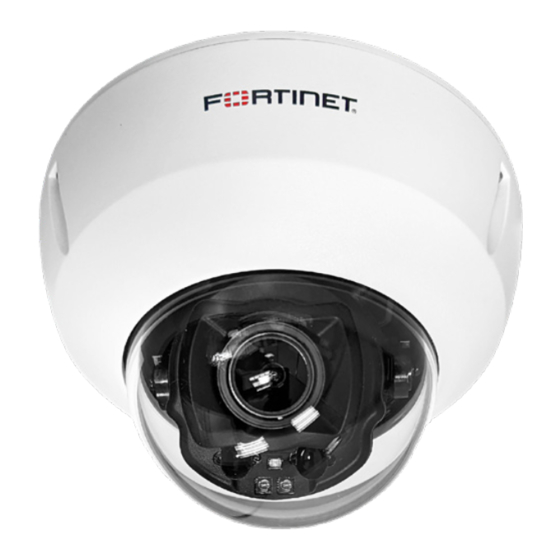

- Page 1 FortiCam FD55-CA QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied.
-
Page 3: Table Of Contents
Table of Contents Package Contents Hardware Installation Status LEDs Buttons Camera Connection Technical Specifications Register for Support and Cloud Access Cautions and Warnings Regulatory Notices... -
Page 4: Package Contents
Package Contents • FortiCam camera • 4 Mounting screws • 4 Wall anchors • Star (T10 Torx) key wrench • Multi-wire grommet • EMT adapter • Replacement dry pack (silica gel desiccant) • Drill template (alignment) sticker Page 1... -
Page 5: Hardware Installation
Hardware Installation There are multiple ways to install the camera. These instructions show mounting on a wall or ceiling. For alternatives, see the Mounting Guide. Caution: Only remove the protective wrap from the lens once installation is complete to avoid damage and scratches. Provide adequate grounding to the camera and the PoE injector, in compliance with your local electrical code or regulations. - Page 6 To install the camera Before installing cameras, carefully design your system. Verify coverage of each camera. Decide whether to run cables through the wall/ceiling (drilling required) or along it, through the notch on the base. Choose a location that is not easily accessible, away from impacts and heavy vibrations.
- Page 7 4. Loosen the grommets. Pull 12 cm of the network cable through a grommet hole. Pull the terminal wires through the other hole. Attach the grommet fittings. Tighten the grommets. Page 4...
- Page 8 Page 5...
- Page 9 Page 6...
- Page 10 Page 7...
- Page 11 Connect the terminal wires. Page 8...
- Page 12 Mount the camera to the wall or ceiling. Page 9...
- Page 13 Connect the waterproof conduit. Adjust the pan and tilt using the 3-axis joint. Page 10...
- Page 14 Replace the desiccant inside of the dome cover. Verify that there is no moisture trapped inside of the dome cover. Page 11...
- Page 15 10. Gently wipe the inside of the dome cover with a clean, lint-free cloth to remove all dust and particles. Install the dome cover. Remove protective wrap from the dome cover. Page 12...
-
Page 16: Status Leds
Status LEDs Note: Status LEDs can be disabled through software. Operation Color Solid Flashing Green Connected via Firmware updating (green/red) Ethernet Amber Warning Cloud warning (amber/red) Note: Can indicate the camera is not registered and claimed in FortiCloud. Fatal error Bootup Sequence Hardware initialization Green... -
Page 17: Buttons
Buttons Reset Button Operation Action Press Time < 5 seconds No change in color Reboot > 10 Amber flashing Factory reset seconds Note: The default IP address of the camera is 192.168.1.245. Page 14... -
Page 18: Camera Connection
Camera Connection Caution: This device complies with IEEE 802.3at PoE specification. Do not use any PoE injectors that are not IEEE 802.3at compliant as they may damage your device. Attention: Cet appareil est conforme à la spécification PoE IEEE 802.3at. N’utilisez pas d’injecteurs PoE non conformes à la norme IEEE 802.3at car ils pourraient endommager votre appareil. - Page 19 FCM-MC51-C cloud version.pdf 1 2022-12-22 11:34 AM are on a label attached to the camera, shown below. Connect with FortiCloud 1. Register camera at https://support.fortinet.com using this FortiCloud key. 2. Connect camera to the network. Make sure it has Internet Access. 3. Sign on to https://forticameracloud.com...
- Page 20 minutes and multiple reboots. Do not power off the camera during this process. For connection troubleshooting, see FortiCamera Cloud Portal Guide. To use FortiRecorder to connect the camera Connect the Ethernet port of the camera to the FortiRecorder NVR via a PoE switch. The camera automatically gets its IP address from the DHCP server.
-
Page 21: Technical Specifications
Technical Specifications Camera Format Fixed dome, day/night, vandal Sensor Type 5 MP, 1/2.7” low light CMOS Iris F1.6(W), F3.3(T), P-iris Focal Length 2.7-13.5 mm (motorized, auto-focus) View Angle H:28-96°, V:21-70°, D:35-127° Minimum Illumination 0.06 Lux (color) @ F1.6 0.005 Lux (B/W) @ F1.6 HDR (>90 dB) Network Interface RJ-45 Ethernet 10/100 Mbps IRLED/IRC... - Page 22 Camera Image Resolution 5 MP, 1080p, or 720p at 30 fps Mounting Wall, ceiling, 3-axis, 3/4” conduit Dimensions Height x Width x Length 4.05 x 6.1 x 6.1’’(103 x 155 x 155 mm) Weight 2.17 Ib. (986 g) Environment Power Required PoE (802.3at) Power Consumption <22.5 W (AVG) Operating Temperature...
-
Page 23: Register For Support And Cloud Access
Register for Support and Cloud Access Register your Fortinet product to receive: • Technical support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles... -
Page 24: Cautions And Warnings
Cautions and Warnings Environmental Specifications Ambient operating temperature: -40°C to 50°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité... -
Page 25: Regulatory Notices
Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. - Page 26 Page 23...
- Page 27 Page 24...
