Summary of Contents for Fortinet FortiCam MC51-C

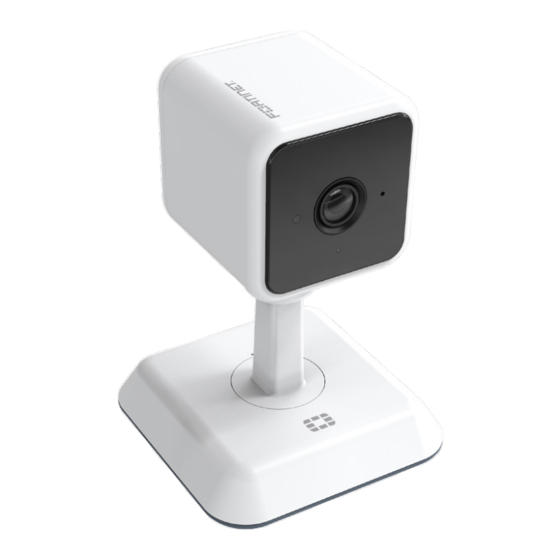

- Page 1 FortiCam MC51-C QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
-
Page 3: Table Of Contents
Table of Contents Package Contents Hardware Installation Status LED Explanation Camera Connection Technical Specifications Register for Support and Cloud Access Cautions and Warnings Regulatory Notices... -
Page 4: Package Contents
Package Contents Camera Box Accessory Box • FortiCam camera • 4x screws and anchors • QuickStart Guide • Mounting template Page 1... -
Page 5: Hardware Installation
Hardware Installation • Before installing surveillance cameras, design your system carefully and verify the location and coverage of each camera. Additionally, decide whether to run the cables through the wall/ceiling (drilling required) or along the wall/ ceiling through the cable notch on the base. •... - Page 6 To mount the MC51-C camera to a wall or ceiling Separate the base cover at the backside notch using a coin or a wide flathead screwdriver. Push the rubber feet out with a screwdriver or with the supplied screws to expose the mounting holes. Place the mounting template on the ceiling or wall and mark the drilling positions for each mounting screw.
- Page 7 materials allow using the screws without plugs. Connect the Ethernet cable and route it through the opening at the back of the base or directly through a hole in the wall or ceiling. Click the base cover back into place. Adjust the camera viewing direction and level it out using the 3-axis joint design.
-
Page 8: Status Led Explanation
Status LED Explanation Operation Color Solid Flashing Green Connected through Firmware updating Ethernet Blue Connected through Wi-Fi Cyan Connected through Bluetooth pairing mode Bluetooth Amber Warning Cloud warning (amber/ purple) Fatal error Page 5... - Page 9 Bootup Sequence Hardware initialization White Bootloader Cyan Bluetooth pairing mode initialized (3 flashes) Red/Green Blue Searching for connections (rotating) Purple Searching for cloud (flashing) Status LEDs can be disabled through software. Bluetooth pairing mode is active after a factory reset. You can also activate it via the reset button or software.
-
Page 10: Camera Connection
Camera Connection Caution: Caution: This device complies with IEEE 802.3af PoE specification. Do not use any PoE injectors that are not IEEE 802.3af compliant as they may damage your device. Attention Attention: Cet appareil est conforme à la spécification PoE IEEE 802.3af. - Page 11 This may take several minutes and subsequent reboot sequence. Do not power off the camera during this time. To use FortiCam MC51-C with FortiRecorder as a normal FortiCamera, see the FortiCam MC51 Quick Start Guide...
- Page 12 To use Bluetooth: Power on or reset the camera. Wait until the status LED indicates Bluetooth pairing mode. Use the FortiRecorder Mobile app to pair with the camera. Configure the camera to connect to FortiCamera Cloud. Note: Note: Pairing is disabled once the camera is connected to the cloud.
-
Page 13: Technical Specifications
Technical Specifications Camera Format Mini Cube, day/night, indoor Sensor Type 5 mega-pixel, 1/2.8” low light CMOS Iris F2.0/fixed Focal Length f=3.16 mm View Angle H:102°, V:72°, D:132° Minimum Illumination 0.05 Lux (color) @ F2; 0.01 Lux (B/W) @ F2 HDR (>80dB) Network Interface RJ-45 Ethernet 10/100 Mbps IRLED/IRC... - Page 14 Image Resolution 5MP at 30 fps, 4MP, 3MP, 1080p, 720p 1024x768, 640x480, 320x240 Mounting Wall, ceiling, table Wi-Fi/Bluetooth Number of Antennas 1 internal Peak Antenna Gain 2.18dBi for 2.4GHz, 4.5dBi for 5GHz Frequency of Radio 1 2.4GHz b/g/n/ or 5GHz a/n/ac Bluetooth Features BLE V5.0 2.18dBi @ 2.4GHz Dimensions...
-
Page 15: Register For Support And Cloud Access
Register for Support and Cloud Access Register your Fortinet product to receive: • Technical support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles... -
Page 16: Cautions And Warnings
Cautions and Warnings Environmental Specifications Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101. -
Page 17: Regulatory Notices
Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 18 Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...
- Page 19 This declaration is only valid for Fortinet products (including combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end-customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances...
- Page 20 Deutsch Dieses Produkt entspricht der Richtlinie 2014/53/EU. Eesti See toode vastab direktiivile 2014/53/EL. English This product is in compliance with Directive 2014/53/EU. Español Este producto cumple con la Directiva 2014/53/UE. Ελληνική Το προϊόν αυτό συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. Français Ce produit est conforme à...
- Page 21 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range in the following...
