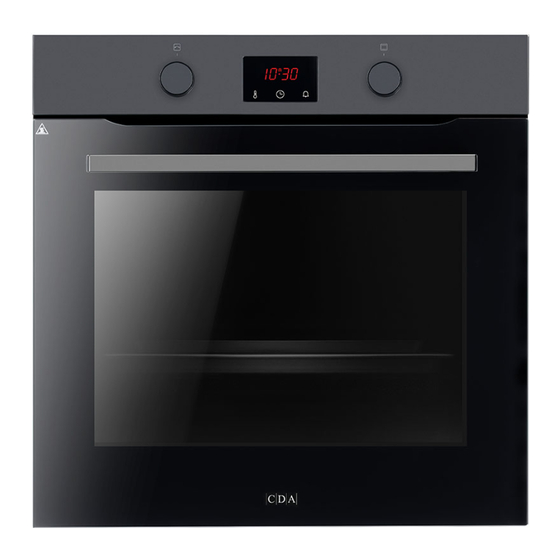

- Page 1 SC050 Built-in pyrolytic oven Use and maintenance...
-
Page 2: Table Of Contents
Contents Important information Using the Airfry tray Appliance information Using the grill First use of the oven ECO heating Oven layout and Practical tips accessories Cleaning and Control panel maintenance Operation Installation Standby mode Mains electrical Deep sleep connection Setting the time Error Codes Changing the beep tone Technical assistance... -
Page 3: Important Information
The CDA Group Ltd. cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserves the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. -
Page 4: Appliance Information
Appliance information Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number... -
Page 5: First Use Of The Oven
First use of the oven In order to remove oil residues accumulated during the manufacturing process and dust accumulated during storage and transport, we recommend a preliminary cleaning before first use. Preliminary heating Remove any packaging elements from the oven cavity 2. -
Page 6: Oven Layout And Accessories
Oven layout and accessories 1. Oven function selector knob 2. Adjust settings knob 3. Electronic programmer Side racks 6 | Instruction Manual... - Page 7 Included accessories: Baking tray Wire shelf Grill rack Wire shelf Airfry tray Instruction Manual | 7...
-
Page 8: Control Panel
Control panel The control panel features an LED dis- play and 3 buttons (touch sensors). Set temperature Clock setting Minute minder Note: You will hear a beep each time you touch a sensor. It is not possible to turn off the acoustic beeps. The meaning of the symbols on the display: Temperature control dial End time... - Page 9 Adjust settings knob +/- The adjust settings knob is a swivel type which does not rotate fully and can only be turned slightly to the left or right. Use this knob to adjust temperature and time. Turn slightly right to increase value. Turn slightly left toward the “–”...
-
Page 10: Standby Mode
Standby mode Switch the appliance to standby mode to reset all time, temperature and timer settings. Heaters are disconnected. The display shows the current time and has reduced brightness. Press the button (touch sensor) to adjust the time, tone and brightness, and press the button (touch sensor) to adjust the minute minder time setting. -
Page 11: Deep Sleep
Deep sleep If the appliance is unused for 10 minutes, it enters the deep sleep mode - the sensors and the +/– settings knob are deactivated, and the only method of activating the appliance is to turn the function knob from the “0” position to any other position. -
Page 12: Minute Minder
Operation You can use any baking or cleaning function available on the Function Selector knob. Auto-off: When minute minder or any timed delayed, timed or cleaning programme is completed, the appliance enters the standby mode even if the function selector knob is set to 0. Lighting The appliance automatically controls oven light. - Page 13 lights up on the display. When the countdown is complete you will hear a beep, which you can mute by pressing any button (touch sensor). The appliance will not enter standby until minute minder countdown is completed and beeping alarm is acknowledged. Oven door Oven door must be closed during operation.
- Page 14 Setting the temperature When you have selected a heating function, use the +/– knob to adjust the temperature. You can adjust the temperature in 5°C steps within the range specified for each programme. Turn and hold the +/– knob for at least 1s to adjust the temperature in 10°C steps.
-
Page 15: Heating Functions
Table of heating functions Temperature Oven elements Default Function description temperature Min. Max. Defrosting √ √ Quick oven pre-heat √ √ √ √ Fan cooking √ √ √ √ Pizza √ √ √ √ Conventional √ √ √ Pasty √ √... -
Page 16: Timed Operation
Timed operation Timed operation involves setting the duration after which the appliance automatically turns off. You can set the duration from 1 minute to 23 hours 59 minutes. When the appliance is on or when you have turned the function selector to a desired function press the (touch sensor) to set the indicator flashes and dur (duration) is displayed briefly for... -
Page 17: Pyrolytic Cleaning
Delayed timed operation You can set the appliance, so that its timed operation is delayed and cooking ends at a specific time. You must first set the Duration (same as in timed operation). Press the to confirm Duration and end message will be button (touch sensor) displayed briefly for 1s and then End Time will be display calculated as Current Time + Duration + 1 minute. -
Page 18: Using The Airfry Tray
indicator is displayed and pyrolytic cleaning starts for 2.00 – 2.30 – 3.00 hours, depending on the Duration you have set. The appliance displays duration time left until pyrolytic cleaning completes. One hour before pyrolytic cleaning completes, the heaters are disconnected, the temperature ---C is displayed and the appliance starts cooling down. -
Page 19: Using The Grill
Using the grill In order to switch on the grill you need to: • Set the Function Selector Control to the position marked grill. • Preheat the oven for approx. 5 minutes (with the oven door closed). For grilling with the function grill and super grill the temperature must be set to 220ºC, but for the function fanned full grill it must be set to a maximum of 190ºC. -
Page 20: Practical Tips
Practical tips The times given in the table below apply to any dish that is placed in to a cold oven. For a preheated oven the times should be reduced by 5 - 10 minutes. The figures given below are approximate and can be altered based on your own experience and cooking preferences. -
Page 21: Cleaning And Maintenance
Cleaning and maintenance Keeping your oven clean and well maintained helps to prolong its life. It is important that, before any cleaning or maintenance is performed, you switch off the oven at the mains supply. Do not start any cleaning or maintenance until the oven has been allowed to cool completely. - Page 22 The pyrolytic cleaning process • Close the oven door • Follow the instructions in the section • Pyrolytic cleaning Important! If the oven temperature is high (higher than in normal use) the door will not be unlocked. Once the oven cools down, you can open the door and remove the ash with a soft, damp cloth.
- Page 23 Removing the inner panel 1. Press in the places shown in the figure and pull out the upper strip (fig. B, C). Instruction Manual | 23...
- Page 24 Removing the inner panel 1. Using a cross-head screwdriver undo the screws in the upper door slat (fig. B). 2. Using a flat screwdriver remove the upper door slat, prying it gently on the sides (fig. B, C). 24 | Instruction Manual...
- Page 25 3. Pull the inner glass panel from its seat (in the lower section of the door). Important! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out. 4. Remove the inner panel (fig. D). 5.
- Page 26 Replacing the halogen bulb in the oven Before replacing the halogen bulb, make sure the appliance is disconnected from the mains electricity to avoid the risk of electric shock. • Set all control knobs to the position “●”/“0” and disconnect the mains plug •...
-
Page 27: Installation
Installation The installation and technical assistance must only be performed by qualified staff. Carefully read the safety instructions in this manual before using the oven. Incorrect installation, maintenance, assistance and use can cause serious damage/injury to persons or objects. This product must be installed as instructed in this manual and in compliance with National Standards and local regulations in force. - Page 28 5 5 0 4 2 9 m a x 5 7 0 5 9 5 5 9 5 1 0 3 4 5 0 0 5 6 0 6 0 0 . 5 5 m i n 5 6 0 28 | Instruction Manual...
-
Page 29: Mains Electrical
Mains electrical connection Warning! This appliance must be earthed. This appliance is intended to be connected to fixed wiring by a double pole switch, having a contact separation of at least 3mm in all poles and protected by a 13A fuse. The DOUBLE POLE SWITCHED FUSED switch must be positioned no further SPUR OUTLET... -
Page 30: Error Codes
cable of cross sectional area 1.5 mm² • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet • Assembly and electrical connection should be carried out by specialised personnel • When installing this product we recommend you seek the help of another individual •... -
Page 31: Technical Assistance
Technical assistance In the event of your appliance requiring technical assistance and/or spare parts, please contact CDA Customer Care. For more information about the warranty of your product, including terms and conditions, please visit www. cda.co.uk/warranty CDA Customer Care Phone: 01949 862 012 Email: customer.care@cda.co.uk... -
Page 32: Specifications
Specifications Model SC050 Oven Dimensions (HxWxD) 595 x 595 x 575 mm Rated voltage 230 V ~50 Hz Total power 2800 W grill 1900 W bottom heater 900 W grill + top heater 2600 W 2100 W Fan with ring heating element The product meets the requirements of European standards EN 60335- 1;... - Page 33 Commision Delegated Regulation (EU) NO 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods. Supplier name Model identifier SC050 12227.3eEHiTsrPrDJSm Energy efficiency index (EEI cavity) 81.6 Energy efficiency class...
- Page 34 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco-design requirements for household ovens, hobs and range hoods. Model identifier SC050 12227.3eEHiTsrPrDJSm Oven type (electricity or gas) Electric Appliance weight [kg] 34.4...
- Page 35 Product information given in accordance with Commission Regulation (EU) No 2019/2015: This product contains a light source of energy efficiency class G. Light source in this product can be replaced by the end-user Notes Instruction Manual | 35...
- Page 36 The CDA Group Harby Road Langar Nottinghamshire NG13 9HY Sales Department Phone: 01949 862010 Email: sales@cda.co.uk Customer Care Department Phone: 01949 862012 Email: customer.care@cda.co.uk ©2023 CDA Group Ltd...
