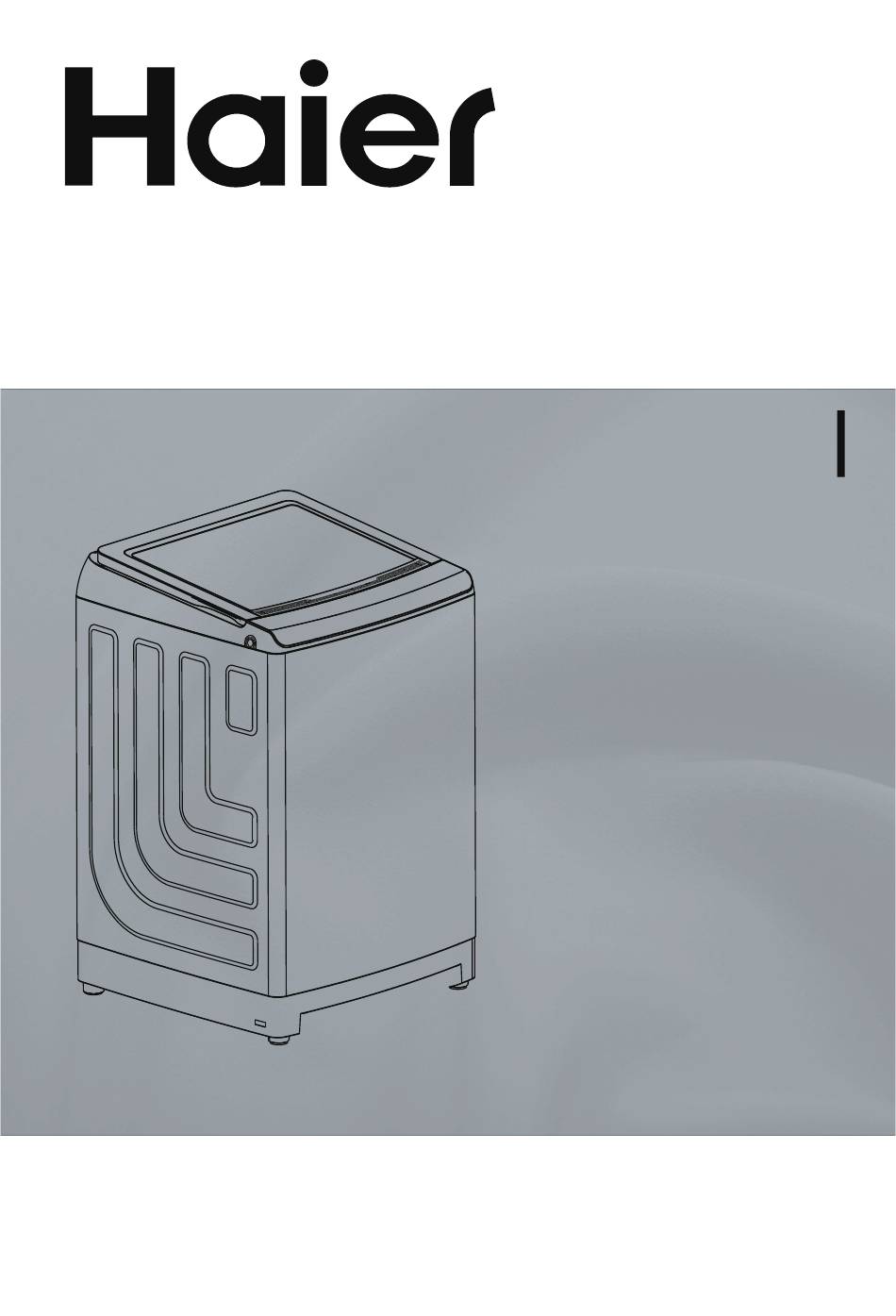

- Page 1 TOP LOAD FULLY AUTOMATIC WASHING MACHINE USER MANUAL MODEL MODEL HWM170-B278S6 HWM170-B278S6 Please read the manual carefully before operating your 0030519684 washing machine and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS Product overview Safety precautions Description of symbols Warning Forbidden Safety warning Installation & adjustment Install the bottom plate Balance washing machine Change the direction of the drain hose Position the drain hose Inlet pipe connection Before washing Laundry Guidelines Operation Loading the appliance Adding Detergent... -
Page 3: Product Overview
Product overview Top lid component Detergent box Outer tub cover Inner tub Lint filter(2 pieces） Pulsator Control panel Cabinet Screw cover Base frame Adjustable foot (2 pieces) Control panel seat water inlet valve Hook Drain hose Back cover Power cord Fixed foot 2 pieces Please understand the shapes of the washing machine and accessories may be different from the sketch figures in this manual due to product improvement. -
Page 4: Safety Precautions
Safety precautions Description of symbols Contents marked with this symbol are related to the safety Warning sign information of the products. Please operate in accordance to the contents of this manual, to prevent personal injury or property damage. Contents marked with this symbol indicates operations or actions Forbidden sign that should not be undertaken by the user. - Page 5 Safety precautions Forbidden Do not install this appliance in a Do not contact to damp or wet environment. Do not water exceed 50°C leave wet laundry on the Control in temperature. Panel or spray water directly on to this appliance as this may cause the washer to malfunction or cause an electrical fault.
- Page 6 Safety precautions Safety warning You may not open the lid when the water is filling in the tub.The new water inlet hose supplied with the appliance is to be used and the old water inlet hose should not be reused. Please remove item such as coins, Check that water tap is open after button, sand and other solid materials...
-
Page 7: Installation & Adjustment
Installation & Adjustment Please install and adjust the machine according to the directions contained in this manual.It is very important to follow these directions to ensure the machine operates correctly and safely. Install the bottom plate The purpose of the bottom plate is to reduce noise level from the washing machine while operation in progress. -
Page 8: Position The Drain Hose
Installation & Adjustment Position the drain hose 1.Do not let the drain hose run over 4.If extra drain hose is needed, please doorsills that protrude 10cm from the make separate purchase.The inner floor. diameter of the extra hose shall not less than 30mm,and the length shall not exceed 1.5m. - Page 9 Installation & Adjustment Connection between the water inlet hose jointer and the water tap 1.Press the lower end of the locking lever and push down the slider. Remove the water inlet hose jointer from the water inlet hose component. See Figure 1. 2.Remove the nameplate.
- Page 10 Installation & Adjustment Connection between the jointer of the water inlet hose and the water inlet hose 1.Push down the slider. Insert the water inlet hose into the jointer. the jointer of the 2.Connect the locking lever to the jointer. Release water inlet hose the slider with a clicking sound.
-
Page 11: Before Washing
Before washing Preparation before washing 1.Connect the jointer of the water inlet hose to the water tap.Turn on the water tap. 2.The washing machine must be properly grounded. Then plug in the power cord to the power socket. Do not ground the washing machine to a gas pipe, water pipe or telephone line. -
Page 12: Operation
Operation Loading your laundry The rated washing capacity refers to the largest dry weight of a load that can be washed. The thickness, size and type of clothes will influence the actual capacity. Do not select more than water level “4” for clothes less than 2.0kg, to avoid splashing of water. -
Page 13: Control Panel
Operation Explanation of buttons Normal Quick Heavy Delicate Silk Bedding Water level Soak Wash Rinse Spin Program Spin Tub Clean * Reserve Water * Fresh Air * Child Lock * Del ay * Hold 3 seconds for extra function Indicator display On:Indicates the program is about to run and indicates the selected cycle and options Flashing:Indicates the program is running and indicates the selected cycle and... - Page 14 Operation "Start/Pause" button After Power on and choose the desired program, press the Start/Pause button to start the operation. During operation in progress, press the Start/Pause to pause the machine if required. Press the Start/Pause button again to resume the operation. "Wash"...
- Page 15 Operation "Program" button Program Application Use this cycle for normally soiled cottons and mixed fabric Normal loads. Use this cycle to wash small,lightly soiled loads that are Quick needed in a hurry. Use this cycle to wash durable,full load,suitable for towels, Heavy children clothes,worker wear.
- Page 16 Operation Delay Push the Delay button and the display will show the remaining time for the cycle to finish (in hours).The indicator flashes to indicate that the delay function is operating. Delay start can be set for 00-24hr operation. NOTE:The delay time is until the selected wash program finishes (you need to deduct wash time from this delay time to calculate when the wash start).
-
Page 17: Cleaning And Maintenance
Cleaning and Maintenance Maintenance Unplug the washing machine before carry out any cleaning and maintenance to avoid the risk of electric shock. Clean the lint filter(s) and detergent drawer after each wash,otherwise it may influence your next use. The lint filter must be used during washing. Clean the detergent drawer and install back to original position. -
Page 18: Troubleshooting
Troubleshooting If there is a fault or the machine doesn’t operate correctly, kindly refer to the diagnostic list below first. It is recommended to read the list below before reach to our customer care team.Please contact our customer care team if a repair is needed. Please do not attempt to fix the machine by yourself. -
Page 19: Common Occurrence
Trouble-shooting Problem Possible causes What to do Is the water inlet hose loose? The water tap leakage. Fasten the inlet hose. Indicates water has reached Please contact Customer The display shows F2. a critical level. Care. Common occurrence Problem Cause - Uneven load distribution - Stop spinning before complete the cycle. -
Page 20: Packing List
Inside the document bag Screw Inside accessory bag Components of the water inlet hose faucet Specification Type Fully Automatic Washing Machine Model HWM170-B278S6 Rated voltage/frequency 220V-240V~/50Hz 450W Rated washing power Rated spinning power 300W 48kg Net weight Gross weight 56kg...
