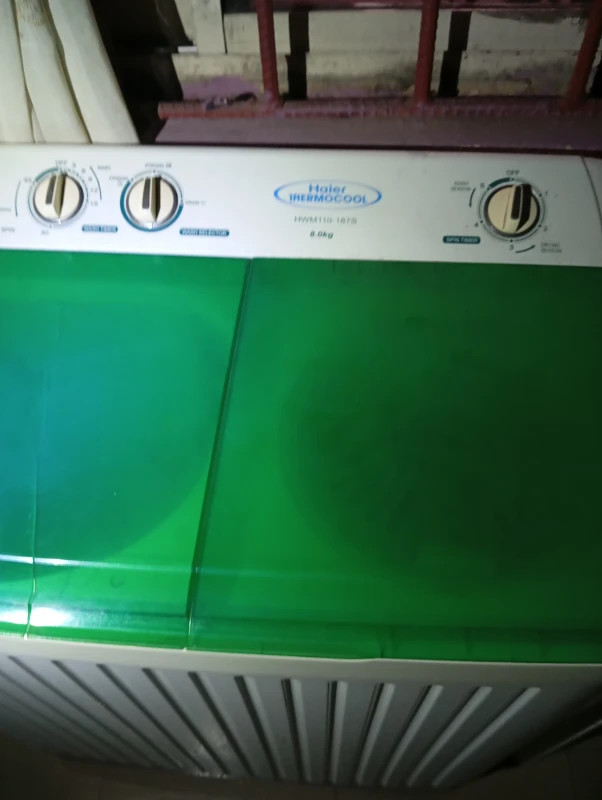

- Page 1 Twin-tub Washing Machine User's manual This manual is for HWM110-L287S Please read this manual carefully before using. 0030808122 Retain it for future reference.
-
Page 2: Table Of Contents
Contents Names of the parts - - - - - - - - - - - - - - - - - 1 Safety precautions - - - - - - - - - - - - - - - - - 2 Installation and adjustment - - - - - - - - - - - 4 Preparation before washing - - - - - - - - - - 6 The musts in washing - - - - - - - - - - - - - - - 7... -
Page 3: Names Of The Parts
Names of the parts Overflow filter Wash selector Wash timer Water-filling entrance Control panel Water-filling translation Water level adjusting lever Lint filter Valve cover Pulsator Wash tub Wash tub cover Drain hose Base frame Notes: All illustrations in this manual are given for reference only. Your products and accessories may show differences from these illustrations due to our continuous improvement. -
Page 4: Safety Precautions
Safety precautions Please insert the power cord into special receptacle with rated vol- tage. Be sure to use single-phase three pins receptacle. The earthing terminal of the receptacle must be earthed reliably. If possible, please adopt electric leakage protector. If the power cord is bad, to avoid risk it is required to replace it by the technicians of our special shop or the after-sale service department. - Page 5 It is suggested to use foamless washing powder. Please don t use the washer in the environment below 0 C. If the washer is below 0 C, the washer s water inlet system and draining system will be frozen ,then result in the damaged of the whole machine.
-
Page 6: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. Install the lint filter Put the underside of the lint filter into overflow filter then push the upside into overflow filter After installation,please refer that the lint filter installed to the right station,otherwise the lint... -
Page 7: How To Change The Direction Of The Drain Hoses
How to change the direction of the drain hoses Figure 1 indicates the ex factory installation position of the drain hose. Extend the drain hose from the side of spin tub Take off the drain hose from the hanging hole of the cabinet. -
Page 8: Preparation Before Washing
Preparation before washing Pay attention to followings before washing the laundries Check if Clear the the laundries pocket. Take has special out the coins, requirement sand, hairpins on washing etc. a. Check if the laundries are applicable for washing with machine. b. -
Page 9: The Musts In Washing
The musts in washing Usage of the detergent How to use the whitener Fill water to decided level. Dilute the whitener with container. Pour it slowly into the washing tub. Avoid using whitener on laun- dries with color or pattern as they are prone to lose color. -
Page 10: Washing Sequence
Washing sequence (To set to below 2 minute, first set to 6 minute then Water inlet turn it back. it can increase the service life of the timer). Wash 1.Water-filling selector Set the water inlet selector at the "WASH" side. (Figure 1) 2. - Page 11 Ï ´ µ Ó Ð ë Ö ª Midway spinning 1.Put the laundries into the spin tub evenly and smoothly. 2.Spin (1) Put the gland in properly. Please put in the gland properly even if the laundries quantity is small. Push Proper (2) Close the inner and outer cover of the spin tub.
-
Page 12: Rinse With Water-Filling
Rinsing Rinse with water-filling 1.Put the laundries into the wash tub. Select suitable current according to the laundries. 2.Adjust the water level Set the water level with water level adjusting lever according to the laundries quantity. Then fill suitable water continuously. 3.Rinse Adjust the wash timer to 5-7 minutes to do rinsing. - Page 13 Spinning 1. Put the laundries into the spin tub evenly and smoothly. 2. Press the gland in the tub properly. Close the inner and outer cover of the spin tub. 3. Spin Select suitable spin time according to the laundries, and do spinning. During spinning, if there's abnormal sound, it is generally owing to slanting placement of the laundries.
-
Page 14: Disposal After Washing
Disposal after washing After using, please clean the lint and foreign materials of the lint filter and overflow filter in time. Otherwise it may influence your using the machine. Please first pull off the power plug from the receptacle before cleaning. Cleaning the lint filter The lint filter must be used during washing. -
Page 15: Cleaning The Overflow Filter
Cleaning the overflow filter 2. Take off the corrugation pipe. Dismantle the upper part of the corrugation pipe overflow filter ( as indicated in Figure 1). 3. Cleaning the overflow filter Clean the lint around the filter and flush with tap water. 4. -
Page 16: Trouble-Shooting Answer To Question
Trouble-shooting Answer to question When the remained water is frozen Prevent the freezing (be sure to discharge the water completely after using) After complete draining, set the "WASH SELECTOR" at "STRONG" or "STANDARD". If it is set at "DRAIN", it will be rather difficult for the frozen water to melt. When the water is frozen Pour hot water below 50 to soak it completely. - Page 17 Trouble-shooting Answer to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company.
-
Page 18: Packing List *Specification
Packing list Name User's manual Water inlet hose Gland Twin-tub washing machine Speciafication Water level/Water quantity (L) (about) Injection pressure(MPa) Washing capacity(kg) Spinning capacity(kg) Quantity One piece One piece One piece One set Maximum/70 Medium/60 Minimum/50 0.02 0.2...
