- Page 1 User Guide UD51 Second encoder small option module for Unidrive Part Number: 0460-0084-05 Issue Number: 5 www.controltechniques.com...
- Page 2 Drives, there may be some differences between their software and the software in this product. These differences may cause this product to function differently. This may also apply to Drives returned from a Control Techniques Service Centre. If there is any doubt, contact a Control Techniques Drive Centre.
-
Page 3: Table Of Contents
Contents Introduction ..........4 Main features of the UD51 ......... 4 Safety Information ........5 Warnings, Cautions and Notes ........5 Electrical safety - general warning ......5 System design and safety of personnel ..... 5 Environmental limits ..........6 Compliance with regulations ........6 Motor .................6... -
Page 4: Introduction

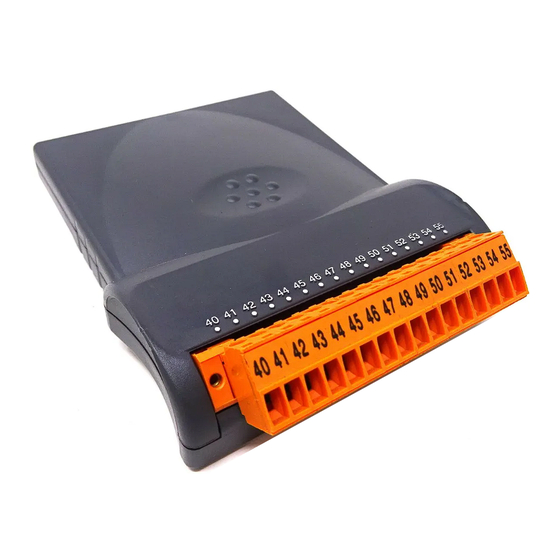

1.1.3 Installation The UD51 must be fitted in the small option module bay of the Unidrive. All connections to the drive are made by a multi-way connector. Connections from external equipment are made by a plug-in 16-way screw-terminal block on the UD51. -
Page 5: Safety Information
The STOP and START controls or electrical inputs of the drive must not be UD51 User Guide Issue Number: 5 www.controltechniques.com... -
Page 6: Environmental Limits
Some parameters have a profound effect on the operation of the drive. They must not be altered without careful consideration of the impact on the controlled system. Measures must be taken to prevent unwanted changes due to error or tampering. UD51 User Guide www.controltechniques.com Issue Number: 5... -
Page 7: Installing The Ud51
1. Before installing the UD51 in the Unidrive, ensure the AC supply has been disconnected from the drive for at least 10 minutes. 2. Check that the exterior of the UD51 is not damaged, and that the multi- way connector is free from dirt and debris. Do not install a damaged or dirty UD51 in the drive. - Page 8 Figure 3-1 Installing the UD51 in the Unidrive UD51 User Guide www.controltechniques.com Issue Number: 5...
-
Page 9: Making Connections
Extra Low Voltage (SELV) (eg. to a personal computer), an additional isolating barrier must be included in order to maintain the SELV classification. Locations of the terminals Figure 4-1 Location of the connector on the UD51 UD51 User Guide Issue Number: 5... -
Page 10: Functions Of The Terminals
Quadrature channel B\ output or D\ (direction\) output Marker channel Z output (default) or Freeze input (see Note on page 11) Marker channel Z\ output (default) or Freeze\ input (see Note on page 11) UD51 User Guide www.controltechniques.com Issue Number: 5... - Page 11 The encoder must be powered by an external DC supply. Ensure that the supply to be used is suitable for the encoder. CAUTION The UD51 can be used with an encoder that does not produce Z marker NOTE pulses. In this case, ensure that the Z marker pulse inputs are left unconnected.
-
Page 12: Setting Up The Ud51
Reference signal: Connected to the UD51 The UD51 is used to supply a reference signal to the drive. This reference is applied to Menu 13 Position Control. Signal format can be either quadrature AB or frequency and direction (F/D). -
Page 13: Output Speed-Reference
Main feedback: Quadrature encoder connected to the 15-way D-type connector in the drive The UD51 can be used to supply a speed reference signal to another drive or to a controller Signal format can be either quadrature AB or frequency and direction (F/D). -
Page 14: Encoder Shaft Position
Encoder shaft position The UD51 monitors the change in position of the encoder shaft by detecting the states of the quadrature A and B signals. Zero position is detected from the appropriate edge of the Z marker pulse, as follows:... - Page 15 Figure 5-4. UD51 User Guide Issue Number: 5 www.controltechniques.com...
- Page 16 The simulated marker output pulse function does not operate with F and D source encoders. 5.6.2 Drive software version V03.xx.07 onward, UD51 version 4 onward (both present) Synchronization of the Z marker-pulse output can be disabled by setting Pr 16.12 Simulated-encoder output marker-pulse synchronization disable at...
-
Page 17: Freeze Inputs (Terminals 54, 55)
5.6.3 Drive software V03.xx.05 or earlier, UD51 version 3 or earlier (either or both present) The Z marker-pulse outputs are synchronized to the simulated-encoder quadrature AB outputs only when the resolution of the AB outputs is equal to or greater than 1 LPR. -
Page 18: Delay Times
Delay from Freeze input signal to storing of the position 2µs information Difference in delay between storing the position information from the main encoder and the position information from the second 250ns encoder UD51 User Guide www.controltechniques.com Issue Number: 5... -
Page 19: Related Parameters
Introduction The parameters listed in this chapter are used for programming and monitoring the UD51 when it is fitted in a drive. Refer to the Unidrive User Guide for programming instructions. Before attempting to adjust any parameters, refer to the Warnings and Notes at the beginning of Chapter 4 electrical installation in the Unidrive User Guide. - Page 20 Figure 6-1 Logic diagram for the UD51 Encoder AB and Z (or F/D) inputs 16.04 Second encoder − No. of lines per rev. Second encoder 16.02 speed 16.05 Second encoder − F/D input enable Second encoder 16.03 position 16.09 Second encoder −...
-
Page 21: Parameter Descriptions
Enter the number of lines per revolution of the encoder that is connected to the UD51. It is essential that the correct value is entered to ensure that Pr 16.02 Second encoder speed and Pr 16.03 Second encoder position indicate correctly. - Page 22 Pr 16.07 at the required scaling factor as follows: [16.04] Scaling = 2 For example, for the output signals to be of the source, set Pr 16.07 at 4 (16 = 2 UD51 User Guide www.controltechniques.com Issue Number: 5...
- Page 23 By default, a 120Ω termination resistor is connected on the Freeze inputs. To disconnect this resistor, set Pr 16.11 at 1. Pr 16.09 Second encoder - input termination disable has no effect on the Freeze inputs. UD51 User Guide Issue Number: 5 www.controltechniques.com...
- Page 24 Z marker-pulses can be present in any of the four quadrants, as follows: A and B both low A and B both high A low and B high A high and B low See section 5.6 Z marker-pulse outputs (terminals 54, 55) on page 14. UD51 User Guide www.controltechniques.com Issue Number: 5...
-
Page 25: Appendix A: Specifications
Temperature and humidity Ambient temperature range: 0°C to 50°C (32°F to 122°F) Minimum temperature at power-up:-10°C (14°F) Maximum humidity: 95% non-condensing at 40°C (104°F) Storage temperature range: -40°C to 50°C (-40°F to 122°F) UD51 User Guide Issue Number: 5 www.controltechniques.com... -
Page 26: Appendix B: Diagnostics
Perform either of the following: Ensure the appropriate type of small option module is correctly fitted To operate the drive in the present configuration, set Pr 00 at 1000 and press the STOP/RESET key. UD51 User Guide www.controltechniques.com Issue Number: 5...
