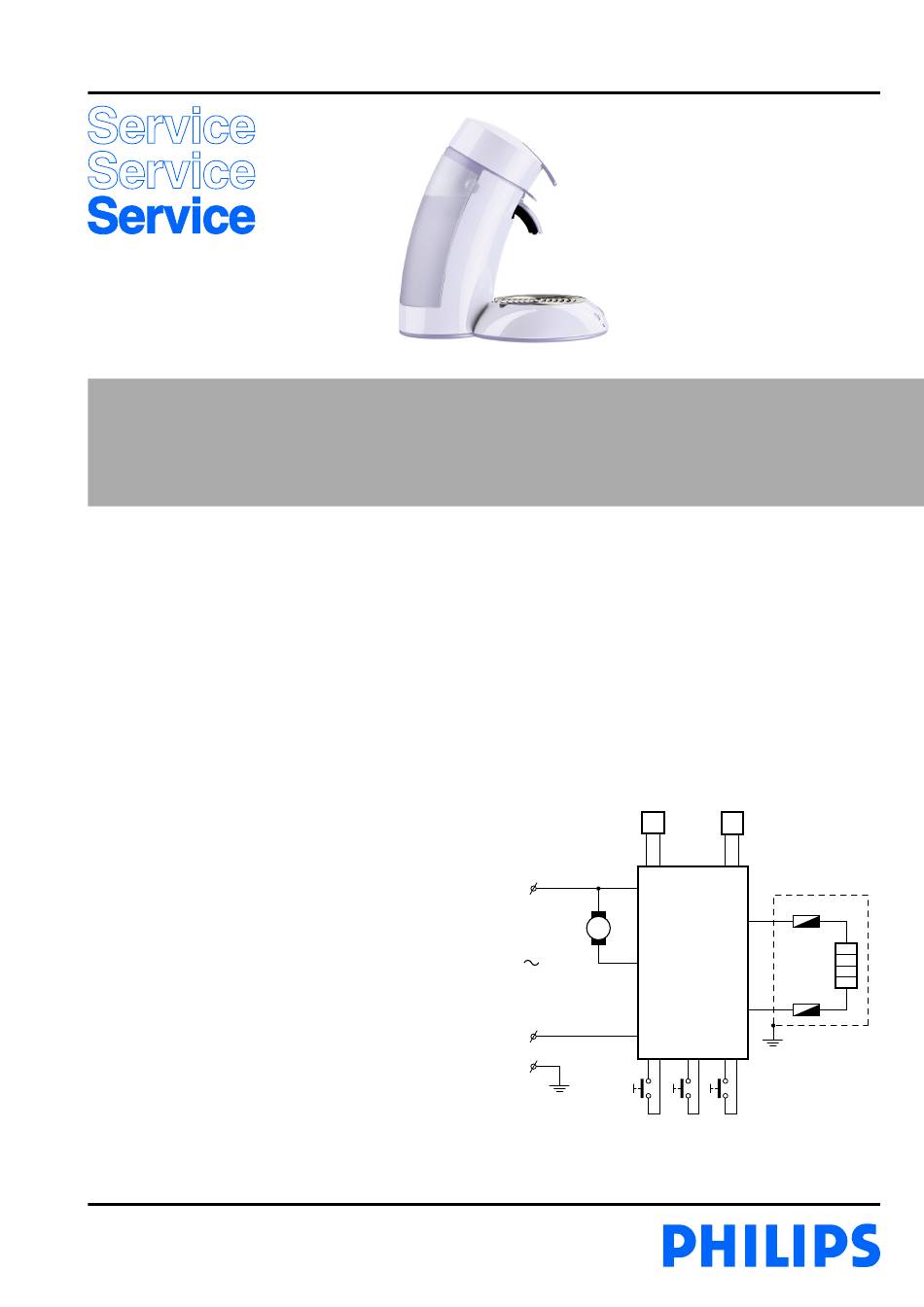

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
06/04

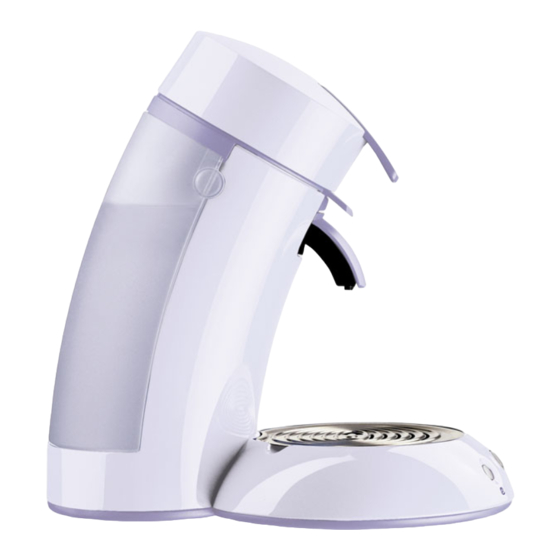

Coffee Maker Senseo
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : 0.002 kWh
- Contents reservoir
- Colour setting
- SAP coding
L
Pump M
N
Printed in the Netherlands
© Copyright reserved
HD7810/31
: 220 - 230 V
: 50 Hz
: 1450 W
: 755 cc
: Lilac
: HD7810/31/C
Waterlevel
Temp.
Sensor
Sensor
Fuse
CONTROL
PCB
Fuse
Push buttons
Subject to modification
/C
Boiler
