Beyerdynamic DT 1990 PRO - PREMIUM STUDIO HEADPHONES Manual

Supplied Accessories

1 x EDT 1990 A ear pads for a neutral sound
1 x Straight cable, 3 m
1 x Hard case
1 x EDT 1990 B ear pads for a sound with a slight bass boost
1 x Coiled cable, 5 m (stretched out)

Application

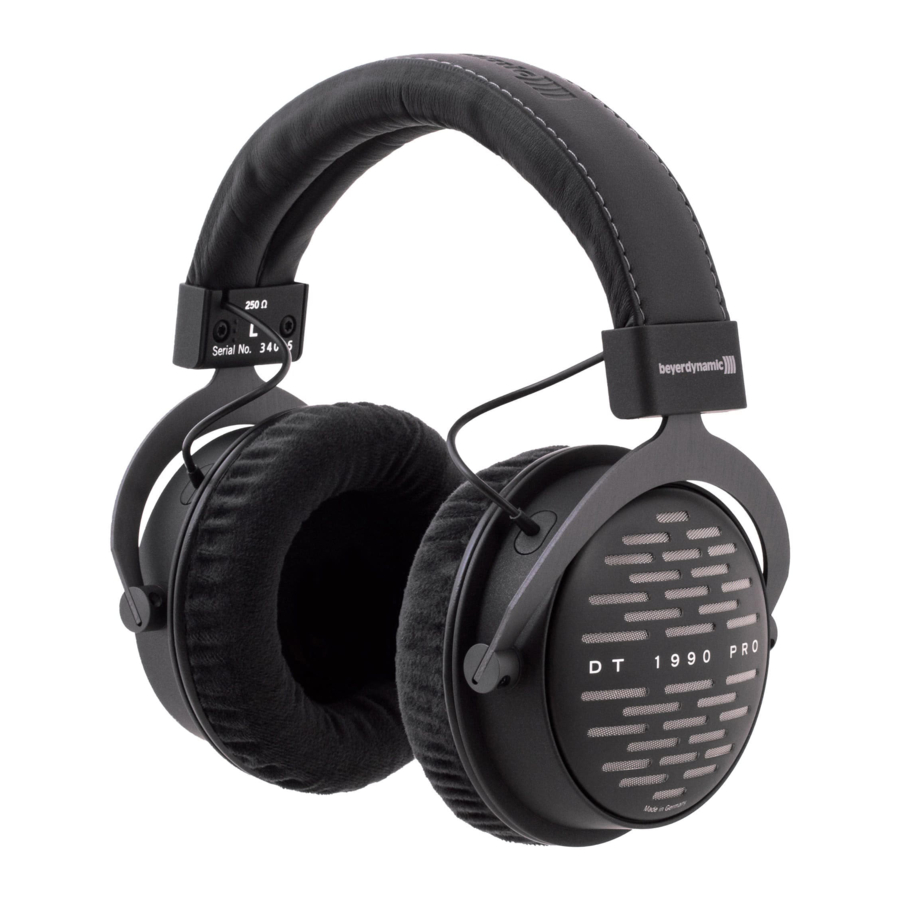

The DT 1990 PRO is an open studio headphone for mixing and mastering. The open design results in a very spatial, dynamic and natural sound with an original reproduction.
The efficient Tesla drivers ensure a perfect sound with an excellent resolution and high output level.
The DT 1990 PRO features a modern design with a discrete elegance of all components such as end pieces, yokes, ear cups and headband. All components are replaceable and ensure a long lifetime of the headphone.
The comfortable, replaceable ear pads and the adjustable headband with replaceable pad ensure superior comfort for a long period of time and an absolutely safe fit. The single-sided cable is detachable and lockable. The supplied hard case ensures safe transport or storage. The headphone is supplied with two pairs of ear pads for different sound variations from a neutral sound to a sound with a slight bass boost.

Maintenance

As with any equipment which will be used in close proximity to sensitive areas of the body, it is essential that the ear pads and headband are kept clean. Use a damp cloth for cleaning using warm water only taking care not to allow any water drops into the ear cups or transducers. If necessary, you can carefully remove the ear pads and headband pad and clean them with mild soapy water.

Never use any solvent cleaning agents! Furthermore, the pads must be completely dry before they are attached to the headphone again.
Should it become necessary to replace the ear pads or the headband pad, refer to "Spares and Accessories".
If other components have to be replaced, please contact your local beyerdynamic representative.

How to Connect the Cable

• At the end that connects to the headphone, the lockable connecting cable is fitted with a 3-pin mini XLR cable connector.
  When connecting the cable, make sure that the cable connector locks in place of the ear cup.

• When you want to change the cable, please press the small button for release and simultaneously pull off the cable connector from the headphone.


How to Change the Ear Pads

• The delivery includes two pairs of ear pads:
  • the dark grey "balanced" ear pads ensure a sound with a slight bass boost (EDT 1990 B)

  • the light grey "analytical" ear pads ensure a neutral sound (EDT 1990 A)

• Remove the ear pad carefully from the mounting ring.

• Place the lip of the ear pad in the notch at the top of the headphone casing. Then turn the ear pad as indicated by the arrow until the lip of the entire pad is sitting over the mounting ring.


How to Change the Headband Pad

For information on how to change the headband pad, please visit:
www.beyerdynamic.com

Version

Accessories and Spare Parts

Accessories and replacement equipment can be found at:
www.beyerdynamic.com

Technical Specifications

(all specifications acc. to EN 60 268-7)

Safety Instructions

• Exposure to excessive sound levels for longer periods can damage your ears resulting in permanent noise-induced hearing loss. Use a low volume!
• According to regulations to protect employees against damages caused by noise and vibrations, please follow these instructions:
  85 dB SPL for max. 8 hours
  88 dB SPL for max. 4 hours
  91 dB SPL for max. 2 hours
  94 dB SPL for max. 1 hour
  97 dB SPL for max. 30 minutes
  100 dB SPL for max. 15 minutes
• When connecting the headphones, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headphones.
• With wired headphones you should avoid sharp movements, which could cause the headphones to fall off your head. You could be seriously injured especially if you are wearing pierced earrings, spectacles etc. The cable could wind around your neck and cause strangulation.

Service

If you require service, please contact qualified service personnel or directly:
beyerdynamic Service- und Logistik Center
E-mail: service@beyerdynamic.de
Dismantling the headphone yourself will invalidate the guarantee.
