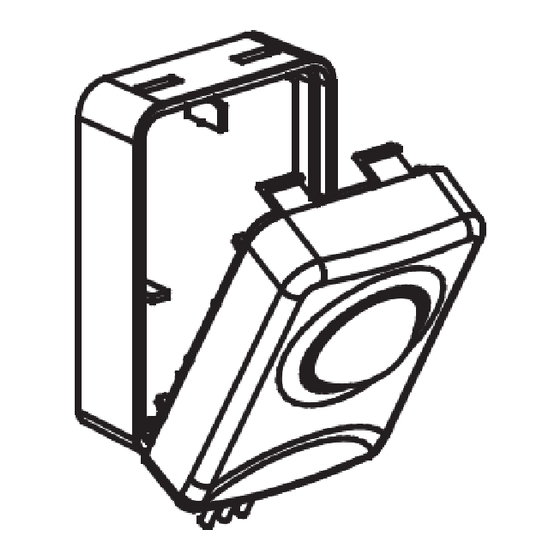

- Page 1 FULL DC INVERTER SYSTEMS OWNER’S & INSTALLATION MANUAL INFRARED INDUCTIVE CONTROLLER NIM09 C O M M E R C I A L A I R C O N D I T I O N E R S S D V 4 AIR CONDITIONING...
- Page 2 Original instructions...
- Page 3 ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● In order to ensure correct service of the infra-red inductive controller please read this manual carefully before using the unit. ● For convenience of future reference, keep this manual after reading it.
-
Page 4: Table Of Contents
CONTENTS INSTALLATION................1 1 SAFETY PRECAUTION...............2 2 INSTALLATION ACCESSORIES..........4 3 INSTALLATION METHOD............6 OPERATION.................13 1 OPERATION INSTRUCTION............14... -
Page 5: Installation
INSTALLATION... -
Page 6: Safety Precaution
I. Safety Precautions The following contents are stated on the product and the operation manual, including usage, precautions against personal harm and property loss, and the methods of using the product correctly and safely.After fully understanding the following contents (identifiers and icons),read the text body and observe the following rules. - Page 7 Icon description lcon Meaning It indicates forbidding. The forbidden subject-matter is indicated in the icon or by images or characters aside. It indicates compulsory implementation. The compulsory subject-matter is indicated in the icon or by images or characters aside. Please entrust the distributor or profession- als to install the unit.
-
Page 8: Installation Accessories
2 Installation Accessories 1. installation place selection Do not install at the places where contain oil,steam and sulfur air, otherwise it will cause poduct’s deformation and lead to malfunction. Preparation before installation 1) Please confirm that all the following parts you have been supplied. Remark Name Infra-red sensor... - Page 9 2) The following assemblies should be prepared at the local installation place. Name Remark Wiring conduit Pre-embedding into the wall, (insulated sleeve) the longest wiring is 15M. Big cross Use for installing cross recessed Screwdriver pan head tapping screws. Small slotted Use for striking down wire screw driver controller’s bottom cover.
-
Page 10: Installation Method
1. Infra-red inductive controller wiring diagram: Infra-red inductive controller Infra-red sensor Display panel KJR-10B Wire controller NIM09/E Infra-red inductive control box Indoor main board Delay 1 hour to OFF the unit (default) Delay 0.5 hour to OFF the unit (Reserved switch code) Fig.1... - Page 11 2. Connecting wire group: Connect to CN1 infra-red inductive control box. White Black Wire controller Orange Blue Butt joint wire (Used for lengthen the wire only) Connect to CN2 of infra- red inductive control box Butt joint Connect to indoor main board Connect to display panel Connect to CN3 of infra-red inductive control box...
- Page 12 3. The installing and wiring diagram of infra-red inductive controller: Connect to main panel,display panel Connect to the wire controller Fig.3 4. Installation of infra-red sensor: Fig.4...
- Page 13 1) Before installing, please refer to the following installation dimension and the overall dimension of the product (Unit: mm) 25.6mm 15.5mm 30mm 86mm infra-red inductive control box infra-red sensor Fig.5 2) Turn on the installed infra-red sensor with slot type screw driver as the figure displayed: Step 1 Step 2...
- Page 14 3) Use tapping screw in accessories to fix the bottom case, and stick the gasket to the bottom case’s inner ground face; (See step 1) 4) Insert the plug of infra-red inductive connecting wire group into the corresponding plug of human body infra-red sensor; (See step 2) 5) Clip the component installed by step 2 into the panel as displayed ;...
- Page 15 Code switch position Fig.8 Fig.7 1) Take apart the installed infra-red inductive control box with cross screwdriver; 2) According to user’s requests,adjust the code switch on the main board to the relevant position (The code’s instruction refers to the following) 6.
- Page 16 7. Infra-red sensor installation place: Ceiling 100° Wall Fig.10 Infra-red sensor installation place should be the ceiling or wall with centralized human activities.
-
Page 17: Operation
OPERATION... -
Page 18: Operation Instruction
1 Operation Instruction 1) Infra-red sensors can detect human activities in certain area and automatically shut off the air-conditioner if there is no activity. The detecting range and angle is shown as below: Fig.11... - Page 19 2) Make wiring according to the installation diagram, and power on the air-conditioner, delay 60 seconds to wait the infra-red inductive controller finishing its initialization, during initialization only the latest operation instruction from wire-controller will be remembered, this instruction will be transfered to indoor unit after the initialization finishing and the infra-red sensor sensing human activities.
- Page 20 6) Every time re-powering the infra-red inductive controller, a default instruction 'OFF' is sent to indoor unit , the indoor unit will be turn off regardless its operation status. 7) The infra-red inductive controller doesn’t remember instructions from remote control, it will work only with wired controller. NOTE A mobile phone call may cause the auto-turned off indoor unit start to run again.
- Page 22 Waste Acts of respective country, in the Czech Republic in Act no. 185/2001 Coll., in the wording of later regulations. In case of incorrect disposal of this waste, a fine can be imposed according to national regulations. Manufacturer: Sinclair Corporation Ltd. 1-4 Argyll Street London W1F 7LD United Kingdom Supplier and technical support: Nepa, spol.s.r.o.
