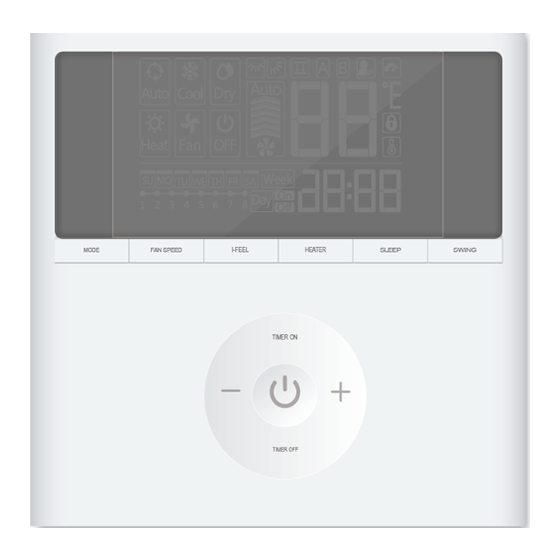

Sinclair KJR-120G User Manual

Wired controller
Hide thumbs

Advertisement

Table of Contents

EN
USER'S MANUAL
KJR-1 20G
WIRED CONTROLLER

Advertisement

Table of Contents
loading

Related Manuals for Sinclair KJR-120G

Summary of Contents for Sinclair KJR-120G

  • Page 1 USER'S MANUAL KJR-1 20G WIRED CONTROLLER...
  • Page 2 “Original instructions”  ...
  • Page 3 ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● In order to ensure correct service of the wired controller please read this manual carefully before using the unit. ● For convenience of future reference, keep this manual after reading it.

  • Page 4: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTION................1 2. INSTALLATION ACCESSORY..............2 3. INSTALLATION METHOD................4 4. SPECIFICATION..................10 5. FEATURE AND FUNCTION OF THE WIRED CONTROLLER....11 6. NAME ON THE LCD OF THE WIRE CONTROLLER......12 7. NAME OF BUTTON ON THE WIRE CONTROLLER........13 8. PREPARATORY OPERATION..............14 9.

  • Page 5: Safety Precaution

    1. SAFETY PRECAUTION Read the safety precautions carefully before installing the unit. Stated below are important safety issues that must be obeyed. Means improper handling may lead to personal death or severe injury. WARNING Means improper handling may lead to personal injury or property loss. CAUTION WARNING Please entrust the distributor or professionals to install the unit.

  • Page 6: Installation Accessory

    2. INSTALLATION ACCESSORY Select the installation location Don’t install at the place where cover with heavy oil, vapor or sulfureted gas, otherwise, this product would be deformed that would lead to system malfunction. Preparation before installation 1. Please confirm that all the following parts you have been supply. Name Qty.
  • Page 7 2. INSTALLATION ACCESSORY Precaution of install the wire controller 1. This manual provides the installation method of wire controller. Please refer to the wiring diagram of this installation manual to wire the wire controller with indoor unit. 2. The wire controller working in low voltage loop circuit. Forbid to directly contact the cable of 220V commercial electricity or of 380V high voltage, and don’t wire this kind of wire in the said loop;...

  • Page 8: Installation Method

    3. INSTALLATION METHOD 1.Wired remote controller structure size figure 120mm 18.5mm 4 6 mm 83.5mm 123mm 62mm Fig 3-1 2.Remove the upper part of wire controller Insert a slot screwdriver into the slots in the lower part of the wire controller (2 places), and remove the upper part of the wire controller.
  • Page 9 3. INSTALLATION METHOD 3. Fasten the back plate of the wire controller For exposed mounting, fasten the back plate on the wall with the 3 screws (M4×20) and plugs. (Fig.3-3) Back plate Screws (M4×20) Fig 3-3 For flush-mounting, fasten the back plate on the switch box with 2 screws (M4×25) and fasten it on the wall with 1 screw (M4×20).
  • Page 10 3. INSTALLATION METHOD Battery installation Fig 3-5 Put the battery into the installationsite and make sure the positive side of the battery is in accordance with the positive side of installationsite.(See Fig.3-5) Please set the time corrected on the first time operation. Batteries in the wire controller can timing under power failure which ensure the time keep right.
  • Page 11 3. INSTALLATION METHOD 5. Wire the indoor unit 4 methods 1 from the rear; 2 from the bottom; 3 from the top; 4 from the top center. HA HB HA HB HA HB HA HB 1 indoor unit 2 notch the part for the wiring to pass through with nippers, etc. Connect the terminals on the remote controller (HA ,HB), and the terminals of the indoor unit (HA ,HB).
  • Page 12 3. INSTALLATION METHOD NOTE: DO NOT allow water to enter the remote control. Use the trap and putty to seal the wires. Putty Trap Putty Putty Trap Trap Fig 3-6 6. Reattach the upper part of the wire controller After adjusting the upper case and then buckle the upper case; avoid clamping the wiring during installation.

  • Page 13: Specification

    4. SPECIFICATION DC 5V/DC 12V Input voltage Ambient temperature -5~43 °C Ambient humidity RH40%~RH90% Wiring specifications Total length Wiring type Size <50m Shielded vinyl cord or cable 2x0.75-2x1.25mm...

  • Page 14: Feature And Function Of The Wired Controller

    5. FEATURE AND FUNCTION OF THE WIRED CONTROLLER Feature: LCD display. Malfunction code display: it can display the error code, helpful for service. 4-way wire layout design, no raised part at backside, more convenient to place the wires and install the device. Swing Timer Day off/Del...

  • Page 15: Name On The Lcd Of The Wire Controller

    6. NAME ON THE LCD OF THE WIRE CONTROLER 1 Operation mode indication 8 Turbo function indication 2 Fan speed indication 9 °C / °F indication 3 Left-right swing indication 10 Temperature display 4 Up-down swing indication 11 Lock indication 5 Faceplate function indication 12 Room temperature indication 6 Main unit and secondary unit indication...

  • Page 16: Name Of Button On The Wire Controller

    7. NAME OF THE BUTTON ON THE WIRE CONTROLER Swing Timer Day off/Del Confirm Back/Turbo Copy/Ifeel Mode Fan speed (Lock) 1 MODE button 6 TIMER button 2 POWER button 7 DAY OFF/DEL button 3 Adjust button 8 COPY/IFEEL botton 4 FAN SPEED button 9 BACK/TURBO bottom 5 SWING Button 10 CONFIRM button...

  • Page 17: Preparatory Operation

    8. PREPARATORY OPERATION Set the current day and time Press the Timer button for 3 seconds or more. Timer The timer display will flash. Press the button “ + ” or “ - ” to set the date. The selected date will flash.

  • Page 18: Operation

    9. OPERATION To start/stop operation Press the Power button. To set the operation mode Operation mode setting Press the Mode button to set the operation mode. Mode (Heat function is invalid for cool only type unit) Room temperature setting Press the button“ + ”or “ - ” to set the room temperature. Indoor Setting Temperature Range : 17~30 (Depending on models).
  • Page 19 9. OPERATION Fan speed setting Press the Fan speed button to set the fan speed. (This button is unavailable when in the mode of Auto or Dry) Fan speed (Lock) Room temperature sensor selection Copy/Ifeel Indoor Unit Press the Ifeel button to select whether the room temperature is detected at the indoor unit or the wire controller.
  • Page 20 9. OPERATION Child lock function Press the Lock botton for 3 seconds to activate the child lock function and lock all buttons on the wire controller. Press the button again for 3 seconds to deactivate the child lock function. Fan speed (Lock) When the child lock function is activated,the mark appears.
  • Page 21 9. OPERATION Turbo function (on some models) Press the Turbo button to activate the turbo function. Back/Turbo Press the button again to deactivate the turbo function. When the turbo function is activated,the mark appears. Faceplate function (on some models) 1.When the unit is off Press the Mode button long to activate the faceplate function.The mark will flash.
  • Page 22 9. OPERATION Swing function (For the unit left & right auto swing models only) 1 Up-Down swing Swing Press the Swing button to start up-down swing function. Press it again to stop. When the Up-Down swing function is activated,the mark appears. 2 Left-Right swing Swing Press the Swing button long to start Left-Right swing function.
  • Page 23 9. OPERATION Swing function (For the unit without left & right auto swing function models) Up-Down airflow direction and swing Swing Use Swing button to adjust the Up-down airflow direction. 1.Press the button every time, the louver swings 6 degrees. 2.Press and hold the button for 2 seconds,it turns into up-down swing mode, press ti again to stop.

  • Page 24: Timer Functions

    10. TIMER FUNCTIONS WEEKLY timer Use this timer function to set operating times for each day of the week. On timer Use this timer function to start air conditioner operation.The timer operates and air conditioner operation starts after the time has passed. Off timer Use this timer function to stop air conditioner operation.The timer operates and air conditioner operation stops after the time has passed.
  • Page 25 10. TIMER FUNCTIONS To set the On or Off TIMER Press the Timer button to select the Timer No display Confirm Press the Confirm button and the Clock display is flashing. ex.Off timer set at PM 6:00 Press the button “ + ” or “ - ” to set the time. After the time is set, the timer will start or stop automatically.
  • Page 26 10. TIMER FUNCTIONS To set the On and Off TIMER Press the Timer button to select the Timer Confirm Press the Confirm button and the Clock display is flashing. Confirm Press the button “ + ” or “ - ” to set the time of On timer,and then press the Confirm button to confirm the setting.

  • Page 27: Weekly Timer

    11. WEEKLY TIMER Weekly timer setting Press the Timer button to select the .and Confirm Timer then press the Confirm button to confirm. Day of the week setting Press the button “ + ” or “ - ” to select the day of the Confirm week.and then press the Confirm button to confirm the setting.
  • Page 28 11. WEEKLY TIMER ex.Tuesday time scale 1 Up to 4 timer settings can be saved for each day of the week.It is conventent if the WEEKLY TIMER is set according to the user’s life style. Off timer setting of timer setting 1 Confirm Press the button “...
  • Page 29 11. WEEKLY TIMER WEEKLY timer operation ● To activate WEEKLY TIMER operation Press the Timer button while is displayed on the LCD. Timer ● To deactivate WEEKLY TIMER operation Timer Press the Timer button while is disappear from the LCD. ●...
  • Page 30 11. WEEKLY TIMER To set the DAY OFF (for a holiday) Confirm During the weekly timer, press the Confirm button. Press the button “ + ” or “ - ” to select the day in this week . Press the Day off button to set the DAY OFF. Day off/Del mark is hidden ex.The DAY OFF is set for Wednesday...
  • Page 31 11. WEEKLY TIMER DELAY function During the weekly timer, pressing the Del button once,display " ". Day off/Del Press this button twice, display " " and wait 3 seconds to confirm. It means the unit will override 1 hours; Press this button three times,display " "...
  • Page 32 11. WEEKLY TIMER Copy/Ifeel Press the Copy button,the letter “CY” will be shown on the LCD. Press the button “ + ” or “ - ” to select the day to copy to. Press the Copy button to confirm . Copy/Ifeel mark flashes quickly ex.

  • Page 33: Fault Alarm Handing

    12. FAULT ALARM HANDING If the system does not properly operate except the above mentioned cases or the above mentioned malfunctions is evident, investigate the system according to the following procedures. D ISPLAY MALFU N C T ION & PROT EC T ION D EFIN E DIGITAL TUBE Error of communication between wire controler and indoor unit...
  • Page 34 The design and specifications are subject to change without prior notice for product improvement.Consult with the sales agency or manufacturer for details.
  • Page 35  ...
  • Page 36 In case of quality problem or other please contact your local supplier or authorized service center. Emergency number: 112 PRODUCER Producer: SINCLAIR CORPORATION Ltd., 1-4 Argyll St., London W1F 7LD, UK, www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE, TECHNICAL SUPPORT NEPA spol.
