- Page 1 Kit Instructions PIN Pad Arm 7360-K401 Issue B...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Jan 2018 First release. Aug 2021 Updated Kit Contents.

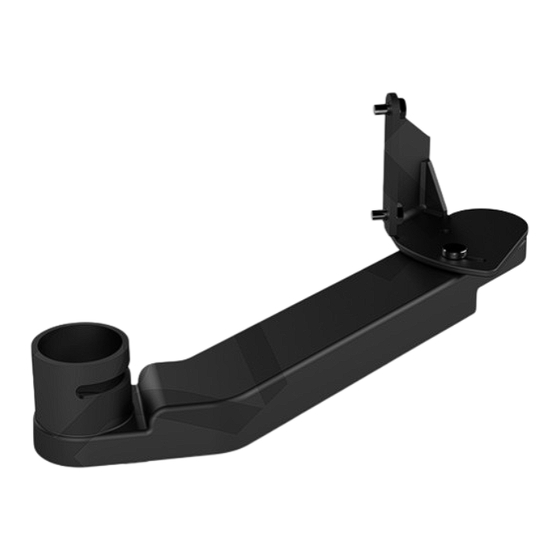

- Page 4 7360-K401 PIN Pad Arm This kit contains a PIN Pad Arm for the NCR FastLane SelfServ™ Checkout (7360) unit. Kit Contents Part Number Description 497-0530413 7360-K401 Pin Pad Arm Kit 006-8611479 Cable Clamp, 1/2" (3 pcs) 006-8624300 Washer, Nylon, Black, M10 Screw, 10.5 mm ID, 22...
- Page 5 7360-K401 PIN Pad Arm Part Number Description 497-0527280 PIN Pad Arm Assembly 006-8625487 Nut - M10, 1.5 pitch, nylon lock, flange 006-8622405 Thumb Screw, Knurled Knob, M4 x 10 mm, Stainless Steel 006-8626347 Washer Flat Nylon Black 4.5 mm I.D, 10.36 mm O.D, 1.57 mm Thk.
- Page 6 7360-K401 PIN Pad Arm Installation Procedures To install the PIN Pad Arm, follow these steps: 1. Do any of the following, if necessary: • Remove the No PIN Pad Blanking Plate, if the unit was not configured with a PIN Pad Arm. For more information, refer to Removing No PIN pad Blanking Plate on page 5.
- Page 7 7360-K401 PIN Pad Arm 3. Position the PIN Pad Arm as shown in the image below. 4. Install the PIN pad Mount to the PIN pad Arm and fasten it using the allen key.
- Page 8 7360-K401 PIN Pad Arm Removing No PIN pad Blanking Plate To remove the No PIN pad Blanking Plate, follow these steps: 1. Unlock the tower frame using a key. 2. Raise the Terminal Display.
- Page 9 7360-K401 PIN Pad Arm 3. Loosen the star-shaped washer around the key lock assembly by turning it counterclockwise. 4. Remove the back panel with the No PIN pad Blanking Plate from the tower assembly.
- Page 10 7360-K401 PIN Pad Arm 5. Push the No PIN pad Blanking Plate out of the back panel.
- Page 11 7360-K401 PIN Pad Arm Removing Existing PIN Pad Mount To remove the existing PIN Pad Mount, follow these steps: 1. Remove the allen key securing the PIN Pad Mount to the PIN Pad Arm. 2. Remove the PIN Pad Mount from the PIN Pad Arm as shown in the images below.
- Page 12 7360-K401 PIN Pad Arm Removing Existing PIN Pad Arm To remove the existing PIN pad Arm, follow these steps: 1. Remove the PIN pad Mount from the PIN pad Arm. For more information, refer to Removing Existing PIN Pad Mount on the previous page.
- Page 13 7360-K401 PIN Pad Arm b. Lift up the terminal display. c. Loosen the star–shaped washer around the keylock assembly. d. Remove the back panel showing the existing PIN Pad Arm from the tower assembly.
- Page 14 7360-K401 PIN Pad Arm 3. Using a 10 mm wrench, remove the three screws securing the PIN Pad Arm to the Tower Frame. 4. Install the PIN pad Arm. For more information, refer to Installation Procedures page 3...
