7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount This publication provides instructions for installing the Pole Mount for the Coupon Printer and the corresponding Coupon Printer Tray on NCR FastLane SelfServ™ Checkout (7360) units. Prerequisite The 7360-K906/K907/K908 Coupon Printer Tray should be ordered together with the 7360-K903 Pole Mount for Coupon Printer Tray. -
Page 5: 7360-K903 Pole Mount For Coupon Printer Tray

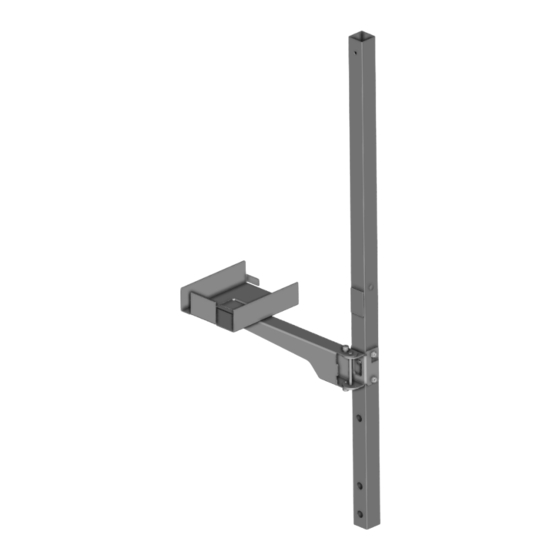

7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 7360-K903 Pole Mount for Coupon Printer Tray Part Number Description 497-0524336 7360-K903 Pole Mount for Coupon Printer Tray 006-8623599 Plug – Locking, Flush, 5.5mm Hole, Dark Grey (2 pcs) 006-8624305 Rectangle Blanking Plug (42 X 24 Mm) -
Page 6: 7360-K906 Coupon Printer Tray (Epson Tm-C700)
7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 7360-K906 Coupon Printer Tray (Epson TM-C700) Part Number Description 497-0525310 7360-K906 Coupon Printer Tray (Epson TM-C700) 497-0524283 Epson TM-C700 Coupon Printer Tray (1 pc) * 497-0423108 Instructions Kit (Reference Sheet) * Items marked with an asterisk are not called out on the image. -
Page 7: 7360-K907 Coupon Printer Tray (Funai Jc2007Nu)
7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 7360-K907 Coupon Printer Tray (Funai JC2007NU) Part Number Description 497-0525298 7360-K907 Coupon Printer Tray (Funai JC2007NU) 497-0524284 Funai JC2007NU Coupon Printer Tray (1 pc) * 497-0423108 Instructions Kit (Reference Sheet) * Items marked with an asterisk are not called out on the image. -
Page 8: 7360-K908 Coupon Printer Tray (Epson Tm-C610)
7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 7360-K908 Coupon Printer Tray (Epson TM-C610) Part Number Description 497-0525299 7360-K908 Coupon Printer Tray (Epson TM-C610) 497-0525300 Epson TM-C610 Coupon Printer Tray (1 pc) * 497-0423108 Instructions Kit (Reference Sheet) * Items marked with an asterisk are not called out on the image. - Page 9 Tray involves the following procedures: Removing Existing Tri–Light/Lane Light Pole on the facing page. Note: To remove the Tri–Light/Lane Light assembly, refer to the NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005-0000-2378). Installing Coupon Printer Pole Mount Assembly on page 11.
- Page 10 Hardware Service Guide (B005–0000–2378). • If the unit is configured with a Secondary Display, remove the Display. For information about how to remove the Display, refer to the NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005–0000–2378). 2. Insert key in lock on the back of the Tower frame and then turn counter–clockwise...
- Page 11 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 3. Lift up the Terminal Display. 4. Remove two (2) screws that are securing the pole to the Tower frame.
- Page 12 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 5. Loosen the star-shaped washer around the keylock assembly and then remove the two back panels from the Tower frame assembly. 6. Lift the Tri–Light/Lane Light pole out of the unit.
- Page 13 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 7. Pull out the Tri–Light/Lane Light cable through the opening on the side of Tri– Light/Lane Light pole, as shown in the image below. 8. Install the Coupon Printer Pole Mount assembly. For more information, refer to Installing Coupon Printer Pole Mount Assembly on the facing page.
- Page 14 Note: If installing a Secondary Display, route the display cables out of the smaller hole on the back of the pole. For information about how to install the Display, refer to the NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005-0000- 2378).
- Page 15 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 3. Insert the Tri–Light/Lane Light pole into the Tower frame. Ensure that the cables are aligned with the grooves in the pole duct, as shown in the image below. 4. Secure the Tri–Light/Lane Light pole to the Tower frame using two (2) screws.
-
Page 16: On The Next Page
7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 5. Do the following: • If a Secondary Display is not installed, attach the Rectangle Blanking Plug to the corresponding hole on the Tri–Light/Lane Light pole. • Insert, but do not tighten, three (3) screws into the sides of the Tri–Light/Lane Light pole as alignment guides, as shown in the image below. - Page 17 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount Installing Rotating Arm Assembly To install the Rotating Arm assembly to the Tri–Light/Lane Light pole, follow these steps: 1. Install the Tri–Light/Lane Light pole on the SelfServ Checkout unit. For more information, refer to Installing Tri–Light/Lane Light Pole...
- Page 18 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 3. Tighten all screws to secure the Arm to the Tri–Light/Lane Light pole. 4. Install the Coupon Printer Tray on the Rotating Arm assembly. For more information, refer to Installing Coupon Printer Tray...
- Page 19 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount Installing Coupon Printer Tray To install the Coupon Printer Tray, follow these steps: 1. Install Coupon Printer Pole Mount Assembly on the SelfServ Checkout unit. For more information, refer to Installing Coupon Printer Pole Mount Assembly on page 11.
- Page 20 Installing Coupon Printer Pole Mount Assembly on page 11. 2. Remove the Scanner/Scale. For more information, refer to the NCR FastLane SelfServ™ Checkout (7360) Hardware Service Guide (B005-0000-2378). 3. Depending on the unit configuration, refer to the following: Note: The Coupon Printer power supply is placed inside the Bagwell for units with Bagwells.
- Page 21 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount No-Bag Unit To route the Coupon Printer LAN and Power cables in a No-Bag unit, follow these steps: Note: For No-Bag units, the Coupon Printer Power Supply is left outside the unit. 1. From the side cable access hole, route the Coupon Printer LAN and Power cables...
- Page 22 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 2. Route the cables along the side wall up through the corner cable access hole along the floor of the Scanner/Scale bucket and into the pole duct. Note: Use cable ties to secure the cables on corresponding lance bridges.
- Page 23 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount Standard Unit To route the Coupon Printer LAN and Power cables in a Standard unit, follow these steps: Note: Use cable ties to secure the cables on corresponding lance bridges. 1. From the Bagwell, do the following: •...
- Page 24 7360-K903/K906/K907/K908 Coupon Printer Tray and Pole Mount 2. From the side cable access hole, route the cables along the side wall up through corner cable access hole along the floor of the Scanner/Scale bucket and into the pole duct. Depending on the orientation of the unit, refer to the images below.
