TECHNICAL
TECHNICAL
T
T
E
L
E
E
L
E
The E-30-PT-EWP shares all of the features of the E-30-PT in addition to Enhanced Weather Protection
(EWP) for installation in harsh environments. EWP products feature rubber gaskets and boots, hand sol-
dered silicon sealed connections, gel-filled butt connectors, as well as urethane potted circuit boards with
weather sealed, field-adjustable trim pots and DIP switches for easy on-site programming.
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• Push to talk button
• Phone line powered
• Vandal resistant, stainless steel faceplate with
heavy-duty metal call buttons
2
• Non-volatile E
memory (no batteries required)
• Touch Tone or pulse dialing
• Programmable to dial up to 5 numbers on busy
or ring no answer
• Red off-hook LED indicator
• Hangs up on CPC, silence, busy signal, return
to dial tone, time out or a Touch Tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Flush mountable using included plastic rough-in box
• E-30-PT-EWP conforms to NEMA requirements
• E-30-PT-EWP has Enhanced
Weather protection
• Optional VE-5x5 surface
mount back box
P
h
o
n
e
.
.
.
7
1
5
.
3
8
6
P
h
o
n
e
.
.
.
7
1
5
.
3
8
6
S
S
C
O
M
O
L
U
T
I
O
N
S
C
O
M
O
L
U
T
I
O
N
S
Provide Reliable and Intelligent
Communication - In Noisier Locations
E-30-PT/E-30-PT-EWP
shown in optional VE-5x5
Need More Information on EWP?
?
Call (715) 386-4345 and select 859.
Need More Information on VE-5x5?
?
Call (715) 386-4345 and select 424.
.
8
8
6
1
.
8
8
6
1
P
r
a
c
P
r
a
c
2
1
C
2
1
C
F
O
R
T
H
E
S
T
F
O
R
T
H
E
S
T

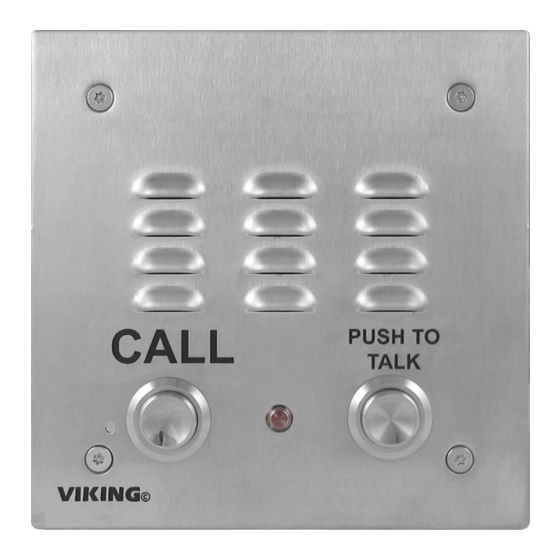

The E-30-PT is designed to provide quick and reliable communication
in noisier areas. The mic sensitivity is set to a low level until the TALK
button is pressed then it is raised to a normal level. In this way, the E-
30-PT assures that the called party's voice will be broadcast over the
speaker. In applications where the background noise can be loud-
er than the person calling, a handset type phone is recommended.
The E-30-PT features non-volatile memory, a built in dialer, and intelli-
gent call progress detection for automatic hang-up when the call is
completed. The E-30-PT can be programmed to dial up to 5 different
numbers on ring no answer or busy and can be configured to dial these
numbers until answered.
A
p
p
l
A
p
p
l
Non-ADA Hot-Line Phones for:
• Terminals
• Parking lots/ramps
• ATM machines
Gate and Door Entry Phones for:
• Business lobbies
• Vehicular and pedestrian gates
• Residences
CAUTION - When installing on an analog extension of a phone system:
Some phone systems do not conform to analog telecom standards and might
not be compatible with the E-30-PT phones. For a detailed description of the
telephone line specifications required for any of the E-30-PT phones, retrieve
Fax Back Document 869.
S
p
e
c
S
p
e
c
Power: Telephone line powered. Minimum 24V DC talk battery
voltage, with a minimum loop current of 20mA loop (room temp),
or 25mA (extended cold temp range). Loop current may be
boosted on low current lines with a Viking Model TBB-1 talk bat-
tery booster (Fax Back # 630).
Minimum Ring Voltage: 90VAC RMS
Dimensions: Overall-127mm x 127mm x 57mm (5" x 5" x 2.25"),
Plastic Electrical Box-102mm x 102mm x 54mm (4" x 4" x 2.12")
Shipping Weight: 1 Kg (2.2 lbs)
Operating Temperature: -26°C to 54°C (-15°F to 130°F)
Humidity - E-30-PT: 5% to 95% non-condensing
Humidity - E-30-PT-EWP: Up to 100% condensing
Connections - E-30-PT: RJ11 jack
Connections - E-30-PT-EWP: Gel-filled butt connectors
E-30-PT /
E-30-PT /
E-30-PT-EWP
E-30-PT-EWP
Speaker Phone with
t
i
c
e
t
i
c
e
Push To Talk Button
E
N
T
U
R
Y
November 28, 2007
E
N
T
U
R
Y
i
c
a
t
i
o
n
s
i
c
a
t
i
o
n
s
• Stadiums
• Convention centers
i
f
i
c
a
t
i
o
n
s
i
f
i
c
a
t
i
o
n
s
