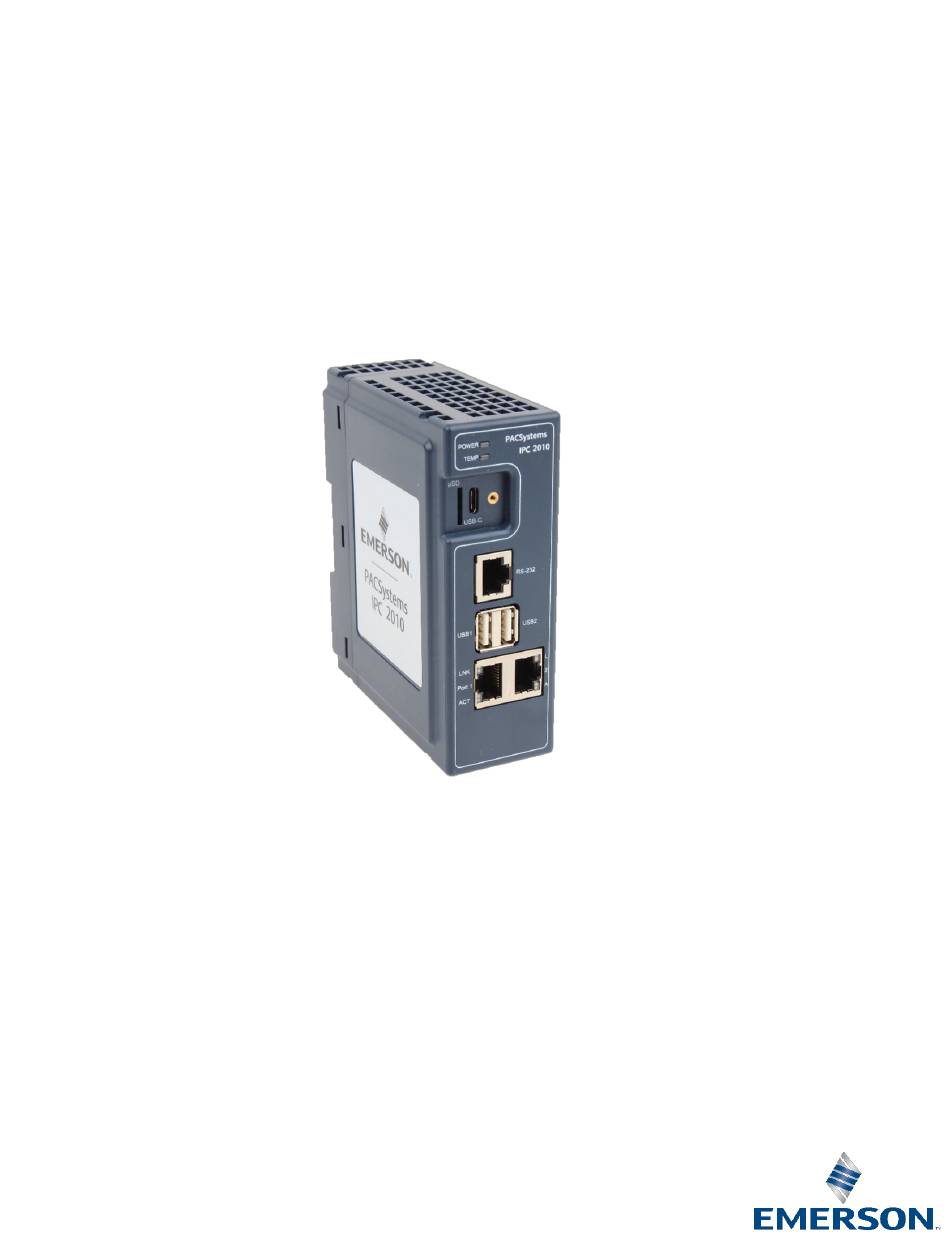

- Page 1 PACSystems IPC 2010 Hardware Reference Manual GFK-3265A Oct 2023 PACSystems™ IPC 2010 HARDWARE REFERENCE MANUAL...
-
Page 2: Table Of Contents
PACSystems IPC 2010 Hardware Reference Manual Contents GFK-3265A Oct 2023 Contents Section 1: Introduction ..............1 Document History ......................1 Software Requirements ....................1 Features .......................... 1 Section 2: Unpacking and Inspection ..........2 Package Contents ......................2 Available Options and Accessories ................... 2 ESD and EMI ........................ - Page 3 PACSystems IPC 2010 Hardware Reference Manual Contents GFK-3265A Oct 2023 5.1.3 Ethernet Ports ....................13 5.1.5 USB ........................14 5.1.6 USB-C ......................15 5.1.7 Serial Ports ...................... 16 5.1.9 µSD Slot ......................17 Internal Devices ......................17 5.2.1 eMMC ....................... 17 Section 6: Specifications ...............
- Page 4 Changes, modifications, and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for use by trained personnel familiar with the Emerson products referenced herein.
-
Page 5: Introduction

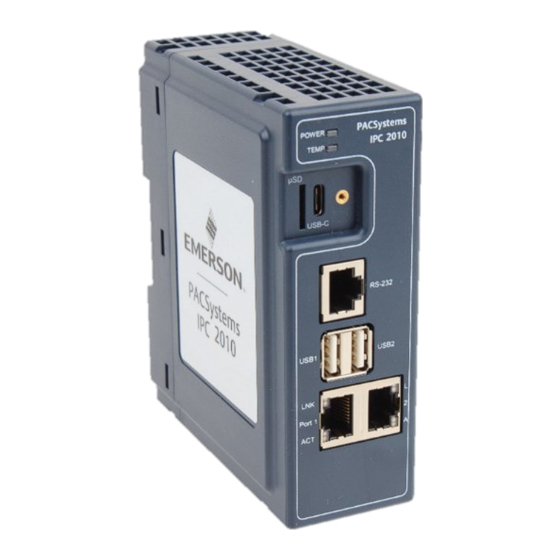

PACSystems IPC 2010 Hardware Reference Manual Section 1 GFK-3265A Oct 2023 Section 1: Introduction The IPC 2010 industrial computing platform delivers high-efficiency computing performance and graphics capabilities in a compact, ruggedized package. Utilize the IPC 2010 computing platform to execute data collection and aggregation, protocol conversion, and basic analytics applications for real-time control and visualization of operations. -
Page 6: Unpacking And Inspection
Description Item YLB-UIPC-01-1 USB-C to DisplayPort Cable 1,8m Note: For the most current information on options and accessories, contact the nearest Emerson sales or service office, or an authorized Emerson sales representative. Options are subject to change without notice. Mounting... -
Page 7: Esd And Emi
Any operational system with cables for I/O signals, connectivity, or peripheral devices provides an entry point for ESD and EMI. If Emerson has not manufactured the complete system, including the enclosure and cables, then it is the responsibility of the system integrator and end-user to protect their system against potential problems. -
Page 8: Unpack And Inspect
If evidence of damage or rough handling is found (usually in the form of bent component leads or loose socketed components), notify the shipping service as soon as possible and contact Emerson for additional instructions. Depending on the severity of the damage, it may be necessary to return the product to the factory for repair. -
Page 9: Handling
PACSystems IPC 2010 Hardware Reference Manual Section 2 GFK-3265A Oct 2023 Handling WARNING If the IPC 2010 operates in high ambient temperature up to 70°C (149 ° F). Be careful and do not touch the IPC 2010 with bare fingers. -
Page 10: Mounting
PACSystems IPC 2010 Hardware Reference Manual Section 3 GFK-3265A Oct 2023 Section 3: Mounting DIN Rail Mounting To mount the IPC 2010 to a DIN rail, insert the module onto the DIN rail and swing the bottom of the module into place until the spring release tab clicks. -
Page 11: Installation And Startup
Required Materials The following items are required to start the IPC 2010 in a standard configuration: • Power supply, such as Emerson SVL424100, 96W, AC-to-24VDC DIN Power Supply • Keyboard and mouse (optional) • Emerson video monitor (optional) •... -
Page 12: Power Supply
The IPC 2010 has been thoroughly tested and is nearly ready for usage in the target system. To verify operation for the first time, Emerson recommends that you only configure a minimal system. It is not necessary to have USB disk drives, a USB stick, or other accessories connected, to perform the Power-On Self-Test (POST). -
Page 13: Power-Input
PACSystems IPC 2010 Hardware Reference Manual Section 4 GFK-3265A Oct 2023 4.4.2 Power-Input To power the system, a voltage of 24 V DC (supports wide range power supply) must be supplied to the power connector. The IPC 2010 power supply must meet the requirements for SELV (safety extra-low voltage)/LPS (limited power source) or ES1/PS2 appropriately rated for the ambient and altitude of the application. -
Page 14: Pre-Installed Software Images
PACSystems IPC 2010 Hardware Reference Manual Section 4 GFK-3265A Oct 2023 4.4.7 Pre-Installed Software Images IPC 2010 comes with two pre-installed software options: • Ubuntu Desktop 20.04.05 LTS • PACEdge v2.3.0 (based on Ubuntu 20.04 Server) Depending on pre-installed software, login credentials and some of the configuration tasks are different. -
Page 15: Thermal Protection
PACSystems IPC 2010 Hardware Reference Manual Section 4 GFK-3265A Oct 2023 Networking Configuration In Ubuntu Desktop, the interface Port 1 is named eth1, the interface Port 2 is named eth0. CAUTION MULTIPLE DEVICES WITH THE SAME IP ADDRESS ON THE SAME NETWORK CAN LEAD TO ADDRESS CONFLICTS WITH UNPREDICTABLE BEHAVIOR. -
Page 16: Installation And Replacement Procedures
PACSystems IPC 2010 Hardware Reference Manual Section 8 GFK-3265A Oct 2023 Section 5: Installation and Replacement Procedures External Interfaces 5.1.1 Power-In The corresponding plug must be a Phoenix Contact “1748367” or equivalent. IPC 2010 can be powered with a DC power supply (recommended power rating at least 25W). IPC 2010 input voltage range is 10V to 30V and maximum power consumption is 11W. -
Page 17: Ethernet Ports
PACSystems IPC 2010 Hardware Reference Manual Section 8 GFK-3265A Oct 2023 5.1.3 Ethernet Ports The IPC 2010 provides two Ethernet ports. Both Ethernet ports support 10/100/1000 Base-T. For a proper 1000 Mbit connection, a minimum of CAT5e cable is recommended. -
Page 18: Usb
PACSystems IPC 2010 Hardware Reference Manual Section 8 GFK-3265A Oct 2023 5.1.5 The IPC 2010 provides two USB2.0 (480MBit) type A Host ports and one USB-C port (USB2.0 480MBit + one DP lane up to 5GBit ) . Each USB port is protected with an electrical fuse rated up to 1 A. -
Page 19: Usb-C
The IPC 2010 provides DisplayPort via the USB-C connector. The USB-C connector is reversable and can be inserted either side up. This requires a special Emerson USB-C to Display Port cable: Order Code YLB-UIPC-01-1 This cable has a screw to fix the cable to the housing. -
Page 20: Serial Ports
PACSystems IPC 2010 Hardware Reference Manual Section 8 GFK-3265A Oct 2023 5.1.7 Serial Ports The IPC 2010 provides one serial interface (RS232). The connector is a standard RJ45. Figure 8: Serial Ports The pinout for RJ-45 (8P8C) connector is defined as follows:... -
Page 21: Μsd Slot
PACSystems IPC 2010 Hardware Reference Manual Section 8 GFK-3265A Oct 2023 5.1.9 µSD Slot The IPC 2010 provides a µSD card slot. Figure 9: µSD Slot Signal Name DATA2 DATA3 DATA0 DATA1 Internal Devices 5.2.1 eMMC The IPC 2010 provides 32 or 64 GB eMMC of primary storage device. -
Page 22: Specifications
PACSystems IPC 2010 Hardware Reference Manual Section 10 GFK-3265A Oct 2023 Section 6: Specifications This chapter provides specifications and other useful information about IPC 2010. Cable Port Restrictions Maintenance Max. cable Shielded Cable Port Name Port (**) length (m) Required... -
Page 23: Temperature
PACSystems IPC 2010 Hardware Reference Manual Section 10 GFK-3265A Oct 2023 Temperature Ambient temperatures and humidity values for the IPC 2010 are provided in the following table. For more details on the operating temperature and its dependency on application software, please refer to the Thermal Design section. -
Page 24: Regulations And Certifications
PACSystems IPC 2010 Hardware Reference Manual Section 10 GFK-3265A Oct 2023 Regulations and Certifications 6.6.1 IPC 2010 Item Specification EMC Directive 2014/30/EU EN 61000-6-4 Emission standard for industrial environments EN 61000-6-2 Immunity standard for industrial environments FCC Part 15 B This device complies with part 15 of the FCC Rules. - Page 25 PACSystems IPC 2010 Hardware Reference Manual Section 10 GFK-3265A Oct 2023 - Only replace with CR2032 battery. Batteries may explode if mistreated. Do not charge, disassemble, or incinerate. - Remplacez uniquement par une pile CR2032. Les piles peuvent exploser si elles sont...
-
Page 26: Technical Specifications
PACSystems IPC 2010 Hardware Reference Manual Section 10 GFK-3265A Oct 2023 Technical Specifications Item Specification Processor ARM Cortex-A53 CPU Cores (2 Cores at 1.2 GHz) Memory 2 GB DDR4-1600 Two 10/100/1000BASE-T Ethernet ports Ethernet DisplayPort via USB-C connector Graphics Two USB 2.0... -
Page 27: General Contact Information
Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use, or maintenance of any product.
