Summary of Contents for ViewSonic VE702m

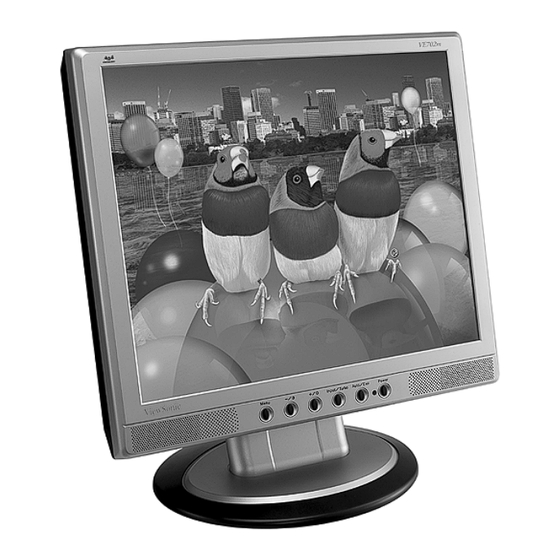

- Page 1 ® ViewSonic VE702m LCD Display - User Guide - Guide de l'utilisateur - Bedienungsanleitung - Guía del usuario - Guida dell'utente - Guia do usuário - Användarhandbok - Käyttöopas - Podr cznik u ytkownika - Használati útmutató - Py - Uživatelská píruka...
-
Page 2: Table Of Contents
Screen Adjustments... 4 OSD Control ... 5 OTHER INFORMATION Trouble Shooting ... 8 Customer Support... 9 Maintenance ... 10 Limited Warranty... 11 APPENDIX Saft Guidelines ... 12 Compliance Information for U.S.A..13 CE Conformity for Europe... 13 09/15/04 ViewSonic VE702m... -
Page 3: Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic. Product Name:... -
Page 4: Product
Power control system, also called (Power Saver), is installed inside the LCD Monitor. If the monitor has not been used for a certain period of time, the system will turn the monitor to low voltage mode to save power. Slight moving or any click will return to the original image. -
Page 5: Safety
Do not place items over the monitor when placing and adjusting the LCD monitor. If the LCD monitor is not in use for a long time, please unplug it and restore it into the proper package, the original carton & packaging stuffs are preferred. -
Page 6: Set Up Your Lcd Monitor
Turn off the LCD monitor and reconnect signal cable, and then turn the computer and LCD monitor on. If the LED of the LCD monitor is an orange color after completing the steps above, please check your VGA card and computer system. Your monitor should be... -
Page 7: Osd Control
OSD Control Thanks to the user-friendly design of OSD (On Screen Display), you can adjust your monitor by the keypads in the front of the monitor. Keypad Button Definition Power Switch Auto / Exit Turbo Menu Speaker Power On/Off Power Indicator... - Page 8 Operate Explanation Your LCD has been adjusted to its optimal status before shipment. You can also adjust the image in accordance with the following illustrations and steps. Color Temp. Selection Volume Adjustment V-Position Image Adjustment Notes Press the “Menu” button to start the OSD feature. Click the “+”...
- Page 9 Adjustment of Screen Function Definition Primary Directory Image Audio Color Language Settings Input Source (Optional) You can skip the Menu pages and display an adjustment scale directly by using the Direct following button operations: Secondary Directory Brightness Adjust the brightness of the screen. Contrast Adjust the contrast of the image.
-
Page 10: Other Information
Make sure power button is ON. Check whether the LCD monitor and computer power cords are plugged and whether there is a supply of power. Check the signal connection between the computer and LCD monitor. -
Page 11: Customer Support
Baltic countries/ North Africa" Australia and New Zealand Singapore/ Malaysia/Tailand South Africa/Other countries You will need the product serial number. Web site www.viewsonic.com/support/ www.viewsonic.com/support/ www.viewsoniceurope.com www.viewsoniceurope.com www.viewsonic.com.au/support/ www.viewsonic.com.sg/support/ www.viewsonic.com www.hk.viewsonic.com/support/ T = Telephone Email F = Fax T= (800) 688 6688 service.us@viewsonic.com... -
Page 12: Maintenance
To clean your accessories, use water or mild cleaner, as above, to gently moist a soft, clean cloth. If the LCD monitor is not in use for a long time, please unplug and save in original box in order to avoid any unexpected damage. -
Page 13: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 14: Appendix
Appendix Safety Guidelines CAUTION: The socket-outlet should be installed near the equipment and should be easily accessible. CAUTION: Use a power cable that is properly grounded. Always use the appropriate AC cord that is certified for the individual country. Some examples are listed below: USA... -
Page 15: Compliance Information For U.s.a
Compliance Information for U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation.
