Carrier KSACN0901AAA Owner's Manual

Carrier KSACN0901AAA Owner's Manual

Wired remote controller 7 day programmable thermostat ductless systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wired Remote Controller
7 Day Programmable Thermostat
Ductless Systems
KSACN0901AAA (High Wall)
Owner's Manual

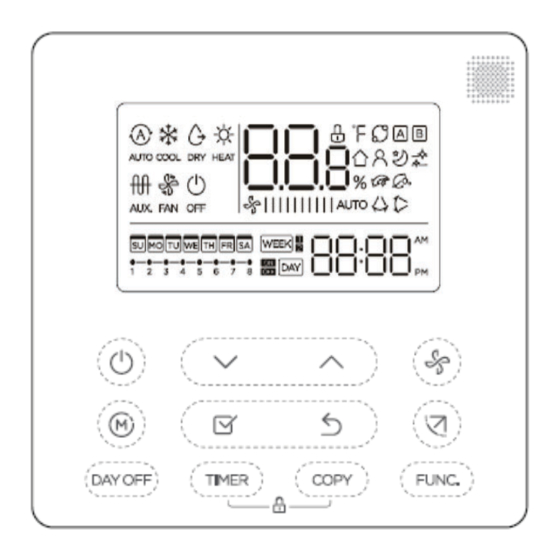

Fig. 1 — Wired Controller
NOTE: Images are for illustration purposes only. Actual models may differ slightly.
Specifications subject to change without notice.
OM-KSACN0901-02

Advertisement

Table of Contents
loading

Related Manuals for Carrier KSACN0901AAA

Summary of Contents for Carrier KSACN0901AAA

  • Page 1 Wired Remote Controller 7 Day Programmable Thermostat Ductless Systems KSACN0901AAA (High Wall) Owner’s Manual Fig. 1 — Wired Controller NOTE: Images are for illustration purposes only. Actual models may differ slightly. Specifications subject to change without notice. OM-KSACN0901-02...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE SAFETY CONSIDERATIONS...................3 WIRED CONTROLLER FEATURES AND FUNCTIONS..........5 WIRED CONTROLLER DISPLAY ...................6 WIRED CONTROLLER FUNCTIONS ................7 INITIAL SETUP........................8 WEEK AND DAY SETTINGS FOR WEEK 1 ..............16 WEEKLY TIMER OPERATION ..................18 WEEK AND DAY SETTINGS FOR WEEK 2 ..............23 WIRED CONTROLLER ERROR CODES ..............32 QUERIES AND SETTINGS .....................33 TECHNICAL INDICATION AND REQUIREMENT .............38...

  • Page 3: Safety Considerations

    SAFETY CONSIDERATIONS Installing, starting up, and servicing air-conditioning equipment can be hazardous due to system pressures, electrical components, and equipment location (roofs, elevated structures, etc.). Only trained, qualified installers and service mechanics should install, start-up, and service this equipment. Untrained personnel can perform basic maintenance functions such as cleaning coils. When working on the equipment, observe precautions in the literature and on tags, stickers, and labels attached to the equipment.
  • Page 4 CAUTION ELECTRICAL SHOCK HAZARD Failure to follow this warning could result in personal injury or death. Before beginning any modification or installation of this kit, ensure the main electrical disconnect is in the OFF position. Ensure power is disconnected to the fan coil unit. On some systems both the fan coil and the outdoor unit may be on the same disconnect.

  • Page 5: Wired Controller Features And Functions

    WIRED CONTROLLER FEATURES AND FUNCTIONS Functions: • Mode: select AUTO-LOW-DRY-HEAT-FAN • Fan Speed: AUTO/LOW/MEDIUM/HIGH • Swing (on some models) • Timer ON/OFF • Temperature Setting • Weekly Timer • FOLLOW ME • Turbo • 24-Hour System • 12-Hour System Fig. 2 — Wired Controller •...

  • Page 6: Wired Controller Display

    WIRED CONTROLLER DISPLAY Fig. 3 — Wired Controller Display 1. Operation mode indication 9. Electric Auxiliary Heat/Turbo Function 2. Fan speed indication NOTE: AHU models only have Turbo function. 3. Temperature display 10. Left-Right Swing Lock indication 11. Clock display 5.

  • Page 7: Wired Controller Functions

    WIRED CONTROLLER FUNCTIONS Fig. 4 — Wired Controller Functions 1. Power 7. Fan Speed 2. Mode 8. Back 3. Day Off/Del 9. Swing 4. Adjust 10. Function 5. Confirm 11. Copy 6. Timer 12. IR (Infrared) Signal Receiver OM-KSACN0901-02 Specifications subject to change without notice.

  • Page 8: Initial Setup

    INITIAL SETUP Set the current day and time 4. Press the UP or DOWN arrows (Fig. 6) to set the current time. Press repeatedly to adjust the current time in 1-minute NOTE: The Wired Controller can be powered increments. Press and hold to adjust the ON or OFF during this step.
  • Page 9 Start and Stop Operation Room Temperature Setting • Press POWER (Fig. 10) to power on the 1. Press the UP or DOWN arrow (Lower or Raise controller. (see Fig.13)) to set the room temperature. NOTE: This function in unavailable in FAN mode. Raise Fig.
  • Page 10 Fan Speed Use the Child Lock Function • Press FAN SPEED to set the fan speed. Activate the Child Lock NOTE: This function is unavailable when the • Press TIMER and COPY (Fig. 16) together unit is in AUTO or DRY mode. for 3 seconds to activate the CHILD LOCK function and lock all the buttons on the wired controller.
  • Page 11 Use the Swing ( Sleep UP-DOWN) Function (for some models only) In the AUTOMATIC, COOLING or HEATING 1. Press SWING (Fig. 18) for 2 seconds to start mode, press FUNC. to select the SLEEP icon, the UP-DOWN LOUVER SWING function. and then press CONFIRM to turn the SLEEP When the function is activated, the UP - function on or off, and set the wind speed to...
  • Page 12 Turbo (on some models) Under the COOL or HEAT mode, TURBO and When TURBO is activated, the TURBO FOLLOW ME can be activated. icon appears (see Fig. 23). 1. Press FUNC. to set the TURBO or FOLLOW ME function. The select function icon flashes. Fig.
  • Page 13 FOLLOW ME Activate FOLLOW ME 1. Press FUNC. to select the FOLLOW ME icon. 2. Press CONFIRM to activate FOLLOW ME. Deactivate FOLLOW ME 1. Press FUNC. to select the FOLLOW ME icon. 2. Press CONFIRM to deactivate. Indoor Unit When the FOLLOW ME function indication appears, the room temperature is detected by the sensor...
  • Page 14 Timer Functions For more information, see “To Set the ON or OFF TIMER” on page 15. • Weekly: Use the WEEKLY function to set operating times for each day of the week. Fig. 25 — WEEK • On: Day: Use the ON:DAY function to start air conditioner operation. Fig.
  • Page 15 To Set the ON or OFF TIMER 1. Press TIMER to select the ON:DAY or OFF:DAY. No display Fig. 29 — Select the ON:DAY or OFF:DAY 2. Press CONFIRM and the TIMER display flashes. Fig. 30 — Confirm 3. Press the UP or DOWN arrow to set the time. After the time is set, the timer starts or stops. ex.

  • Page 16: Week And Day Settings For Week 1

    WEEK AND DAY SETTINGS FOR WEEK 1 WEEK 1 Timer Setting 1. Press TIMER (several times if needed) to select WEEK 1. 2. Press CONFIRM. Fig. 33 — Press Timer then Confirm Day of the WEEK Setting 1. Press the UP or DOWN arrow to select the day of the week. 2.
  • Page 17 SET the ON Timer for Timer Setting 1 1. Press the UP or DOWN arrow to set the time of the ON timer. 2. Press CONFIRM. Fig. 35 — Up or Down Arrow - Confirm ex.Tuesday time scale 1 Up to 4 timer settings can be saved for each day of the week. Fig.

  • Page 18: Weekly Timer Operation

    WEEKLY TIMER OPERATION To activate the WEEKLY TIMER operation 1. Press and release TIMER until WEEK 1 appears on the display. Fig. 38 — Press Timer To deactivate the WEEKLY TIMER operation 1. Press and release TIMER until WEEK 1 no longer appears on the display. Fig.
  • Page 19 To Turn Off the Air Conditioner with the Week Timer 1. Press POWER and the air conditioner turns OFF temporarily. The air conditioner turns back on automatically when the ON timer’s set time is reached. For example, press POWER once at 10:00 AM, the air conditioner turns back on at the timer setting 2:00 PM (Fig.
  • Page 20 Set the DAY OFF For WEEK 1 1. Select WEEK 1 then press CONFIRM. For more information, see “WEEKLY TIMER OPERATION” on page 18. Fig. 41 — Confirm 2. Press the UP or DOWN arrow to select the day of the week. Fig.
  • Page 21 Copy the Setting from One Day to Another A scheduled event, made once, can be copied to another day of the week. The scheduled events of the selected day will also be copied to the new day. 1. During the weekly timer, press CONFIRM. Fig.
  • Page 22 5. Press COPY to confirm. mark flashes quickly ex. Copy the setting of Monday to Wednesday Fig. 49 — Copy Other days can be copied by repeating steps 4 through 5. 6. Press CONFIRM. Fig. 50 — Confirm 7. Press BACK to revert to the weekly timer. Fig.

  • Page 23: Week And Day Settings For Week 2

    WEEK AND DAY SETTINGS FOR WEEK 2 WEEK 2 Timer Setting 1. Press TIMER (repeatedly if need be) to select WEEK 2 2. Press CONFIRM. Fig. 52 — Timer and Confirm Day of the WEEK 2 Setting 1. Press the UP or DOWN arrow to select the day of the week. 2.
  • Page 24 SET the ON Timer for Timer Setting 1 1. Press the UP or DOWN arrow to select the timer setting number of the day (1-8). 2. Press CONFIRM. Fig. 54 — Up or Down Arrows - Confirm ex.Tuesday time scale 1 Up to 8 timer settings can be saved for each day of the week.
  • Page 25 SET the ON Timer for Timer Setting 1 1. Press the UP or DOWN arrow to select the setting time. The setting time, mode, temperature and fan speed appear on the display. 2. Press CONFIRM to enter the setting time process. Fig.
  • Page 26 Room Temperature Setting 1. Press the UP or DOWN arrow to set the room temperature. 2. Press CONFIRM. Fig. 59 — Press UP or DOWN Arrow - Confirm NOTE: This setting is unavailable in the FAN or OFF modes. Fan Speed Setting 1.
  • Page 27 Weekly Timer Operation To start the Weekly Timer Operation 1. Press TIMER to select WEEK 2, and the timer starts automatically. Fig. 61 — Select Timer To cancel the Weekly Timer Operation 1. Press POWER for 2 seconds. The wired controller must be ON to perform the function. Fig.
  • Page 28 Set the DAY OFF (for WEEK 2) 1. Select WEEK 2 then press CONFIRM. See “Weekly Timer Operation” on page 27. Fig. 64 — Confirm 2. Press the UP or DOWN arrow to select the day of the week. Fig. 65 — Up or Down Arrows 3.
  • Page 29 Copy the Setting From One Day to Another A scheduled event, made once, can be copied to another day of the week. The scheduled events of the selected day of the week will be copied. Using the COPY mode simplifies scheduling. 1.
  • Page 30 5. Press COPY to confirm. mark flashes quickly ex. Copy the setting of Monday to Wednesday Fig. 70 — Press Copy Other days can be copied by repeating steps 4 through 5. 6. Press CONFIRM to confirm the settings. Fig. 71 — Confirm 7.
  • Page 31 Delete the Time Scale in One Day 1. During the weekly timer setting, press CONFIRM. Fig. 73 — Confirm 2. Press the UP or DOWN arrow to select the setting time you want to delete. The setting time, mode, temperature and fan speed appear on the display. The setting time, mode, temperature and fan speed can be deleted by pressing the DAY OFF.

  • Page 32: Wired Controller Error Codes

    WIRED CONTROLLER ERROR CODES Table 1 — Error Codes DISPLAY ON IDU AND ERROR INFORMATION WIRED CONTROLLER Indoor unit EEPROM parameter error EH 00/EH 0A Indoor/outdoor unit communication error EL 01 Zero-crossing signal detection error EH 02 Indoor fan operating outside of the normal range EH 03 Outdoor unit EEPROM parameter error EC 51...

  • Page 33: Queries And Settings

    QUERIES AND SETTINGS CAUTION: All changes should be performed ONLY by authorized professionals. Indoor Unit Tx Temperature Query Function 1. When the air conditioning unit is OFF, press COPY for 3 seconds to enter query mode on the wired controller. Fig.
  • Page 34 Auto Airflow Adjustment 1. When the air conditioning unit is OFF and in QUERY mode, press the UP or DOWN arrow to select AF (For Ducted Models Only). Fig. 78 — Up or Down Arrows - Select AF 2. Press CONFIRM to activate AF mode 3.
  • Page 35 FOLLOW ME Mode Temperature Compensation 1. When the air conditioning unit is OFF and in QUERY mode, press the UP or DOWN arrow to select tF. The compensation temperature Range: 23°F ~ 41°F (-5°C~5°C). Fig. 80 — Up or Down Arrows - Select Confirm 2.
  • Page 36 Set the Minimum and Maximum Temperature Values 1. When the air conditioning unit is OFF and in QUERY mode, press the UP or DOWN arrow to select tHI or tLo. Fig. 83 — UP or DOWN Arrows - Select 2. Press CONFIRM to enter the setting. 3.
  • Page 37 Remote Control Mode Setting for the Wired Controller 1. When the air conditioning unit is OFF and in QUERY mode, press the UP or DOWN arrow to select rEC. Fig. 84 — UP or DOWN Arrow - Select rEC 2. Press CONFIRM to enter the mode setting. 3.

  • Page 38: Technical Indication And Requirement

    Restore Factory Settings 1. When the air conditioning unit is OFF and in QUERY mode, press the UP or DOWN arrow to select , the temperature zone appears --. Fig. 85 — UP or DOWN Arrows - Select 2. Press CONFIRM to enter the setting. 3.
