Carrier KSACN1001AAA Owner's Manual

Wired remote controller 7 day programmable thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wired Remote Controller
7 Day Programmable Thermostat
Ductless Systems
KSACN1001AAA
Owner's Manual

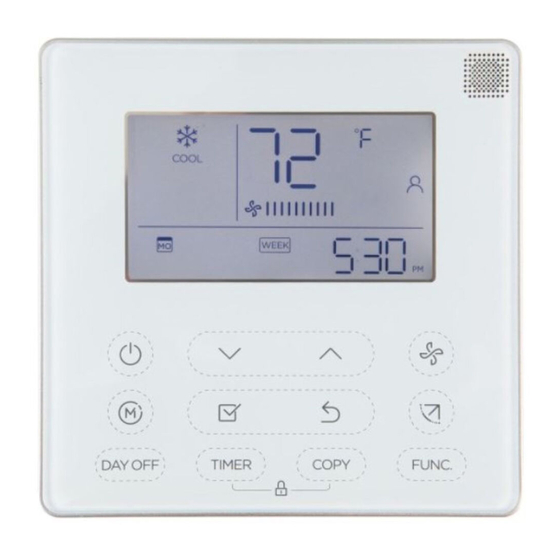

Fig. 1 — Wired Controller
NOTE: Images are for illustration purposes only. Actual models may differ slightly.
Specifications subject to change without notice.
OM-KSACN1001AAA-01

Advertisement

Table of Contents
loading

Related Manuals for Carrier KSACN1001AAA

Summary of Contents for Carrier KSACN1001AAA

  • Page 1 Wired Remote Controller 7 Day Programmable Thermostat Ductless Systems KSACN1001AAA Owner’s Manual Fig. 1 — Wired Controller NOTE: Images are for illustration purposes only. Actual models may differ slightly. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 2: Table Of Contents

    STATIC PRESSURE QUERY FUNCTION..............34 TECHNICAL INDICATION AND REQUIREMENT .............39 NOTE: In order to properly service the wired controller, read this manual carefully prior to operating the unit. Keep this manual after reading for future reference. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 3: Safety Considerations

    WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 4 Failure to follow this caution may result in equipment damage or improper operation. Do not install the wired controller in an area subjected to excessive steam, oil or sulfide gas. Doing so may damage the controller and/or cause it to fail. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 5: Wired Controller Features And Functions

    • 4-way wire layout design, smooth rear • Child Lock surface makes it easier to position the wires • LCD display and install the controller • Clock • Room temperature display • Weekly timer 0M-KSACN1001AAA-01 Specifications subject to change without notice.

  • Page 6: Wired Controller Display

    10. Left-Right Swing (not available) Lock indication 11. Clock display 5. °F / °C indication 12. ON/OFF Timer 6. Room temperature indication 13. Timer Display 7. Follow Me function indication 8. Sleep mode indication Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 7: Wired Controller Functions

    Fig. 4 — Wired Controller Functions 1. Power 7. Fan Speed 2. Mode 8. Back 3. Day Off/Del 9. Swing (not available) 4. Adjust 10. Function 5. Confirm 11. Copy 6. Timer 12. IR (Infrared) Signal Receiver 0M-KSACN1001AAA-01 Specifications subject to change without notice.

  • Page 8: Initial Setup

    Fig. 6 —Up or Down Arrows Fig. 9 — Timer Fig. 7 — Days of the Week 3. Press TIMER to confirm. If there is no button pressed within 10 seconds, the displayed week day will be saved. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 9 Under this function, the unit heats at high fan speed until the space temperature is 46°F (8°C). This mode can also be deactivated by pressing POWER, MODE, FAN SPEED, TIMER, or either ADJUST arrow. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 10 UP or DOWN arrow for 3 seconds for 3 seconds to disable the keypad tone. to alternate the temperature display between the °F and °C scale. Fig. 16 — Keypad Tone Set Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 11 NOTE: The electric auxiliary heating function of the cancels the SLEEP function. AHU model is controlled by the MODE button, and TURBO the FUNC. button is for the function. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 12 2. Press CONFIRM to activate FOLLOW ME. 2. Press CONFIRM to deactivate. Indoor Unit When the FOLLOW ME function indication appears, the room temperature is detected by the sensor in the wired controller. Fig. 22 — FOLLOW Me Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 13 • Off:Day: Use the OFF:DAY function to stop air conditioner operation. Fig. 25 — OFF:DAY • On and Off:Day: Use the On and Off: Day function to start and stop air conditioner operation. Fig. 26 — ON and OFF:DAY 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 14 3. Press the UP or DOWN arrow to set the time. After the time is set, the timer starts or stops. ex. Off timer set at 18:00 Fig. 29 — Up or Down arrow to set time 4. Press CONFIRM. Fig. 30 — Confirm NOTE: The secondary wired controller cannot set the timer. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 15: Week And Day Settings For Week 1

    Day of the WEEK Setting 1. Press the UP or DOWN arrow to select the day of the week. 2. Press CONFIRM. Fig. 32 — Press Up and Down Arrows - Select Day - Confirm 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 16 NOTE: Users can revert to the previous step by pressing BACK. The time of the timer setting can be deleted by pressing DAY OFF. The current setting is restored and the weekly timer setting is withdrawn when there is no operation selected in 30 seconds. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 17: Weekly Timer Operation

    1. Press and release TIMER until WEEK 1 appears on the display. Fig. 36 — Press Timer To deactivate the WEEKLY TIMER operation 1. Press and release TIMER until WEEK 1 no longer appears on the display. Fig. 37 — Press Timer 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 18 AM, the air conditioner turns back on at the timer setting 2:00 PM (Fig. 38). 8:00AM 10:00AM 12:00PM 2:00PM 5:00PM Fig. 38 —Weekly Timer Display 2. Press POWER for 2 seconds, the air conditioner turns off completely and cancels the timing function. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 19 A DAY OFF can be set for other days by repeating steps 2 through 3. 4. Press BACK to revert to the weekly timer. Fig. 42 — Back The DAY OFF setting is canceled at the end of the set day. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 20 This step causes the unit to override in 1 hour; Press Del three times, the unit display 2h. Wait 3 seconds to confirm (the unit will now override 2 hours. Fig. 43 — Delay Function Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 21 3. Press COPY, CY appears on the display. Fig. 46 — Copy 4. Press the UP or DOWN arrow to select the day to copy to. Fig. 47 — Up or Down Arrow 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 22 Fig. 48 — Copy Other days can be copied by repeating steps 4 through 5. 6. Press CONFIRM. Fig. 49 — Confirm 7. Press BACK to revert to the weekly timer. Fig. 50 — Back Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 23: Week And Day Settings For Week 2

    Day of the WEEK 2 Setting 1. Press the UP or DOWN arrow to select the day of the week. 2. Press CONFIRM. Fig. 52 — Up or Down Arrows - Select Day - Confirm 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 24 2. Press CONFIRM. Fig. 53 — Up or Down Arrows - Confirm ex.Tuesday time scale 1 Up to 8 timer settings can be saved for each day of the week. Fig. 54 — Timer Settings Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 25 Fig. 56 — Select Events Operation Mode Setting 1. Press the UP or DOWN arrow to set the OPERATION mode. 2. Press CONFIRM. Fig. 57 — Press UP or DOWN Arrows - Select Mode - Confirm 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 26 The weekly timer setting can be returned to the previous step by pressing BACK. The current setting is restored. The controller will not save the weekly timer settings if there is no operation within 30 seconds. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 27 1. Press POWER for 2 seconds. The wired controller must be ON to perform the function. Fig. 61 — Power Cancel the TIMER mode by changing the timer mode using TIMER. Fig. 62 — Press Timer 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 28 A DAY OFF can be set for other days by repeating steps 2 through 3. 4. Press BACK to revert to the weekly timer. NOTE: To cancel, follow the same procedures used for setup. The DAY OFF setting is canceled at the end of the set day. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 29 Fig. 67 — Up or Down Arrows 3. Press COPY; the letters CY appear on the display. Fig. 68 — Press Copy 4. Press the UP or DOWN arrow to select the day to copy to. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 30 Other days can be copied by repeating steps 4 through 5. 6. Press CONFIRM to confirm the settings. Fig. 70 — Confirm 7. Press BACK to revert to the weekly timer. Fig. 71 — Back Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 31 The setting time, mode, temperature and fan speed can be deleted by pressing the DAY OFF. ex. Delete the time scale 1 in Saturday Fig. 73 — Select Day 0M-KSACN1001AAA-01 Specifications subject to change without notice.

  • Page 32: Wired Controller Error Codes

    NOTE: The error displayed on the wire controller differs from the error displayed on the unit. If the error code appears, check the Owner’s, Installation Manual and Service Manual for the model number of the unit or wired controller the error appears on. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 33: Queries And Settings

    “Confirm” to query the Air Handler Unit’s Tn(T1~T4) temperature and fan fault (CF), press up or down to select. Not pressing a key for 15 seconds or pressing “Back” or “ON/OFF” exits the temperature query function. Fig. 75 — Up or Down Arrows 0M-KSACN1001AAA-01 Specifications subject to change without notice.

  • Page 34: Static Pressure Query Function

    Fig. 76 — Up or Down Arrows 2. Press CONFIRM to adjust the static pressure value. 3. Press the UP or DOWN arrow to select the static pressure value (0~4). 4. Press CONFIRM to select the value. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 35 4. To interrupt or exit the AF mode at anytime, press BACK or press ON/OFF or press CONFIRM. If there is no response for 30 seconds, the wired controller exits the query mode. Fig. 78 — Back - Confirm 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 36 2. Press CONFIRM to enter TYPE, press UP or DOWN arrow to select the type (see Fig. 81). CH: HEAT PUMP HH: HEATING ONLY NA: No AUTO MODE CC: COOLING ONLY Fig. 81 — Press CONFIRM 3. Press CONFIRM. Specifications subject to change without notice. OM-KSACN1001AAA-01...
  • Page 37 4. Press CONFIRM to complete. The maximum setting temperature range is 77°F~86°F (25°C~30°C). The minimum setting temperature range is 62.6°F~75.2°F (17°C ~24°C). NOTE: Factory default setting on is “- -”. • Maximum value setting function • Minimum value setting function 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 38 4. Press CONFIRM. NOTE: ON or OFF (OF) appears in the temperature area to indicate the remote control mode. When the selection is OFF (OF), the wire controller does not process any remote control signals. Specifications subject to change without notice. OM-KSACN1001AAA-01...

  • Page 39: Technical Indication And Requirement

    3. Press the UP or DOWN arrow to select ON. 4. Press CONFIRM. NOTE: All the Wired Controller's settings are restored to the factory default settings. TECHNICAL INDICATION AND REQUIREMENT EMC and EMI comply with the CE certification requirements. 0M-KSACN1001AAA-01 Specifications subject to change without notice.
  • Page 40 Copyright 2022 CAC/BDP D 3300 Riverwood Parkway Atlanta GA, 30339 Edition Date: 03/22 Catalog No. OM-KSACN1001AAA-01 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Replaces: NEW...
